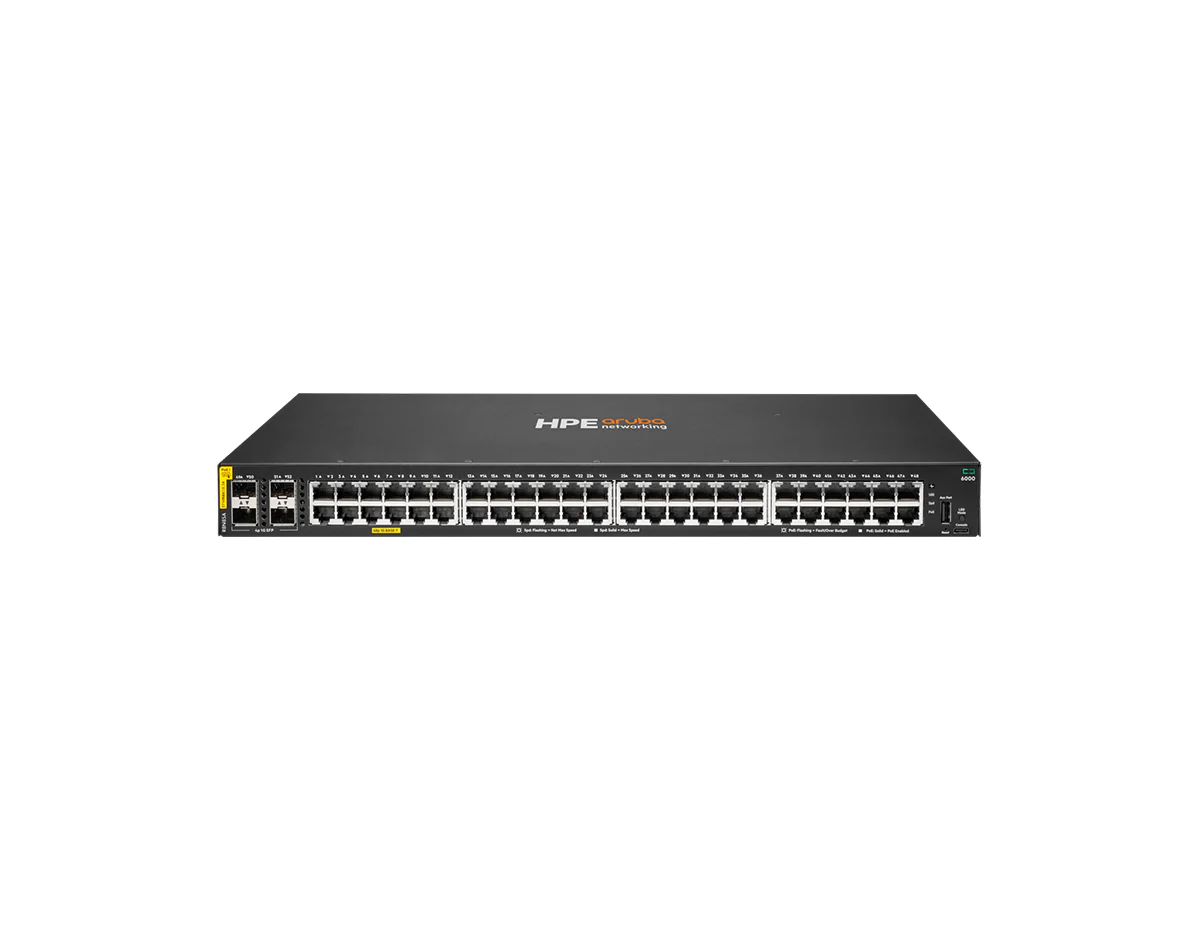

HPE Aruba Networking R8N85A 6000 48G Switch
- Managed, Rack-mountable, 48 x 1G PoE+ ports, 4 x 1G SFP Uplinks, PoE+ (370W), Layer 2 with Static Routing
[properties]
| Properties | HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch (R8N85A) |
| Description | Entry-level fully managed access switch with 48 Gigabit PoE+ ports, 4 SFP uplinks, and static routing. Designed for branch offices, midsize businesses, and small enterprises. |
| Product Family | CX 6000 Switch Series |
| Product Type | Ethernet Switch |
| I/O ports and slots | 48x 10/100/1000BASE-T Class 4 PoE Ports |
| 4x 1G SFP ports | |
| Additional ports and slots | 1x USB-C Console Port 1x USB Type-A Host port |
| Electrical characteristics | |
| Input Voltage | 100-127 VAC / 200-240 VAC |
| Power Consumption | Max Power (without PoE): 45W Max Power (with PoE): 480W |
| PoE Capability | 370W Class 4 PoE/PoE+ |
| Dimensions | 1.73(h) x 17.4(w) x 12.0(d) in (4.4 x 44.2 x 30.5 cm) |
| Weight | 5.0 kg (11.07 lbs) |
[/properties][specifications]
| Specifications | CX6000-R8N85A |
| CPU | Dual Core ARM Cortex A9 @ 1016 MHz |
| Memory and Flash | 8 GB DDR3 16 GB eMMC |
| Performance | |
| Switching Capacity | 104 Gbps |
| Throughput | 77.3 Mpps |
| Latency (1 Gbps) | 1.9 µs |
| Environment | |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5,000 ft (1.5 km), derate -1°C for every 1,000 ft (305 m) from 5,000 ft to 10,000 ft (3.0 km) |
[/specifications]
HPE Aruba Networking CX 6000 48G PoE+ Switch (R8N85A)
The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry-level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, the R8N85A provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. This fully-managed series has 48 Gigabit ports, built-in 1GbE SFP uplinks, and 370W of Class 4 PoE to support devices such as security cameras and wireless APs.
Key Features:
- 48 x Gigabit Ethernet PoE+ Ports: Offers fast, reliable Class 4 PoE connectivity with a 370W power budget.
- 4 x 1G SFP Uplinks: Provides built-in wire speed uplinks to remove bottlenecks at the access layer.
- Layer 2 with Static Routing: Delivers Layer 2 capabilities with support for static routing, ACLs, robust QoS, and IPv6 support.
- Simplified Management: Offers flexibility to manage with HPE Aruba Networking Central (cloud-based), Web GUI, or industry-standard CLI.
- License-Free Operation: Simplifies ownership with no switch software licensing or subscriptions required.
Technical Overview:
- Recommended for: Small to mid-sized businesses, branch offices, and retail deployments.
- Ports: 48 x 10/100/1000 Mbps Class 4 PoE ports.
- Uplink Ports: 4 x 1G SFP ports.
- Switching Capacity: 104 Gbps.
- Forwarding Rate: 77.3 Mpps.
- PoE Budget: 370W.
