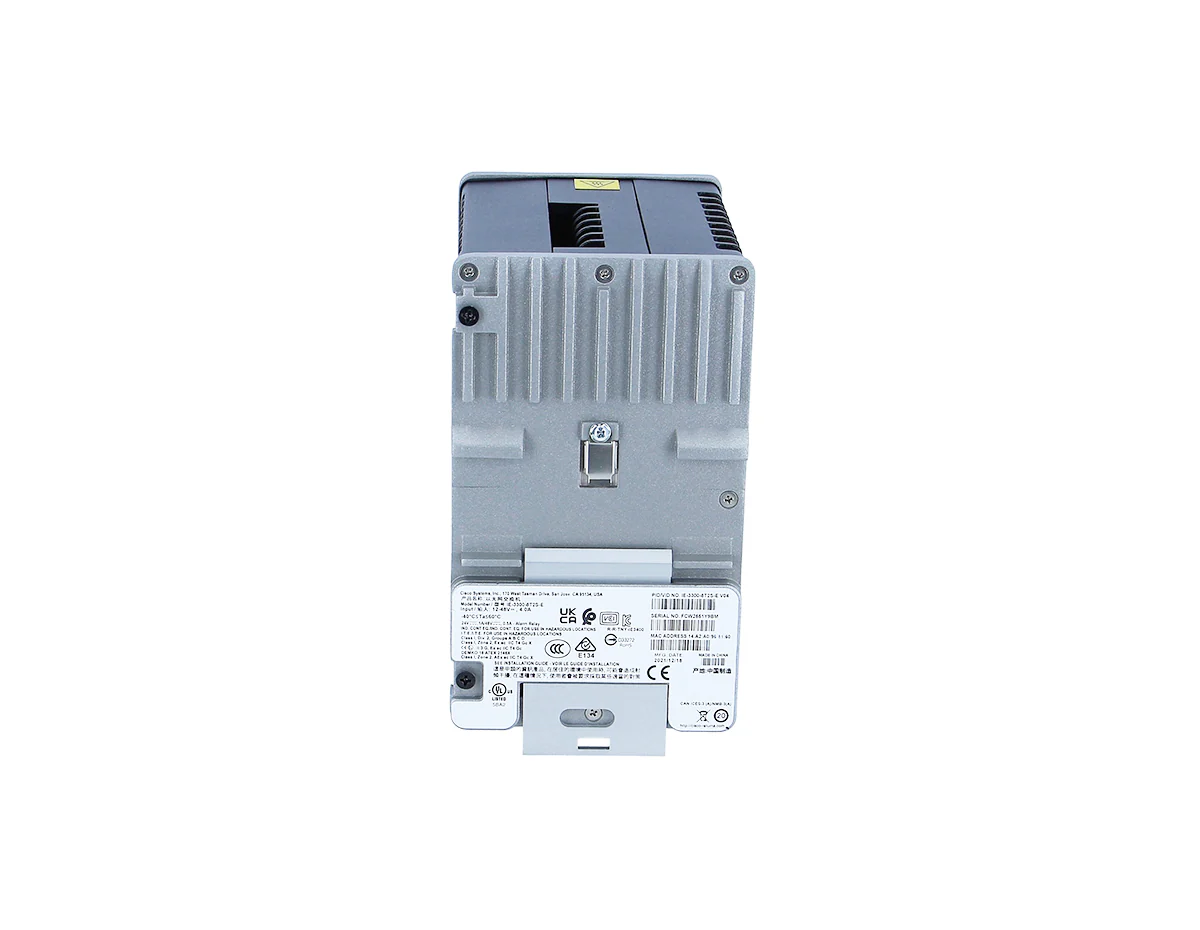

Cisco IE-3300-8T2S-E Switch
[shortdesc]
- Network Essentials
- Switch
- Managed
- 8 x 10/100/1000 + 2 x SFP
- DIN rail mountable
- DC power
[properties]
| Properties | Cisco IE-3300-8T2S-E |
| Description | Catalyst IE3300 with 8 GE Copper and 2 GE SFP, Modular, Network Essentials |
| Product Family | Cisco Catalyst IE3300 Rugged Series |
| Product Type | Ethernet Switch |
| Switches | |
| Total Ports | 10 |
| 10/100/1000 RJ45 Copper Ports | 8 |
| 100/1000 SFP Ports | 2 |
| 1GE/2.5G RJ45 Copper ports | - |
| 1GE/10G SFP+ Ports | - |
| Software License (Default) | Network Essentials |
| PoE/PoE (+) budget | N/A |
| Software Features | |
| Network Essentials License (Perpetual) |
Features |
| Layer 2 Switching | IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP, VTPv2, VTPv3, EtherChannel, Q-in-Q tunneling, voice VLAN, PVST+, MSTP, and RSTP |
| Multicast | IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier |
| Management | WebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session, RSPAN, FSPAN, Express setup, NETCONF, RESTCONF |
| Security | Port security, 802.1x, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, guest VLAN, MAC auth bypass, storm control (unicast/multicast/broadcast), SCP, SSH, SNMPv3, TACACS+, RADIUS, BPDU guard, ACLs (PACL/VACL/RACL), SUDI, Full Flexible NetFlow (FNF), MACsec-128 |
| Quality of Service (QoS) | Ingress policing, rate limit, egress queuing and shaping, Auto QoS |
| IPv6 | IPv6 host support, HTTP/HTTPS over IPv6, SNMP over IPv6, Syslog over IPv6, DHCPv6 relay source, DHCPv6 bulk lease query (RFC 5460), IPv6 VRF-aware, IPv6 QoS, IPv6 FHS (RA/DHCPv6 Guard) |
| Layer 3 Routing | Inter-VLAN routing, Static routing |
| Utility | Dying gasp, SCADA protocol classification (GOOSE), MODBUS TCP/IP |
| Industrial Ethernet | CIP Ethernet/IP, IEEE 1588 PTP v2 (Default and Power Profile), PROFINET |
| Redundancy | REP ring, PROFINET-MRP, REP Preferred, Fast REP |
| Automation | YANG, NETCONF, RESTCONF |
| Industrial Management | Layer 2 switching with 1:1 switch Network Address Translation (L2NAT) |
| IOx | Container (Native Docker) |
| Dimensions (HxWxD) Inches | 6 in. x 3.6 in. x 5.3 in. 15.2 cm x 9.1 cm x 13.5 cm |
| Weight | 3.8 lbs (1.7 kg) |
| Mounting | DIN Rail |
| Cisco Catalyst Center Features | |
| Catalyst Center Essentials | Discovery, Topology, Inventory, software image management; Health dashboards; Cisco Network Plug-and-Play |
| Catalyst Center Advantage | All Essentials plus Compliance, Custom Reports, Device 360/Client 360, Patch/SMU, SD-Access Extended Node (REP Ring Workflow) |
[/properties][specifications]
| Specifications | IE-3300-8T2S-E |
| DRAM | 4 GB |
| Flash Memory (user accessible) | 1.5 GB |
| Hardware | |
| PoE power budget | Not applicable |
| Removable storage | USB (Optional), SD card (Optional) |
| Alarms | 2 alarms in, 1 alarm out |
| Console ports | 1 RS-232 (via RJ-45), 1 USB Mini Type B |
| Power inputs | Dual DC power inputs |
| Number of Queues | 8 |
| Forwarding Rate | Line rate for all ports and all packet sizes |
| Unicast MAC addresses | 16K |
| Jumbo Frames | 8996 bytes |
| No. of VLANs | 256 |
| Internet Group Management Protocol (IGMP) Multicast Groups | 1000 |
| Spanning Tree Protocol (STP) instances | 128 |
| Access Control Entries (PACL/VACL/RACL) | 3K |
| SD card capacity (Optional) | 4 GB, 16 GB |
| Input Voltage Range | Redundant DC input voltage: 9.6 to 60VDC |
| Maximum Input Current | 3.8A |
| Power Consumption | 23W |
| Operating Temperature | -40°C to +70°C (40 LFM vented enclosure) -40°C to +60°C (sealed enclosure) -40°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure) +85°C (type tested for 16 hours) |
| Storage Temperature | -40°C to +85°C |
| Operating Altitude | Up to 15,000 feet |
| Storage Altitude | 15,000 feet |
| Mean Time Between Failures (MTBF) | 633,420 |
[/specifications][accesories]
| Accessories and License Upgrade PIDs | |
| SD-IE-4GB= | IE 4GB SD memory card for IE |
| STK-RACK-DINRAIL= | 19 in. DIN Rail mount kit |
| IE3300-NW-A= | Network Advantage License for IE3300, Perpetual |
| IE3300-DNA-E | Cisco Catalyst Center Essentials license for IE3300 Series |
| IE3300-DNA-E-3Y | IE 3300 Catalyst Center Essentials, 3 Year Term license |
| IE3300-DNA-E-5Y | IE 3300 Catalyst Center Essentials, 5 Year Term license |
| IE3300-DNA-E-7Y | IE 3300 Catalyst Center Essentials, 7 Year Term license |
| IE3300-DNA-A | Cisco Catalyst Center Advantage license for IE3300 Series |
| IE3300-DNA-A-3Y | IE 3300 Catalyst Center Advantage, 3 Year Term license |
| IE3300-DNA-A-5Y | IE 3300 Catalyst Center Advantage, 5 Year Term license |
| IE3300-DNA-A-7Y | IE 3300 Catalyst Center Advantage, 7 Year Term license |
| LIC-MRP-MGR-XE= | MRP Ring Manager License |
| LIC-MRP-CLIENT-XE= | MRP Ring Client License |
| IE 3300 Series Power Supplies | |
| PWR-IE50W-AC | 50W AC Power Supply |
| PWR-IE50W-AC-IEC= | 50W AC-IEC Power Supply |
| PWR-IE50W-AC-L | 50W AC-L Power Supply |
| PWR-IE65W-PC-AC | 65W PC-AC Power Supply |
| PWR-IE65W-PC-DC | 65W PC-DC Power Supply |
| PWR-IE170W-PC- AC | 170W PC-AC Power Supply |
| PWR-IE170W-PC- DC | 170W PC-DC Power Supply |
| PWR-IE240W-PCAC-L | 240W PCAC-L Power Supply |
| PWR-IE480W-PCAC-L | 480W PCAC-L Power Supply |
| SFPs | |
| GLC-FE-100FX-RGD= | 100BASE-FX Rugged SFP for Fast Ethernet SFP Ports |
| GLC-FE-100LX-RGD | 100BASE-LX10 Rugged SFP for Fast Ethernet SFP Ports |
| GLC-FE-100FX= | 100BASE-FX SFP for Fast Ethernet SFP Ports |
| GLC-FE-100LX= | 100BASE-LX10 SFP for Fast Ethernet SFP Ports |
| GLC-FE-100EX= | 100BASE-EX for Fast Ethernet SFP Ports |
| GLC-FE-100ZX= | 100BASE-ZX for Fast Ethernet SFP Ports |
| GLC-FE-100BX-D= | 100BASE-BX10-D SFP for Fast Ethernet SFP Ports |
| GLC-FE-100BX-U= | 100BASE-BX10-U SFP for Fast Ethernet SFP Ports |
| GLC-SX-MM-RGD= | 1000BASE-SX short wavelength; rugged |
| GLC-LX-SM-RGD= | 1000BASE-LX/LH long wavelength; rugged |
| GLC-ZX-SM-RGD= | 1000BASE-ZX extended distance; rugged |
| GLC-BX40-U-I= | 1000BASE-BX40-U for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX40-D-I= | 1000BASE-BX40-D for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX40-DA-I= | 1000BASE-BX40-D (Alternative) for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX80-U-I= | 1000BASE-BX80-U for 80km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX80-D-I= | 1000BASE-BX80-D for 80km Single-Fiber Bidirectional Applications; with DOM |
| GLC-SX-MMD= | 1000BASE-SX short wavelength; with DOM |
| GLC-LH-SMD= | 1000BASE-LX/LH long-wavelength; with DOM |
| GLC-EX-SMD= | 1000BASE-EX long-wavelength; with DOM |
| GLC-ZX-SMD= | 1000BASE-ZX extended distance; with DOM |
| GLC-BX-D= | 1000BASE-BX10-D downstream bidirectional single fiber; with DOM |
| GLC-BX-U= | 1000BASE-BX10-U upstream bidirectional single fiber; with DOM |
| GLC-BX-D-I= | 1000BASE-BX10-D downstream bidirectional single fiber, (IND) rated, with DOM |
| GLC-BX-U-I= | 1000BASE-BX10-U upstream bidirectional single fiber, (IND) rated, with DOM |
| CWDM-SFP-1470 | Cisco CWDM 1470-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fibre Channel |
| CWDM-SFP-1610 | Cisco CWDM 1610-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fibre Channel |
| CWDM-SFP-1530 | Cisco CWDM 1530-nm SFP; Gigabit Ethernet and 1 and 2-Gb Fibre Channel |
| CWDM-SFP-1490 | Cisco CWDM 1490-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fibre Channel |
| DWDM-SFP-3033 | 1000BASE-DWDM 1530.33 nm SFP (100-GHz ITU grid) |
| DWDM-SFP-3112 | 1000BASE-DWDM 1531.12 nm SFP (100-GHz ITU grid) |
[/accesories]
Cisco IE-3300-8T2S-E Industrial Ethernet Switch
The Cisco IE-3300-8T2S-E is a rugged, high-performance industrial Ethernet switch designed to provide reliable and secure network connectivity in harsh environments. This switch features 8 Gigabit Ethernet ports and 2 SFP slots, making it an ideal solution for connecting critical industrial devices such as IP cameras, sensors, and controllers. The IE-3300-8T2S-E is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.
Key Features:
- 8 x Gigabit Ethernet Ports: Provides reliable and high-speed data connectivity for various industrial devices, ensuring stable network communication.
- 2 x SFP Slots: Offers flexible uplink options with fiber connectivity, enabling high-speed data transfer and network scalability.
- Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for demanding industrial environments.
- Layer 2 and Layer 3 Management: Includes advanced features such as VLANs, QoS, and routing protocols to enhance network control and security.
- Compact Form Factor: Designed for space-constrained installations, making it suitable for industrial enclosures and cabinets.
Technical Overview:
- Recommended for: Industrial environments requiring robust Ethernet connectivity with advanced management features.
- Ports: 8 x Gigabit Ethernet ports, 2 x SFP slots.
- Operating Temperature: Designed to operate in a wide temperature range suitable for harsh industrial applications.
- Management: Managed through a web interface, CLI, SNMP, and Cisco Catalyst Center for comprehensive network setup and monitoring.
- Form Factor: Rugged, compact design suitable for space-constrained industrial environments.
You can check the related tab for the Cisco IE-3300-8T2S-E datasheet.
