Cisco C1111X-8P Router
[shortdesc]
- Router, 8-port switch, GigE, WAN ports: 2
[properties]
| Properties | C1111X-8P |
| Description | Cisco ISR C1111X-8P: 8 Gigabit Ethernet ports (2 PoE+), Cisco IOS XE Software, SD-WAN capabilities, and advanced security/application services for small to medium-sized businesses. |
| Product Family | Cisco 1100 Series |
| Product Type | Integrated Services Routers |
| WAN GE | 1 |
| WAN GE/SFP combo | 1 |
| 10/100/1000 Ethernet ports | up to 10 |
| ADSL2/VDSL2+ | N/A |
| LTE Advanced (CAT6) | N/A |
| 802.11ac | N/A |
| LAN GE | 8 |
| PoE | 4 |
| PoE+ | 2 |
| Integrated USB 3.0 AUX/console | Yes |
| Dimensions in. (H x W x D) | 1.75 x 12.7 x 9.03 |
| Integrated USB 3.0 AUX/console | Yes |
[/properties]
[specifications]
| Specifications | C1111X-8P |
| Dram | 8 GB |
| Flash Memory | 8 GB |
| AC input voltage | Universal 100 to 240 VAC |
| Operating Temperature |
32° to 104°F (0° to 40°C). |
| Operating humidity | 10% to 85% relative humidity (noncondensing) |
| Standard safety certifications | UL 60950-1, 2nd edition. CAN/CSA C22.2 No. 60950-1, 2nd edition. EN 60950-1, 2nd edition. CB to IEC 60950-1, 2nd edition with all group differences and national deviations |
| EMC emissions | EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1. |
| LEDs | WWAN (green/amber). SIM status (green/amber). Received signal strength indication (RSSI) bar (green). 3G/LTE service (green/amber). GPS (green/amber). Speed and link for Gigabit Ethernet WAN port (green). Speed and link for all Fast Ethernet LAN ports (green). |
| Bands Supported | LTE bands 1-5, 7, 12, 13, 20, 25, 26, 29, 30, and 41. FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 MHz and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7). TDD LTE 2500 MHz (band 41). Carrier aggregation band combinations: 1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29); 7+(7,20); 12+30, 5+30, and 41+41. |
| TELNET & CLI | Yes |
[/specifications]
[accesories]
| Accessories | Rack-mount kit for all 1100 Series ISRs. |
| Small Form-Factor Pluggable | |
| GLC-EX-SMD | 1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM. |
| GLC-LH-SM | GE SFP, LC connector LX/LH transceiver. |
| GLC-LH-SMD | GE SFP, LC connector LX/LH transceiver; with DOM. |
| GLC-SX-MM | GE SFP, LC connector SX transceiver. |
| GLC-SX-MMD | GE SFP, LC connector SX transceiver; with DOM. |
| GLC-ZX-SM | 1000BASE-ZX SFP. |
[/accesories]

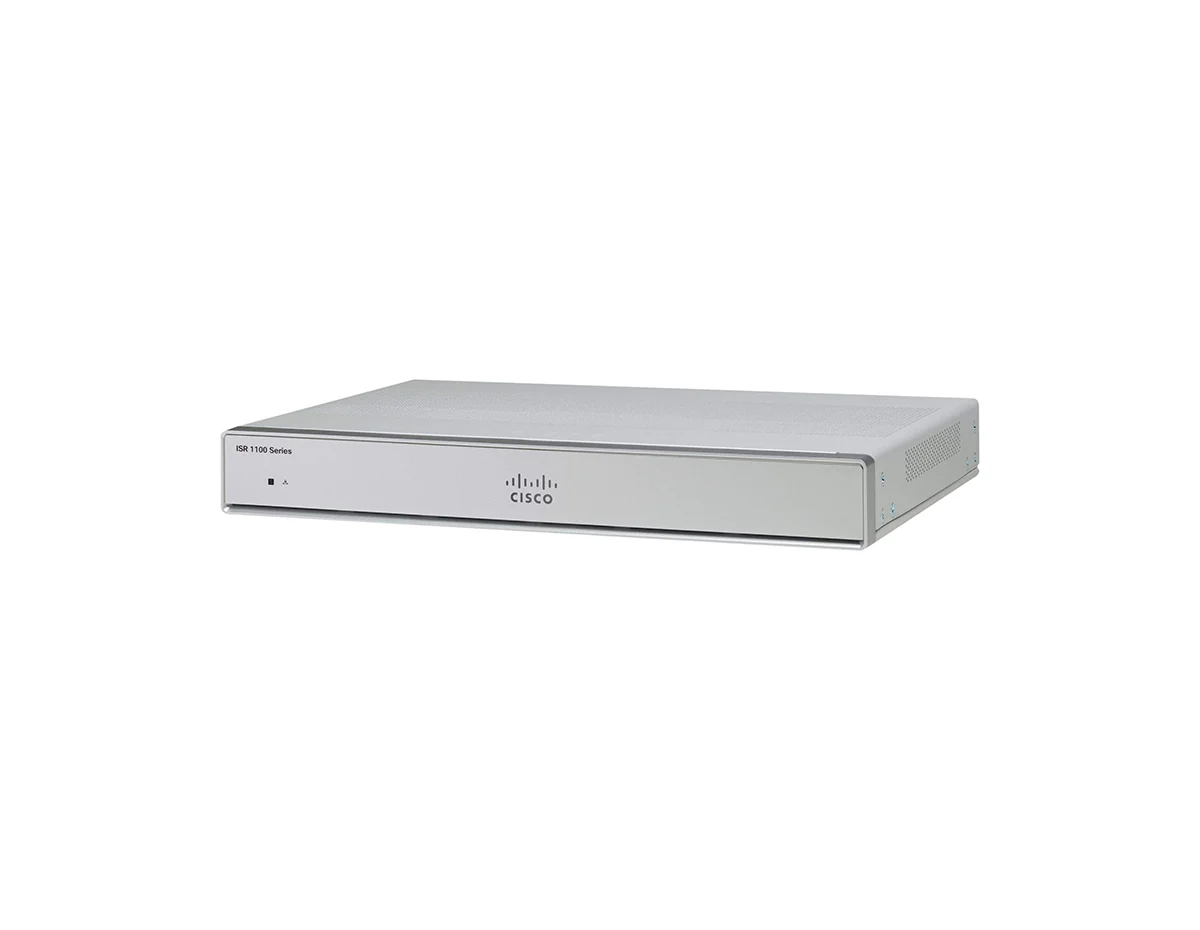

Cisco C1111X-8P Router
The Cisco 1000 Series Integrated Services Routers integrate multiple network functions including routing, switching, and security, in a single unit. The C1111X-8P platform has eight Gigabit Ethernet LAN ports, one Gigabit Ethernet WAN port, and one Gigabit Ethernet WAN/SFP port. It differentiates with 8 GB DRAM memory
Key Features:
- 8 GB DRAM memory
- PoE on all 8 Ethernet ports
- Cisco Umbrella Security
Find detailed specifications of the Cisco C1111X-8P Router in the tabs.
