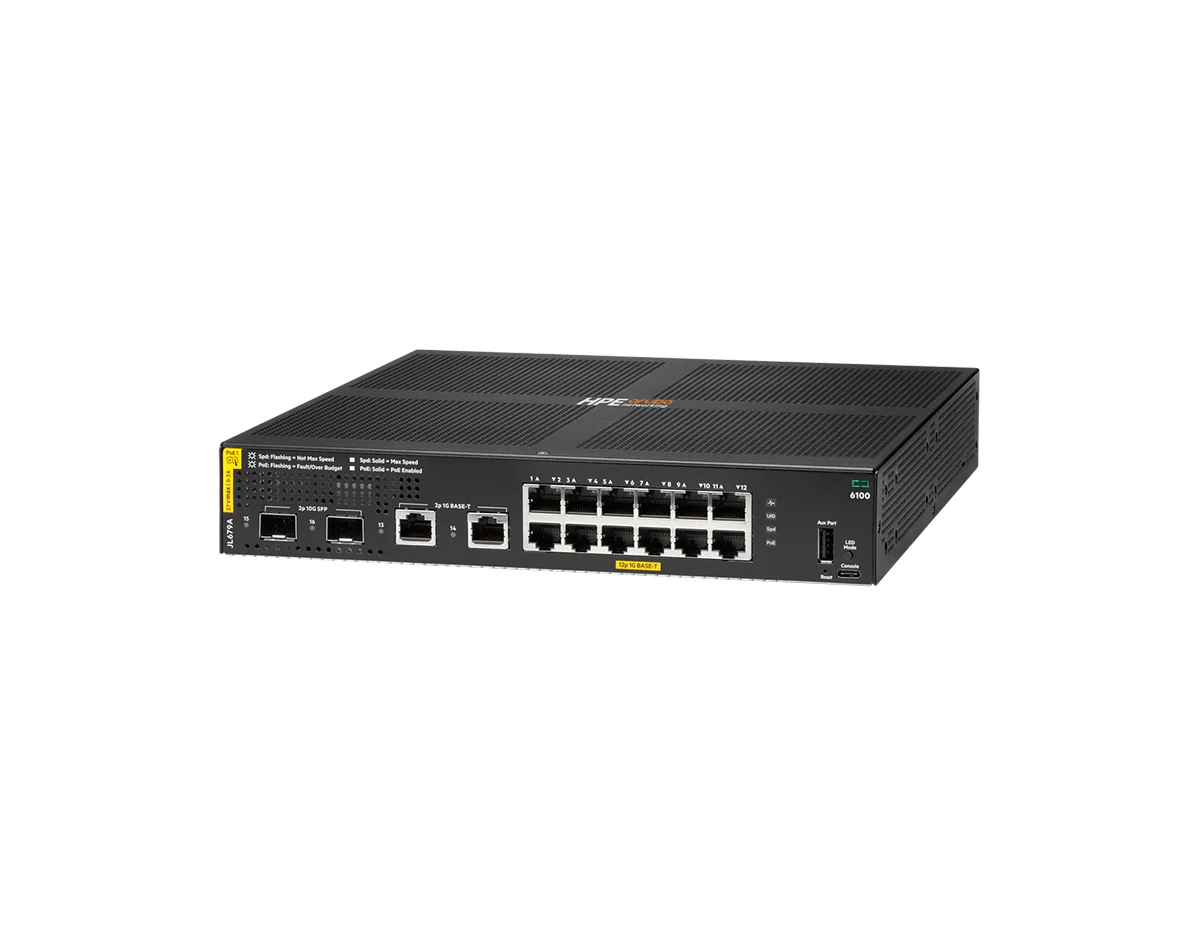

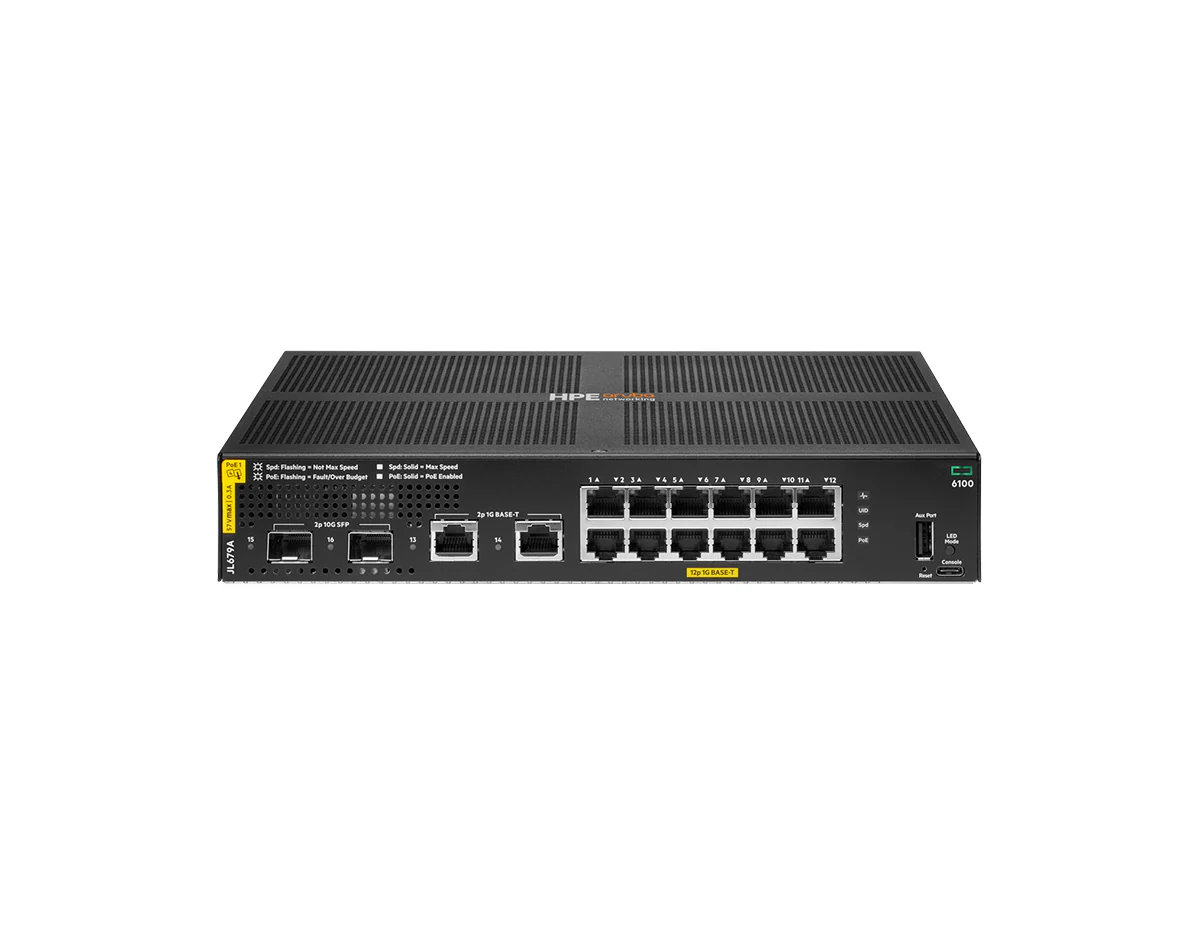

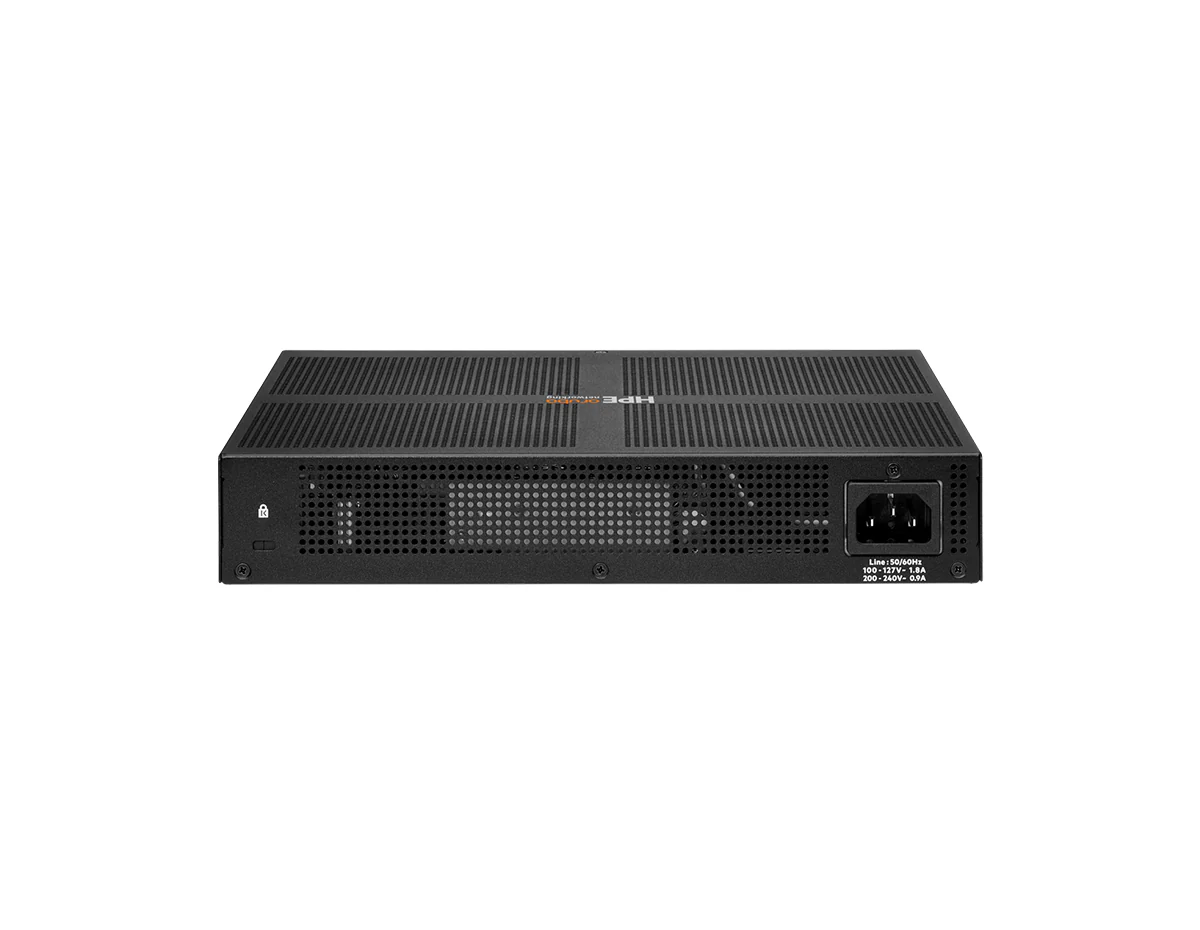

HPE Aruba Networking JL679A CX6100 12G Class4 PoE Switch
[shortdesc]
- Managed, Rack-mountable, 12 x 1G PoE+ ports, 2 x 1G ports, 2 x 1G/10G SFP+ uplinks, PoE+ (139W), Fanless, Layer 2
[/shortdesc]
[properties]
| Properties | 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A) |
| Description | The Aruba CX 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A) provides 12 Gigabit Ethernet PoE ports, 2 additional 1GbE ports, and 2 SFP+ uplinks in a compact fanless design for reliable small business and branch networking. |
| Product Family | CX6100 Series |
| Product Type | Ethernet Switch |
| Ports and Slots | 12 x 10/100/1000BASE-T PoE+ ports 2 x 1GbE ports 2 x 1G/10G SFP+ uplink ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port |
| Power supplies | Fixed power supply Up to 139W of Class 4 PoE Power |
| Frequency | 50/60 Hz |
| Voltage | 100-127 VAC / 200-240 VAC |
| Current | 1.8 A / 0.9 A |
| Power Consumption (230 VAC) | Idle: 16W Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W |
| Fans | Fanless |
| Dimensions | 4.4 x 25.4 x 25.5 cm (1.73 x 10.0 x 10.4 in) |
| Weight | 2.8 kg (6.13 lbs) |
| Mounting and enclosure | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included); horizontal surface mounting. |
[/properties][specifications]
| Specifications | 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A) |
| CPU | Dual Core ARM Cortex A9 @ 1016 MHz |
| Memory and Flash | 4 GB DDR3 SDRAM, 16 GB eMMC |
| Packet Buffer | 1 MB |
| Model Switching Capacity | 68 Gbps |
| Model Throughput Capacity | 45.1 Mpps |
| Average Latency (LIFO-64-bytes packets) | 1 Gbps: 2.3 μSec , 10 Gbps: 2.6 μSec |
| Switched Virtual Interfaces (dual stack) | 16 |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Host Table (ND) | 512 |
| IPv4 Unicast Routes | 512 |
| IPv6 Unicast Routes | 512 |
| MAC Table Capacity | 8,192 |
| IGMP Groups | 512 |
| MLD Groups | 512 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 256 / 128 / 256 |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
| Acoustic | Sound Power, LWAd = 0 Bel Sound Pressure, LpAm (Bystander) = 0 dB |
| Primary Airflow | - |
| Safety | EN 60950-1/IEC 60950-1 EN 60825 CAN/CSA C22.2 No. 60950, 2nd Edition UL 60950-1, 2nd Edition |
| Emissions | FCC Class A VCCI Class A EN 55022/CISPR 22 Class A |
| Lasers | EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
| Immunity | EN 55024, CISPR 24 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3 |
[/specifications][accesories]
| Accessories | |
| JL742A | Aruba X511 12-port Cable Guard |
| J9583B | Aruba X414 1U Universal 4-post Rack Mounting Kit |
| R9G48A | Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Z87A | Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A | Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A | Aruba USB-C to USB-C PC-to-Switch Cable |
| Cables | |
| J9281D | Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable |
| J9283D | Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
| Transceivers | |
| J4858D | Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D | Aruba 1G SFP LC LX 10km SMF Transceiver |
| J8177D | Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
| J9150D | Aruba 10G SFP+ LC SR 300m MMF Transceiver |
| J9151E | Aruba 10G SFP+ LC LR 10km SMF Transceiver |
[/accesories]
HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)
The HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch is a compact, high-performance solution designed for small businesses and branch offices. Featuring 12 Gigabit Ethernet PoE ports and two 1G/10G SFP+ uplink ports, this switch delivers reliable connectivity for powering devices like IP phones, cameras, and access points with a 139W PoE budget. It offers advanced Layer 2 switching features, making it a great option for growing networks with limited space.
Key Features:
- 12 x Gigabit Ethernet Ports with PoE: Provides up to 30W per port, perfect for powering connected devices such as IP cameras and phones.
- 2 x SFP+ Uplink Ports: Offers high-speed 1G/10G fiber uplink options for scalable network growth.
- 2 x Additional 1G Ethernet Ports: Flexible options for extra device connections.
- Layer 2 Switching: Includes VLAN support, QoS, and traffic management for optimized network performance.
- Energy-Efficient Operation: Reduces power consumption during periods of low activity.
Technical Overview:
- Recommended for: Small to medium-sized businesses, branch offices, and educational institutions.
- Ports: 12 x 10/100/1000 Mbps PoE ports, 2 x 1GbE ports, 2 x 1G/10G SFP+ uplink ports.
- PoE Power Budget: 139W.
- Switching Capacity: 68 Gbps.
- Forwarding Rate: 45.1 Mpps.
- Management: Managed via Aruba Central, CLI, Web GUI, SNMP.
- Energy Efficiency: Compliant with IEEE 802.3az standards.
