[shortdesc]

• Cisco C1300-48T-4G is a managed Layer 3 Gigabit switch with 48 × 10/100/1000 RJ-45 ports and 4 × 1G SFP uplinks, delivering 104 Gbps switching capacity and enterprise-grade security for SMB and branch networks

[/shortdesc]

[properties]

Property	Details
Product Line	Cisco Catalyst 1300 Series
Model	C1300-48T-4G
Management	Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center)
Total System Ports	52 × Gigabit Ethernet
RJ-45 Ports	48 × 10/100/1000
Uplink Ports	4 × 1G SFP
Switching Capacity	104 Gbps
Forwarding Rate	77.38 Mpps
Console Ports	RJ-45 and USB Type-C
Power Supply	Internal, universal 100–240V AC, 50/60 Hz
Power Consumption (Max)	38.80 W @110V / 38.07 W @220V
Idle Power Consumption	13.36 W @110V / 13.09 W @220V
Heat Dissipation	132.39 BTU/hr
Fan Count	1
Acoustic Noise	29.7 dBA @ 25°C
MTBF	1,473,382 hours
Unit Dimensions (W × D × H)	445 × 288 × 44 mm (17.5 × 11.33 × 1.73 in)
Unit Weight	3.95 kg (8.71 lb)
Rack Mount Kit	Included

[/properties]

[specifications]

Specification	Details
Layer Support	Layer 2 and Layer 3 (Static Routing, RIP v2, Policy-Based Routing)
VLAN Support	Up to 4093 VLANs; 802.1Q, Private VLAN/Edge
Jumbo Frames	Up to 9000 bytes
MAC Address Table	16,000 addresses
Packet Buffer	1.5 MB (shared)
Flash / DRAM	512 MB Flash / 1 GB DDR4
CPU	ARM dual-core up to 1.4 GHz
IPv6 Support	Full dual-stack IPv4/IPv6
Energy Efficiency	IEEE 802.3az (EEE), auto port power-down, energy-saving features
Management Interfaces	Web UI (HTTPS), CLI/SSH, SNMP v1/v2c/v3, Cisco Business Dashboard probe
Security Features	802.1X, MAB, WebAuth, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, ACLs
QoS Features	8 queues per port; Strict Priority & Weighted Round Robin
Stacking Support	Not supported on C1300-xG (4G) models
Operating Temperature	−5°C to 50°C (23°F to 122°F)
Storage Temperature	−25°C to 70°C (−13°F to 158°F)
Compliance & Standards	CE, FCC Part 15 Class A, UL 62368

[/specifications]

[accessories]

Accessory	Details
CAB-CONSOLE-RJ45	RJ-45 console cable
CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C=	USB-C console cable
PWR-CLP	Power cable clip
RCKMNT-1RU-1K=	Rack-mount kit for 1U devices

[/accessories]

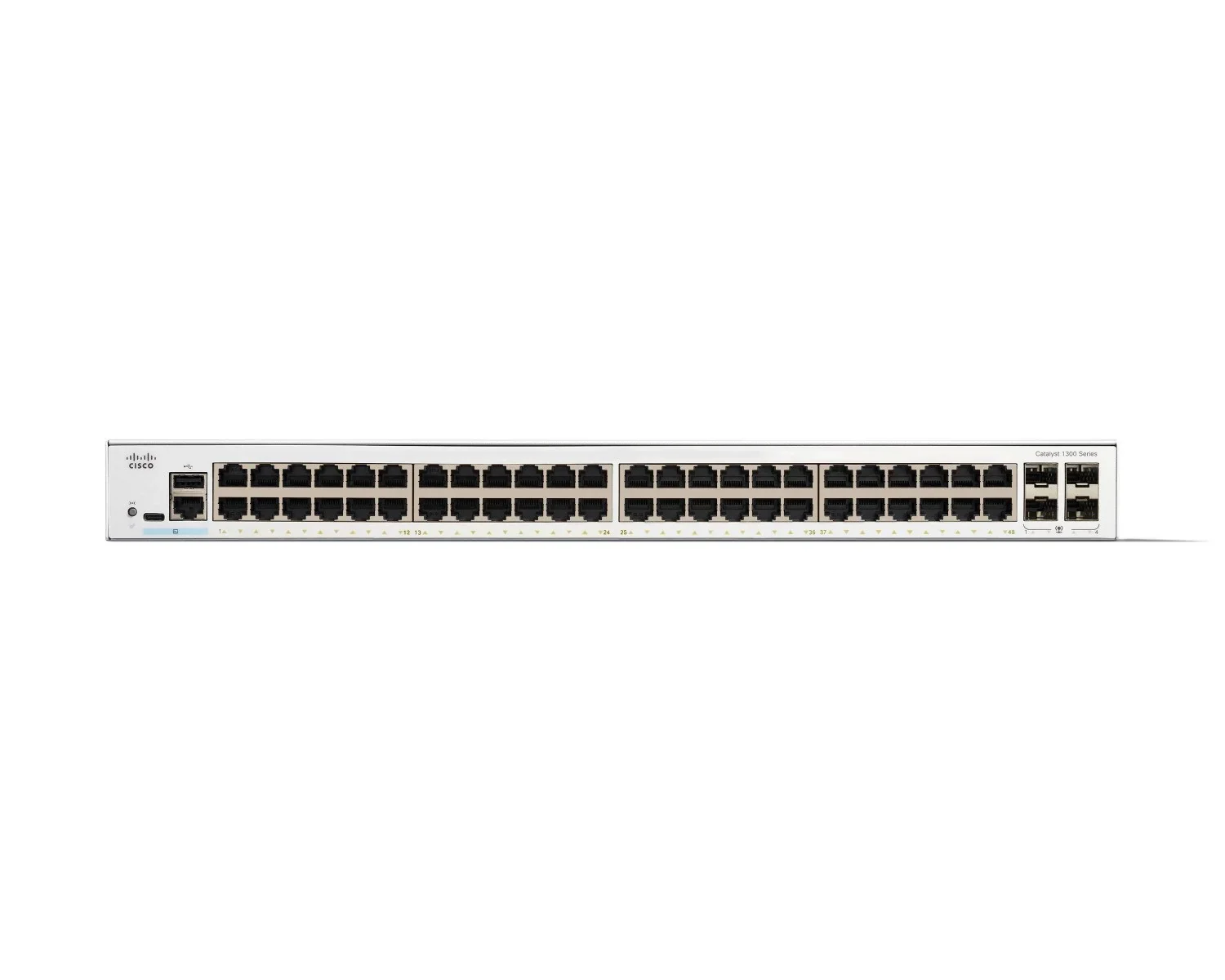

Cisco C1300-48T-4G Managed Network Switch 48×GE 4×1G SFP

The Cisco C1300-48T-4G is a robust Layer 3 managed switch built for reliable high-density Gigabit access in SMB and branch offices. It provides forty-eight 10/100/1000 RJ-45 downlinks and four dedicated 1G SFP uplinks, enabling flexible fiber connectivity. With 104 Gbps switching capacity and a 77.38 Mpps forwarding rate, it delivers consistent performance for business-critical applications while offering enterprise-class security, QoS, and IPv4/IPv6 services.

Key Features

• 48×GE access + 4×1G SFP uplinks: High-density Gigabit with fiber uplink flexibility.
• Advanced L3 services: Static routes, RIP v2, and policy-based routing for efficient inter-VLAN traffic.
• Enterprise security: 802.1X, DHCP Snooping, DAI, IP Source Guard, and comprehensive ACLs.
• Consistent performance: 104 Gbps switching / 77.38 Mpps forwarding, with 8-queue QoS.
• Operational simplicity: Web UI/CLI/SSH/SNMP and Cisco Business Dashboard probe.
• Quiet, efficient design: Single-fan cooling, ~29.7 dBA acoustic level, and low max power draw (~38.8 W).

Technical Overview

• Hardware: ARM dual-core 1.4 GHz CPU, 1 GB DDR4, 512 MB flash, 1.5 MB packet buffer.
• L2 features: 802.1Q VLANs, Private VLAN/Edge, RSTP/MSTP, LACP link aggregation.
• L3 features: IPv4/IPv6 dual stack, static routing, RIP v2, PBR, DHCP server/relay, UDP relay.
• QoS: 8 egress queues per port with Strict Priority and WRR scheduling.
• Environment & build: −5°C to 50°C operation; 445 × 288 × 44 mm; 3.95 kg; rack kit included.
• Power & acoustics: 38.80 W max (110V) / 38.07 W max (220V); 13.36/13.09 W idle; ~29.7 dBA @ 25°C.
• Stacking: Not supported on C1300-xG (4G) models.
