[shortdesc]

• Cisco C1200-8T-E-2G is a fanless Layer 3 smart switch with 8 Gigabit RJ-45 ports and 2 combo RJ-45/SFP uplinks, built for compact, high-performance SMB networking.

[/shortdesc]

[properties]

Property	Details
Model	C1200-8T-E-2G
Product Line	Cisco Catalyst 1200 Series
Switch Type	Smart managed Layer 2 with Layer 3 static routing
Downlink Ports	8 × 10/100/1000BASE-T (RJ-45)
Uplink Ports	2 × Gigabit combo (RJ-45/SFP; one active per combo)
Switching / Forwarding	20 Gbps / 14.88 Mpps
Management	Web GUI, CLI (SSH/Telnet), Cisco Business Dashboard/mobile app, SNMP
Security	802.1X, ACLs, DHCP snooping, DoS protection, port security
QoS	8 hardware queues per port; 802.1p/DSCP classification & remarking
Form Factor	Compact 1U; desktop or rack-mountable (kit)
Cooling	Fanless (silent)
Power Supply	External AC adapter, 100–240 V, 50/60 Hz
Dimensions (W × D × H)	268 × 185 × 44 mm (10.56 × 7.28 × 1.73 in)
Weight	≈ 1.39 kg (3.06 lb)
Operating Temperature	−5 °C to 50 °C (23 °F to 122 °F)

[/properties]

[specifications]

Specification	Details
Layer 3	Static IPv4 routing; up to 32 static routes and 16 IP interfaces (SVIs)
VLANs	Up to 255 active VLANs; Voice VLAN; Auto Surveillance VLAN; GVRP/GARP
Link Aggregation	IEEE 802.3ad LACP — up to 4 groups; up to 8 ports per group
Multicast	IGMP snooping v1/v2/v3; IGMP querier
Jumbo Frames	Up to 9000 bytes (default MTU 2000 bytes)
MAC Address Table	8,000 entries
Packet Buffer	1.5 MB (shared)
Console Ports	RJ-45 console and USB-C console/file
Power Consumption (max)	≈ 10.65 W
MTBF	≈ 2,171,669 hours (25 °C)
Standards	IEEE 802.1D/w/s, 802.1Q, 802.1X, 802.3/ab/u/z, 802.3ad (LACP), 802.3az

[/specifications]

[accesories]

Accessory	Details
CAB-CONSOLE-RJ45	Console cable, 6 ft, RJ-45
CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C=	USB-C console cable
PWR-CLP	Power cable restraining clip
RCKMNT-CMPCT-1K=	Compact 1RU rack-mount kit
PWRADPT-WM-18-xx / PWRADPT-WM-18-NA=	18W external power adapter (regional variants)

[/accesories]

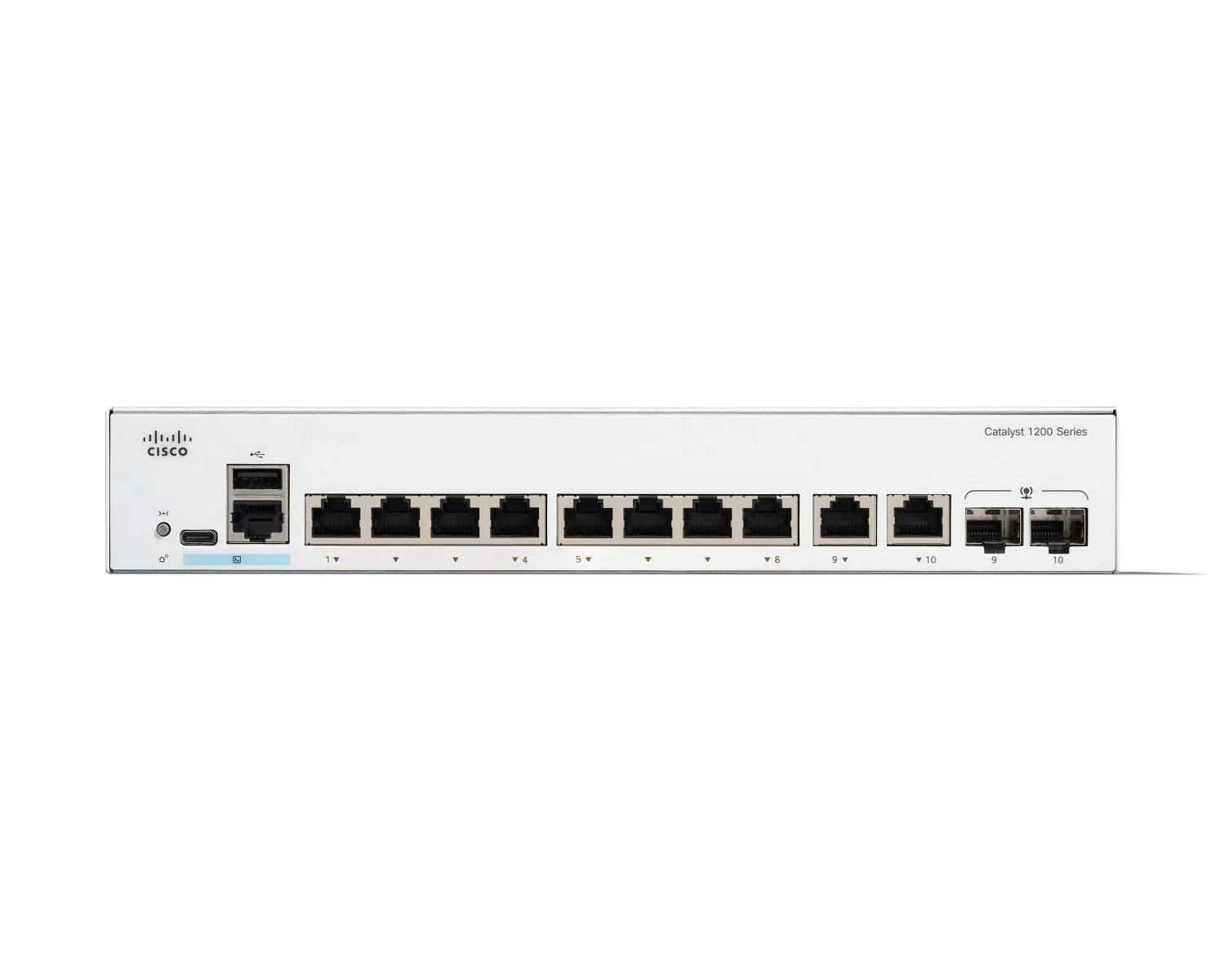

Cisco Catalyst C1200-8T-E-2G 8-Port Fanless Gigabit Switch

The Cisco C1200-8T-E-2G delivers enterprise-grade reliability in a compact, silent chassis ideal for deskside, retail, and small IT rooms. Eight Gigabit access ports and two combo RJ-45/SFP uplinks provide flexible copper or fiber backhaul, while a non-blocking 20 Gbps fabric keeps traffic flowing at wire speed. Administrators can onboard quickly through Cisco Business Dashboard or the intuitive web UI, with optional CLI/SNMP for advanced workflows. With Layer 2 depth, Layer 3 static routing, robust QoS, and strong access controls, the 8T-E-2G cleanly segments, prioritizes, and secures small business networks.

Key Features:

• Compact, silent platform: Fanless 1U design suited for noise-sensitive spaces.
• Flexible uplinks: Two 1G combo ports (RJ-45/SFP) for copper or fiber backhaul.
• Wire-speed performance: 20 Gbps switching and 14.88 Mpps forwarding.
• Built-in security: 802.1X, ACLs, DHCP snooping, DoS protection, and port security.
• Smart operations: Cisco Business Dashboard, web GUI, CLI, and SNMP management.
• Traffic engineering: 8 queues/port with 802.1p/DSCP QoS and jumbo-frame support.

Technical Overview:

• Interfaces: 8 × 1G RJ-45 downlinks; 2 × 1G combo RJ-45/SFP uplinks (one active per combo).
• L2/L3: STP/RSTP/MSTP, VLANs (≤255 active), LACP (≤4 groups, ≤8 ports/group), IPv4 static routing (≤32 routes, ≤16 SVIs).
• Multicast: IGMP snooping v1/v2/v3 with querier.
• Buffers & tables: 1.5 MB shared buffer; 8K MAC; jumbo frames up to 9000 bytes.
• Management I/O: RJ-45 & USB-C console; HTTP/HTTPS; SSH/Telnet; SNMP.
• Physicals: 268 × 185 × 44 mm; ≈ 1.39 kg; external AC adapter.
• Environment: −5 to 50 °C operating range.
