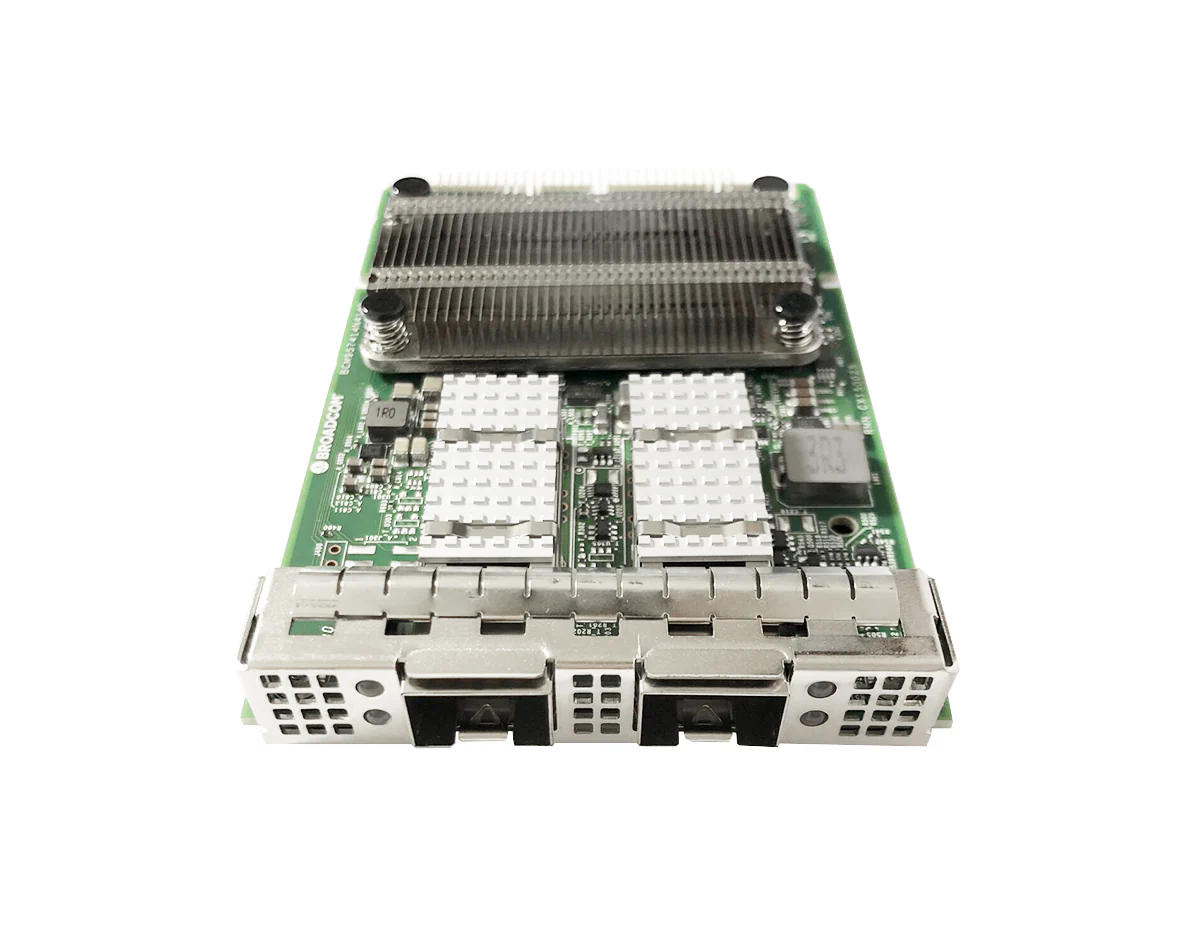

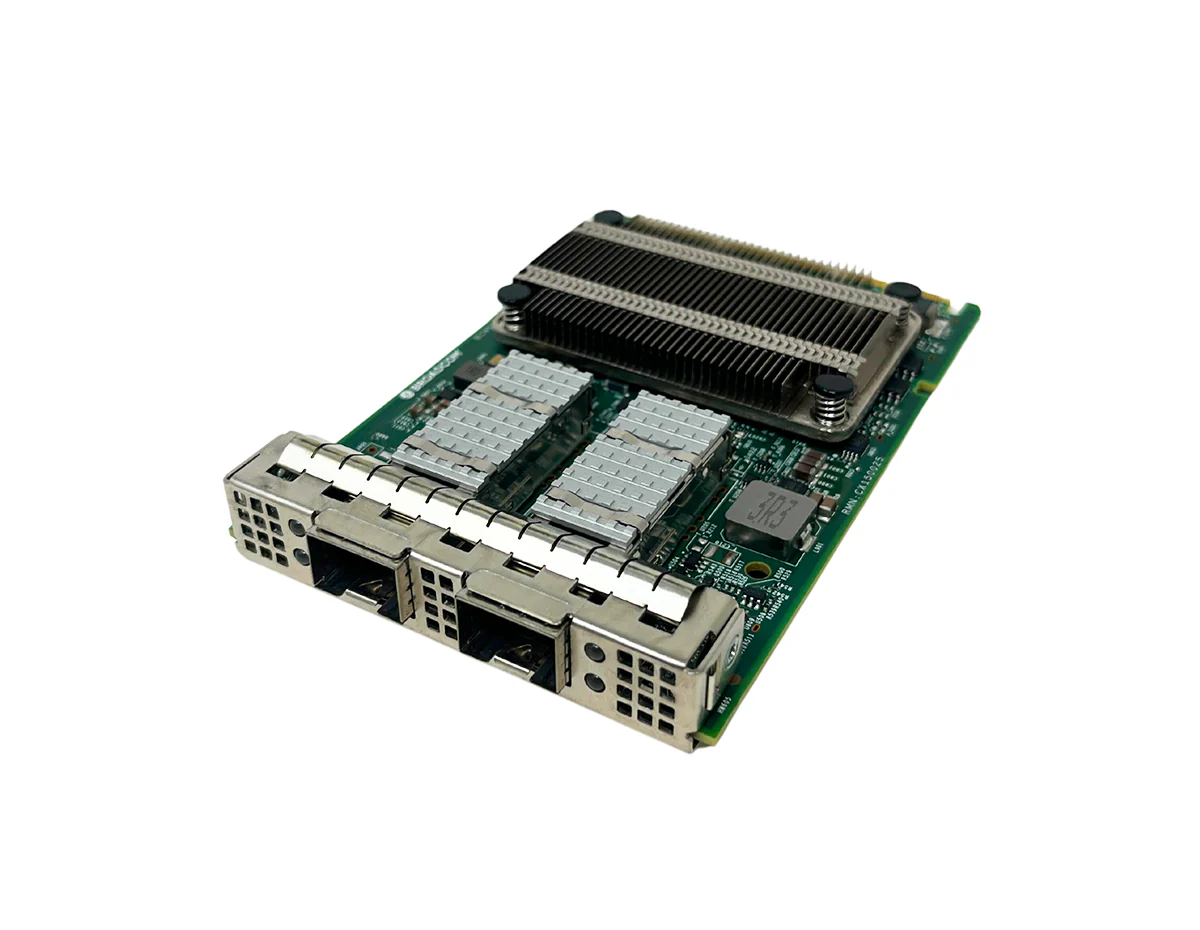

Broadcom BCM957414N4140C Dual-Port Network Adapter
- Dual-port 25 Gb/s Ethernet
- PCI Express 3.0 x8 interface
- OCP 3.0 compliant
- Supports SFP28 optical transceivers or copper direct-attach cables
- Low power consumption
- High performance
- Ideal for data center, cloud computing, and high-performance computing applications
| Product Name | Broadcom BCM957414N4140C Network Adapter | |
| Product Description | Dual-port 25 Gb/s Ethernet adapter with SFP28 compatibility, designed for data centers, cloud, and high-performance computing applications. | |
| Interface | PCI Express 3.0 x8 | SATA 6 Gbps |
| OCP Compliance | OCP 3.0 compliant | |
| Connector Type | Dual SFP28 | |
| Compatibility | Supports SFP28 optical transceivers and copper direct-attach cables | |
| Controller | Broadcom BCM57414 25GbE MAC | |
| Intended Application | Ideal for data centers, cloud computing, and high-performance computing environments | |
| Form Factor | Small form factor with pluggable media interface | |
| Network Speed | 2x 25GbE | |
[specifications]
| Ethernet Speed | Supports 25 Gb/s and 10 Gb/s |
| Connector Type | SFP28 (2 ports) |
| Host Interface | PCI Express 3.0 x8 |
| Compliance | SFF-8402 standard compliant |
| RDMA Support | Yes |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Virtual Functions | Supports up to 128 VFs |
| Function-Level Reset | FLR support |
| Compatible Transceivers | Compatible with 25G SFP28 optical transceivers and direct-attach cables |
| Design Standard | OCP 3.0 compliant |
[/specifications]
Broadcom BCM957414N4140C Network Adapter
The BCM957414N4140C is a network adapter with dual 25 Gb/s ports, designed to adhere to the Open Compute Project (OCP) 3.0 Design Specification in a compact form factor, featuring two SFP28 network connectors. This adapter is compatible with SFP28 optical modules and copper direct-attach cables and utilizes the Broadcom BCM57414 25GbE MAC controller with an integrated dual-channel 25GbE SFI transceiver.
Quick Specs:
- x8 PCI Express 3.0 compliant
- Dual-port pluggable media interface, which is compatible with a 25G SFP28 optical transceiver or a copper direct-attach cable
- Fully compliant with the SFF-8402 standard
- Function-Level Reset (FLR) support.
Please see the related tabs for the BCM957414N4140C datasheet and compatible accessories.
