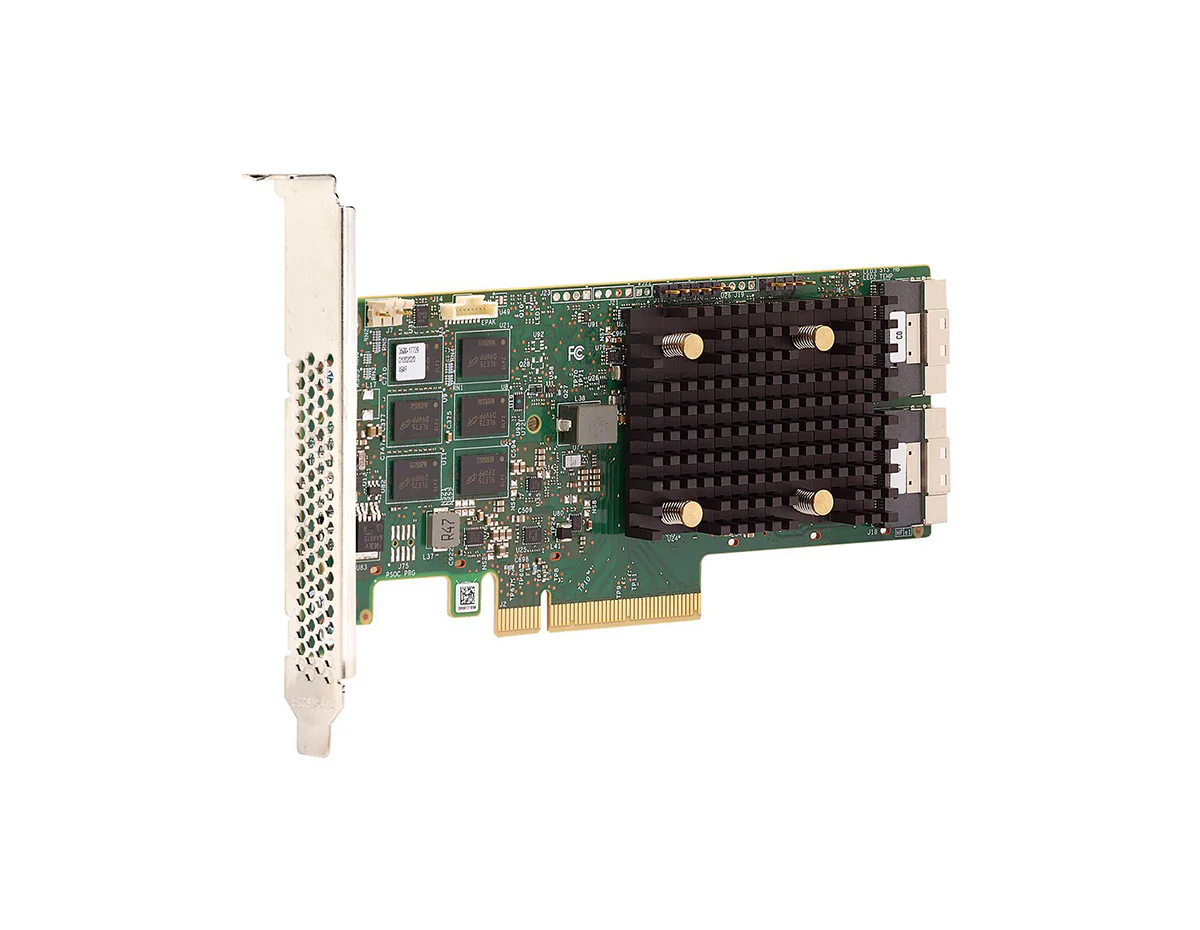

Broadcom MegaRAID 9560-8i Storage Controller
- 8i, 8 Channel, RAID 0, 5, 10, JBOD, PCIe 4.0 x8, Storage controller (RAID), SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe), 1, 6, 50, 60
[properties]
| Product Name | Broadcom MegaRAID 9560-8i Storage Controller |
| Product Description | The Broadcom 9560-8i Tri-Mode Storage Adapter is a versatile solution, offering connectivity for up to 240 SAS/SATA devices or 24 NVMe devices. It is designed for modern computing environments that demand adaptability and efficiency, supporting PCIe Gen 4.0 for improved bandwidth. |
| Product Family | Broadcom MegaRAIDā¢ 9500 Series |
| Product Type | Storage Adapter |
| Host Bus Type | x8 lane PCI Express 4.0 |
| Storage Interface | 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe) |
| Internal Connectors | 1 x8 SFF-8654 (SlimSAS) |
| Internal Ports | 8 |
| I/O Controller | SAS3908 |
| Devices Supported | SAS/SATA: 240, NVMe: 24 |
| Physical Dimensions | 6.127in x 2.712in |
[/properties]Ā
[specifications]
| Operating Temperature | 0Ā°C to 55Ā°C |
| MTBF | > 3,000,000 hours at 40Ā°C |
| Management Software | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
| OS Support | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD |
| Regulatory Certifications | FCC 47 CFR part 15 Subpart B, class B |
| Form-factor Friendly Cable Exit | Yes |
| Connects Up To | 240 SAS/SATA devices or 32 NVMe devices |
| Universal Bay Management (UBM) Ready | Yes |
[/specifications]
Ā
Broadcom MegaRAID 9560-8I Storage Controller
The MegaRAID 9500 series represents the first RAID adapter family in the industry to utilize PCIe Gen 4.0 technology, providing support for both PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-8i adapter, which is built on the SAS3908 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), offers a performance improvement of up to two times compared to previous generations. Additionally, the 9560-8i is designed to be compatible with existing PCIe SFF-8639 Module (U.2) backplanes, enabling users to enhance performance in today's increasingly bandwidth-intensive environments.
Quick Specs:
- Form-factor friendly cable exit
- Connects up to 240 SAS/SATA devices or 32NVMe devices
- Universal Bay Management (UBM) ready
- 8 internal ports
Please see the related tabs for the 9500-8e datasheet and compatible accessories.
