[shortdesc]

• Connectors: Two SFF-8643, Supports NVMe SAS and SATA devices, Ports: 8 internal

[/shortdesc]

[properties]

Product Name	Broadcom LSI 9440-8i PCIe 3.1 x8 SAS3408 8 Internal Ports MegaRAID Tri-Mode Storage Adapter
Description	The Broadcom LSI 9440-8i is the industry's first hardware RAID adapter with Tri-Mode SerDes Technology, providing high-performance storage connectivity and flexible system designs supporting NVMe, SAS, and SATA devices.
Manufacturer Part #	05-50008-02
Ports	8 internal
Connectors	Two SFF-8643
Storage Interface Support	SAS, SATA, PCIe (NVMe)
Cache Memory	N/A
Cache Protection	N/A
I/O Processor / SAS Controller	SAS3408
Host Bus Type	PCIe 3.1 x8
Management Software	LSI Storage Authority (LSA), StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure)

[/properties]



[specifications]

Tri-Mode Connectivity	Supports NVMe, SAS, and SATA devices
RAID Levels	0, 1, 5, 6, 10, 50, 60
Max PCIe (NVMe) Direct Attach Devices	Two x4, Two x2 (Direct Attached Only)
Max Devices Per Controller	SAS/SATA: 63, NVMe: 2
Physical Dimensions	6.127″ x 2.712″ (155.65 mm x 68.90 mm)
Typical Power	10.05W
Airflow	200 LFM at 55°C
Operating Voltage	+12V +/-8%; 3.3V +/-9%
Operating Conditions	0°C to 55°C, 20 to 80% non-condensing
Storage Conditions	-45°C to 105°C, 5 to 95% non-condensing
MTBF	>3,000,000 hours at 40°C
Regulatory Certifications	USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES-003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety (EN/IEC/UL 60950); RoHS; WEEE
OS Support	Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support. See www.broadcom.com/support/download-search for details on versions.

[/specifications]

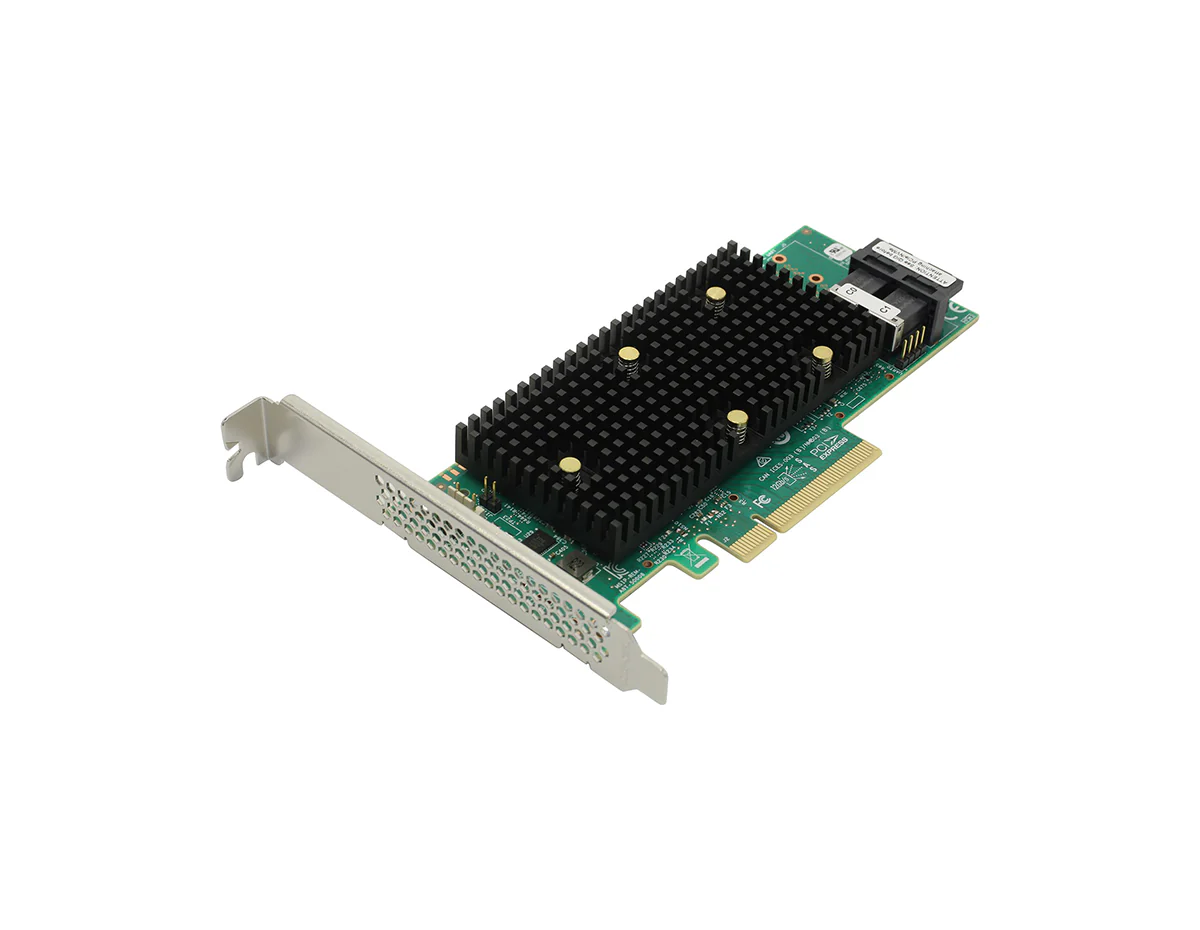

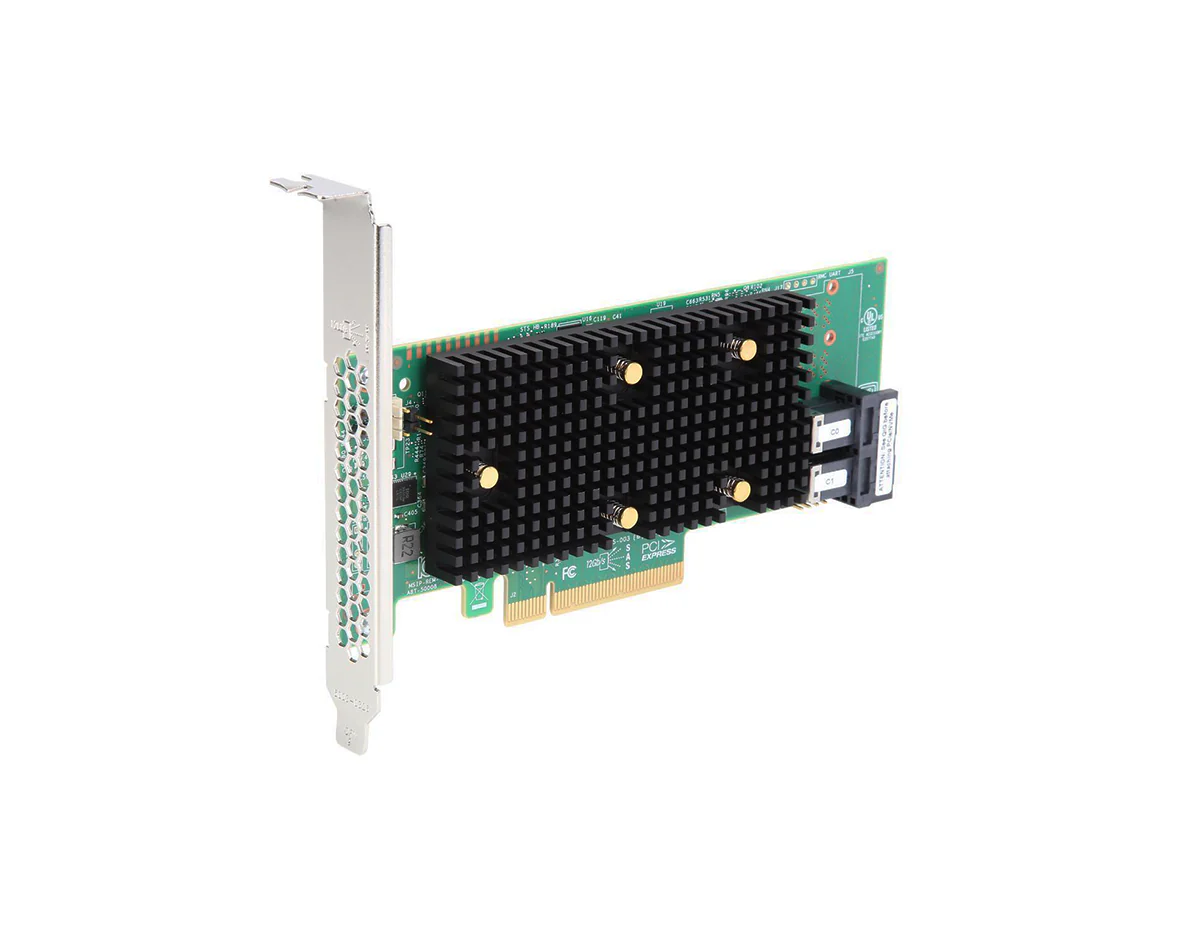

Broadcom LSI 9440-8i PCIe 3.1 x8 SAS3408 8 Internal Ports MegaRAID Tri-Mode Storage Adapter

The Broadcom LSI 9440-8i is the industry's first hardware RAID adapter with Tri-Mode SerDes Technology, providing high performance storage connectivity and flexible system designs supporting NVMe, SAS, and SATA devices.

Key Features

• Tri-Mode Storage Interface Ports
• Supports NVMe, SAS, and SATA devices
• RAID levels: 0, 1, 5, 6, 10, 50, and 60
• CacheVault flash back-up at power fail
• PCIe 3.1 Host Interface with x8, x4, x2, x1 PCIe lanes

Specifications

• Product: 9440-8i
• Ports: 8 internal
• Connectors: Two SFF-8643
• Storage Interface Support: SAS, SATA, PCIe (NVMe)
• Max PCIe (NVMe) Direct Attach Devices: Two x4, Two x2 (Direct Attached Only)
• Max Devices Per Controller: SAS/SATA: 63, NVMe: 2
• Host Bus Type: PCIe 3.1 x8
• Physical Dimensions: 6.127″ x 2.712″ (155.65 mm x 68.90 mm)
• Typical Power: 10.05W
• Operating Conditions: 0°C to 55°C, 20 to 80% non-condensing
• Storage Conditions: -45°C to 105°C, 5 to 95% non-condensing
• MTBF (Calculated): >3,000,000 hours at 40°C
• Operating Voltage: +12V +/-8%; 3.3V +/-9%
• Management Software: LSI Storage Authority (LSA), StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure)
