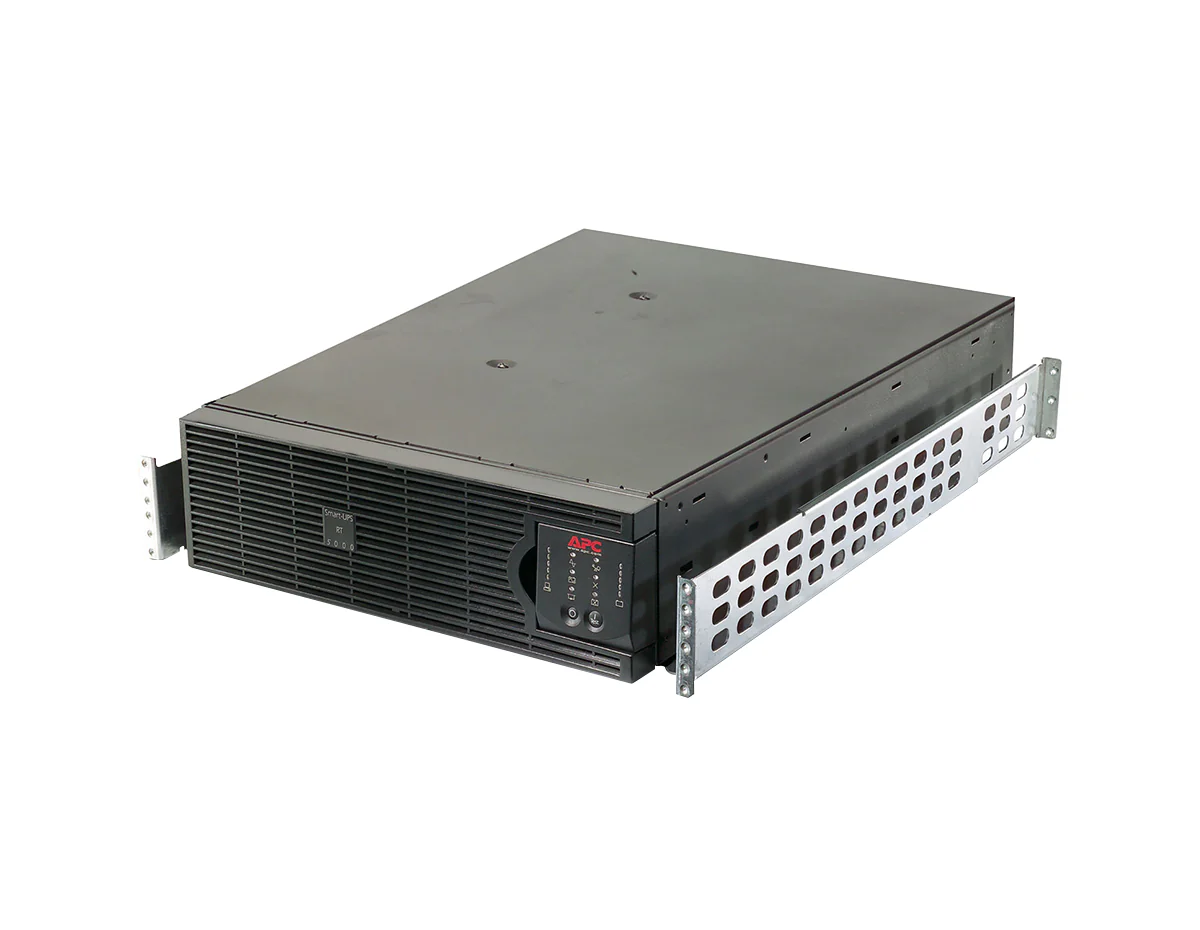

APC SURTD5000RMXLP3U - Smart-UPS RT 5kVA 3U Rack UPS
[shortdesc] 5000VA / 4000W, Double-Conversion Online, 3U Rackmount, 4x 5-20R + 1x L6-30R + 1x L14-30R Outlets, Split-Phase 208/240V to 120V, Pre-installed NMC 2 [/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SURTD5000RMXLP3U |
| Product Type | Smart-UPS RT, Double Conversion |
| Form Factor | Rackmount 3U |
| Dimensions (H x W x D) | 5.1" x 17.008" x 26.0" (130 x 432 x 660 mm) |
| Weight | 128.0005 lb (58.06 kg) |
| Color | Black |
| Number of Rack Units | 3U |
| Cable Length | 10 ft (3.05 m) |
| Cooling | Not specified |
[specifications]
| Capacity | 5000 VA / 4000 W |
| Input Voltage | 208 V (other: 240 V) • Adjustable: 85–136 V / 156–236 V |
| Input Connection Type | NEMA L14-30P |
| Input Frequency | 50/60 Hz ±5 Hz auto-sensing |
| Output Voltage | 120 V, 208 V (other: 240 V) |
| Output Connections | 4 × NEMA 5-20R, 1 × NEMA L6-30R, 1 × NEMA L14-30R |
| Waveform Type | Sine wave |
| Topology | Double Conversion On-Line |
| Transfer Time | 0 ms (on-line) |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | <2% |
| Battery Type | Lead-Acid • 2 Battery Modules Included • Voltage: Not specified • Recharge: 2.5 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 382 W rated |
| Extendable Runtime | Yes |
| Surge Energy Rating | 365 J |
| Acoustic Noise | 55 dBA |
| Thermal Dissipation | 1589 BTU/h |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Operating Humidity | 0–95% non-condensing |
| Altitude | 0–10,000 ft operating |
| Communications | RS-232, EPO, Audible alarms, Pre-installed Network Management Card 2 with environmental monitoring |
| Certifications | CSA |
| Warranty | 2 years repair or replace |
[accesories]
| Rack Mounting Support Rails | Included in the box |
| Removable Support Feet | Included in the box |
| RS-232 Cable | Included in the box |
| User Manual | Included in the box |
| CD with Software | Included in the box |
| Warranty Card | Not specified |
Overview
The APC Smart-UPS RT SURTD5000RMXLP3U delivers 5000VA / 4000W of true online double-conversion power in a compact 3U rack form. Featuring split-phase input with 208/240V conversion to 120V, it supports mixed equipment loads. With scalable runtime, internal bypass, and a pre-installed Network Management Card 2, it ensures maximum uptime and advanced power management for critical IT and network environments.
Key Features & Benefits
- Double-Conversion Online: Maintains pure sine wave output, filtering out power disturbances.
- Flexible Power Output: 208/240V input with split-phase conversion to 120V for diverse load compatibility.
- Comprehensive Outlets: 4x NEMA 5-20R, 1x L6-30R, and 1x L14-30R for multiple device types.
- Scalable Runtime: Extendable with external battery modules for longer backup support.
- Embedded NMC 2: Provides environmental monitoring and remote network management.
Technical Deep Dive
The SURTD5000RMXLP3U employs double-conversion topology, converting AC to DC and back to AC, ensuring a clean and stable sine wave output. This isolates connected devices from surges, sags, and harmonics, providing continuous protection for sensitive loads.
Its split-phase design allows it to accept 208/240V input and provide both 208V and 120V outputs, enabling it to power diverse equipment within the same deployment. The UPS includes a 10 ft NEMA L14-30P input cable and multiple output receptacles, giving installation teams flexibility in connecting various IT and network hardware.
The pre-installed Network Management Card 2 supports secure remote monitoring and environmental data integration. Internal automatic/manual bypass ensures uptime during service or anomalies, while intelligent alarms help operators respond to issues promptly.
Ideal Applications
- Enterprise server racks and storage arrays
- Mixed-voltage network hardware deployments
- Healthcare and laboratory IT systems
- Industrial environments requiring split-phase power distribution
Frequently Asked Questions (FAQs)
Q1: How is the SURTD5000RMXLP3U installed?
A: It is a 3U rackmount UPS with support rails and removable feet. Input uses NEMA L14-30P, outputs include 4x 5-20R, 1x L6-30R, and 1x L14-30R.
Q2: What performance and runtime can I expect?
A: The UPS provides 5000VA / 4000W capacity. Runtime varies by load and can be extended with external battery modules.
Q3: How can the UPS be managed?
A: It includes a pre-installed Network Management Card 2 for remote management, environmental monitoring, and SNMP integration.
