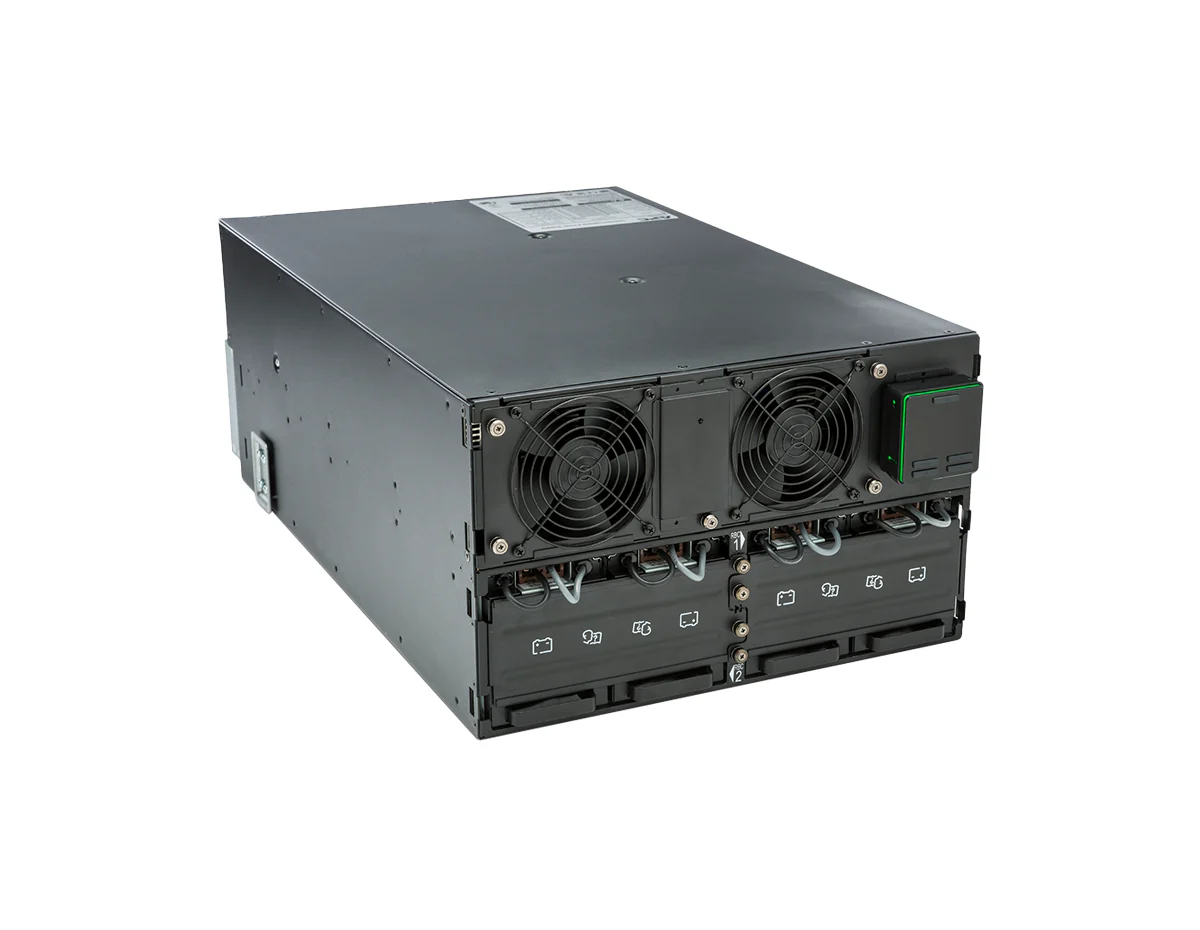

APC SRT10KRMXLT - Smart-UPS On-Line 10kVA 10kW Rackmount 6U UPS
[shortdesc]10kVA / 10kW, 6U Rackmount, Double-Conversion Online, 4x L6-20R & 2x L6-30R Outlets, Pre-installed SNMP Card[/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SRT10KRMXLT |
| Product Type | Smart-UPS On-Line, Double Conversion |
| Form Factor | Rackmount 6U |
| Dimensions (H x W x D) | 10.4" x 17.0" x 28.1" (263 x 432 x 715 mm) |
| Weight | 245.99 lb (111.58 kg) |
| Color | Black |
| Number of Rack Units | 6U |
| Cooling | Active (fan-based) |
[specifications]
| Capacity | 10000 VA / 10000 W |
| Input Voltage | 208 V (other: 240 V) |
| Input Connection Type | Hard Wire 3-wire (2PH + G) |
| Input Frequency | 40–70 Hz auto-sensing |
| Output Voltage | 208 V (other: 240 V) |
| Output Frequency | 50/60 Hz ±3 Hz sync to mains |

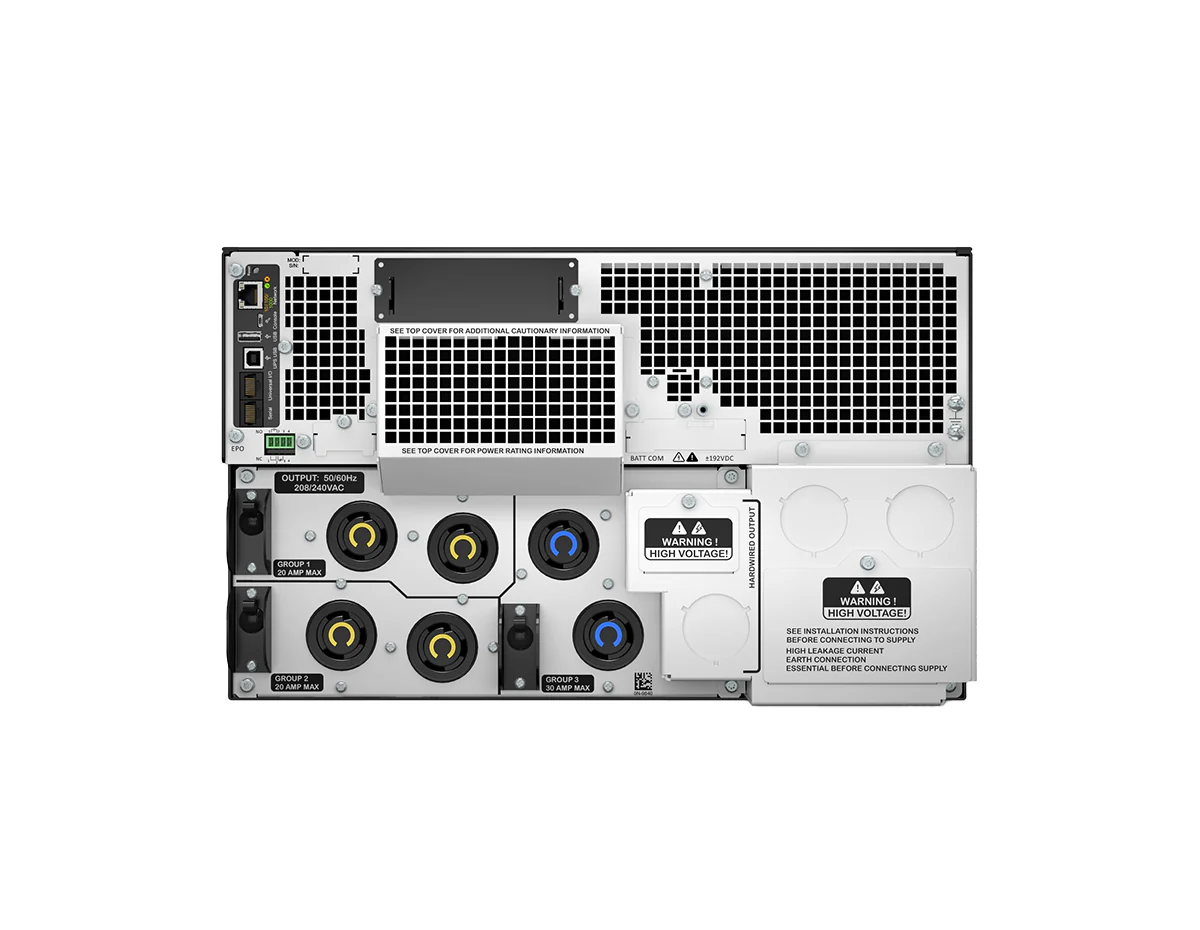

| Output Connections | 4 × NEMA L6-20R, 2 × NEMA L6-30R, 1 × Hard Wire 3-wire (2PH + G) |
| Waveform Type | Sine wave |
| Topology | Double Conversion On-Line |
| Transfer Time | 0 ms (on-line) |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | <2% |
| Battery Type | Lead-Acid • Voltage: +/-192 V • Recharge time: 1.5 h • Life: 3–5 years • RBC Qty: 2 • Replacement: APCRBC140 • Charge power: 1191 W rated |
| Extendable Runtime | Yes |
| Surge Energy Rating | 480 J |
| Acoustic Noise | 55 dBA |
| Thermal Dissipation | 2490 BTU/h |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Operating Humidity | 0–95% non-condensing |
| Altitude | 0–10,000 ft operating |
| Communications | USB, RS-232, EPO, Audible/visible alarms, SmartSlot (1 free), Pre-installed Network Management Card 3 with environmental monitoring |
| Certifications | ENERGY STAR V2.0 (USA), UL 1778, FCC Part 15 Class A, NOM |
| Warranty | 3 years repair or replace (excluding battery), 2 years (battery) |
[accesories]
| Rack Mounting Hardware | Included in the box |
| Rack Mounting Brackets | Included in the box |
| Rack Mounting Support Rails | Included in the box |
| Temperature Probe | Included in the box |
| USB Cable | Included in the box |
| Documentation | CD with software, Documentation CD, Installation guide, Warranty card |
| Web/SNMP Management Card | Pre-installed in the unit |
Overview
The APC SRT10KRMXLT delivers high-density online power protection with a full 10kVA / 10kW capacity in a 6U rackmount form factor. Designed for demanding IT environments, it ensures continuous uptime with double-conversion topology, advanced management features, and scalable runtime options.
Key Features & Benefits
- 10kVA / 10kW Capacity: Reliable protection for large network devices, servers, and critical systems.
- Double-Conversion Online: Provides pure, conditioned power independent of utility fluctuations.
- 6U Rackmount Design: Space-efficient installation with included rails and hardware.
- Flexible Output Connections: 4x NEMA L6-20R and 2x L6-30R outlets plus hardwire option.
- Pre-Installed SNMP Card: Remote monitoring and environmental management built in.
- Scalable Runtime: Extendable with external battery packs for long backup needs.
Technical Deep Dive
As a double-conversion online UPS, the SRT10KRMXLT continuously regenerates clean sine wave power, ensuring complete isolation from voltage dips, surges, and frequency variations. This architecture provides the highest level of protection for mission-critical loads.
Equipped with a split-battery 192V system, the UPS ensures stable DC bus performance with rapid 1.5-hour recharge time. Lead-acid modules are hot-swappable, enabling quick service without downtime.
The integrated Network Management Card 3 enhances visibility, offering environmental monitoring and remote control through SNMP protocols. Together, these features make it suitable for enterprise data centers and distributed IT environments where uptime is essential.
Ideal Applications
- Data centers requiring 10kW power capacity
- Enterprise server and storage racks
- Network hardware in branch or campus environments
- Industrial or healthcare IT systems with zero tolerance for downtime
Frequently Asked Questions (FAQs)
Q1: How is the SRT10KRMXLT installed?
A: It is a 6U rackmount UPS delivered with rails, brackets, and mounting support for seamless integration into standard racks.
Q2: What performance can I expect?
A: It delivers 10kVA / 10kW with sine wave output. Backup runtime depends on load and can be extended using additional battery packs. Actual runtime may vary with battery age and environment.
Q3: How can this UPS be managed?
A: The UPS includes a pre-installed Network Management Card 3, supporting SNMP monitoring, remote management, and environmental sensors for comprehensive oversight.
