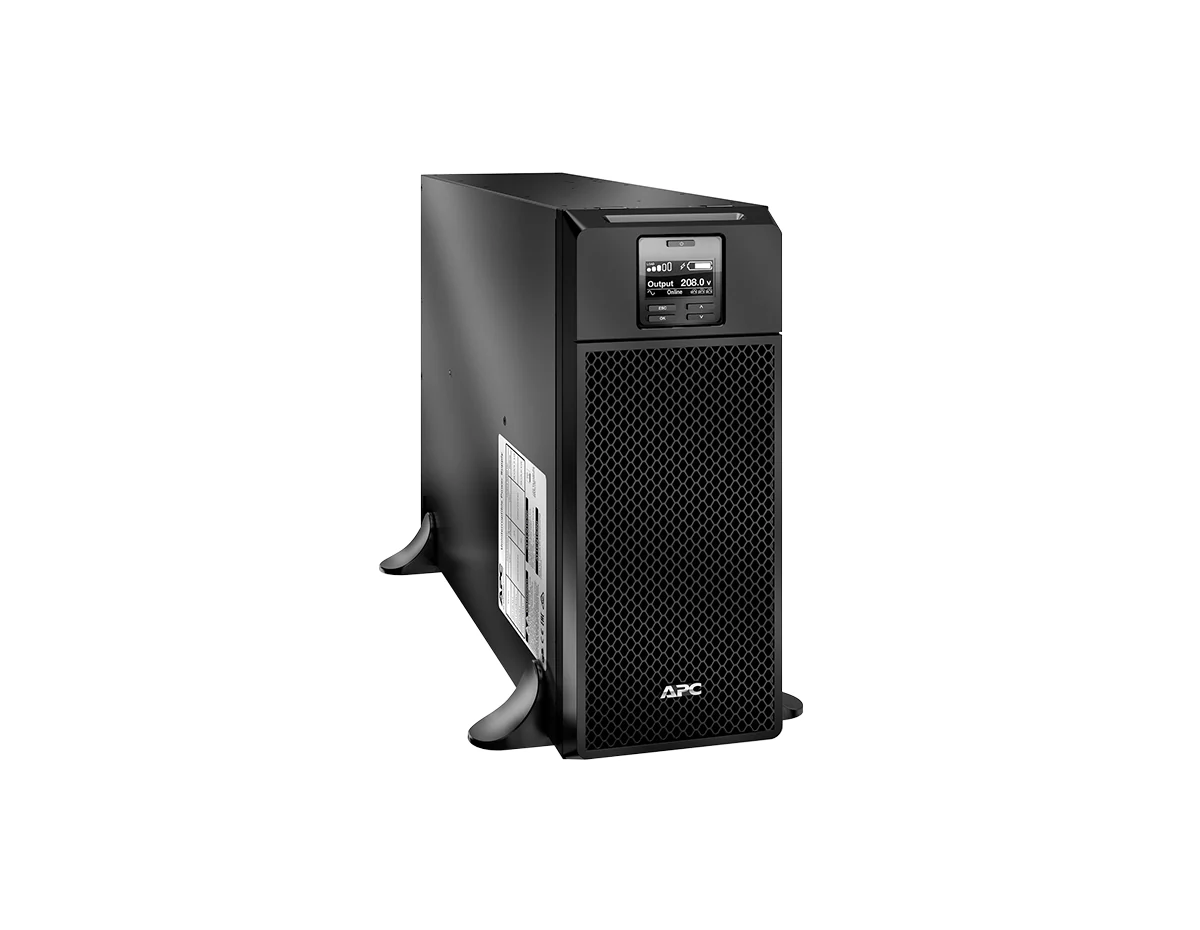

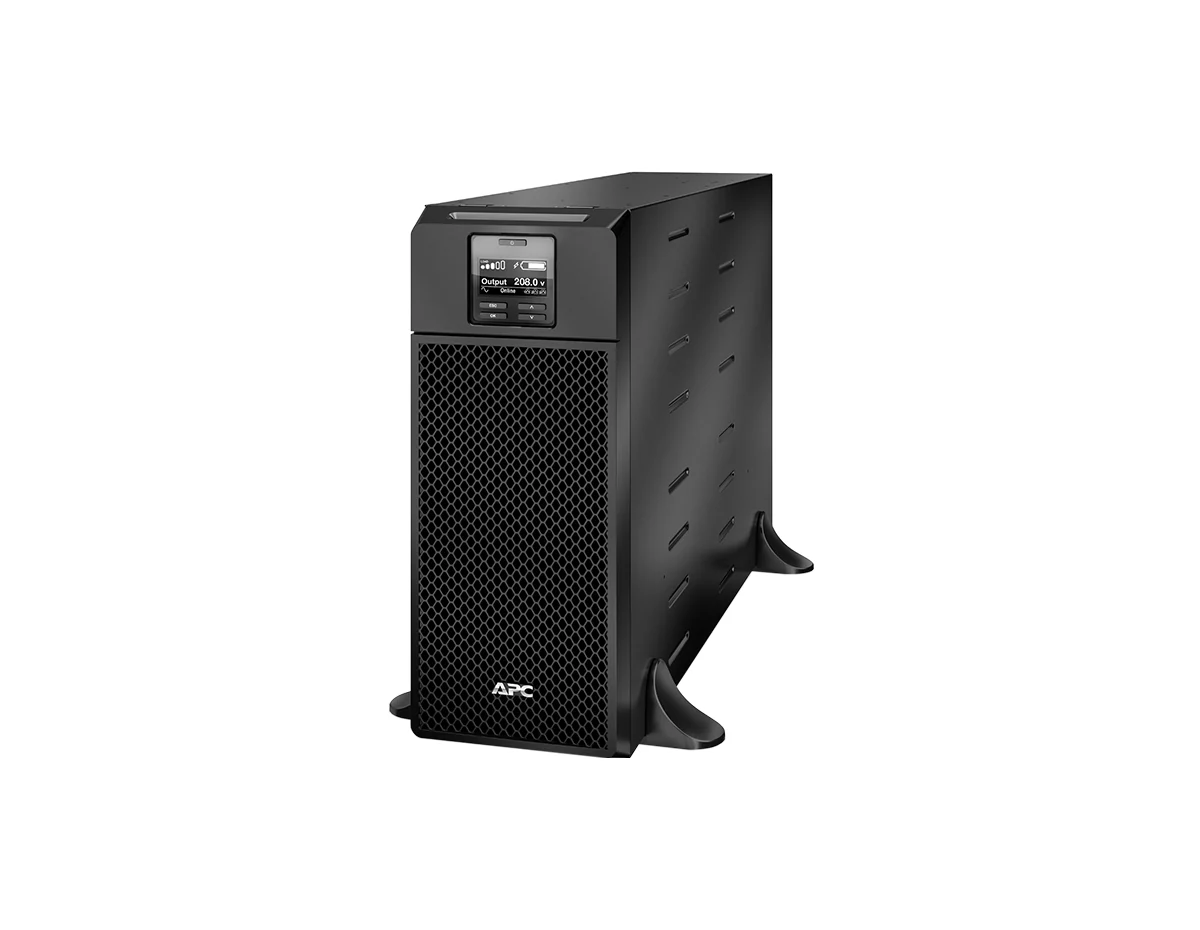

APC SRT6KXLT - Smart-UPS On-Line 6kVA Tower UPS
[shortdesc] 6kVA / 6kW, 208V Tower UPS, Double-Conversion Online, 2x NEMA L6-20R + 3x NEMA L6-30R, Pre-installed Network Management Card 3, Extendable runtime [/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SRT6KXLT |
| Product Type | Smart-UPS On-Line, Double Conversion |
| Form Factor | Tower |
| Dimensions (H x W x D) | 17.008" x 6.9" x 28.3" (432 x 174 x 719 mm) |
| Weight | 134.99 lb (61.23 kg) |
| Color | Black |
| Number of Rack Units | Not specified |
| Cable Length | Not specified |
| Cooling | Not specified |
[specifications]
| Capacity | 6000 VA / 6000 W |
| Input Voltage | 208 V (other: 240 V) • Adjustable: 100–275 V |
| Input Connection Type | Hard Wire 3-wire (2PH + G) |
| Input Frequency | 40–70 Hz auto-sensing |
| Output Voltage | 208 V (other: 240 V) |

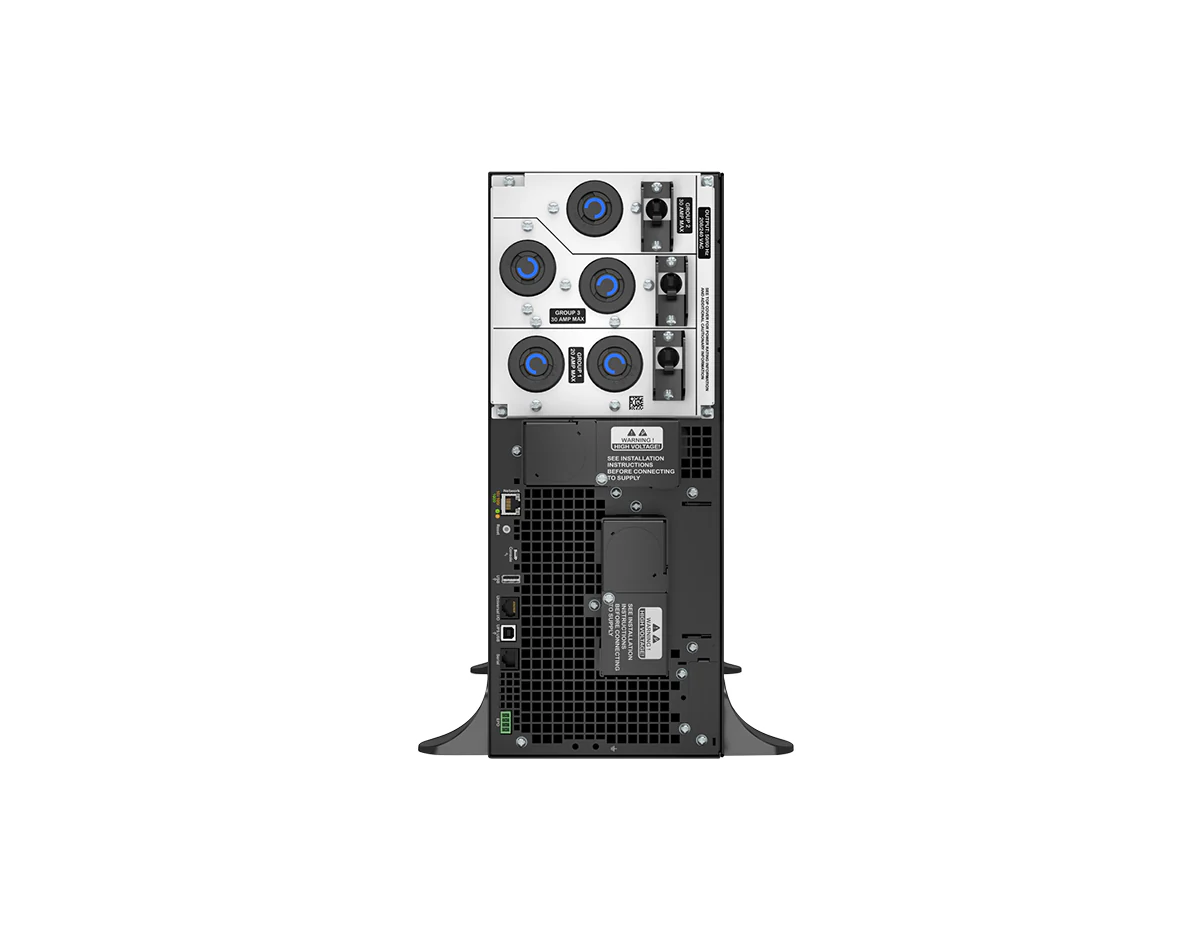

| Output Connections | 2 × NEMA L6-20R, 3 × NEMA L6-30R, 1 × Hard Wire 3-wire (2PH + G) |
| Waveform Type | Sine wave |
| Topology | Double Conversion On-Line |
| Transfer Time | 0 ms (on-line) |
| Bypass Type | Internal (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | <2% |
| Battery Type | Lead-Acid • Voltage: 192 V • Recharge: 1.5 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 579 W rated |
| Extendable Runtime | Yes |
| Surge Energy Rating | 480 J |
| Acoustic Noise | 55 dBA |
| Thermal Dissipation | 1402 BTU/h |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Operating Humidity | 0–95% non-condensing |
| Altitude | 0–10,000 ft operating |
| Communications | USB, EPO, Audible/visible alarms, SmartSlot (1 free), Pre-installed Network Management Card 3 with environmental monitoring |
| Certifications | ENERGY STAR V2.0 (USA), UL 1778, FCC Part 15 Class A, NOM |
[accesories]
| Removable Support Feet | Included in the box |
| Temperature Probe | Included in the box |
| USB Cable | Included in the box |
| Documentation | CD with software, Documentation CD, Installation guide, User manual, Warranty card |
| Web/SNMP Management Card | Pre-installed in the unit |
Overview
The APC Smart-UPS On-Line SRT6KXLT provides 6kVA/6kW of true online double-conversion power in a tower form factor with 208V output and support for external battery packs. It includes a pre-installed Network Management Card 3 with environmental monitoring and offers 2x L6-20R plus 3x L6-30R outlets for flexible distribution to critical IT and network hardware.
Key Features & Benefits
- Double-Conversion Online: Continuous, regenerated sine wave output that isolates connected loads from input anomalies.
- 6kVA/6kW Capacity: High power density for servers, storage, and network devices at 208V.
- Rich Outlet Mix: 2x L6-20R and 3x L6-30R simplify connection of varied loads.
- Network Management Card 3: Built-in remote monitoring and environmental visibility for proactive control.
- Extendable Runtime: Compatible with external battery packs to meet longer backup requirements.
Technical Deep Dive
With double-conversion topology, incoming AC is converted to DC and then inverted back to AC. This architecture removes disturbances such as voltage sags, surges, and frequency drift, delivering stable power without transfer time to sensitive equipment.
The SRT6KXLT supports external battery modules and hot-swappable batteries, allowing runtime scaling while maintaining availability during battery service. The integrated management card enables remote oversight of power and environmental conditions.
Power quality is reinforced by low output harmonic distortion, a 3:1 crest factor, and synchronized 50/60 Hz output, keeping mission-critical systems within safe operating limits.
Ideal Applications
- Enterprise servers and storage requiring 208V distribution
- Network infrastructure and edge computing sites
- Healthcare, finance, and industrial control systems
- Branch and campus environments with extended runtime needs
Frequently Asked Questions (FAQs)
Q1: What is the installation format?
A: SRT6KXLT is a tower UPS supplied with removable support feet and includes a Web/SNMP management card.
Q2: What performance and runtime should I expect?
A: It is rated 6kVA/6kW at 208V with online protection. Runtime varies by load and can be extended using compatible external battery packs.
Q3: How is it managed?
A: The pre-installed Network Management Card 3 enables remote monitoring and environmental integration.
