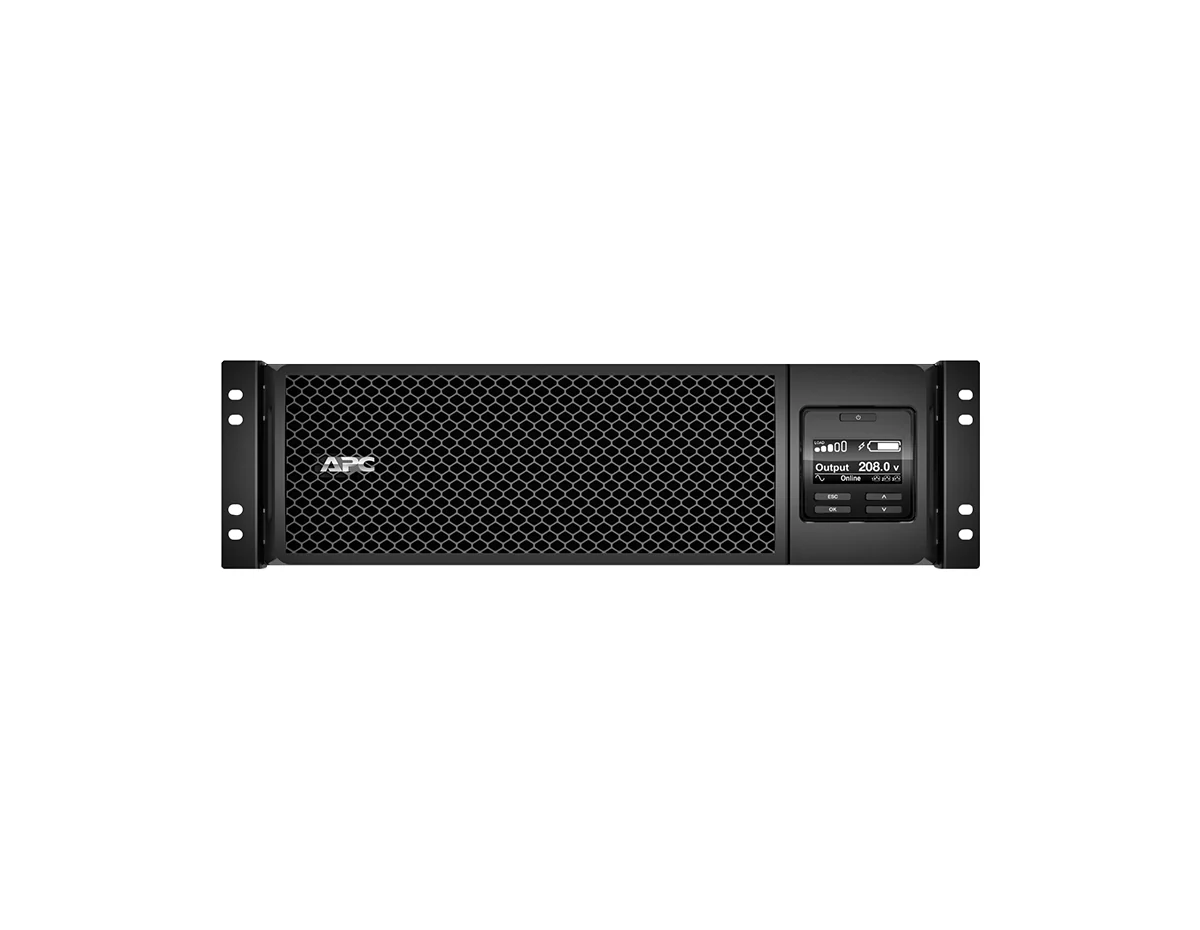

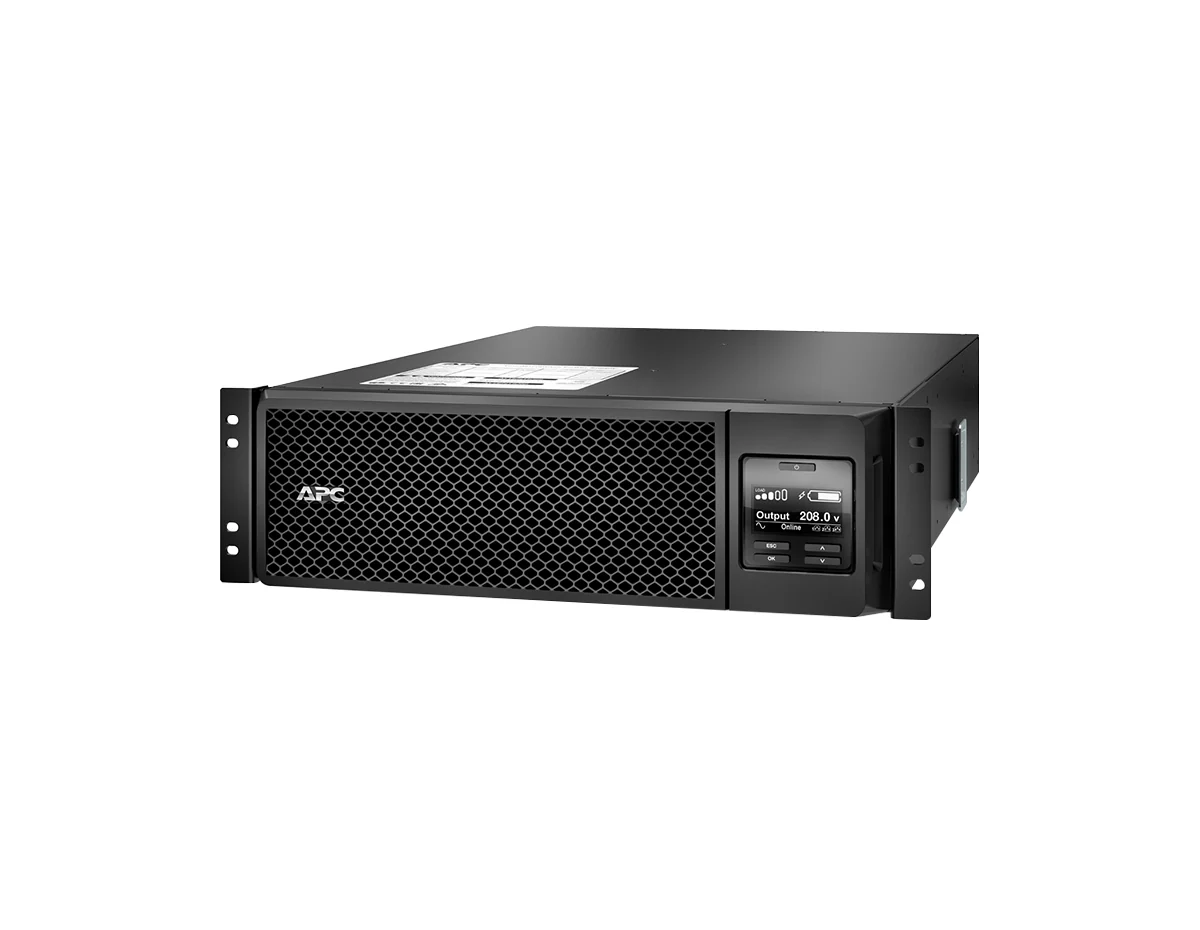

APC SRT5KRMXLTUS - Smart-UPS On-Line 5kVA 3U Rackmount UPS
[shortdesc]
5400 VA / 4800 W, Double Conversion Online, 2x NEMA L6-20R + 2x NEMA L6-30R, Pre-installed Network Management Card 3
[/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SRT5KRMXLTUS |
| Product Type | Smart-UPS On-Line, Double Conversion |
| Form Factor | Rackmount 3U |
| Dimensions (H x W x D) | 5.1" x 17.0" x 28.3" (130 x 432 x 719 mm) |
| Weight | 123 lb (55.79 kg) |
| Color | Black |
| Number of Rack Units | 3U |
| Cable Length | 10 ft (3.05 m) |
| Cooling | Not specified |
[specifications]
| Capacity | 5400 VA / 4800 W |
| Input Voltage | 208 V (other: 240 V) • Adjustable (half load): 100–275 V |
| Input Connection Type | NEMA L6-30P |
| Input Frequency | 40–70 Hz auto-sensing |
| Output Voltage | 208 V (other: 240 V) |

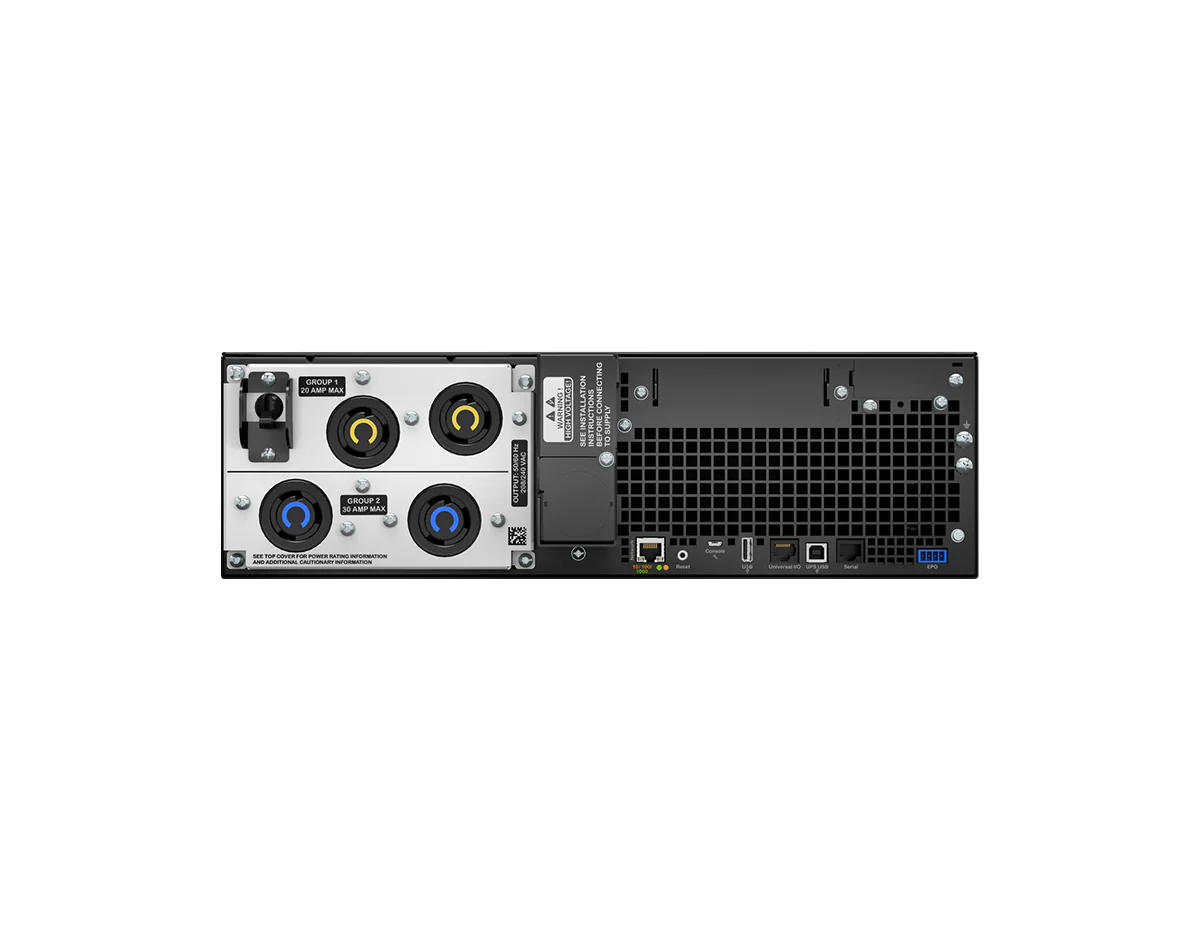

| Output Connections | 2 × NEMA L6-20R, 2 × NEMA L6-30R |
| Waveform Type | Sine wave |
| Topology | Double Conversion On-Line |
| Transfer Time | Not specified |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | <2% |
| Battery Type | Lead-Acid • Recharge: 1.5 h (typical) • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 556 W rated |
| Extendable Runtime | Yes |
| Surge Energy Rating | 480 J |
| Acoustic Noise | 55 dBA |
| Thermal Dissipation | 1047 BTU/h |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Operating Humidity | 0–95% non-condensing |
| Altitude | 0–10,000 ft operating |
| Communications | USB compatible, EPO, Audible/visible alarms, 1 free SmartSlot, Pre-installed Network Management Card 3 with environmental monitoring |
| Certifications | ENERGY STAR V2.0 (USA), NOM, TAA compliance |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
[accessories]
| Rack Mounting Hardware | Included in the box |
| Rack Mounting Brackets | Included in the box |
| Rack Mounting Support Rails | Included in the box |
| USB Cable | Included in the box |
| Documentation | Documentation CD, User Manual, Installation guide, Warranty card |
| Web/SNMP Management Card | Pre-installed in the unit |
Overview
The APC Smart-UPS On-Line SRT5KRMXLTUS delivers continuous double-conversion protection in a compact 3U rackmount design. Rated 5400 VA / 4800 W at 208/240 V, it provides clean sine wave output, Internal Bypass (Automatic and Manual), and a pre-installed Network Management Card 3 with environmental monitoring—ensuring stable power and centralized visibility for servers, storage, and network devices.
Key Features & Benefits
- Double Conversion Online – Regenerates AC power to deliver a low-distortion sine wave for sensitive IT loads.
- Versatile NEMA Outlets – 2x L6-20R and 2x L6-30R support higher-current equipment and flexible distribution.
- Internal Bypass – Automatic and manual bypass help maintain power to the load during certain UPS events.
- Remote Management – Pre-installed Network Management Card 3 enables Ethernet monitoring and environmental inputs.
- Fast Recovery – Typical battery recharge is about 1.5 hours, helping restore protection quickly.
- ENERGY STAR® V2.0 – High efficiency aligned with recognized UPS standards.
Technical Deep Dive
Power Conditioning: Continuous AC-DC-AC conversion isolates connected equipment from sags, surges, and noise. Output harmonic distortion is less than 2%, and a 3:1 crest factor accommodates transient inrush without compromising stability.
Energy System: The lead-acid battery system supports extendable runtime and features a rated charge power of 556 W with a typical recharge time of 1.5 hours. Audible/visible alarms prioritized by severity and Emergency Power Off (EPO) streamline operational responses.
Distribution & Interfaces: Operation at 208/240 V with L6-20R and L6-30R receptacles fits mixed rack loads, while the factory-installed Network Management Card 3, USB connectivity, and SmartSlot™ architecture provide flexible management and environmental monitoring.
Ideal Applications
- Enterprise racks requiring regulated 208/240 V sine wave power
- Server, storage, and core network devices with higher-current connections
- Sites needing centralized, Ethernet-based monitoring and fast recharge
- Environments within 32–104 °F (0–40 °C), up to 95% RH non-condensing
Frequently Asked Questions (FAQs)
Q1: How is the SRT5KRMXLTUS installed?
A: It is a 3U rack-mounted UPS and ships with rack mounting hardware, brackets, support rails, USB cable, and documentation. Input uses a NEMA L6-30P with a 10 ft (3.05 m) cord.
Q2: What performance can I expect?
A: Capacity is 5400 VA / 4800 W with sine wave output at 208/240 V. Runtime depends on load and any external battery packs—refer to the APC runtime graph for precise values; actual results vary by environment and battery condition.
Q3: How is it managed?
A: A pre-installed Network Management Card 3 enables remote monitoring/control and environmental inputs. USB provides local access, and prioritized alarms plus EPO support safe operations.
