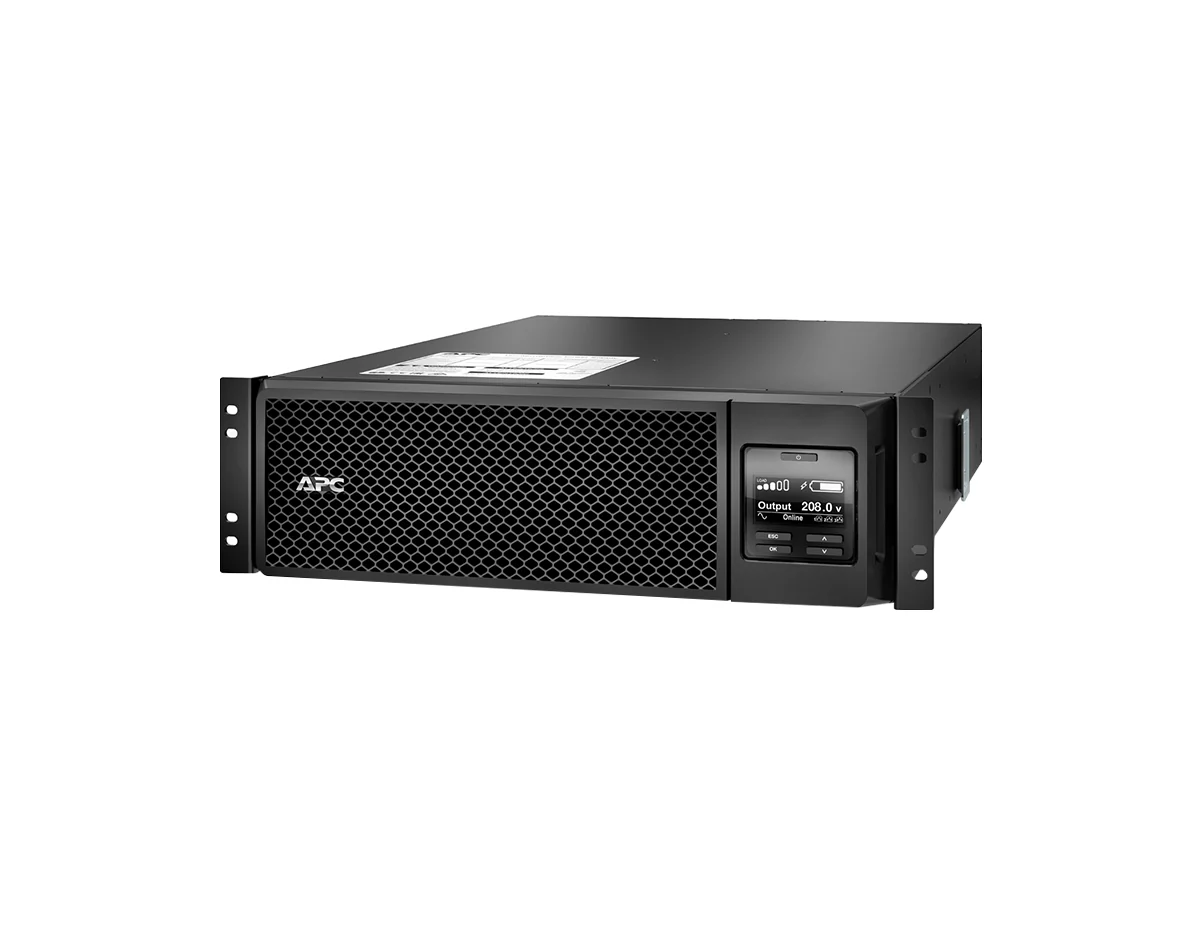

APC SRT5KRMXLT-IEC - Smart-UPS On-Line 5kVA 3U Rackmount UPS
[shortdesc]
5kVA / 4800W, 3U Rackmount, 4x IEC C13 + 4x IEC C19, Pre-installed Network Management Card 3
[/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SRT5KRMXLT-IEC |
| Product Type | Smart-UPS On-Line, Double Conversion |
| Form Factor | Rackmount 3U |
| Dimensions (H x W x D) | 5.1" x 17.0" x 28.3" (130 x 432 x 719 mm) |
| Weight | 123 lb (55.79 kg) |
| Color | Black |
| Number of Rack Units | 3U |
| Cable Length | 10 ft (3.05 m) |
| Cooling | Not specified |
[specifications]
| Capacity | 5000 VA / 4800 W |
| Input Voltage | 208 V (other: 240 V) • Adjustable (half load): 100–275 V |
| Input Connection Type | NEMA L6-30P |
| Input Frequency | 40–70 Hz auto-sensing |
| Output Voltage | 208 V (other: 240 V) |
| Output Connections | 4 × IEC C13, 4 × IEC C19, 2 × IEC Jumpers |
| Waveform Type | Sine wave |
| Topology | Double Conversion On-Line |
| Transfer Time | Not specified |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | <2% |
| Battery Type | Lead-Acid • Voltage: 192 V • Recharge: 1.5 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 556 W rated |
| Extendable Runtime | Yes |
| Surge Energy Rating | 480 J |
| Acoustic Noise | 55 dBA |
| Thermal Dissipation | 1047 BTU/h |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Operating Humidity | 0–95% non-condensing |
| Altitude | 0–10,000 ft operating |
| Communications | USB compatible, EPO, Audible/visible alarms, 1 SmartSlot (free), Pre-installed Network Management Card 3 with environmental monitoring |
| Certifications | ENERGY STAR V2.0 (USA) |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
[accessories]
| Rack Mounting Hardware | Included in the box |
| Rack Mounting Brackets | Included in the box |
| Rack Mounting Support Rails | Included in the box |
| USB Cable | Included in the box |
| Documentation | Documentation CD, Installation guide, User Manual, Warranty card |
| Web/SNMP Management Card | Pre-installed in the unit |
Overview
The APC Smart-UPS On-Line SRT5KRMXLT-IEC provides continuous double-conversion protection in a compact 3U rackmount chassis. Delivering 5000 VA / 4800 W at 208/240 V with low-distortion sine wave output, it pairs an IEC C13/C19 outlet mix with an integrated Network Management Card 3 (environmental monitoring) and internal automatic/manual bypass, supporting scalable runtime with a typical ~1.5 hour recharge.
Key Features & Benefits
- Double Conversion Online – Continuous AC-DC-AC conditioning yields regulated, low-distortion sine wave power.
- 5kVA / 4800 W Capacity – Full-rated output for demanding IT loads at 208/240 V.
- IEC Distribution – 4x IEC C13 and 4x IEC C19 plus two IEC jumpers for flexible downstream connections.
- Pre-installed Network Management Card 3 – Enables remote monitoring/control with environmental inputs.
- Internal Bypass – Automatic and manual bypass paths help maintain load power during certain events.
- Extendable Runtime – 192 V lead-acid battery system; typical recharge about 1.5 h (rated charge power ~556 W).
- ENERGY STAR® UPS V2.0 – Efficiency aligned to recognized standards.
Technical Deep Dive
Conversion & Conditioning: The SRT topology regenerates AC power to isolate connected equipment from sags, surges, and noise. Output harmonic distortion is less than 2%, and a 3:1 crest factor manages transient inrush common to electronic loads.
Power & Distribution: Nominal operation at 208/240 V supports mixed equipment through four C13 and four C19 receptacles, with internal automatic/manual bypass for service continuity. Output frequency tracks mains at 50/60 Hz (±3 Hz) to align with site requirements.
Energy System & Control: A 192 V battery bus supports extended runtime options and quick recovery (~1.5 h typical). Management interfaces include a pre-installed SmartSlot™ Network Management Card 3, USB for local access, prioritized audible/visible alarms, and Emergency Power Off (EPO) for facility integration.
Ideal Applications
- Racks needing regulated 208/240 V sine-wave output with IEC C13/C19 distribution
- Deployments requiring extendable runtime and fast recharge
- Sites benefiting from Ethernet-based remote monitoring and EPO integration
- Environments within 32–104 °F (0–40 °C), up to 95% RH non-condensing
Frequently Asked Questions (FAQs)
Q1: What’s the installation form factor?
A: It is a 3U rackmount UPS and ships with rack mounting hardware, brackets, support rails, a USB cable, and a Web/SNMP management card. Input uses a NEMA L6-30P with a 10 ft (3.05 m) cord.
Q2: What performance should I expect?
A: Rated 5000 VA / 4800 W with sine-wave output at 208/240 V. Runtime varies by load and external batteries; consult APC runtime charts for exact values. Typical battery recharge is about 1.5 hours.
Q3: How do I monitor and manage the unit?
A: Use the pre-installed Network Management Card 3 for remote monitoring and environmental inputs. USB provides local access; EPO and prioritized alarms support safety and clear status indication.
