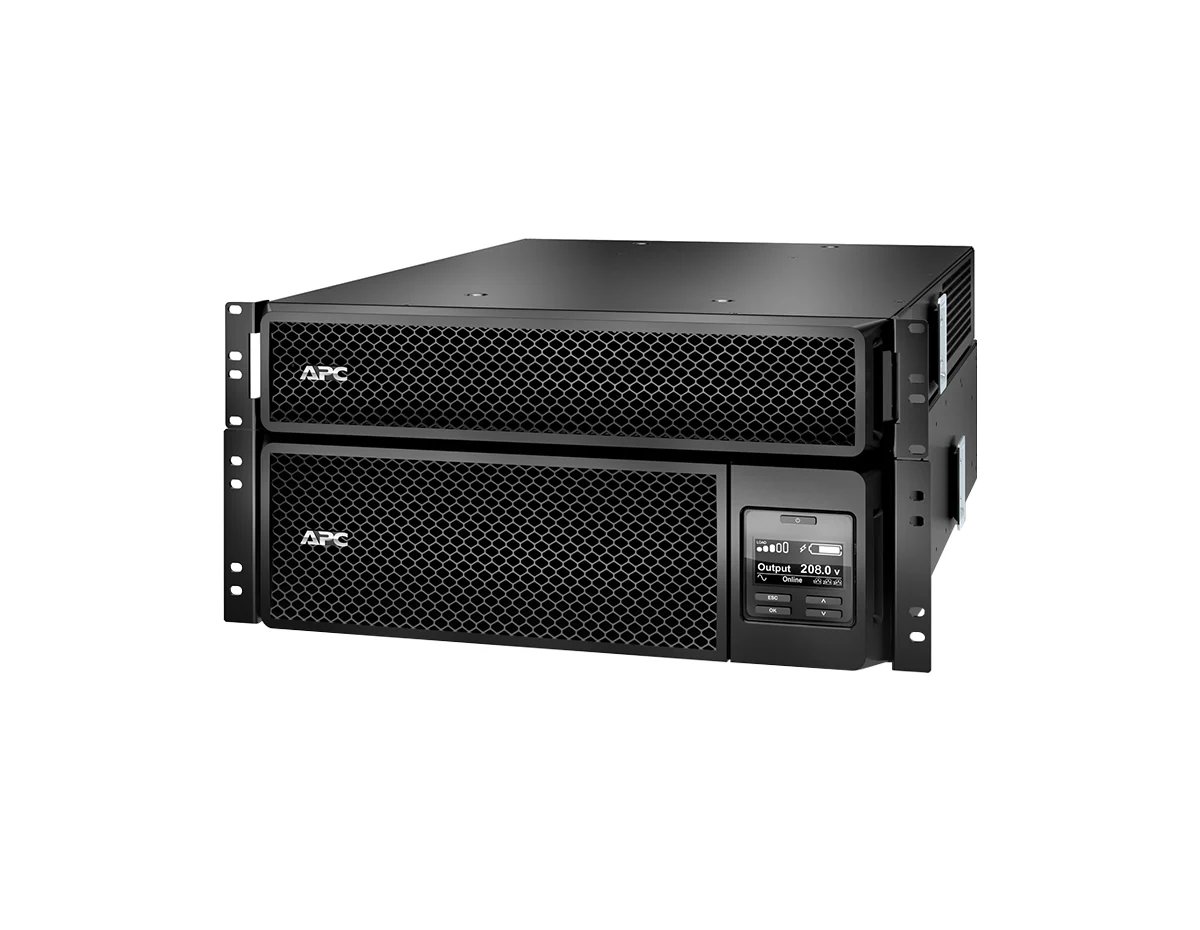

APC SRT5KRMXLT-5KTF - Smart-UPS On-Line 5kVA 5U Rackmount
[shortdesc]
5kVA / 4800W Online, Integrated 208V→120V Transformer, 12x NEMA 5-20R + 2x L6-20R + 2x L6-30R, Pre-installed Network Management Card 3
[/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SRT5KRMXLT-5KTF |
| Product Type | Smart-UPS On-Line with Transformer |
| Form Factor | Rackmount 5U |
| Dimensions (H x W x D) | 8.6" x 17.0" x 28.3" (218 x 432 x 719 mm) |
| Weight | 217.99 lb (98.88 kg) |
| Color | Black |
| Number of Rack Units | 5U |
| Cable Length | 10 ft (3.05 m) |
| Cooling | Not specified |
[specifications]
| Capacity | 5000 VA / 4800 W |
| Input Voltage | 208 V (other: 220 V) • Adjustable (half load): 100–275 V |
| Input Connection Type | NEMA L6-30P |
| Input Frequency | 40–70 Hz auto-sensing |
| Output Voltage | 120 V |

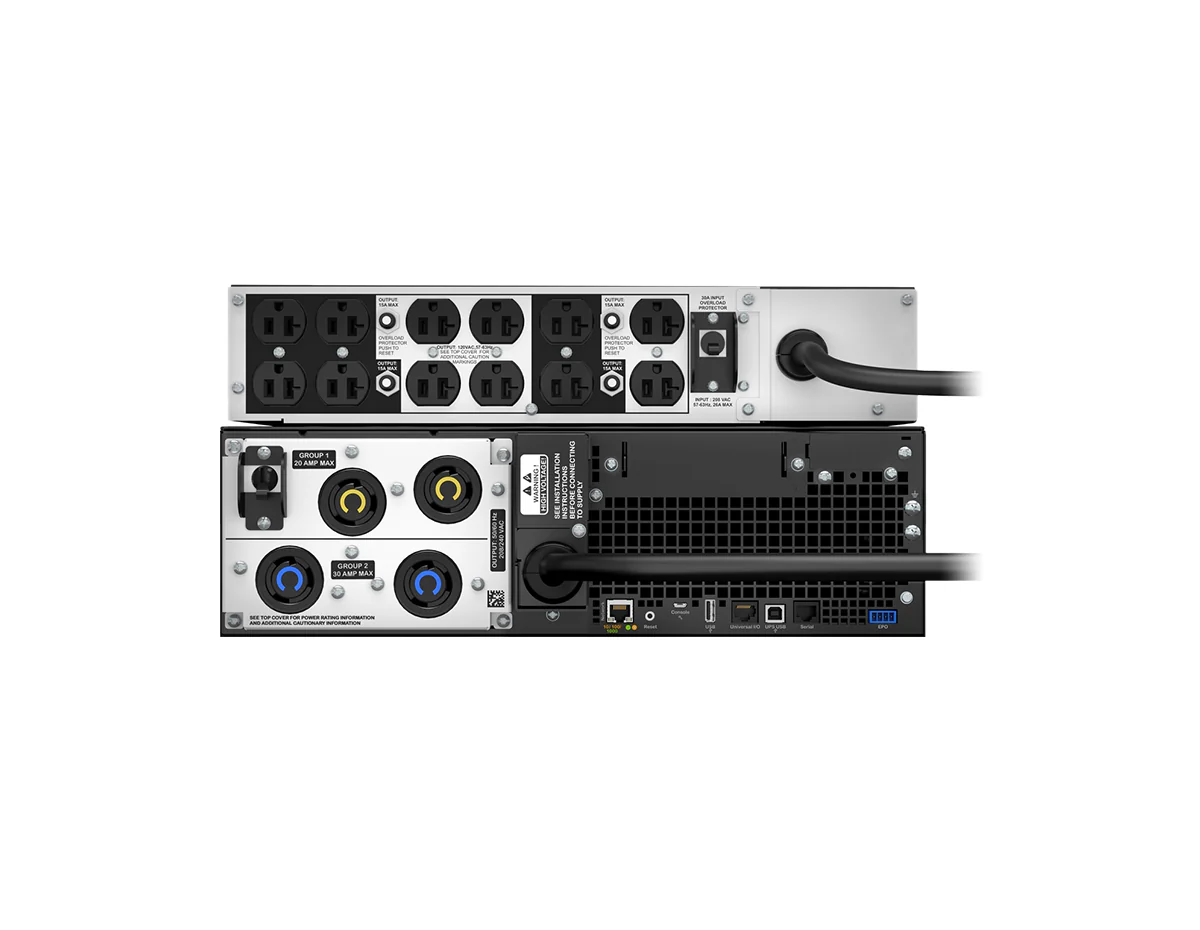

| Output Connections | 12 × NEMA 5-20R, 2 × NEMA L6-20R, 2 × NEMA L6-30R |
| Waveform Type | Sine wave |
| Topology | Double Conversion On-Line |
| Transfer Time | Not specified |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | <2% |
| Battery Type | Lead-Acid • Voltage: 192 V • Recharge: 1.5 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 556 W rated |
| Extendable Runtime | Yes |
| Surge Energy Rating | 480 J |
| Acoustic Noise | 55 dBA |
| Thermal Dissipation | 1047 BTU/h |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Operating Humidity | 0–95% non-condensing |
| Altitude | 0–10,000 ft operating |
| Communications | USB compatible, EPO, Audible/visible alarms, 1 SmartSlot (free), Pre-installed Network Management Card 3 with environmental monitoring |
| Certifications | ENERGY STAR V2.0 (USA) |
| Warranty | 3 years repair or replace (UPS), 2 years for battery |
[accessories]
| Rack Mounting Hardware | Included in the box |
| Rack Mounting Brackets | Included in the box |
| Rack Mounting Support Rails | Included in the box |
| USB Cable | Included in the box |
| Documentation | Documentation CD, Installation guide, User Manual, Warranty card |
| Web/SNMP Management Card | Pre-installed in the unit |
Overview
The APC Smart-UPS On-Line SRT5KRMXLT-5KTF delivers 5kVA/4800W of conditioned power in a 5U rackmount design. With true double-conversion protection, an integrated 208V to 120V transformer, a comprehensive outlet mix, and a factory-installed Network Management Card 3 with environmental monitoring, it safeguards mission-critical servers, storage, and network devices with centralized visibility and control.
Key Features & Benefits
- Double Conversion Online – Continuous AC-DC-AC conditioning provides stable, low-distortion sine wave output.
- 208V→120V Transformer – Built-in step-down conversion broadens compatibility for downstream 120 V equipment.
- Comprehensive Outlets – 12× 5-20R, 2× L6-20R, 2× L6-30R support diverse IT loads and higher-current connections.
- Pre-installed NMC 3 – Enables secure remote monitoring, control, and environmental sensing.
- Internal Bypass – Automatic and manual bypass paths help maintain power to the load during certain events.
- Extendable Runtime – External battery support with typical 1.5 h recharge restores readiness quickly.
- ENERGY STAR® V2.0 – High-efficiency design helps reduce operating impact.
Technical Deep Dive
Online Topology: The UPS isolates connected loads from sags, surges, and line noise by regenerating AC power. Output harmonic distortion is less than 2%, and a 3:1 crest factor handles transient inrush typical of electronic equipment.
Power Distribution & Conversion: An integrated transformer converts 208 V input to regulated 120 V output. The outlet mix (5-20R, L6-20R, L6-30R) simplifies distribution across mixed equipment profiles while retaining locking options for higher-current devices.
Energy Storage & Controls: A 192 V lead-acid battery system supports extended runtime and typically recharges in about 1.5 hours. The unit includes Emergency Power Off (EPO), prioritized audible/visible alarms, USB compatibility, and a SmartSlot architecture with the Network Management Card 3 pre-installed.
Ideal Applications
- Rack-mounted servers, high-capacity storage, and core network hardware
- Sites needing 120 V distribution from a 208 V source
- Distributed IT and edge locations requiring remote monitoring
- Environments within 32–104 °F (0–40 °C) and up to 95% RH non-condensing
Frequently Asked Questions (FAQs)
Q1: How is the SRT5KRMXLT-5KTF installed?
A: It is a 5U rackmount UPS and ships with rack hardware, brackets, support rails, user manual, and USB cable. Input uses a NEMA L6-30P; cord length is 10 ft (3.05 m).
Q2: What performance can I expect?
A: Rated 5kVA / 4800 W with sine wave output. Runtime varies by load and any external battery packs; consult APC’s runtime chart for exact values. Typical recharge is ~1.5 hours.
Q3: How can it be managed?
A: The pre-installed Network Management Card 3 enables remote monitoring and environmental inputs. USB compatibility, EPO, and prioritized alarms support local control and safety integration.
