[shortdesc] 3000VA / 2700W, Double Conversion Online, 8x NEMA 5-20R + 1x NEMA L5-30R, Internal & Manual Bypass, Extended Runtime Capable [/shortdesc]

[properties]

Brand	APC by Schneider Electric
Model	SRT3000XLAUS
Product Type	Smart-UPS On-Line, Double Conversion
Form Factor	Tower
Dimensions (H x W x D)	17.008" x 3.3" x 25.0" (432 x 85 x 635 mm)
Weight	69 lb (31.3 kg)
Color	Black
Number of Rack Units	—
Cable Length	8 ft (2.4 m)
Cooling	Active (Fan-cooled)

[/properties]

[specifications]

Capacity	3000 VA / 2700 W
Input Voltage	120 V
Input Connection Type	NEMA L5-30P
Input Frequency	40–70 Hz auto-sensing
Output Voltage	120 V
Output Connections	8 × NEMA 5-20R, 1 × NEMA L5-30R
Waveform Type	Sine wave
Topology	Double Conversion On-Line
Transfer Time	0 ms (on-line)
Bypass Type	Internal Bypass (Automatic and Manual)
Crest Factor	3:1
Harmonic Distortion	<2%
Battery Type	Lead-Acid • Recharge: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC152 • Charge power: 151 W rated
Extendable Runtime	Yes
Surge Energy Rating	340 J
Acoustic Noise	55 dBA
Thermal Dissipation	805 BTU/h
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	0–95% non-condensing
Altitude	0–10,000 ft operating
Communications	USB compatible, EPO, Audible/visible alarms, 1 free SmartSlot
Certifications	ENERGY STAR V2.0 (USA), TAA compliance
Warranty	3 years repair or replace (excluding battery) and 2 years for battery

[/specifications]

[accessories]

Removable Support Feet	Included in the box
USB Cable	Included in the box
Documentation	CD with software, Documentation CD, Installation guide, Warranty card

[/accessories]

Overview

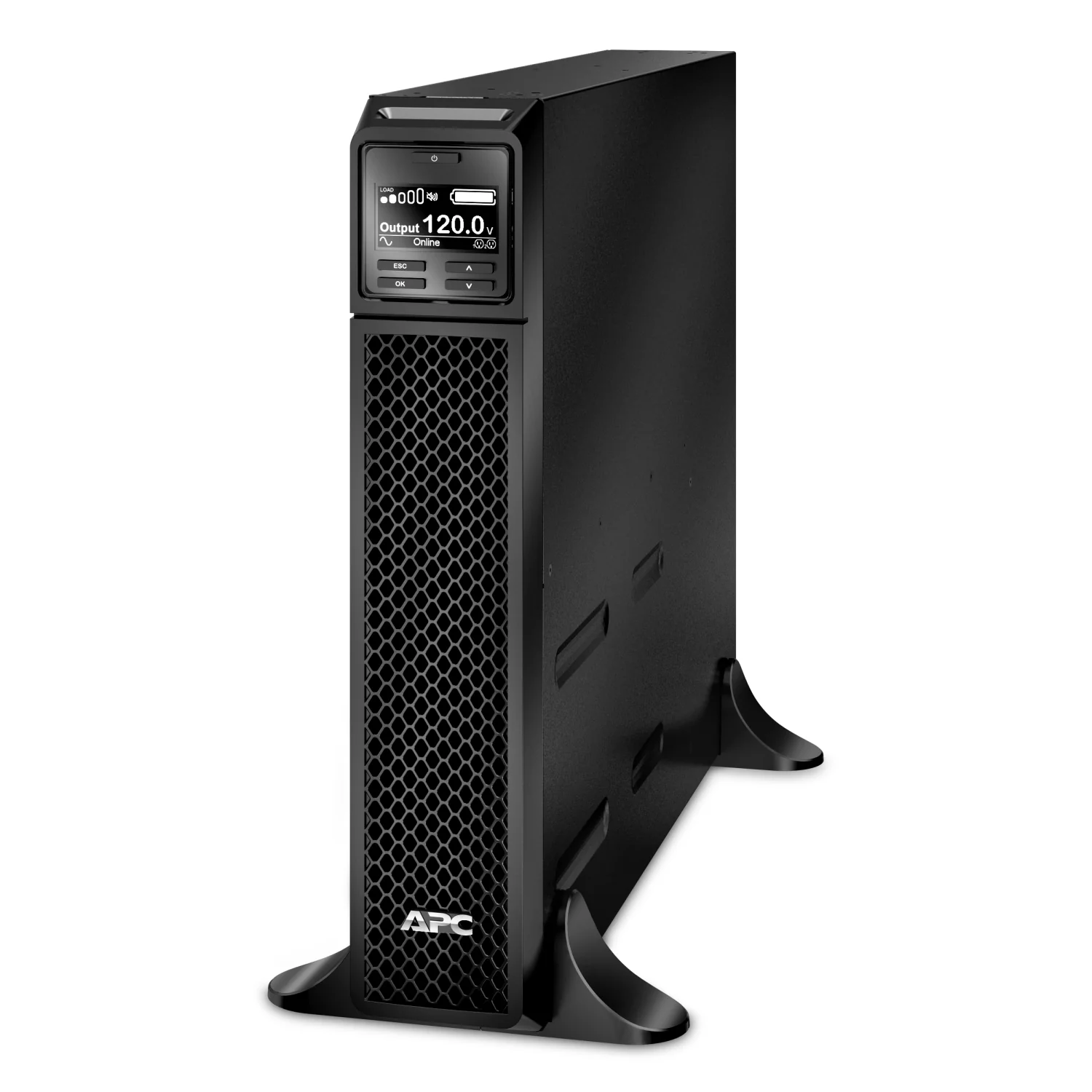

The APC Smart-UPS On-Line SRT3000XLAUS is a 3kVA (3000VA/2700W) high-performance UPS engineered to safeguard critical servers, network devices, and enterprise systems. Its double-conversion online topology delivers pure sine wave output with zero transfer time, while extended-runtime capability supports longer backup needs. The tower design suits network closets and edge IT spaces.

Key Features & Benefits

• Double Conversion Online: Continuous, clean power isolates loads from utility anomalies.
• 3000VA / 2700W Capacity: Robust output for servers, storage, and advanced networking.
• Versatile Outlets: 8× NEMA 5-20R and 1× NEMA L5-30R for flexible distribution.
• Internal & Manual Bypass: Maintains power to loads during maintenance or faults.
• Extended Runtime Ready: Supports external battery packs for prolonged uptime.
• ENERGY STAR® V2.0: High efficiency helps reduce operating costs.

Technical Deep Dive

Continuous AC–DC–AC conversion ensures stable, low-distortion output (THD <2%) with a 3:1 crest factor for demanding IT loads. Automatic and manual internal bypass safeguard availability, while intelligent charging achieves a typical 3-hour recharge. With 805 BTU/h thermal dissipation and a 55 dBA acoustic rating, the unit is suited for enterprise environments.

Ideal Applications

• Server rooms and network closets needing online protection
• Enterprise switching, routing, and storage
• Healthcare, finance, and retail systems with high uptime needs
• Industrial automation and process control

Frequently Asked Questions (FAQs)

Q1: How is the SRT3000XLAUS installed?
A: It is a tower UPS that ships with removable support feet; rack mounting is not listed for this model.

Q2: What performance can I expect?
A: 3000VA / 2700W online power. Runtime depends on load and any added battery packs.

Q3: How can the UPS be managed?
A: Via USB for local connectivity, 1 free SmartSlot for optional network management, EPO support, and audible/visible alarms.
