[shortdesc] 3000VA / 2700W, Online Double-Conversion UPS, 2U Rackmount, 2x L6-20R + 1x L6-30R Outlets, Network Management Card [/shortdesc]

[properties]

Brand	APC by Schneider Electric
Model	SRT3000RMXLT-NC
Product Type	Smart-UPS On-Line, Double Conversion
Form Factor	Rackmount 2U
Dimensions (H x W x D)	3.3" x 17.0" x 25.0" (85 x 432 x 635 mm)
Weight	69.005 lb (31.3 kg)
Color	Black
Number of Rack Units	2U
Cable Length	10 ft (3.05 m)
Cooling	Not specified

[/properties]

[specifications]

Capacity	3000 VA / 2700 W
Input Voltage	208 V (other: 240 V) • Adjustable range: 100–275 V
Input Connection Type	NEMA L6-20P
Input Frequency	40–70 Hz auto-sensing
Output Voltage	208 V (other: 240 V)
Output Connections	2 × NEMA L6-20R, 1 × NEMA L6-30R
Waveform Type	Sine wave
Topology	Double Conversion On-Line
Transfer Time	0 ms (on-line)
Bypass Type	Internal Bypass (Automatic and Manual)
Crest Factor	3:1
Harmonic Distortion	<2%
Battery Type	Lead-Acid • Voltage: 96 V • Recharge: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC152 • Charge power: 165 W rated
Extendable Runtime	Yes
Surge Energy Rating	340 J
Acoustic Noise	55 dBA
Thermal Dissipation	773 BTU/h
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	0–95% non-condensing
Altitude	0–10,000 ft operating
Communications	USB, EPO, Audible/visible alarms, Pre-installed Network Management Card 3 with environmental monitoring
Certifications	ENERGY STAR V2.0 (USA)

[/specifications]

[accesories]

Rack Mounting Hardware	Included in the box
Rack Mounting Brackets	Included in the box
Rack Mounting Support Rails	Included in the box
USB Cable	Included in the box
Documentation	CD with software, Documentation CD, Installation guide, Warranty card
Network Management Card	Pre-installed in the unit

[/accesories]

Overview

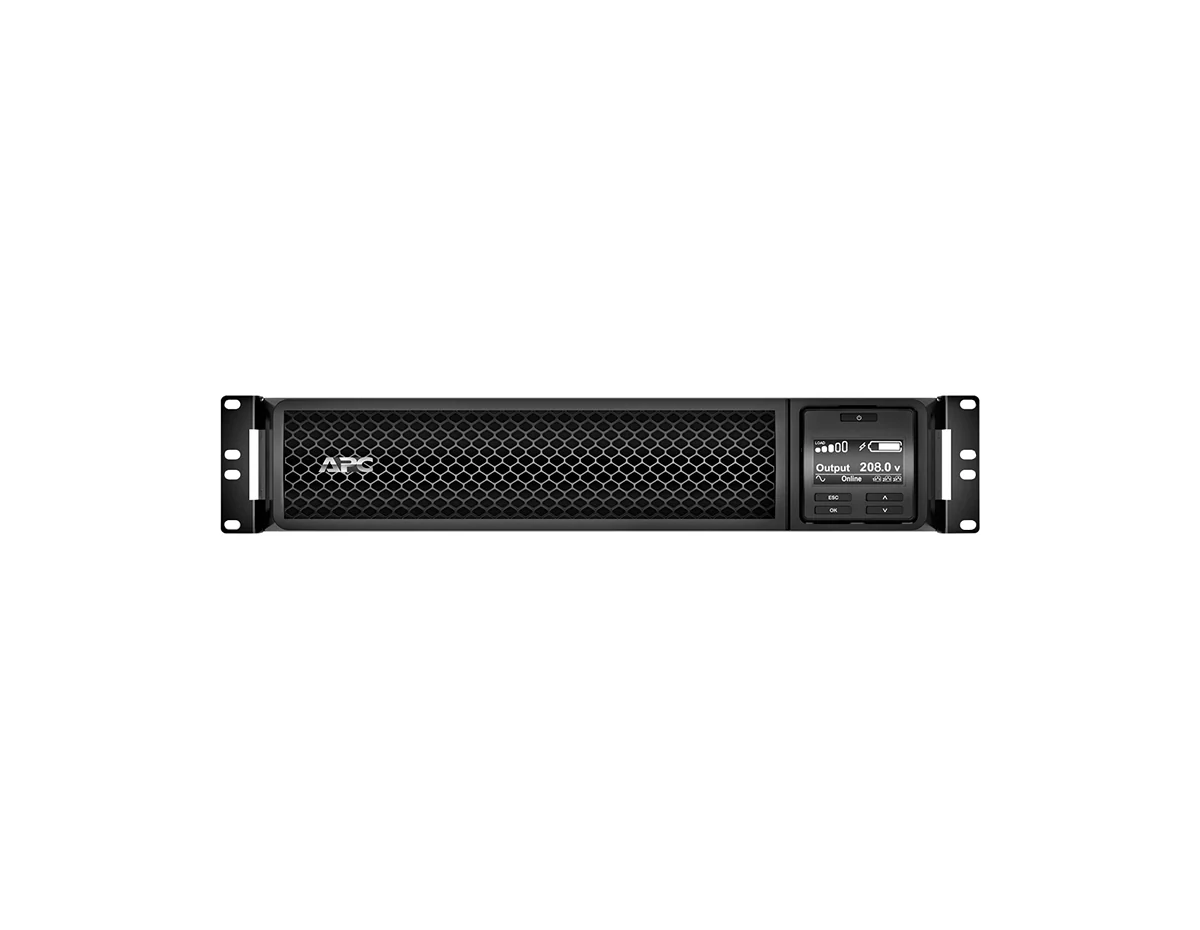

The APC Smart-UPS SRT3000RMXLT-NC provides 3000VA/2700W of high-density online power protection in a compact 2U rackmount design. Built with double-conversion topology, it delivers clean, reliable power for servers, storage, and network hardware. It ships with a pre-installed network management card for remote monitoring and environmental visibility.

Key Features & Benefits

• Double-Conversion Online: Continuous, pure sine wave output shields against power anomalies.
• Rackmount 2U Form Factor: Saves rack space while delivering robust power.
• Integrated Network Management: Pre-installed card enables remote monitoring and environmental management.
• Scalable Runtime: Compatible with external battery packs for extended backup support.

Technical Deep Dive

The SRT3000RMXLT-NC uses double-conversion architecture to isolate connected equipment from surges, sags, and frequency variations, ensuring uninterrupted, clean power without transfer delays.

Its scalable runtime design supports external battery packs, allowing uptime to be extended based on load and business needs.

The pre-installed network management card provides advanced environmental and power monitoring for remote visibility and control.

Ideal Applications

• Rack-mounted enterprise servers and storage arrays
• Business-critical network switches and routers
• Edge computing deployments and branch offices
• Healthcare, banking, and industrial IT systems

Frequently Asked Questions (FAQs)

Q1: How is the SRT3000RMXLT-NC installed?
A: It is a 2U rackmount UPS and includes rails, mounting brackets, support rails, documentation, and a USB cable for straightforward installation.

Q2: What performance can I expect?
A: The UPS delivers 3000VA/2700W of clean power. Runtime varies by load and can be extended using compatible external battery modules.

Q3: How is the UPS managed?
A: It includes a pre-installed network management card for remote visibility and environmental monitoring.
