APC SRT2200XLA - Smart-UPS On-Line 2200VA Tower UPS
[shortdesc]2200VA / 1800W, Double-Conversion Online, Tower Form Factor, 6x NEMA 5-20R + 1x NEMA L5-20R Outlets, Scalable Runtime[/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SRT2200XLA |
| Product Type | Smart-UPS On-Line, Double Conversion |
| Form Factor | Tower |
| Dimensions (H x W x D) | 3.3" x 17.008" x 23.0" (85 x 432 x 584 mm) |
| Weight | 55.1 lb (25 kg) |
| Color | Black |
| Cable Length | 6 ft (1.8 m) |
| Cooling | — |
[/properties]
[specifications]
| Capacity | 2200 VA / 1800 W |
| Input Voltage | 120 V |
| Input Connection Type | NEMA 5-20P |
| Input Frequency | 40–70 Hz auto-sensing |
| Output Voltage | 120 V |

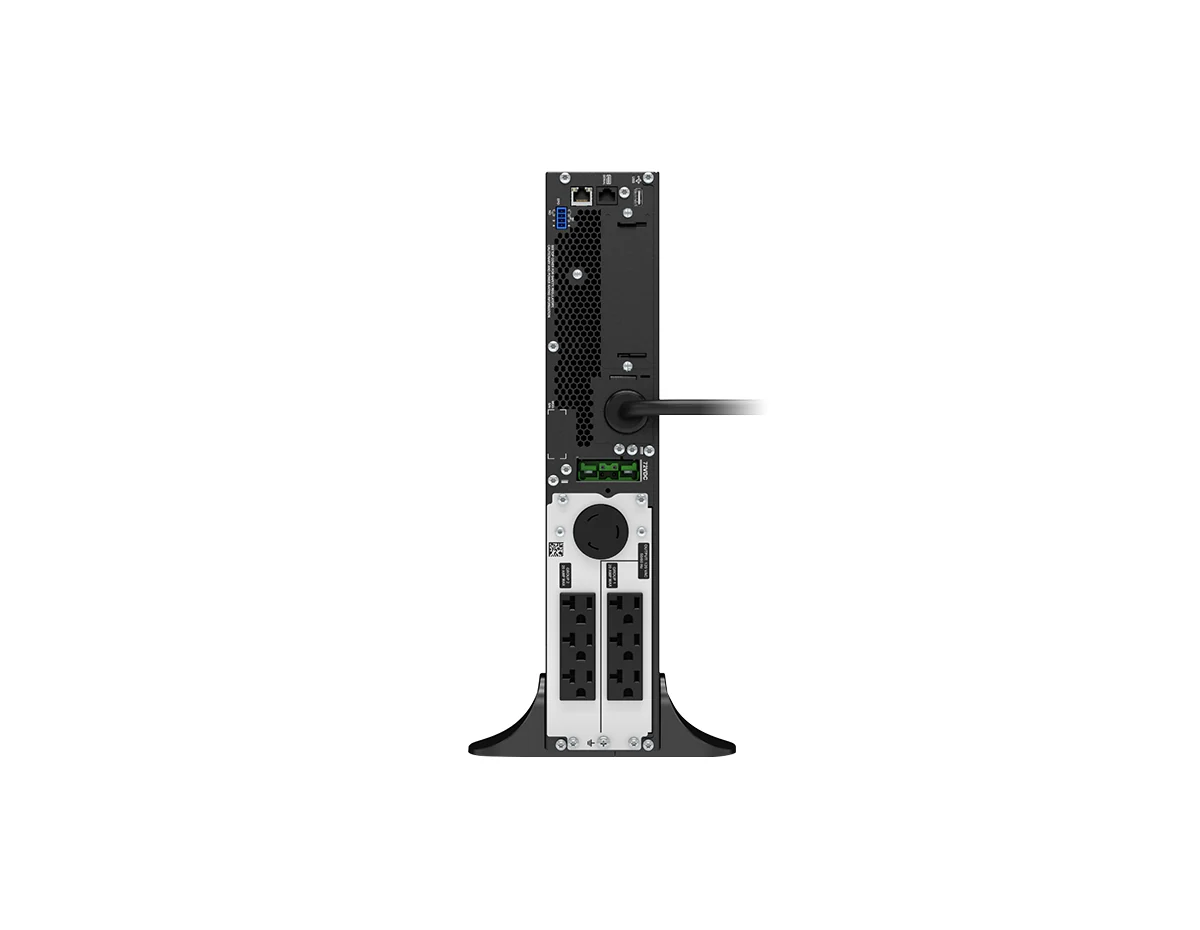

| Output Connections | 6 × NEMA 5-20R, 1 × NEMA L5-20R |
| Waveform Type | Sine wave |
| Topology | Double Conversion On-Line |
| Transfer Time | 0 ms (on-line) |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | <2% |
| Battery Type | Lead-Acid • Voltage: 72 V • Recharge: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC141 • Charge power: 102 W rated |
| Extendable Runtime | Yes |
| Surge Energy Rating | 340 J |
| Acoustic Noise | — |
| Thermal Dissipation | 535 BTU/h |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Operating Humidity | 0–95% non-condensing |
| Altitude | 0–10,000 ft operating |
| Communications | USB compatible, EPO, Audible/visible alarms, SmartSlot (1 free) |
| Certifications | ENERGY STAR V2.0 (USA) |
[/specifications]
[accesories]
| Removable Support Feet | Included in the box |
| USB Cable | Included in the box |
| Documentation | Installation guide, Warranty card |
[/accesories]
Overview
The APC Smart-UPS On-Line SRT2200XLA provides high-density, double-conversion online power protection for critical IT systems. Delivering 2200VA/1800W capacity, it ensures continuous uptime for servers, storage, and network hardware. With its tower design, scalable runtime, and sine wave output, this UPS is engineered for maximum reliability in demanding environments.
Key Features & Benefits
- Double-Conversion Online: Continuous power conditioning for sensitive IT loads.
- Extended Runtime Ready: Compatible with external battery packs to meet longer backup requirements.
- Sine Wave Output: Provides clean, stable power for critical network devices and servers.
- Compact Tower Design: Space-efficient solution for data rooms and branch offices.
- SmartSlot Expandability: Add network management cards for enhanced monitoring.
- ENERGY STAR® Certified: Verified efficiency for reduced energy consumption.
Technical Deep Dive
The SRT2200XLA leverages a true double-conversion online topology, converting incoming AC to DC and back to AC. This isolates IT systems from voltage irregularities, ensuring seamless operation during sags, surges, and frequency changes. Unlike line-interactive UPS designs, it guarantees a consistent sine wave output at all times.
Equipped with a 72V lead-acid battery, the UPS offers up to 3–5 years of service life and a fast 3-hour recharge. For environments requiring extended uptime, it supports external battery packs that can be hot-swapped without downtime. A 340J surge rating adds additional resilience against spikes.
The SmartSlot interface enables integration of optional network management accessories, while USB connectivity allows straightforward local monitoring. Built-in audible and visual alarms keep administrators aware of operating conditions and battery status in real time.
Ideal Applications
- Branch office servers and storage systems
- Network closets supporting firewalls, switches, and routers
- Healthcare IT requiring high availability
- Finance and retail operations dependent on constant uptime
Frequently Asked Questions (FAQs)
Q1: How is the SRT2200XLA installed?
A: The UPS is a tower unit with removable support feet, making deployment straightforward in office or data room environments.
Q2: What performance can I expect?
A: It delivers 2200VA / 1800W with sine wave output. Runtime varies by connected load and can be extended with optional battery packs. Actual performance depends on load profile and battery age.
Q3: How is it managed?
A: It supports USB connectivity and includes a SmartSlot for optional network management cards, enabling both local and remote monitoring.
