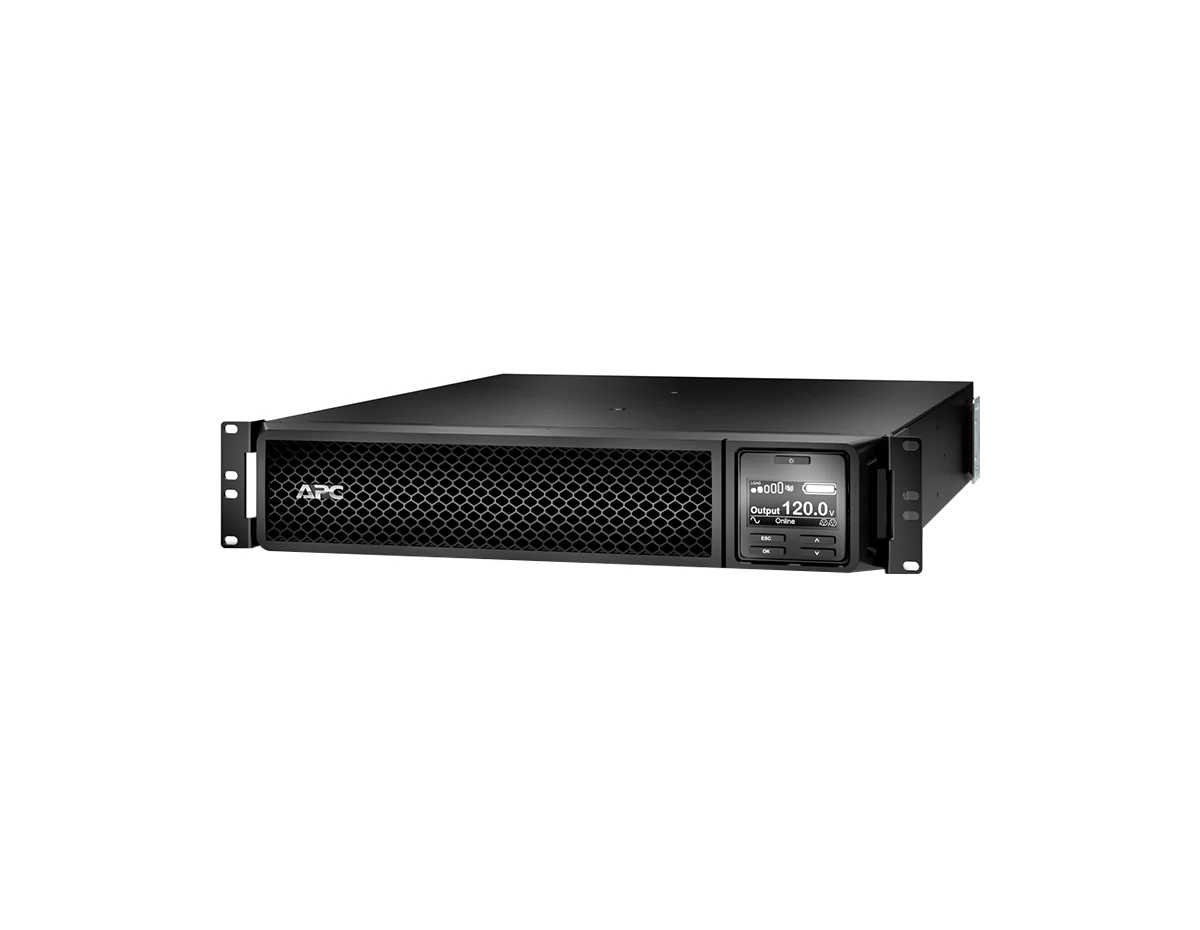

APC SRT2200RMXLA-NC - Smart-UPS On-Line 2200VA 2U Rackmount
[shortdesc] 2200VA / 1800W, Double-Conversion Online, 2U Rackmount, 120V, 6× NEMA 5-20R + 1× NEMA L5-20R, Pre-installed Network Management Card 3 [/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SRT2200RMXLA-NC |
| Product Type | Smart-UPS On-Line, Double Conversion |
| Form Factor | Rackmount 2U |
| Dimensions (H x W x D) | 3.3" x 17.0" x 23.0" (85 x 432 x 584 mm) |
| Weight | 55.1 lb (25 kg) |
| Color | Black |
| Number of Rack Units | 2U |
| Cable Length | 6 ft (1.8 m) |
| Cooling | Not specified |
[specifications]
| Capacity | 2200 VA / 1800 W |
| Input Voltage | 120 V |
| Input Connection Type | NEMA 5-20P |
| Input Frequency | 40–70 Hz auto-sensing |
| Output Voltage | 120 V |
| Output Connections | 6 × NEMA 5-20R, 1 × NEMA L5-20R |
| Waveform Type | Sine wave |
| Topology | Double Conversion On-Line |
| Transfer Time | Not specified |
| Bypass Type | Built-in Bypass |
| Crest Factor | 3:1 |
| Harmonic Distortion | <2% |
| Battery Type | Lead-Acid • Voltage: 72 V • Recharge time: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC141 • Charge power: 102 W rated |
| Extendable Runtime | Yes |
| Surge Energy Rating | 340 J |
| Acoustic Noise | 55 dBA |
| Thermal Dissipation | 535 BTU/h |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Operating Humidity | 0–95% non-condensing |
| Altitude | 0–10,000 ft operating |
| Communications | USB, EPO, Audible/visible alarms, Pre-installed Network Management Card 3 with environmental monitoring |
| Certifications | ENERGY STAR V2.0 (USA) |
| Warranty | 3 years repair or replace (UPS), 2 years (battery) |
[accesories]
| Rack Mounting Hardware | Included in the box |
| Rack Mounting Brackets | Included in the box |
| Rack Mounting Support Rails | Included in the box |
| USB Cable | Included in the box |
| Documentation | CD with software, Documentation CD, Installation guide, Warranty card |
| Network Management Card | Pre-installed in the unit |
Overview
The APC SRT2200RMXLA-NC is a high-density Smart-UPS On-Line delivering 2200 VA / 1800 W of clean sine wave power in a compact 2U rackmount format. With true double-conversion topology, built-in bypass, and a pre-installed Network Management Card 3 with environmental monitoring, it safeguards servers, storage, and network hardware in demanding 120 V installations.
Key Features & Benefits
- Double-Conversion Online – Regenerates AC power to isolate loads from input anomalies for maximum uptime.
- 2200VA / 1800W Capacity – Supports critical IT and network devices with stable sine wave output.
- 2U Rackmount, 120 V – Space-efficient protection for standard North American racks.
- Outlet Mix – 6× NEMA 5-20R plus 1× NEMA L5-20R for diverse equipment connections.
- Integrated Management – Pre-installed Network Management Card 3 enables secure remote monitoring with environmental data.
- Extendable Runtime – Supports up to 10 external battery packs for longer backup windows.
Technical Deep Dive
- Online Topology & Bypass: Incoming AC is converted to DC and back to AC, delivering a consistent sine wave independent of utility quality. A built-in bypass (automatic/manual) maintains power to loads during service or faults.
- Power Quality: Less than 2% harmonic distortion and a 3:1 crest factor support modern PFC power supplies without derating. Output is 50/60 Hz (±3 Hz) synchronized to mains.
- Battery System & Recharge: 72 V lead-acid battery, user-replaceable (APCRBC141), with typical 3-hour recharge; runtime is scalable via external battery cabinets.
- Environmental & Efficiency: ENERGY STAR® UPS V2.0, 55 dBA acoustic rating, and 535 BTU/h heat dissipation for predictable deployment in shared racks.
Ideal Applications
- Rack-mounted servers and storage arrays
- Core switches, routers, and security appliances
- Branch offices and network closets requiring 120 V
- Healthcare, retail, and financial IT where continuous power is critical
Frequently Asked Questions (FAQs)
Q1: How is the SRT2200RMXLA-NC installed?
A: It’s a 2U rackmount unit shipped with rack mounting hardware, brackets, and support rails for straightforward integration.
Q2: What performance can I expect?
A: The UPS is rated 2200 VA / 1800 W with sine wave output. Actual runtime depends on load and any external battery packs; consult APC runtime charts for detailed values.
Q3: How is it managed?
A: A pre-installed Network Management Card 3 provides remote Web/SNMP access and environmental monitoring; USB and EPO are also supported.
