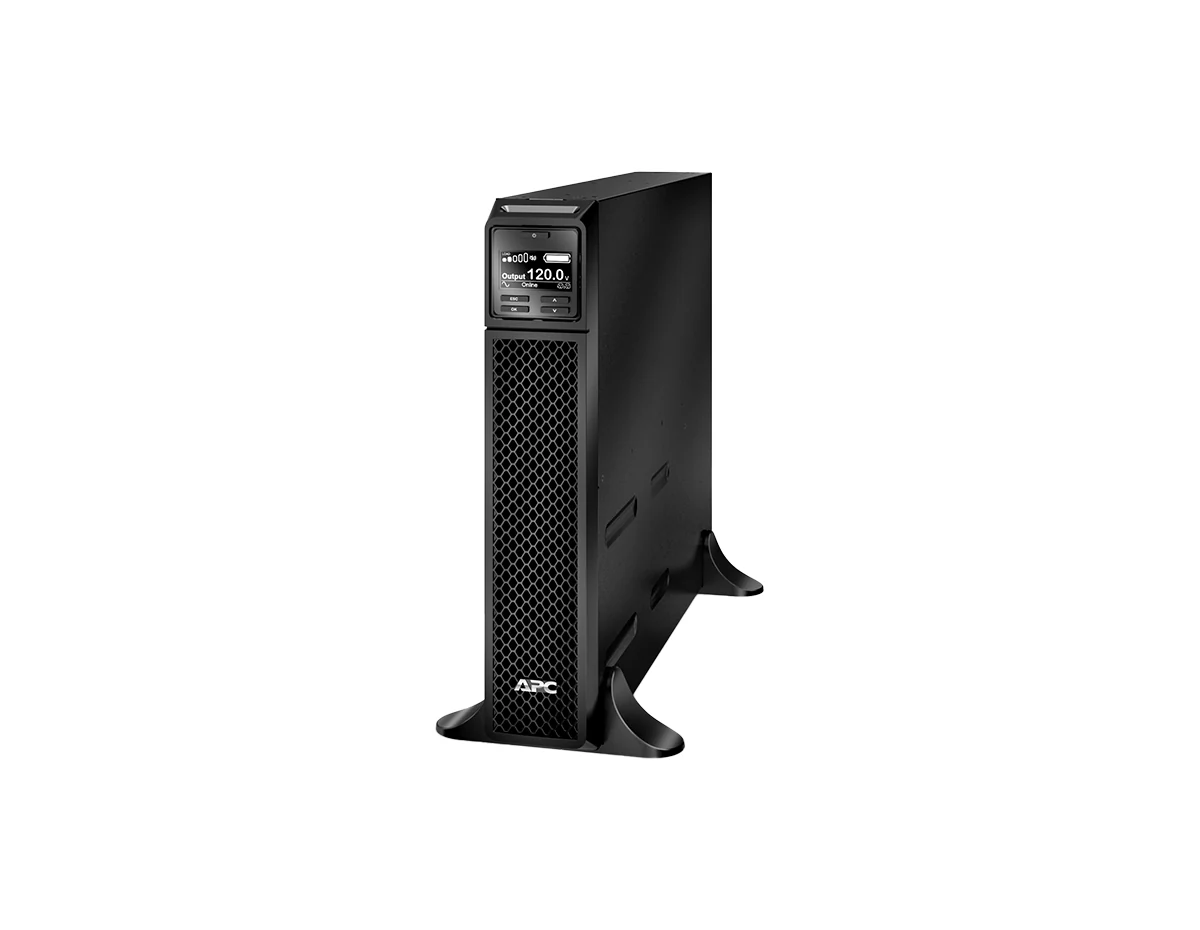

APC SRT1500XLA - Smart-UPS On-Line 1500VA/1350W Tower
[shortdesc]1500VA / 1350W, Double-Conversion Online, Tower 120V, 6x NEMA 5-15R Outlets, SmartSlot Expandability[/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SRT1500XLA |
| Product Type | Smart-UPS On-Line, Double Conversion |
| Form Factor | Tower |
| Dimensions (H x W x D) | 17.0" x 3.3" x 20.0" (432 x 85 x 508 mm) |
| Weight | 48.5 lb (22 kg) |
| Color | Black |
| Cable Length | 6 ft (1.8 m) |
| Cooling | Active (fan-assisted) |
[specifications]
| Capacity | 1500 VA / 1350 W |
| Input Voltage | 120 V • Operating range: 50–150 V (40% load), 108–150 V (full load) |
| Input Connection Type | NEMA 5-15P |
| Input Frequency | 40–70 Hz auto-sensing |
| Output Voltage | 120 V |
| Output Connections | 6 × NEMA 5-15R |
| Waveform Type | Sine wave |
| Topology | Double Conversion On-Line |
| Transfer Time | 0 ms (on-line) |
| Bypass Type | Built-in Bypass (automatic) |
| Crest Factor | 3:1 |
| Harmonic Distortion | <2% |
| Battery Type | Lead-Acid • Voltage: 48 V • Recharge: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC155 • Charge power: 91 W rated |
| Extendable Runtime | No |
| Surge Energy Rating | 432 J |
| Acoustic Noise | 50 dBA |
| Thermal Dissipation | 463 BTU/h |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Operating Humidity | 0–95% non-condensing |
| Altitude | 0–10,000 ft operating |
| Communications | USB, RS-232, SmartSlot (1 free), EPO, Audible/visible alarms |
| Certifications | ENERGY STAR V2.0 (USA) |
| Warranty | 3 years repair or replace (excluding battery), 2 years for battery |
[accesories]
| Removable Support Feet | Included in the box |
| USB Cable | Included in the box |
| Documentation | CD with software, Documentation CD, Installation guide, Warranty card |
| Communication Cable | Included in the box |
Overview
The APC SRT1500XLA provides 1500VA / 1350W of reliable, double-conversion online protection in a compact tower form. Designed for critical IT and network hardware, it delivers pure sine wave power, advanced monitoring, and energy-efficient operation, ensuring continuity for essential workloads.
Key Features & Benefits
- 1500VA / 1350W Output: Ideal for protecting servers, storage, and network devices.
- Online Double Conversion: Clean sine wave power independent of utility fluctuations.
- Tower Design with 120V: Space-saving vertical installation for office or IT environments.
- 6x NEMA 5-15R Outlets: Flexible distribution for common IT loads.
- SmartSlot Expansion: Supports optional management cards for remote monitoring.
Technical Deep Dive
Built on double-conversion online topology, the SRT1500XLA isolates sensitive equipment from power disturbances. The inverter continuously regenerates output, providing a pure sine wave waveform even under poor input conditions. With <2% harmonic distortion and a 3:1 crest factor, it meets the demands of sensitive IT loads.
The 48V lead-acid battery system supports hot-swappable replacement and delivers a typical recharge time of 3 hours. Integrated alarms—audible and visible—are prioritized by severity, ensuring timely response to conditions that may impact availability.
Through SmartSlot expandability, this UPS can integrate with optional APC management cards for SNMP monitoring, environmental sensors, and centralized oversight. Combined with ENERGY STAR V2.0 certification, it balances performance with efficiency.
Ideal Applications
- Small to medium server deployments
- Network hardware in branch or office environments
- Retail systems requiring uninterrupted uptime
- Healthcare and education IT infrastructure
Frequently Asked Questions (FAQs)
Q1: How is the SRT1500XLA installed?
A: It is designed as a tower UPS with vertical mounting and removable support feet included in the package.
Q2: What performance can I expect?
A: The UPS provides 1500VA / 1350W at 120V with pure sine wave output. Actual runtime depends on load and battery condition.
Q3: How can the UPS be managed?
A: Management is enabled via the SmartSlot for optional cards, providing SNMP monitoring, remote shutdown integration, and environmental monitoring features.
