[shortdesc]1500VA / 1350W, 2U Rackmount, Online Double-Conversion, 6x NEMA 5-15R Outlets, SmartSlot + Integrated Network Card[/shortdesc]

[properties]

Brand	APC by Schneider Electric
Model	SRT1500RMXLA-NC
Product Type	Smart-UPS On-Line, Double Conversion

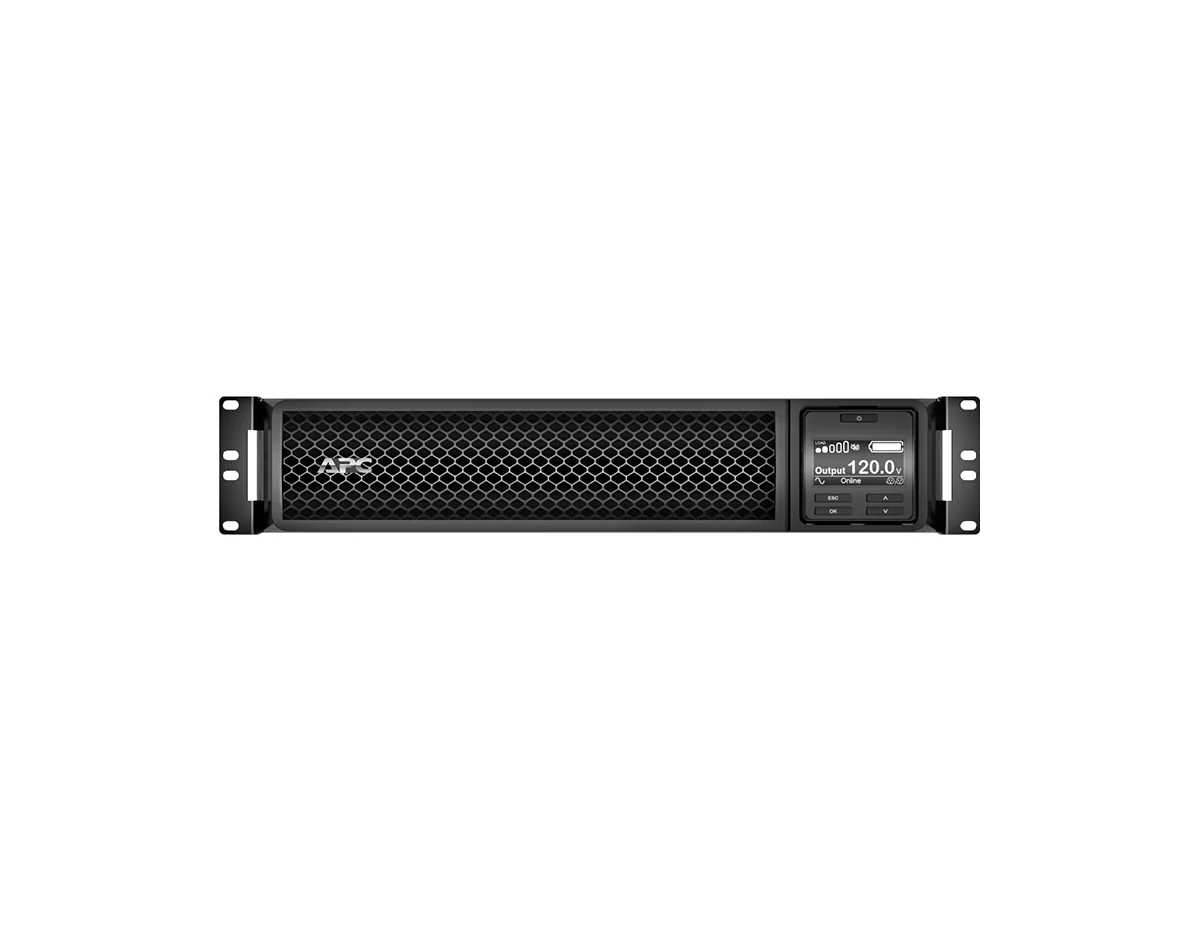

Form Factor	Rackmount 2U
Dimensions (H x W x D)	3.3" x 17.008" x 20.0" (85 x 432 x 508 mm)
Weight	48.5 lb (22 kg)
Color	Black
Number of Rack Units	2U
Cable Length	6 ft (1.8 m)
Cooling	Active (fan-based)

[/properties]

[specifications]

Capacity	1500 VA / 1350 W
Input Voltage	120 V
Input Connection Type	NEMA 5-15P
Input Frequency	40–70 Hz auto-sensing
Output Voltage	120 V

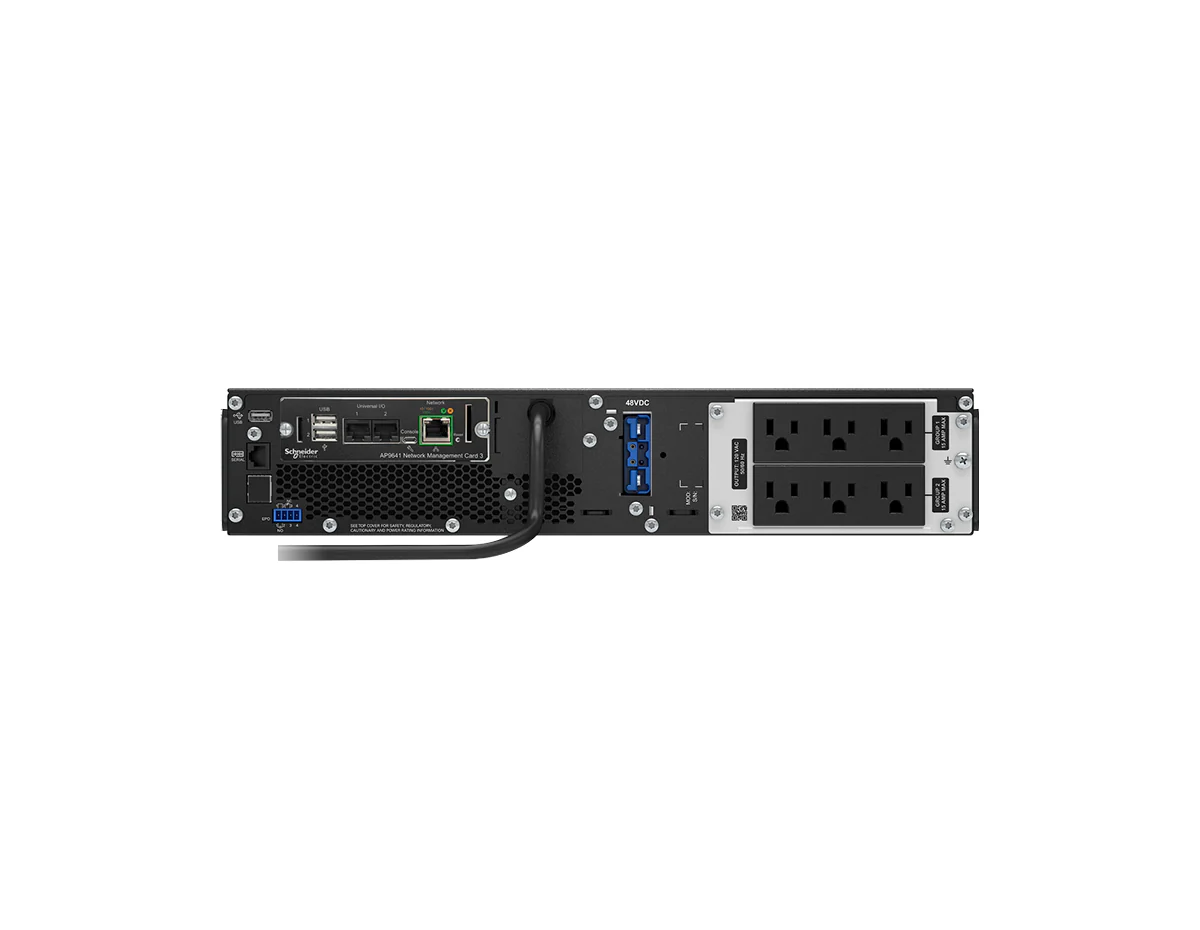

Output Connections	6 × NEMA 5-15R
Waveform Type	Sine wave
Topology	Double Conversion On-Line
Transfer Time	0 ms (on-line)
Bypass Type	Built-in Bypass
Crest Factor	3:1
Harmonic Distortion	<2%
Battery Type	Lead-Acid • Voltage: 48 V • Recharge time: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC155 • Charge power: 91 W rated
Extendable Runtime	Yes
Surge Energy Rating	432 J
Acoustic Noise	50 dBA
Thermal Dissipation	463 BTU/h
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	0–95% non-condensing
Altitude	0–10,000 ft operating
Communications	USB, EPO, Audible/visible alarms, Pre-installed Network Management Card 3 with environmental monitoring (SmartSlot occupied)
Certifications	ENERGY STAR V2.0 (USA)

[/specifications]

[accesories]

Rack Mounting Hardware	Included in the box
Rack Mounting Brackets	Included in the box
Rack Mounting Support Rails	Included in the box
USB Cable	Included in the box
Documentation	CD with software, Documentation CD, Installation guide, Warranty card
Network Management Card	Pre-installed in the unit
Temperature Probe	Included in the box

[/accesories]

Overview

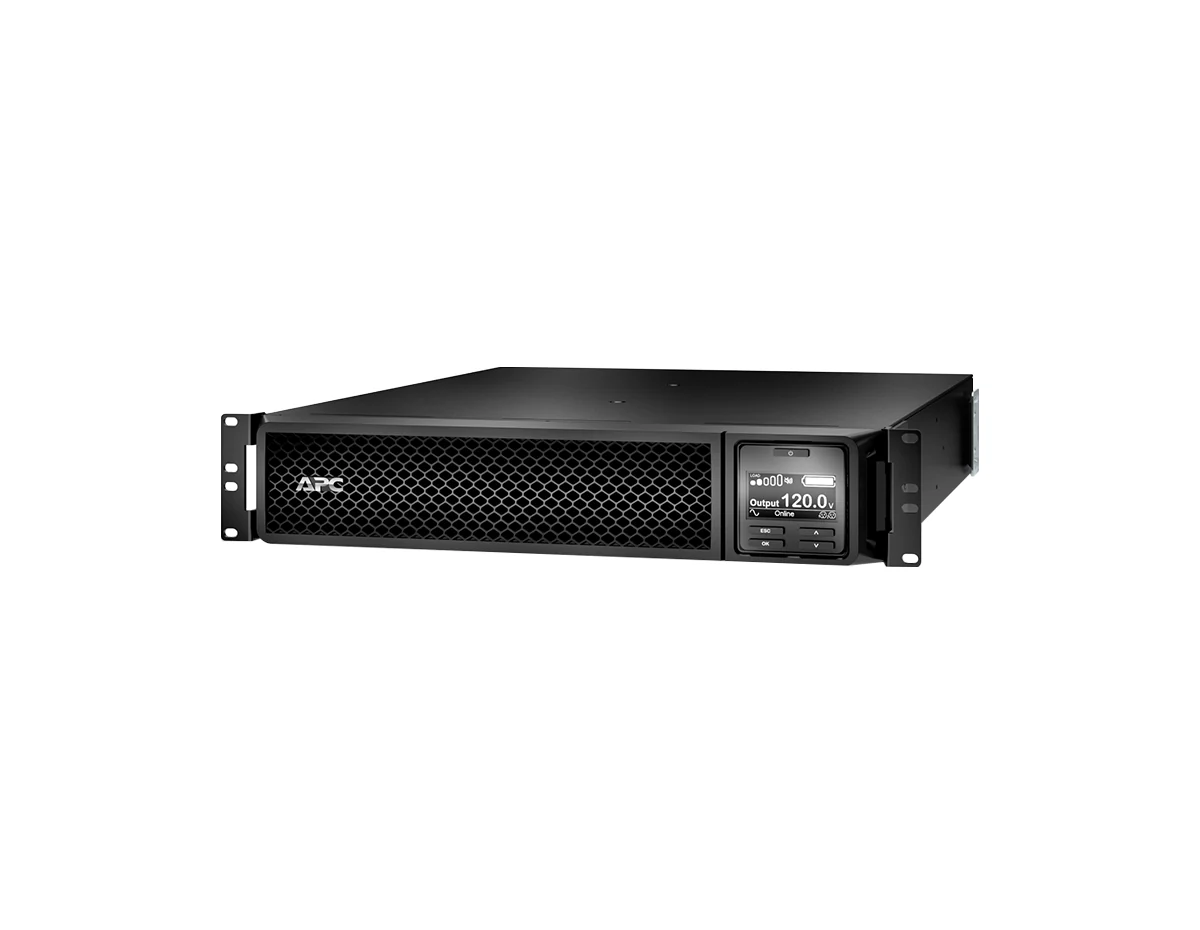

The APC SRT1500RMXLA-NC delivers 1500VA / 1350W of reliable backup power in a compact 2U rackmount chassis. Featuring online double-conversion protection and an integrated Network Management Card (SmartSlot occupied), it ensures uptime for servers, storage, and network hardware in critical IT environments.

Key Features & Benefits

• 1500VA / 1350W Output: Consistent power for small to medium IT racks.
• Online Double-Conversion: Pure sine wave output, independent of utility quality.
• 2U Rackmount Design: Includes mounting hardware for seamless integration.
• Comprehensive Outlets: 6x NEMA 5-15R connections plus NEMA 5-15P input support.
• Integrated Network Card: Pre-installed NMC3 enables remote monitoring and environmental visibility.
• Runtime Scalability: Supports external battery packs to extend backup duration as needs grow.

Technical Deep Dive

The double-conversion architecture continuously converts AC to DC and back to AC, delivering conditioned sine wave power regardless of input disturbances. This makes the SRT1500RMXLA-NC ideal for sensitive computing loads.

Its lead-acid battery system operates at 48V with a typical recharge time of 3 hours, maintaining readiness after power events. Hot-swappable design ensures batteries can be replaced without shutting down critical equipment.

The integrated Network Management Card enhances operational efficiency with SNMP-based monitoring, event logging, and remote shutdown coordination. On the NC variant the SmartSlot is occupied (no free slots).

Ideal Applications

• Branch office and edge computing deployments
• Rack-mounted servers and storage systems
• Healthcare and retail IT environments
• SMB data centers needing integrated network visibility

Frequently Asked Questions (FAQs)

Q1: How is the SRT1500RMXLA-NC installed?
A: It is a 2U rackmount UPS delivered with rails and brackets for easy integration into standard racks.

Q2: What performance can I expect?
A: The UPS provides 1500VA / 1350W of sine wave output. Runtime depends on the connected load and can be extended with external battery packs. Actual runtime varies by environment and battery age.

Q3: How can this UPS be managed?
A: It comes with a pre-installed Network Management Card for SNMP-based monitoring and remote access. The SmartSlot is occupied on this NC model.
