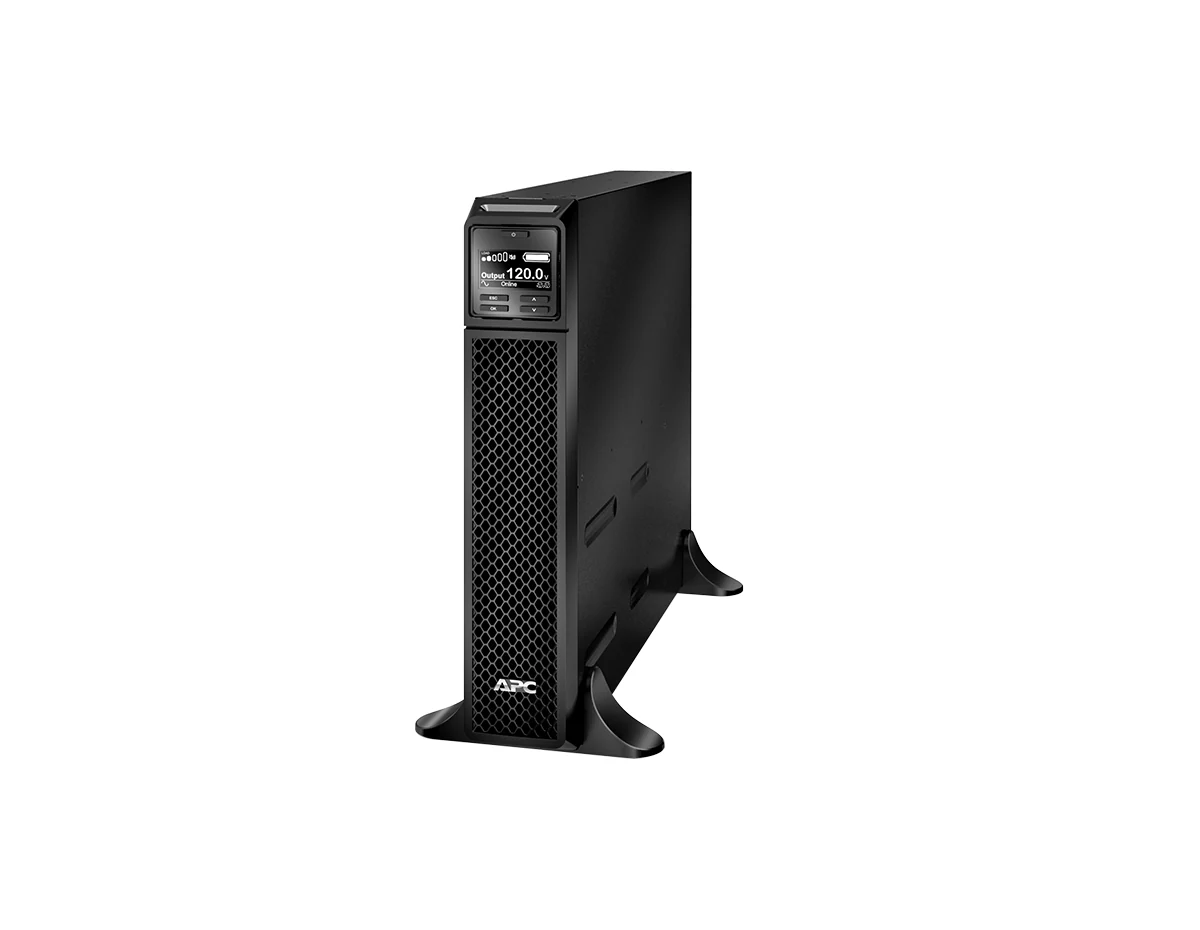

APC SRT1000XLA - Smart-UPS On-Line 1000VA Tower, 120V
[shortdesc]
1000VA / 900W, Double Conversion Online, 6x NEMA 5-15R Outlets, USB & SmartSlot, Extendable Runtime Tower UPS
[/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SRT1000XLA |
| Product Type | Smart-UPS On-Line, Double Conversion |
| Form Factor | Tower (Rackmount with kit) |
| Dimensions (H x W x D) | 17.008" x 3.3" x 20.0" (432 x 85 x 508 mm) |
| Weight | 48.5 lb (22 kg) |
| Color | Black |
| Number of Rack Units | — |
| Cable Length | 6 ft (1.8 m) |
| Cooling | Not specified |
[specifications]
| Capacity | 1000 VA / 900 W |
| Input Voltage | 120 V |
| Input Connection Type | NEMA 5-15P |
| Input Frequency | 40–70 Hz auto-sensing |
| Output Voltage | 120 V |
| Output Connections | 6 × NEMA 5-15R |
| Waveform Type | Sine wave |
| Topology | Double Conversion On-Line |
| Transfer Time | 0 ms (on-line) |
| Bypass Type | Built-in Bypass |
| Crest Factor | 3:1 |
| Harmonic Distortion | <2% |
| Battery Type | Lead-Acid • Voltage: 48 V • Recharge: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC155 • Charge power: 102 W rated |
| Extendable Runtime | Yes |
| Surge Energy Rating | 432 J |
| Acoustic Noise | 50 dBA |
| Thermal Dissipation | 317 BTU/h |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Operating Humidity | 0–95% non-condensing |
| Altitude | 0–10,000 ft operating |
| Communications | USB, EPO, Audible/visible alarms, 1 SmartSlot (free) |
| Certifications | ENERGY STAR V2.0 (USA) |
| Warranty | 3 years repair or replace (excluding battery) • 2 years for battery |
[accesories]
| Removable Support Feet | Included in the box |
| USB Cable | Included in the box |
| Documentation | CD with software, Documentation CD, Installation guide, Warranty card |
Overview
The APC Smart-UPS On-Line SRT1000XLA provides continuous double-conversion protection in a compact tower form factor. Delivering 1000VA / 900W at 120V, it ensures clean sine wave output for mission-critical servers, storage, and network devices. Designed with scalable runtime and SmartSlot expansion, this UPS combines reliability with flexibility for evolving IT environments.
Key Features & Benefits
- Double Conversion Online: Continuous AC to DC and back to AC power conditioning delivers stable sine wave output.
- 1000VA/900W Capacity: Supports essential IT loads, storage, and networking hardware.
- Outlet Flexibility: Six NEMA 5-15R outlets for versatile equipment support.
- Extendable Runtime: Connects to external battery packs for longer backup during outages.
- USB & SmartSlot: Provides local management and expansion capability for network cards.
- ENERGY STAR® Certified: High efficiency minimizes operating costs and environmental impact.
Technical Deep Dive
The SRT1000XLA leverages double-conversion online topology, where input power is continuously converted to DC and inverted back to AC. This isolates connected loads from power anomalies such as surges, dips, and harmonic distortion, ensuring pure sine wave output suitable for sensitive IT hardware.
Its battery system uses a 48 V lead-acid configuration with a typical recharge time of 3 hours. Extended runtime is possible through additional battery modules. With a 3:1 crest factor and less than 2% harmonic distortion, it handles demanding electronic loads reliably.
The unit includes SmartSlot expansion for management cards, plus USB connectivity for configuration and monitoring. Audible and visual alarms notify users of operational states by severity, and built-in surge suppression (432 J) provides additional protection.
Ideal Applications
- Tower deployments for servers, network devices, and storage
- Small to medium business IT environments requiring scalable runtime
- Distributed IT and edge computing setups
- Healthcare and finance environments demanding zero downtime
Frequently Asked Questions (FAQs)
Q1: How is the SRT1000XLA installed?
A: It is designed as a vertical tower unit with removable support feet. It can also be rack-mounted with an optional kit.
Q2: What performance can I expect?
A: Rated at 1000VA / 900W, it provides clean sine wave output. Runtime depends on load and external batteries; consult APC runtime resources for precise values. Actual results vary by conditions.
Q3: How can the UPS be managed?
A: Local management is available via USB, while the SmartSlot supports optional management cards for advanced monitoring and control.
