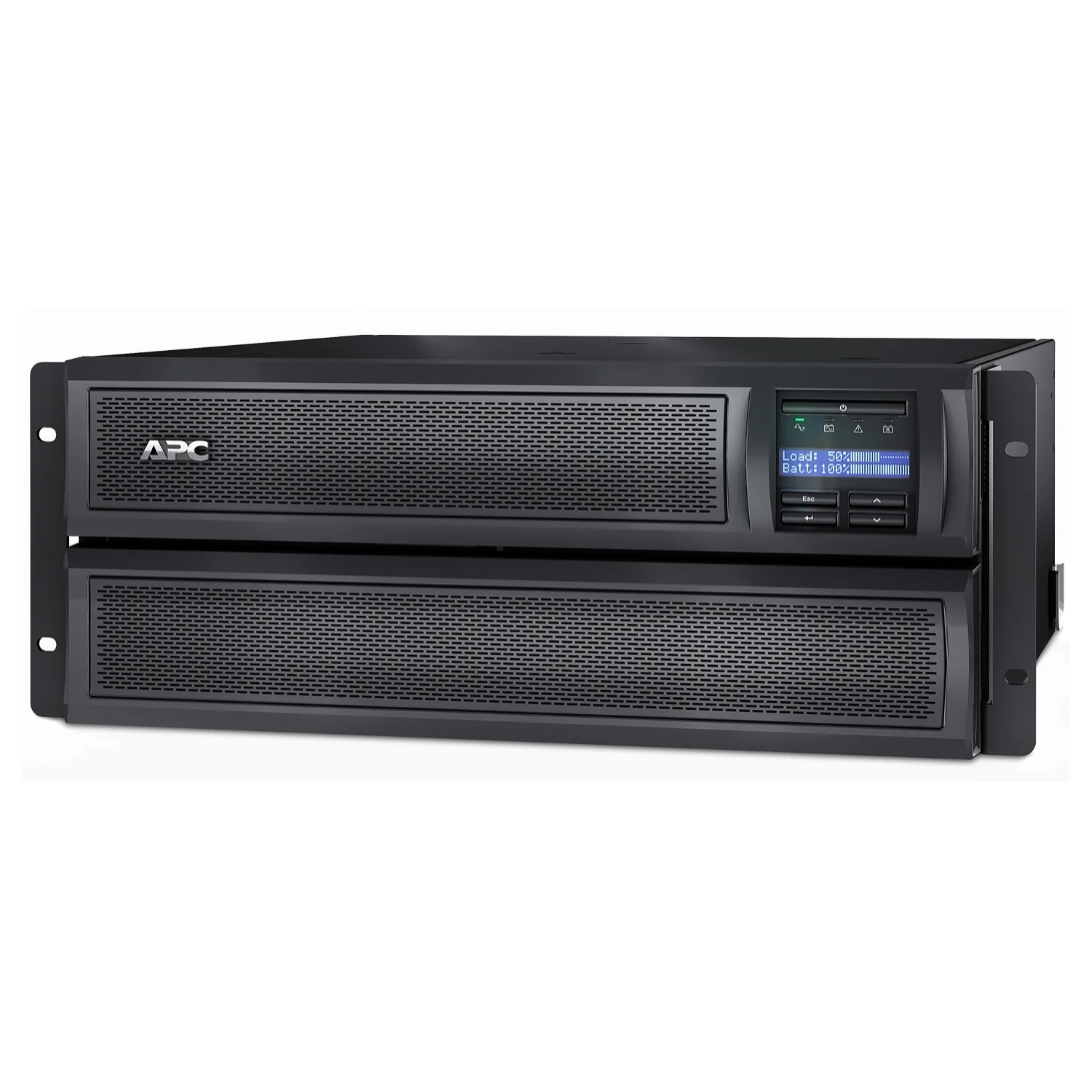

APC SMX3000LVUS - Smart-UPS X 3kVA Rack/Tower Convertible Line-Interactive UPS
[shortdesc] 2880VA / 2700W, Line-Interactive, Pure Sine Wave, 6x NEMA 5-15R + 3x NEMA 5-20R + 1x L5-30R, SmartSlot, Extended Runtime [/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SMX3000LVUS |
| Product Type | Smart-UPS X, Line-Interactive (Extended runtime) |
| Form Factor | Rack/Tower Convertible 4U |
| Dimensions (H x W x D) | 17.01" x 7.01" x 19.02" (43.2 x 17.8 x 48.3 cm) |
| Weight | 85.19 lb (38.64 kg) |
| Color | Black |
| Number of Rack Units | 4U |
| Cable Length | 8 ft (2.4 m) |
| Mounting | Rack-mounted; two-post mountable |
[specifications]
| Capacity | 2880 VA / 2700 W (Max configurable: 2880 VA / 2700 W) |
| Input Voltage | 120 V (other: 100 V, 110 V, 127 V) • Operating range: 70–153 V |
| Input Connection Type | NEMA L5-30P |
| Input Frequency | 50/60 Hz ±3 Hz, auto-sensing |
| Output Voltage | 120 V (other: 100 V, 110 V, 127 V) |
| Output Connections | 6 × NEMA 5-15R, 3 × NEMA 5-20R, 1 × NEMA L5-30R |
| Topology / Waveform | Line-Interactive • Sine wave • <5% THD |
| Transfer Time | 2–4 ms (typical 4 ms, max 8 ms) |
| Output Frequency | 50/60 Hz ±3 Hz (sync to mains) |
| Battery Type | Lead-Acid • Typical recharge 3 h • Life 3–5 years • Extendable runtime: Yes |
| Replacement Battery | APCRBC143US • RBC qty: 1 • Charge power: 245 W rated |
| Surge Energy Rating | 540 J |
| Acoustic Noise | 55 dBA |
| Thermal Dissipation | 276 BTU/h (online) |
| Operating Environment | 0–40 °C (32–104 °F) • 0–95% RH (non-cond.) • Altitude 0–10,000 ft |
| Communications | LCD control panel, LED status indicators, alarms, USB, RS-232, SmartSlot, EPO |
| Certifications | BSMI, CSA, NOM, TÜV, VCCI Class A, TAA compliant |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
[accesories]
| Rack Mounting Hardware & Brackets | Included in the box |
| Rack Mounting Support Rails | Included in the box |
| Removable Support Feet | Included in the box |
| Smart-UPS Signalling RS-232 Cable | Included in the box |
| USB Cable | Included in the box |
| Documentation | Installation guide, Documentation CD, CD with software |
Overview
The APC Smart-UPS X SMX3000LVUS is a line-interactive UPS delivering 2880VA / 2700W of reliable backup power for critical IT infrastructure. This 4U rack/tower convertible unit ensures business continuity with pure sine wave output, AVR, SmartSlot expandability, and support for extended runtime.
Key Features & Benefits
- 2880VA / 2700W Capacity: Provides reliable backup for servers, storage, and network hardware.
- Pure Sine Wave Output: Ensures compatibility with sensitive IT equipment and active PFC power supplies.
- Extended Runtime Ready: Supports additional battery packs for longer uptime during outages.
- Rack/Tower Convertible 4U Design: Flexible installation in both rackmount and tower configurations.
- SmartSlot Expansion: Enables advanced monitoring and management with optional cards.
- Multi-function LCD Console: Simplifies local monitoring with detailed system status and alerts.
Technical Deep Dive
The SMX3000LVUS uses line-interactive topology with Automatic Voltage Regulation (AVR) to correct power fluctuations without switching to batteries. This ensures consistent performance, reduces battery usage, and extends battery life.
With its pure sine wave output, the UPS maintains clean and stable power for sensitive electronic systems, preventing disruptions during voltage irregularities. Its SmartSlot architecture provides the flexibility to integrate optional network management cards, enhancing remote monitoring and control for distributed environments.
The UPS also supports extended runtime through external battery packs, allowing organizations to customize backup duration based on operational needs. This scalability makes it a reliable choice for businesses where continuous uptime is mission-critical.
Ideal Applications
- Enterprise servers and storage systems
- Data center racks and network infrastructure
- Healthcare IT requiring secure and stable uptime
- Finance and retail operations with mission-critical applications
Frequently Asked Questions (FAQs)
Q1: How is the SMX3000LVUS installed?
A: It is a 4U rack/tower convertible UPS with included mounting rails, brackets, and support feet for flexible deployment.
Q2: What performance can I expect?
A: This UPS provides 2880VA / 2700W of sine wave output with AVR. Runtime varies by load and can be extended with external battery packs. Actual performance depends on load, battery age, and environmental factors.
Q3: How can the UPS be managed?
A: It includes a multifunction LCD console for local control and offers SmartSlot expandability, supporting optional network management cards for advanced remote administration.
