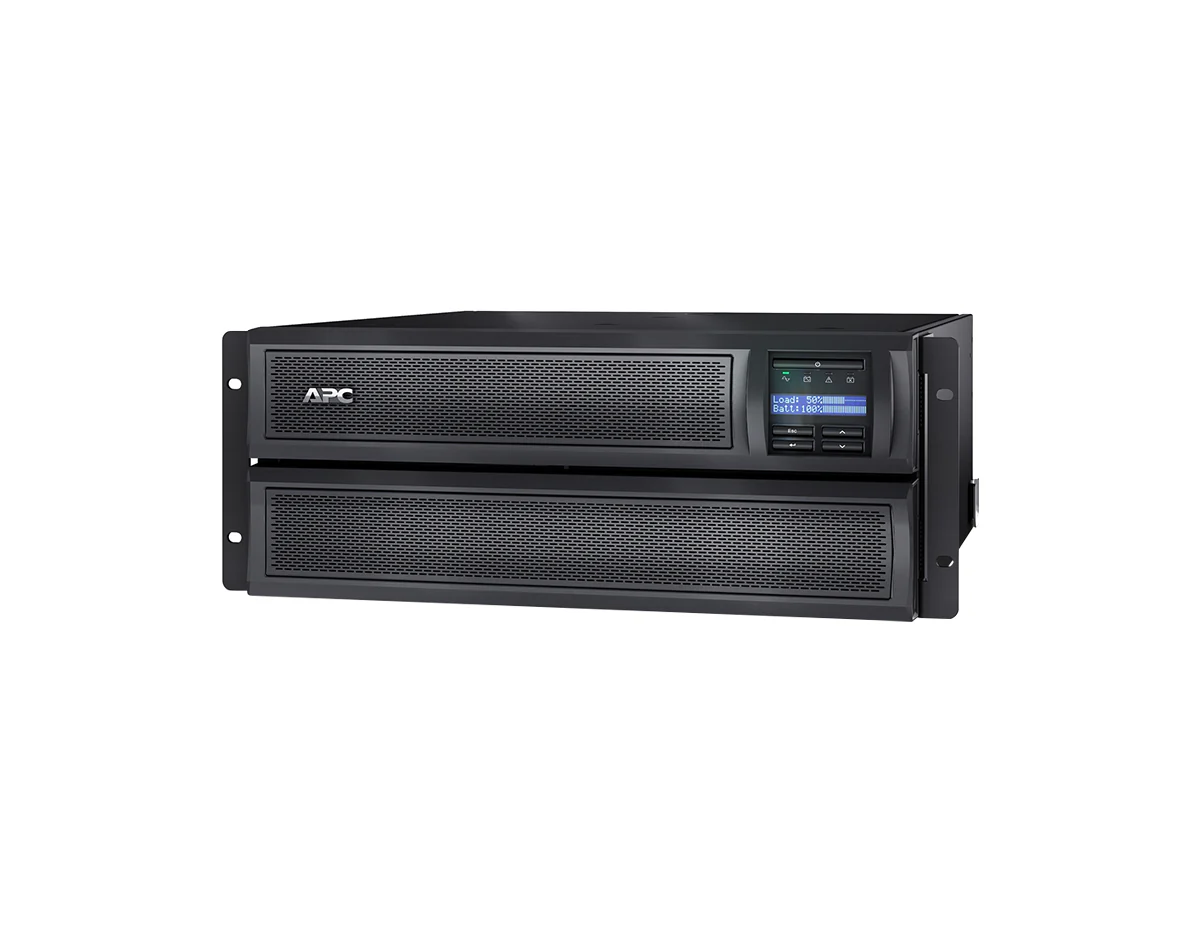

APC SMX3000LV - Smart-UPS X 3kVA Rack/Tower Convertible 4U
[shortdesc]2880VA / 2700W, Lead-Acid Battery, 4U Rack/Tower Convertible, 6x 5-15R + 3x 5-20R + 1x L5-30R Outlets, SmartSlot, Extended Runtime[/shortdesc]
[properties]
| Brand | APC |
| Model | SMX3000LV |
| Product Type | Smart-UPS X Rack/Tower Convertible |
| Form Factor | Rackmount 4U / Tower Convertible |
| Color | Black |
| Dimensions (H x W x D) | 17.01 x 7.01 x 19.02 in (43.2 x 17.8 x 48.3 cm) |
| Weight | 85.19 lb (38.64 kg) |
| Mounting Type | Rack-mounted / Tower Convertible |
[specifications]
| Input Voltage | 120 V (100 V / 110 V / 127 V compatible) |
| Input Frequency | 50/60 Hz ±3 Hz auto-sensing |
| Plug Type | NEMA L5-30P |
| Output Voltage | 120 V (100 V / 110 V / 127 V compatible) |
| Power Capacity | 2880 VA / 2700 W |
| Output Connections | 6 x NEMA 5-15R, 3 x NEMA 5-20R, 1 x NEMA L5-30R |
| Topology | Line Interactive |
| Waveform | Sine wave |
| Transfer Time | 4 ms typical, 8 ms maximum |
| Battery Type | Lead-Acid |
| Recharge Time | 3 hours typical |
| Battery Life | 3–5 years |
| Replacement Battery | APCRBC143 |
| Surge Protection | 540 J |
| Operating Temperature | 0…40°C |
| Operating Humidity | 0…95% non-condensing |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
[accesories]
| CD with Software | Included in the box |
| Documentation CD | Included in the box |
| Installation Guide | Included in the box |
| Rack Mounting Hardware | Included in the box |
| Rack Mounting Brackets | Included in the box |
| Rack Mounting Support Rails | Included in the box |
| Removable Support Feet | Included in the box |
| RS-232 Cable | Included in the box |
| USB Cable | Included in the box |
Overview
The APC SMX3000LV Smart-UPS X delivers high-performance 2880VA / 2700W backup power with scalable runtime in a versatile 4U rack/tower convertible design. Ideal for mission-critical IT and network infrastructure, it features pure sine wave output, line-interactive topology, and SmartSlot for advanced management. With extended runtime capability and comprehensive monitoring, this UPS provides intelligent and efficient protection for enterprise systems.
Key Features & Benefits
- 3kVA / 2700W Capacity: Provides reliable backup for servers, storage, and network hardware.
- Scalable Runtime: Supports external battery packs to extend runtime for long outages.
- Pure Sine Wave Output: Maintains stable and clean power delivery for sensitive IT systems.
- Line-Interactive Topology: 4 ms typical transfer time helps ensure seamless power continuity.
- Versatile Form Factor: Rack/tower convertible 4U design adapts to diverse IT environments.
- SmartSlot Expansion: Supports optional network management cards for enhanced remote control.
Technical Deep Dive
The SMX3000LV uses line-interactive topology to correct power fluctuations before they reach connected devices. Its Automatic Voltage Regulation ensures consistent voltage output without engaging the battery, conserving battery life for true outages. With a 4 ms typical transfer time (8 ms maximum), it helps ensure seamless operation during power disturbances.
The UPS is powered by lead-acid batteries with a design life of 3–5 years, supported by the APCRBC143 replacement module. A recharge time of around 3 hours provides rapid readiness after extended outages. The system also supports extended runtime with external battery packs, making it adaptable for longer backup needs.
Its SmartSlot enables integration with optional management cards, giving IT administrators advanced monitoring, environmental sensing, and remote shutdown capabilities. The multifunction LCD console provides on-site visibility with clear system status, alarms, and configuration options.
Ideal Applications
- Enterprise servers, storage systems, and networking equipment
- Data centers and edge computing environments
- Healthcare, retail, and financial institutions with uptime-critical systems
- Branch offices and distributed IT infrastructure requiring scalable runtime
Frequently Asked Questions (FAQs)
Q1: How is the SMX3000LV installed?
A: It features a 4U rack/tower convertible design and ships with rails, brackets, and support feet for flexible installation.
Q2: What performance can I expect?
A: This UPS delivers 2880VA / 2700W of clean sine wave output. Runtime varies by load and can be extended with external battery packs. Actual runtime depends on environment, battery condition, and load type.
Q3: How can the UPS be managed?
A: It includes a SmartSlot for optional network management cards and a multifunction LCD for local monitoring. Remote management and advanced features are supported through add-on cards.
