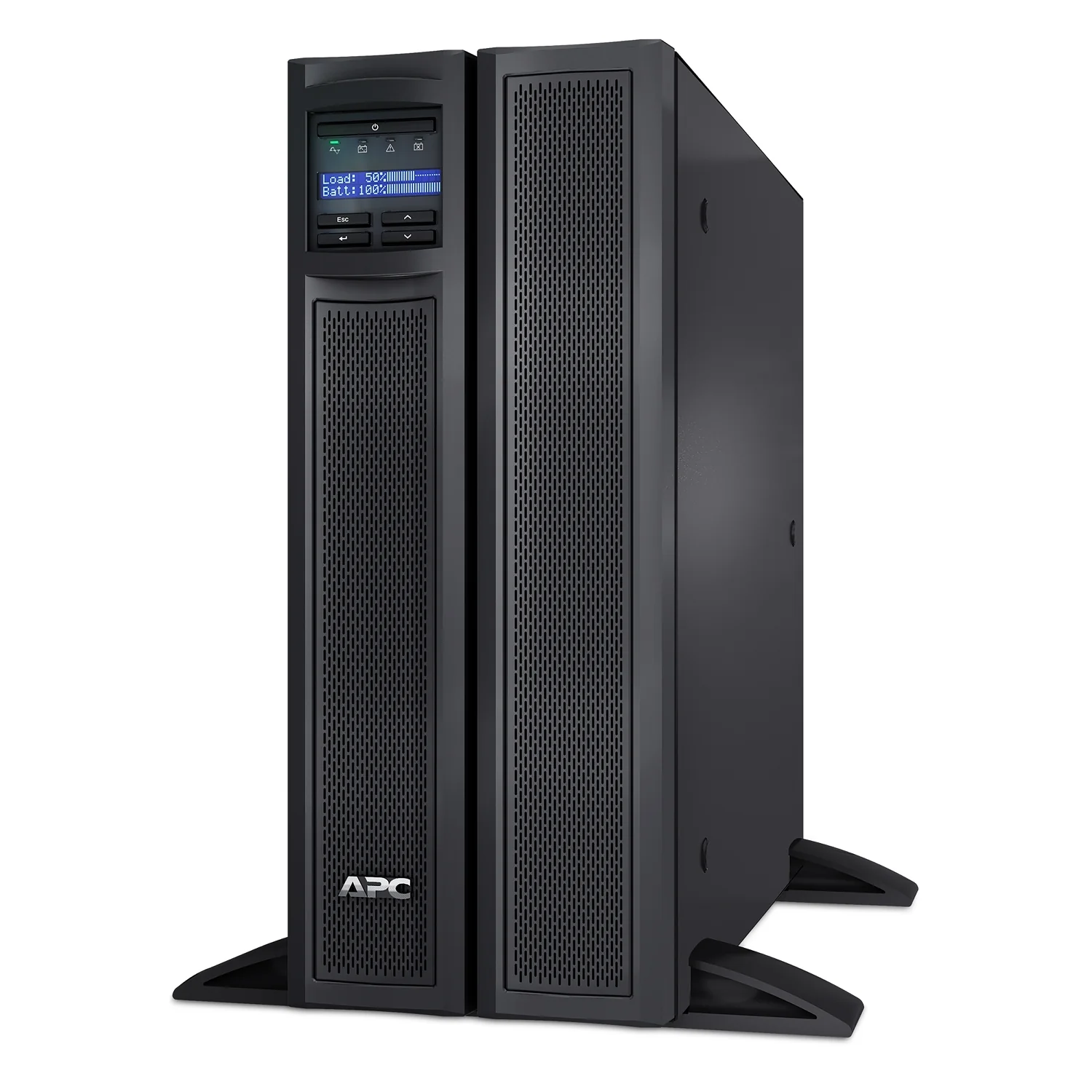

APC SMX3000HVTUS - Smart-UPS X 3kVA 4U Rack/Tower UPS
[shortdesc] 3000VA / 2700W, Line-Interactive 4U Rack/Tower, Pure Sine Wave Output, 2x NEMA L6-20R + 4x IEC C13 + 2x IEC C19 Outlets, SmartSlot Expandability, LCD Console [/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SMX3000HVTUS |
| Product Type | Smart-UPS X, Line-Interactive (Extended Runtime) |
| Form Factor | Rack/Tower Convertible 4U |
| Dimensions (H x W x D) | 17.01" x 7.01" x 19.02" (43.2 x 17.8 x 48.3 cm) |
| Weight | 85.19 lb (38.64 kg) |
| Color | Black |
| Number of Rack Units | 4U |
| Cable Length | 1 × power cable (included) |
| Cooling | Fan-cooled (55 dBA) |
[specifications]
| Capacity | 3000 VA / 2700 W |
| Input Voltage | 208 V (other: 220 V, 230 V, 240 V) • Range: 141–255 V (full load), 160–280 V (half load) |
| Input Connection Type | NEMA L6-20P |
| Input Frequency | 50/60 Hz ±3 Hz, auto-sensing |
| Output Voltage | 208 V (other: 220 V, 230 V, 240 V) |
| Output Connections | 2 × NEMA L6-20R, 4 × IEC 320 C13, 2 × IEC 320 C19, 3 × IEC Jumpers |
| Waveform Type | Sine wave |
| Topology | Line Interactive |
| Transfer Time | 2–4 ms typical, 8 ms max |
| Crest Factor | 3:1 |
| Harmonic Distortion | <5% |
| Battery Type | Lead-Acid • Recharge 3 h • Life 3–5 years • RBC Qty: 1 • Replacement: APCRBC143US • Charge power: 245 W |
| Extendable Runtime | Yes |
| Surge Energy Rating | 645 J |
| Acoustic Noise | 55 dBA |
| Thermal Dissipation | 184 BTU/h |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Operating Humidity | 0–95% non-condensing |
| Altitude | 0–10,000 ft operating |
| Communications | Multi-function LCD panel, LED status indicators, USB, RS-232, SmartSlot (1 free), EPO, audible alarms |
| Certifications | CE, CSA, C-tick, IRAM, VDE, GOST, TAA compliance |
| Warranty | 3 years repair or replace (excluding battery), 2 years for battery |
[accessories]
| Rack Mounting Brackets | Included in the box |
| USB Cable | Included in the box |
| RS-232 Cable | Included in the box |
| CD with Software | Included in the box |
| Documentation CD & User Manual | Included in the box |
Overview
The APC Smart-UPS X SMX3000HVTUS is a high-capacity, TAA-compliant UPS designed to deliver 3000VA/2700W of reliable backup power in a 4U rack/tower convertible format. Featuring pure sine wave output, advanced line-interactive topology with AVR, and SmartSlot expandability, it ensures uptime for critical IT infrastructure. With a multi-function LCD interface and extended runtime capability, it is engineered for enterprise servers, storage, and high-density network hardware.
Key Features & Benefits
- 3000VA / 2700W Capacity: Provides robust backup power for demanding enterprise IT systems.
- Line-Interactive Topology: Automatic Voltage Regulation minimizes battery use while correcting voltage fluctuations.
- Pure Sine Wave Output: Ensures clean, stable power for sensitive servers and network hardware.
- SmartSlot Expandability: Supports optional management cards for advanced remote monitoring and control.
- LCD Control Panel: Multi-function display with clear system status and configuration options.
- Versatile Output Connections: Equipped with 2x NEMA L6-20R, 4x IEC C13, and 2x IEC C19 outlets to support diverse devices.
- Extended Runtime Ready: Supports external battery packs to extend backup duration.
- Surge Protection: 645 J rating with full-time multi-pole noise filtering safeguards connected equipment.
Technical Deep Dive
The SMX3000HVTUS is built on line-interactive technology with Automatic Voltage Regulation (AVR), which stabilizes input voltage in real-time. This ensures connected devices are protected from brownouts and surges without unnecessary battery usage, extending both runtime and battery life.
Delivering pure sine wave output, the UPS guarantees compatibility with mission-critical IT and networking equipment. Its crest factor of 3:1 and less than 5% harmonic distortion ensure high-quality, stable power suitable for sensitive electronics in enterprise-grade environments.
Flexibility in deployment is a core strength. With SmartSlot expandability, administrators can integrate advanced network management cards, enabling real-time monitoring and remote control. The multi-function LCD panel provides at-a-glance system status, making it easier to manage local deployments. Extended runtime support with external battery packs further enhances resilience for long-duration outages.
Ideal Applications
- Enterprise servers and storage systems
- Core network infrastructure including switches and routers
- Data centers and high-density IT deployments
- Government and TAA-compliant IT environments
- Healthcare and finance industries requiring extended uptime
Frequently Asked Questions (FAQs)
Q1: How is the SMX3000HVTUS installed?
A: It is a 4U rack/tower convertible UPS. Rack-mounting brackets, cables, and support accessories are included for flexible installation.
Q2: What performance can I expect?
A: The UPS delivers 3000VA / 2700W with a transfer time of 2–4 ms (up to 8 ms maximum). Typical recharge time is 3 hours. Runtime varies by load but can be extended with additional battery packs.
Q3: How can the UPS be managed?
A: It includes a multi-function LCD console for local management and a SmartSlot for optional management cards, allowing remote monitoring and integration into enterprise systems.
