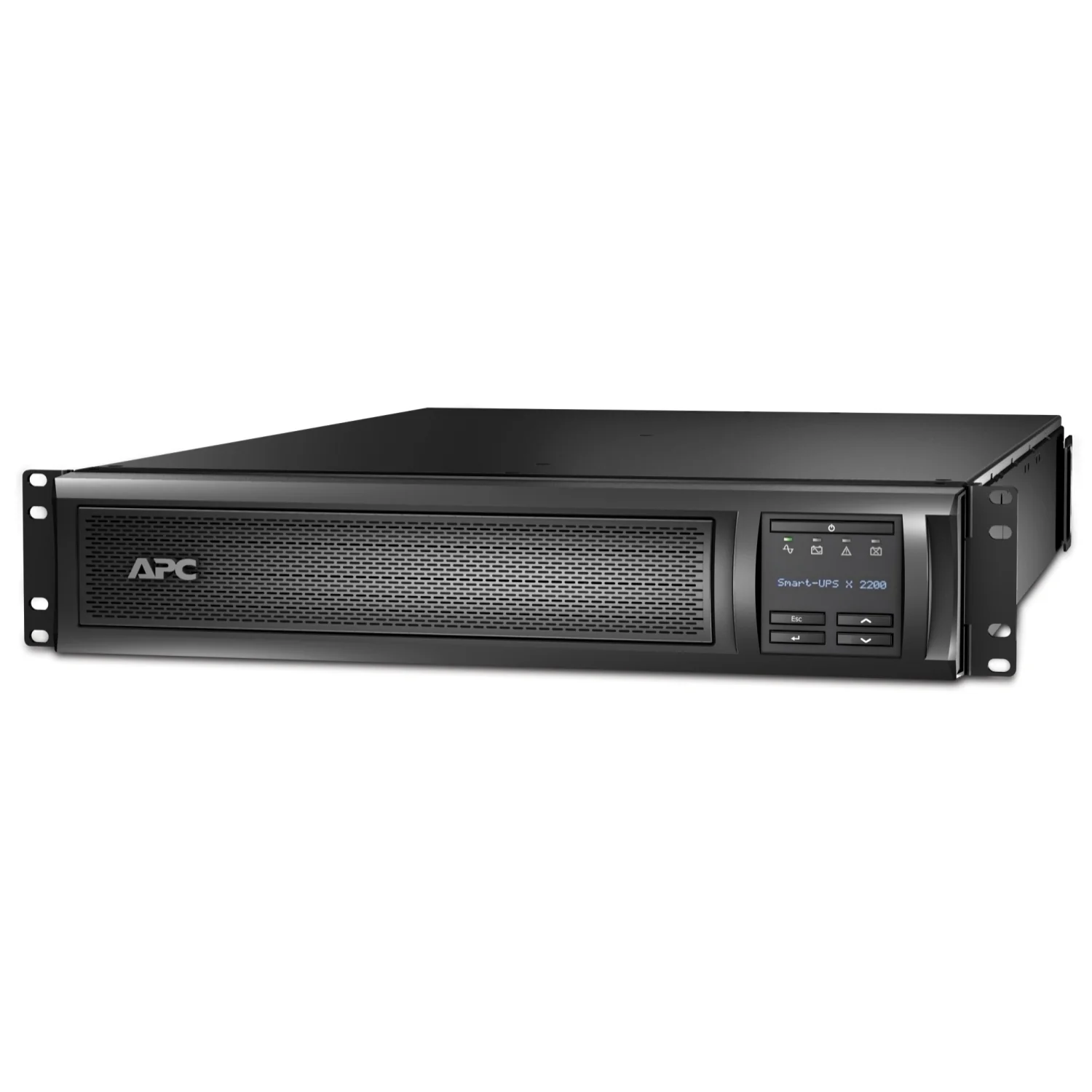

APC SMX2200R2HVNC - Smart-UPS X 2200VA 2U Rack/Tower Convertible UPS
[shortdesc]2200VA / 1980W, Line-Interactive, 2U Rack/Tower Convertible, 8x IEC C13 + 1x C19 Outlets, Pre-installed Network Management Card[/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SMX2200R2HVNC |
| Product Type | Smart-UPS X, Line-Interactive (Extended Runtime) |
| Form Factor | Rack/Tower Convertible 2U |
| Dimensions (H x W x D) | 3.35" x 17.01" x 26.26" (8.5 x 43.2 x 66.7 cm) |
| Weight | 82.10 lb (37.24 kg) |
| Color | Black |
| Number of Rack Units | 2U |
| Cable Length | 6 ft (1.8 m) |
[specifications]
| Capacity | 2200 VA / 1980 W |
| Input Voltage | 208 V / 230 V (other: 220 V, 240 V) • Operating range: 140–280 V |
| Input Connection Type | BS1363A, IEC 320 C20, Schuko CEE 7 / EU1-16P |
| Input Frequency | 50/60 Hz ±3 Hz, auto-sensing |
| Output Voltage | 208 V / 230 V (other: 220 V, 240 V) |
| Output Connections | 8 × IEC 320 C13, 1 × IEC 320 C19, 2 × IEC Jumpers |
| Waveform Type | Sine wave |
| Topology | Line Interactive |
| Transfer Time | 6 ms typical, 10 ms maximum |
| Battery Type | Lead-Acid • Recharge time: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement battery: APCRBC117 • Charge power: 233 W |
| Extendable Runtime | Yes |
| Surge Energy Rating | 645 J |
| Acoustic Noise | 55 dBA |
| Thermal Dissipation | 150 BTU/h |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Operating Humidity | 0–95% non-condensing |
| Altitude | 0–10,000 ft operating |
| Communications | Multi-function LCD, LED status display with bar-graphs, RS-232, USB, SmartSlot (pre-installed Network Management Card 3), EPO, audible alarms |
| Certifications | CE, EAC, IRAM, RCM, TISI, VDE, UK PSTI |
| Warranty | 3 years repair or replace (excluding battery), 2 years for battery |
[accessories]
| Rack Mounting Support Rails | Included in the box |
| RS-232 Cable | Included in the box |
| USB Cable | Included in the box |
| Network Management Card | Pre-installed in the unit |
| Temperature Probe | Included in the box |
| Documentation | CD with software, Documentation CD, Installation guide |
Overview
The APC Smart-UPS X SMX2200R2HVNC is a highly reliable, line-interactive UPS delivering 2200VA / 1980W of dependable backup power in a compact 2U rack/tower convertible form. Designed for business-critical servers, network devices, and IT environments, it offers sine wave output, extended runtime options, and advanced management capabilities. With a pre-installed network management card and full-time power conditioning, it ensures uninterrupted uptime and robust protection for enterprise applications.
Key Features & Benefits
- 2200VA / 1980W Power Capacity: Supports high-demand servers, switches, and storage with clean sine wave output.
- Rack/Tower Convertible 2U Design: Flexible installation in standard racks or as a tower unit to fit diverse IT setups.
- Automatic Voltage Regulation (AVR): Stabilizes input fluctuations without draining battery, extending runtime efficiency.
- Extended Runtime Capability: Compatible with external battery packs for scalable power backup during long outages.
- Network Management Card: Pre-installed NMC with environmental monitoring for advanced remote UPS control.
- Comprehensive Connectivity: Includes 8x IEC C13 and 1x C19 outlets with USB, RS-232, and EPO support.
- Efficient & Quiet: Operates at 55 dBA with optimized energy efficiency for data centers and offices.
Technical Deep Dive
The SMX2200R2HVNC leverages line-interactive topology with sine wave output, providing superior protection for sensitive IT equipment. Its Automatic Voltage Regulation (AVR) continuously adjusts low or high voltages without engaging the battery, ensuring longer battery life and consistent output to connected loads.
The UPS integrates a pre-installed Network Management Card 3, enabling real-time monitoring, remote management, and environmental sensing across IT environments. This allows administrators to proactively manage power events and maintain uptime across distributed locations.
With its modular extended runtime capability, this UPS adapts to evolving infrastructure needs. Hot-swappable, user-replaceable batteries allow continuous operation without downtime, while the 3-hour recharge time ensures readiness even after prolonged outages.
Ideal Applications
- Enterprise server and storage systems
- Network switches, routers, and firewalls
- Edge computing and distributed IT deployments
- Retail, healthcare, and financial institutions requiring scalable runtime
- Data center rack environments needing advanced remote management
Frequently Asked Questions (FAQs)
Q1: How is the SMX2200R2HVNC installed?
A: It is a 2U rack/tower convertible UPS and includes support rails, mounting hardware, and tower stand options for flexible installation.
Q2: What performance can I expect?
A: The unit delivers 2200VA / 1980W with sine wave output. Runtime depends on load and can be extended with external battery packs. Refer to APC runtime charts for detailed data. Actual runtime varies by environment, battery age, and connected devices.
Q3: How can the UPS be managed?
A: It comes with a pre-installed Network Management Card 3 for advanced remote management and includes USB, RS-232, and SmartSlot™ interfaces for flexible monitoring.
