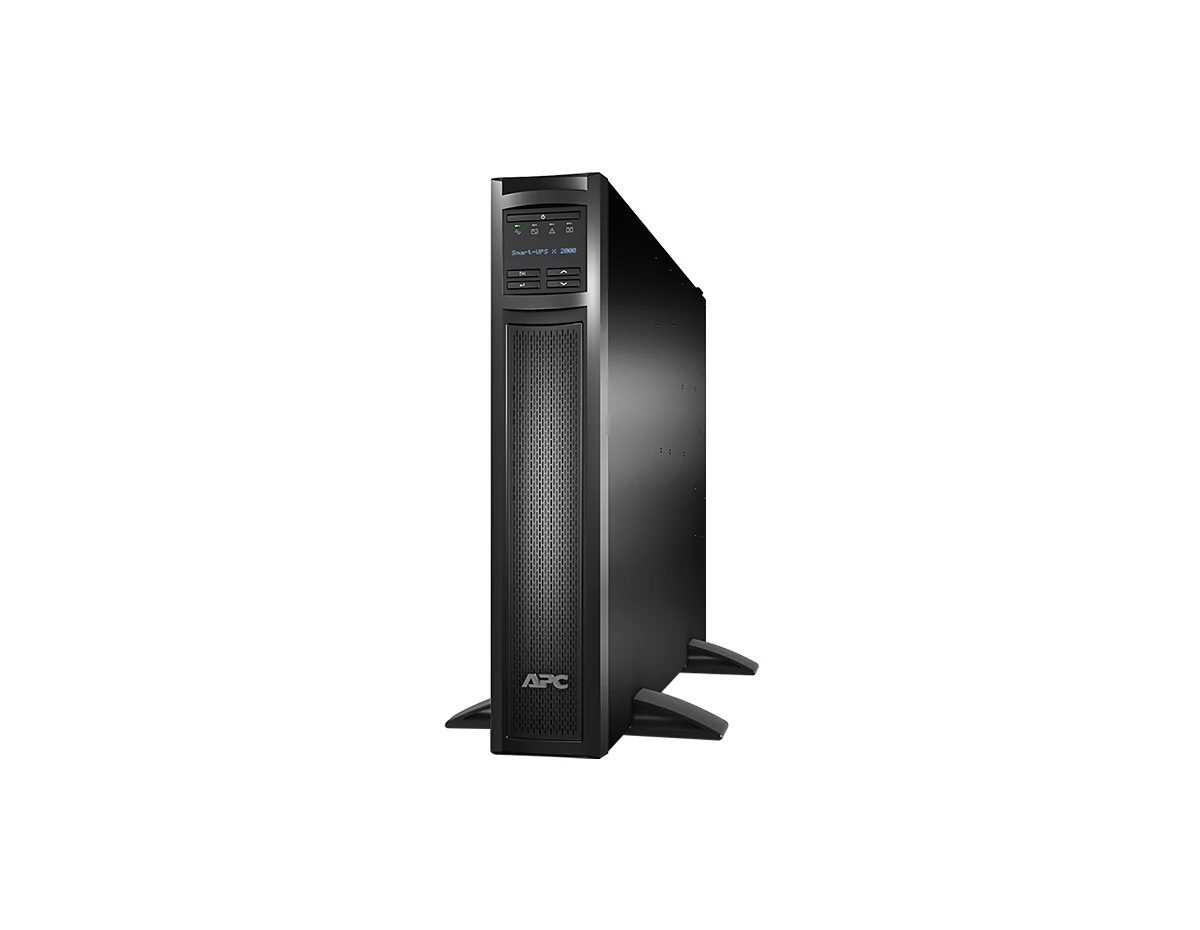

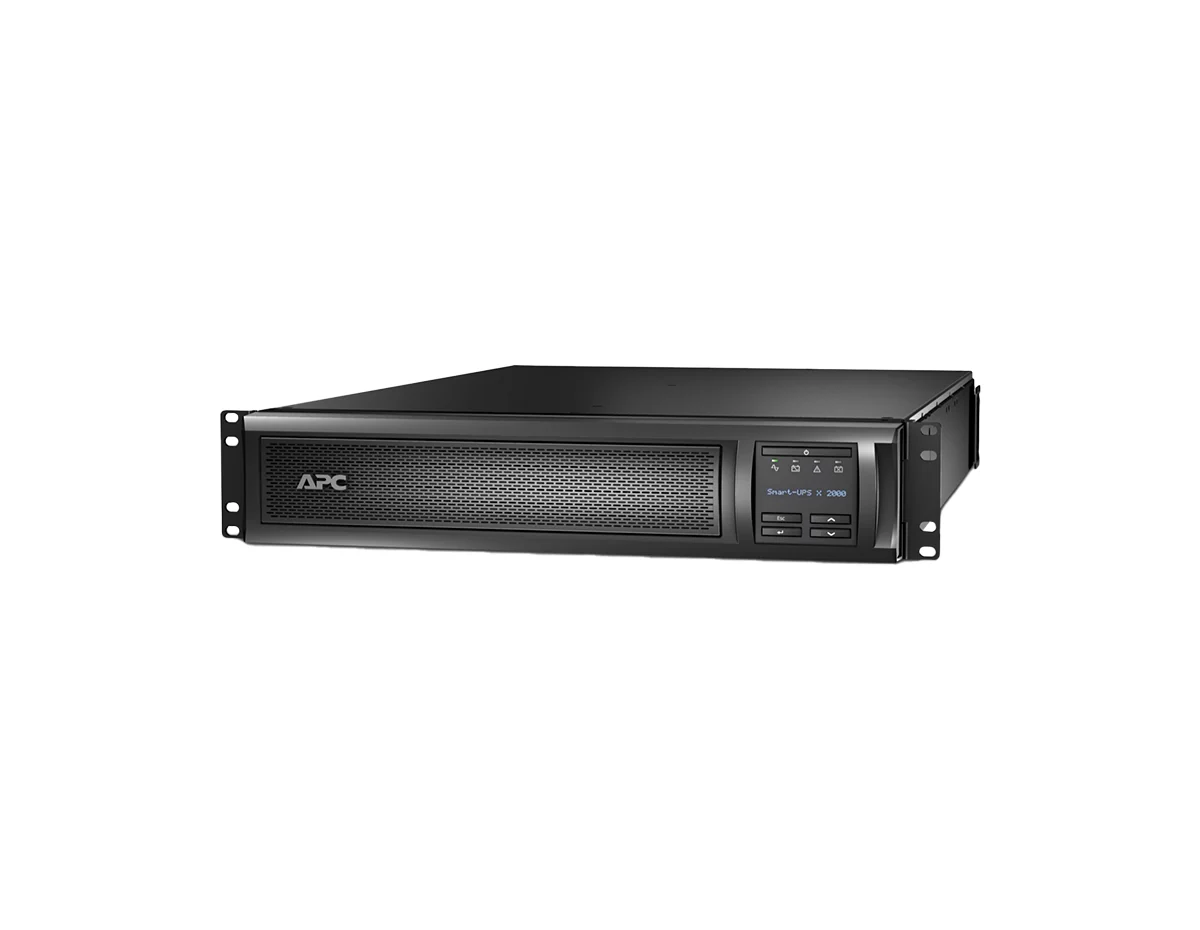

APC SMX2000RMLV2UNC - Smart-UPS X 2000VA Rack/Tower Convertible
[shortdesc] 1920VA / 1800W, Line-Interactive UPS, 2U Rack/Tower Convertible, 7x NEMA Outlets (5-15R, 5-20R, L5-20R), Extended Runtime, LCD, Pre-Installed NMC [/shortdesc]
[properties]
| Brand | APC |
| Model | SMX2000RMLV2UNC |
| Product Type | Smart-UPS X Rack/Tower Convertible with Network Card |
| Form Factor | Rackmount 2U / Tower Convertible |
| Color | Black |
| Dimensions (H x W x D) | 3.35 x 17.01 x 26.26 in (8.5 x 43.2 x 66.7 cm) |
| Weight | 84.77 lb (38.45 kg) |
| Mounting Type | Rack-mounted / Tower Convertible |
[specifications]
| Input Voltage | 120 V (100 V / 110 V / 127 V compatible) |
| Input Frequency | 50/60 Hz ±3 Hz auto-sensing |
| Plug Type | NEMA 5-20P |
| Output Voltage | 120 V (100 V / 110 V / 127 V compatible) |
| Power Capacity | 1920 VA / 1800 W |
| Output Connections | 3 x NEMA 5-15R, 3 x NEMA 5-20R, 1 x NEMA L5-20R |
| Topology | Line Interactive |
| Waveform | Sine wave |
| Transfer Time | 4 ms typical, 8 ms maximum |
| Battery Type | Lead-Acid |
| Recharge Time | 3 hours typical |
| Battery Life | 3–5 years |
| Replacement Battery | APCRBC117 |
| Surge Protection | 540 J |
| Operating Temperature | 0…40°C |
| Operating Humidity | 0…95% |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
[accesories]
| CD with Software | Included in the box |
| Documentation CD | Included in the box |
| Installation Guide | Included in the box |
| Network Management Card | Included in the box |
| Rack Mounting Hardware | Included in the box |
| Rack Mounting Brackets | Included in the box |
| Rack Mounting Support Rails | Included in the box |
| RS-232 Cable | Included in the box |
| USB Cable | Included in the box |
Overview
The APC Smart-UPS X SMX2000RMLV2UNC delivers 1920VA / 1800W of reliable backup power in a 2U rack/tower convertible form factor. Designed with extended runtime capability, sine wave output, and line-interactive topology, it ensures clean and stable power for critical servers, storage, and network hardware. A pre-installed Network Management Card (NMC) enables advanced remote management, while the multifunction LCD console provides clear local status and control. Built for demanding IT environments, this UPS combines efficiency, flexibility, and scalability for superior protection.
Key Features & Benefits
- Extended Runtime Capability: Supports external battery packs to scale backup duration for mission-critical operations.
- Sine Wave Output: Provides consistent, high-quality power ideal for sensitive IT and network hardware.
- Pre-Installed Network Management Card: Enables remote monitoring, environmental integration, and advanced control out-of-the-box.
- Rack/Tower Convertible Design: Flexible deployment in 2U rackmount or tower orientation with included hardware.
- Multi-Function LCD Panel: Simplifies local UPS management with intuitive monitoring and controls.
Technical Deep Dive
The SMX2000RMLV2UNC operates with line-interactive topology and AVR, automatically correcting input voltage within the 70–153V range. This reduces battery cycling and extends battery lifespan while maintaining continuous uptime for connected equipment.
Equipped with a pure sine wave output, the UPS ensures compatibility with modern servers and active PFC power supplies. With a power capacity of 1920VA / 1800W, it delivers robust performance for mid-sized IT infrastructure, providing reliable runtime during outages and power instability.
A key differentiator is the inclusion of a pre-installed Network Management Card 3 (NMC), which provides remote visibility and environmental monitoring. This feature enhances centralized management for distributed IT environments, reducing downtime and simplifying UPS fleet oversight. Combined with the multifunction LCD panel, users benefit from both advanced remote management and intuitive local control.
Ideal Applications
- Enterprise servers, storage, and virtualization platforms
- Network closets and branch office IT infrastructure
- Healthcare and financial services requiring extended runtime protection
- Retail and education environments needing scalable backup solutions
Frequently Asked Questions (FAQs)
Q1: How is the SMX2000RMLV2UNC installed?
A: It is a 2U rack/tower convertible UPS that ships with mounting rails, brackets, and support hardware for flexible deployment in standard racks or tower setups.
Q2: What performance can I expect?
A: The UPS delivers 1920VA / 1800W of sine wave output. Runtime depends on load, but extended backup time can be achieved using external battery packs. Consult APC runtime charts for detailed values.
Q3: How can the UPS be managed?
A: It includes a pre-installed Network Management Card for remote monitoring and environmental integration, plus an LCD panel for local status and control.
