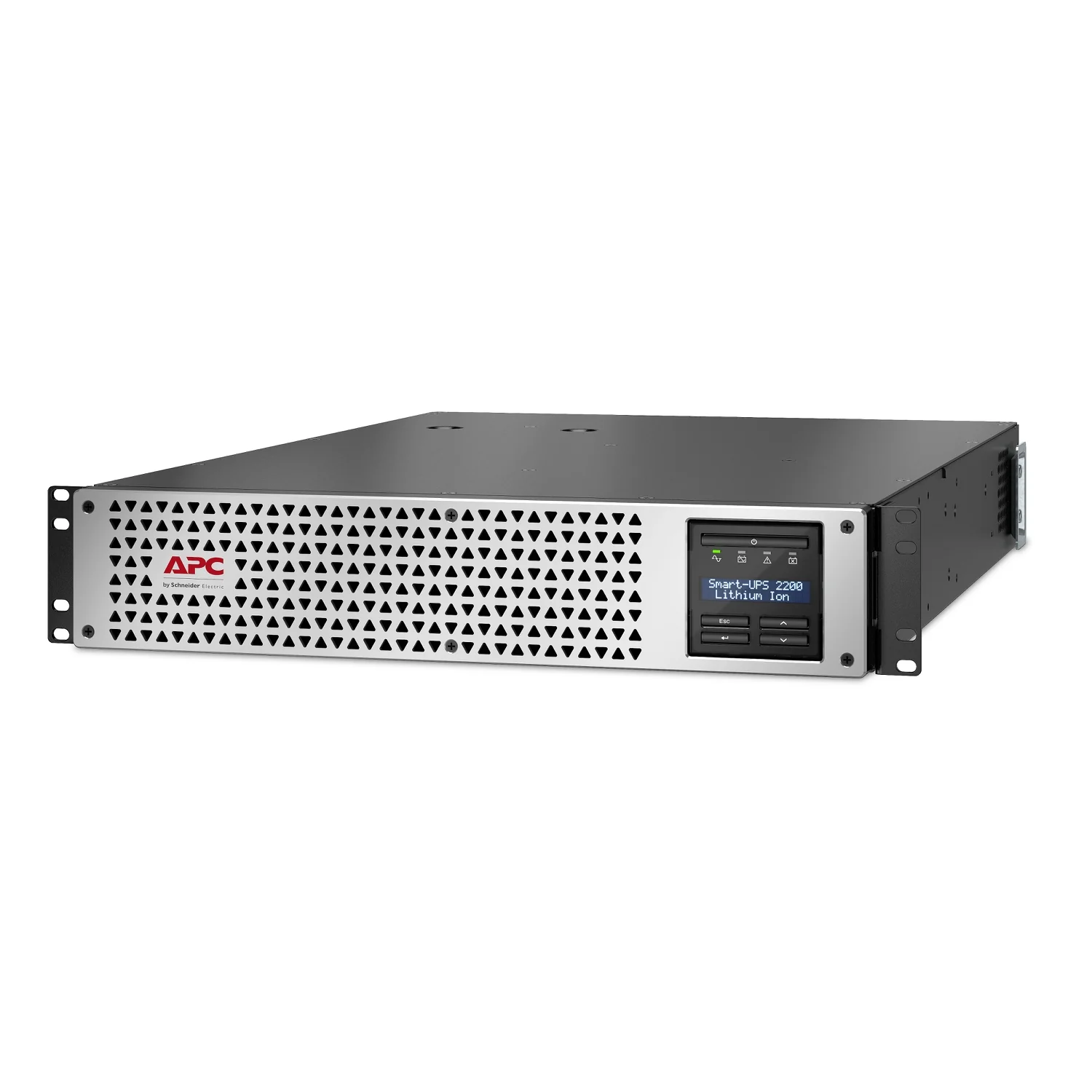

APC SMTL2200RM2UCNC - Smart-UPS 2200VA Lithium-Ion Line-Interactive Rackmount 2U
[shortdesc]2200VA / 1980W, Lithium-Ion Battery, 2U Rackmount, 2x NEMA 5-20R + 6x NEMA 5-15R Outlets, SmartConnect & NMC[/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SMTL2200RM2UCNC |
| Product Type | Smart-UPS, Line-Interactive, Lithium-ion |
| Form Factor | Rackmount 2U |
| Dimensions (H x W x D) | 3.4" x 17.008" x 26.9" (8.6 x 43.2 x 68.3 cm) |
| Weight | 70.3 lb (31.9 kg) |
| Color | Black with silver front bezel |
| Number of Rack Units | 2U |
| Cable Length | 8 ft (2.4 m) |
| Cooling | Not specified |
[specifications]
| Capacity | 1920 VA / 1920 W (Max configurable: 2200 VA / 1980 W) |
| Input Voltage | 120 V (other: 110 V, 125 V) • Operating range: 82–144 V |
| Input Connection Type | NEMA 5-20P |
| Input Frequency | 50/60 Hz ±3 Hz, auto-sensing |
| Output Voltage | 120 V (other: 110 V, 125 V) |
| Output Connections | 2 × NEMA 5-20R, 6 × NEMA 5-15R |
| Waveform Type | Sine wave |
| Topology | Line Interactive |
| Transfer Time | 6 ms typical, 10 ms maximum |
| Crest Factor | 3:1 |
| Harmonic Distortion | <5% |
| Battery Type | Lithium-ion • Design life 8–10 years • Typical recharge 2 h • RBC qty: 1 • Charge power: 216 W |
| Extendable Runtime | No |
| Surge Energy Rating | 530 J |
| Acoustic Noise | 55 dBA |
| Thermal Dissipation | 215 BTU/h |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 0–95% non-condensing |
| Altitude | 0–10,000 ft operating |
| Communications | Multi-function LCD, Audible/visible alarms, SmartConnect Ethernet port, USB, EPO, Pre-installed Network Management Card 3 |
| Certifications | cULus, ENERGY STAR V2.0 (USA) |
| Warranty | 5 years repair or replace |
[accesories]
| Rack Mounting Brackets | Included in the box |
| Rack Mounting Support Rails | Included in the box |
| Screws & Washers | Included in the box |
| USB Cable | Included in the box |
| Ethernet Patch Cable | Included in the box |
Overview
The APC Smart-UPS SMTL2200RM2UCNC is a high-performance lithium-ion powered UPS delivering 1920VA / 1920W of reliable backup in a compact 2U rackmount design. Engineered for enterprise networks, servers, and storage, it combines pure sine wave output, advanced AVR, and integrated SmartConnect plus a pre-installed network management card. Lithium-ion technology ensures longer life, faster recharge, and reduced maintenance compared to traditional VRLA systems.
Key Features & Benefits
- Lithium-Ion Battery: 8–10 year design life with rapid 2-hour recharge, reducing replacement cycles and downtime.
- Pure Sine Wave Output: Delivers stable and clean power for sensitive IT and network hardware.
- Automatic Voltage Regulation (AVR): Corrects high and low voltage conditions without draining the battery.
- SmartConnect & NMC: Enables cloud monitoring and advanced remote management with environmental monitoring support.
- 2U Rackmount Form Factor: Compact design with included rails and brackets for easy rack integration.
- ENERGY STAR® Certified: Meets UPS V2.0 standards for efficiency, reducing total operational costs.
Technical Deep Dive
At its core, the SMTL2200RM2UCNC leverages line-interactive topology with AVR, automatically correcting voltage dips and surges before they impact connected loads. This ensures consistent uptime without unnecessary battery cycling.
Its lithium-ion battery system is designed for 8–10 years of service life, offering twice the durability of traditional lead-acid systems. A fast 2-hour recharge further ensures readiness for subsequent outages, minimizing downtime in critical environments.
The UPS also integrates SmartConnect Ethernet for cloud-enabled monitoring and comes pre-installed with a Network Management Card 3, allowing administrators to manage, monitor, and even integrate environmental sensors. Combined with LCD controls and an Emergency Power Off (EPO) function, this UPS delivers enterprise-grade resilience and flexibility.
Ideal Applications
- Rack-mounted servers and enterprise storage arrays
- Network closets and distributed IT systems
- Edge computing deployments in retail and healthcare
- Financial institutions requiring reliable uptime
- Small data centers and mission-critical IT environments
Frequently Asked Questions (FAQs)
Q1: How is the SMTL2200RM2UCNC installed?
A: It is a 2U rackmount UPS with included support rails and brackets for simple installation in standard IT racks.
Q2: What performance can I expect?
A: This UPS delivers 1920VA / 1920W with pure sine wave output. Runtime varies by load; consult APC runtime charts for specific values. Actual runtime depends on environment, battery age, and load conditions.
Q3: How can the UPS be managed?
A: It includes SmartConnect Ethernet for cloud-based monitoring and a pre-installed Network Management Card 3, supporting advanced remote management and environmental monitoring.
