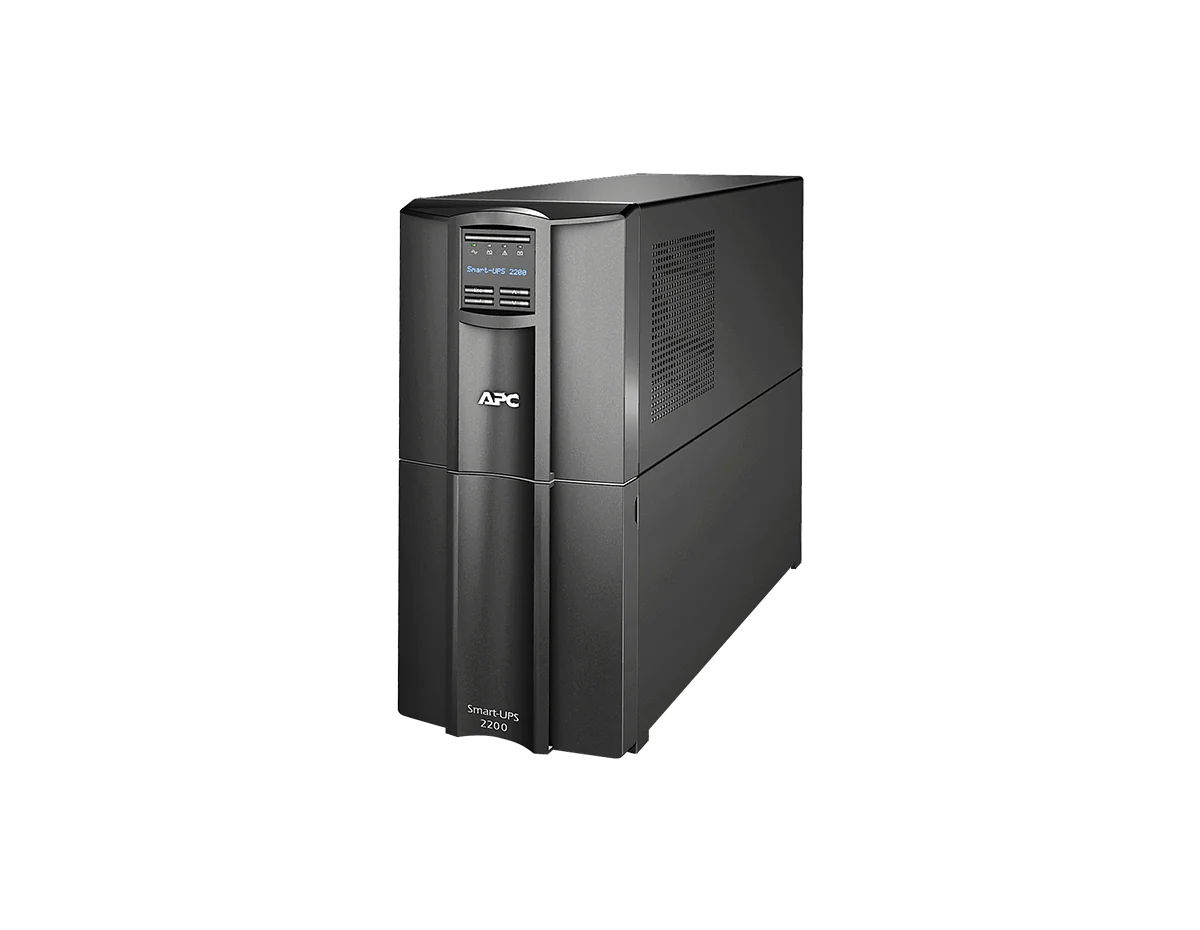

APC SMT2200US - Smart-UPS 2200VA Line-Interactive Tower
[shortdesc] 1920VA / 1920W, Line-Interactive, 120V Tower, Sine Wave Output, AVR, LCD, SmartSlot, 8x NEMA 5-15R + 2x NEMA 5-20R [/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SMT2200US |
| Product Type | Smart-UPS, Line-Interactive |
| Form Factor | Tower |
| Dimensions (H x W x D) | 17.008" x 7.7" x 21.4" (43.2 x 19.6 x 54.4 cm) |
| Weight | 112.24 lb (50.91 kg) |
| Color | Black |
| Number of Rack Units | Not rack-mountable |
| Cable Length | 6 ft (1.8 m) |
| Cooling | Not specified |
[specifications]
| Capacity | 1920 VA / 1920 W (Max configurable: 2200 VA / 1980 W) |
| Input Voltage | 120 V • Adjustable range: 75–154 V • Operating range: 82–144 V |
| Input Connection Type | NEMA 5-20P |
| Input Frequency | 50/60 Hz ±3 Hz, auto-sensing |
| Output Voltage | 120 V |
| Output Connections | 8 × NEMA 5-15R, 2 × NEMA 5-20R |
| Waveform Type | Sine wave |
| Topology | Line Interactive |
| Transfer Time | 4 ms typical, 8 ms maximum |
| Battery Type | Lead-Acid |
| Battery Recharge Time | 3 hours |
| Battery Life | 3–5 years |
| Replacement Battery | RBC55 (Qty: 1) |
| Battery Charge Power | 233 W rated |
| Surge Energy Rating | 530 J |
| Acoustic Noise | 45 dBA |
| Thermal Dissipation | 275 BTU/h |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Operating Humidity | 0–95% non-condensing |
| Altitude | 0–10,000 ft operating |
| Communications | Multi-function LCD status/control console, SmartSlot, USB, RS-232, EPO, alarms (on battery, low battery, overload) |
| Certifications | CSA, TAA compliant |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
[accesories]
| CD with software | Included in the box |
| Documentation CD | Included in the box |
| Smart-UPS Signalling RS-232 Cable | Included in the box |
| USB Cable | Included in the box |
Overview
The APC SMT2200US delivers line-interactive power protection in a compact tower form factor. With 1920VA / 1920W capacity, sine wave output, Automatic Voltage Regulation (AVR), and a multi-function LCD, it shields critical servers, storage, and network hardware from power disturbances while providing clear, at-a-glance status. SmartSlot expandability and 120 V input with NEMA 5-20P make it versatile for North American IT environments.
Key Features & Benefits
- Line-Interactive Topology – Regulates voltage without unnecessary battery use, enhancing efficiency and uptime.
- Sine Wave Output – Delivers clean power quality for sensitive IT and network devices.
- Comprehensive Outlets – 8x NEMA 5-15R and 2x NEMA 5-20R support mixed loads in one system.
- LCD Status & Controls – Multi-function display streamlines local monitoring and configuration.
- SmartSlot Expansion – Add-on management via the dedicated slot to fit site requirements.
- Rapid Response – 4 ms typical transfer time helps maintain continuity during anomalies.
Technical Deep Dive
Voltage Regulation (AVR): The line-interactive design stabilizes input within specified thresholds, reducing brownouts and overvoltage events before they impact equipment. This limits battery cycling, preserving battery life and maintaining availability.
Sine Wave Output & Harmonic Control: The UPS maintains a true sine wave with less than 5% harmonic distortion, supporting sensitive loads and power supplies that expect utility-grade waveforms.
Monitoring & Management: A front multi-function LCD reports operating mode, load/battery bars, and alarms. The integrated SmartSlot enables optional communications, while USB/serial connectivity supports direct host monitoring.
Ideal Applications
- Tower servers and small storage arrays
- Network switches, routers, and security appliances
- Branch offices and wiring closets
- Point-of-sale and back-office systems
Frequently Asked Questions (FAQs)
Q1: How is the SMT2200US installed?
A: It is a tower-style 120 V UPS with a NEMA 5-20P input plug and ships ready for floor/desk deployment with front access controls.
Q2: What performance can I expect?
A: Rated 1920 VA / 1920 W with sine wave output. Actual runtime depends on load and conditions; please refer to the runtime graph for detailed values.
Q3: What management features are available?
A: The unit provides a multi-function LCD, audible alarms, USB/RS-232 connectivity, and a SmartSlot for optional management accessories.
