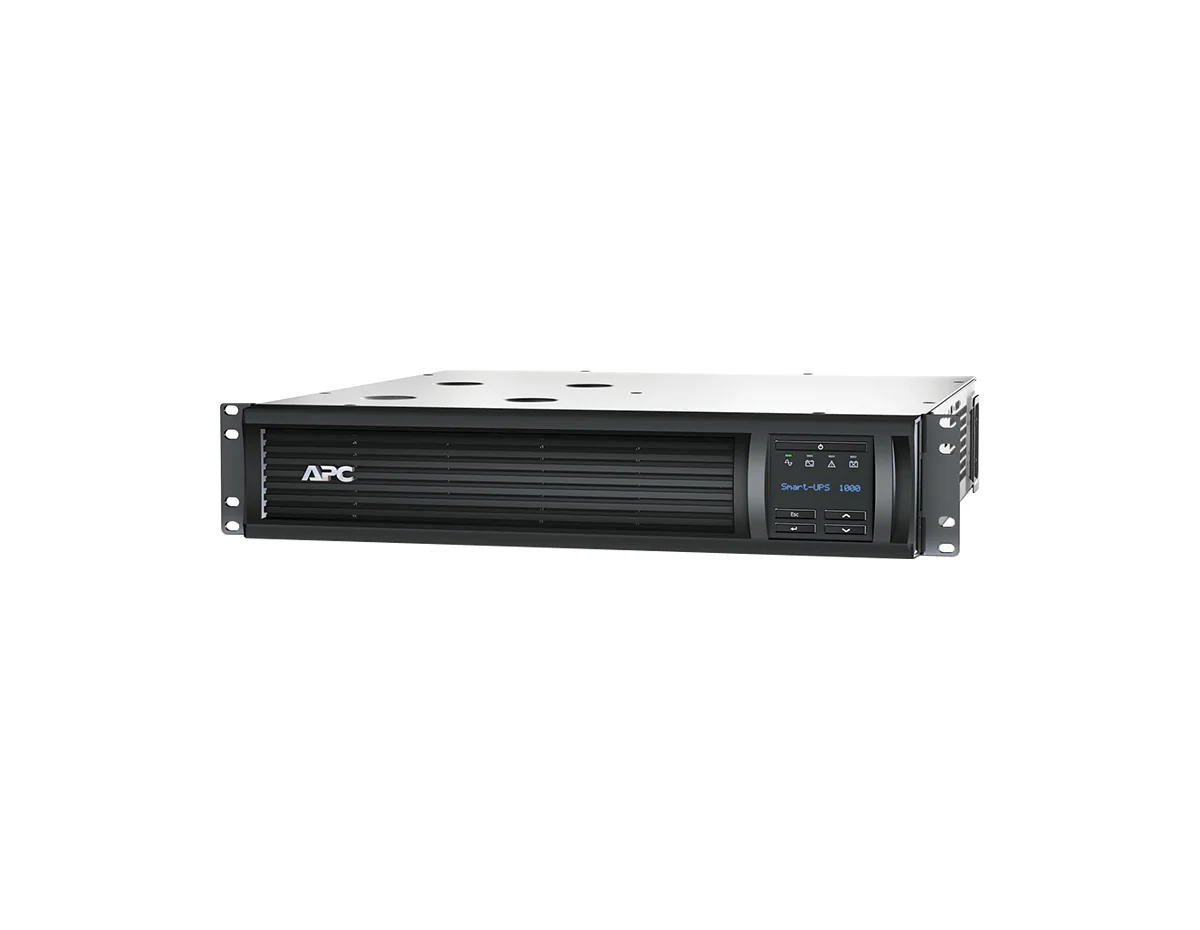

APC SMT1000RM2UC - Smart-UPS 1000VA Rackmount 2U
[shortdesc] 1000VA / 700W, Line-Interactive UPS, 2U Rackmount, 6x NEMA 5-15R Outlets, AVR, LCD, SmartConnect Port + SmartSlot [/shortdesc]
[properties]
| Brand | APC |
| Model | SMT1000RM2UC |
| Product Type | Smart-UPS Rackmount |
| Form Factor | Rackmount 2U |
| Color | Black |
| Dimensions (H x W x D) | 3.39 x 17.01 x 18.78 in (8.6 x 43.2 x 47.7 cm) |
| Weight | 55.8 lb (25.3 kg) |
| Mounting Type | Rack-mounted |
[specifications]
| Input Voltage | 120 V (110 V / 125 V compatible) |
| Input Frequency | 50/60 Hz ±3 Hz auto-sensing |
| Plug Type | NEMA 5-15P |
| Output Voltage | 120 V (110 V / 125 V compatible) |
| Power Capacity | 1000 VA / 700 W |
| Output Connections | 6 x NEMA 5-15R |
| Topology | Line Interactive |
| Waveform | Sine wave |
| Transfer Time | 6 ms typical, 10 ms maximum |
| Battery Type | Lead-Acid |
| Recharge Time | 3 hours typical |
| Battery Life | 4–6 years |
| Replacement Battery | APCRBC157 |
| Surge Protection | 680 J |
| Operating Temperature | 0…40°C |
| Operating Humidity | 0…95% |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
[accesories]
| Documentation CD | Included in the box |
| Installation Guide | Included in the box |
| Rack Mounting Support Rails | Included in the box |
| RS-232 Cable | Included in the box |
| USB Cable | Included in the box |
Overview
The APC Smart-UPS SMT1000RM2UC delivers 1000VA / 700W of reliable backup power in a compact 2U rackmount form factor. With sine wave output, Automatic Voltage Regulation (AVR), and line-interactive topology, it ensures continuous protection for servers, switches, routers, and network devices. A front-facing LCD panel provides at-a-glance system status, while integrated SmartConnect Ethernet and SmartSlot support enable advanced monitoring and management. This UPS is engineered for efficient and intelligent protection of business-critical IT systems.
Key Features & Benefits
- Sine Wave Output: Maintains clean and stable power, ideal for sensitive IT and network hardware.
- Automatic Voltage Regulation (AVR): Corrects voltage fluctuations without engaging the battery, conserving runtime.
- SmartConnect Port + SmartSlot: Supports cloud-enabled monitoring and optional network management integration.
- 2U Rackmount Design: Efficiently fits in standard racks with included mounting rails.
- LCD Interface: Multi-function display provides real-time UPS status and control.
Technical Deep Dive
The SMT1000RM2UC leverages a line-interactive design with AVR to automatically adjust incoming voltage within a range of 75–154V. By correcting over- and under-voltages without switching to battery, the system extends the service life of its lead-acid battery while ensuring consistent uptime for connected devices.
Its pure sine wave output is particularly important for modern servers and active PFC power supplies, which require stable, high-quality input power. With a maximum power capacity of 1000VA / 700W, this UPS provides balanced protection and runtime for critical IT infrastructure.
Beyond local management via the LCD console, the UPS includes a SmartConnect Ethernet port for secure cloud-enabled monitoring. The SmartSlot further enhances flexibility by allowing integration with additional network management cards. This dual-layered management approach ensures IT teams can oversee performance both locally and remotely, reducing downtime risks.
Ideal Applications
- Rack-mounted servers, storage, and switches
- Network closets and branch office infrastructure
- Routers, hubs, and communication hardware
- Small to medium business IT environments requiring reliable protection
Frequently Asked Questions (FAQs)
Q1: How is the SMT1000RM2UC installed?
A: It is a 2U rackmount UPS that includes mounting rails, cables, and an installation guide for easy integration into standard IT racks.
Q2: What performance can I expect?
A: The UPS provides 1000VA / 700W of sine wave output. Runtime varies by load; refer to APC’s official runtime chart for precise values. Actual runtime depends on battery age, load type, and environmental conditions.
Q3: How can the UPS be managed?
A: Management options include the LCD control panel for local use, the SmartConnect Ethernet port for cloud-based monitoring, and the SmartSlot for advanced management card integration.
