• Managed, Rack-mountable, 48 x 10/100 Fast Ethernet ports, 4 x 1G SFP Uplinks, No PoE (Data Only), Layer 2

[/shortdesc] [properties]

Properties	C1000FE-48T-4G-L
Description	48x 10/100 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks and 2x 1G SFP uplinks
Product Family	Catalyst 1000
Product Type	Ethernet Switch
Number of Ports	48
Uplink Interfaces	2 SFP/RJ-45 combo and 2 SFP
Available PoE power	No
Fanless	No
Width	17.32"
Depth	11.34"
Height	1.73"

[/properties] [specifications]

Specifications	C1000FE-48T-4G-L
Console Ports	1x RJ-45 Ethernet 1x USB-A port for storage and Bluetooth console
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash Memory	256 MB
Forwarding Bandwidth	FE: 8.8 Gbps
Switching Bandwidth	FE: 17.6 Gbps
Forwarding Rate (64-byte L3 packets)	FE: 13.09 Mpps
MAC addresses	16000
Maximum Active VLANs	256
Operating Temperature Up to 5,000 ft (1500 m)	-5 to 45 deg C
Operating Temperature Up to 10,000 ft (3000 m)	-5 to 40 deg C
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1, GB 4943.1-2011
EMC: emissions	47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: immunity	EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. Government certifications	USGv6 and IPv6 Ready Logo
Ethernet interfaces	10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 UTP cabling 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Telnet - SSH	Yes
TACACS, TACACS+, Radius	Yes

[/specifications] [accesories]

Part Number	Description
CAB-CONSOLE-RJ45	Console Cable 6 Feet with RJ-45
PWR-CLP	Power Cable Restraining Clip

[/accesories]

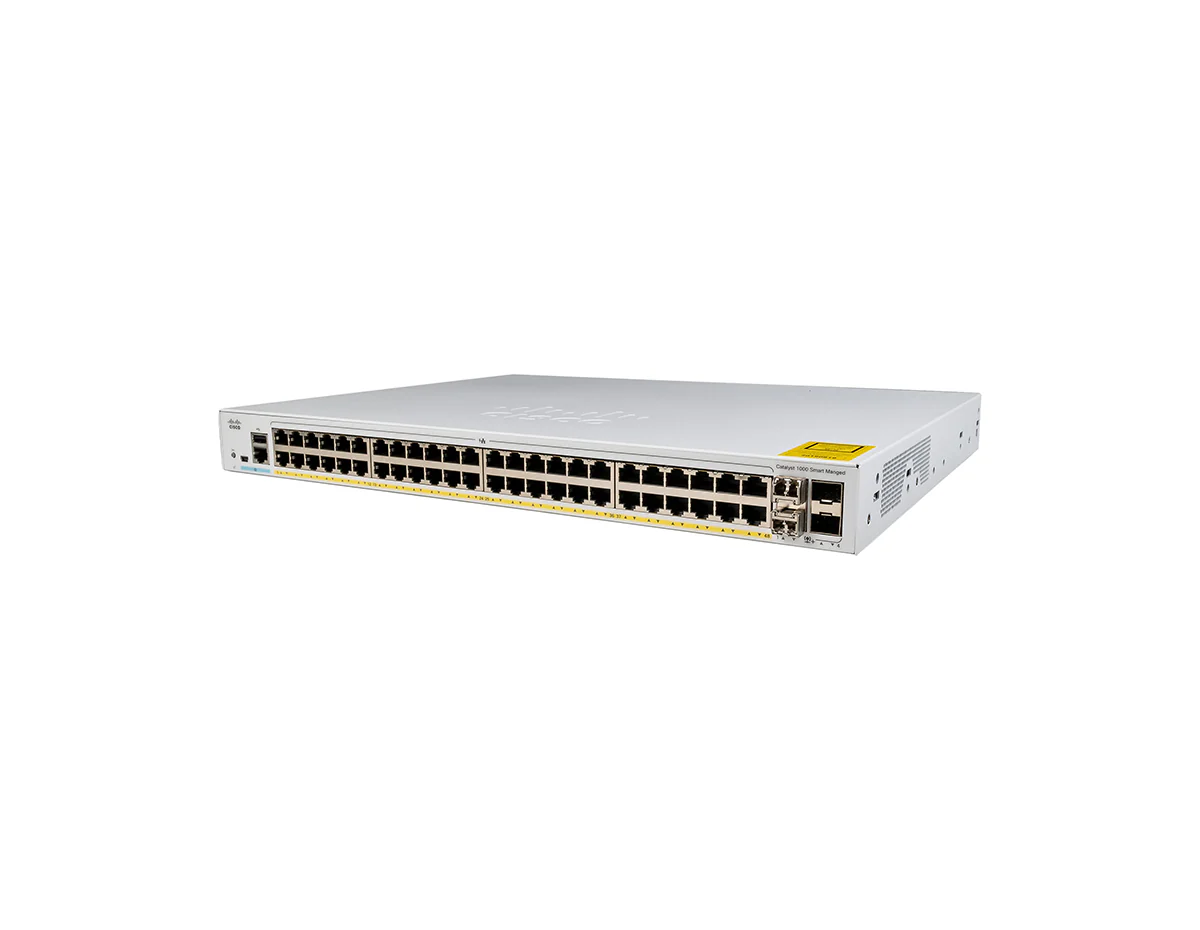

Cisco C1000FE-48T-4G-L Switch

The Cisco C1000FE-48T-4G-L is a managed Fast Ethernet switch built for small and medium-sized businesses that need dependable Layer 2 connectivity at scale. With 48 Fast Ethernet access ports and four 1G SFP uplinks (two SFP/RJ-45 combo plus two SFP), the switch offers flexible expansion while maintaining secure, straightforward operations through an intuitive web UI and CLI.

Key Features:

• 48 x Fast Ethernet Ports: Reliable access-layer connectivity for endpoints such as PCs, printers, and IP phones.
• 4 x 1G SFP Uplinks: Two SFP/RJ-45 combo and two SFP uplinks enable scalable aggregation and backbone connectivity.
• Robust Security: 802.1X, port security, ACLs, BPDU Guard, and SPAN enhance visibility and protection.
• Operational Simplicity: Web UI and CLI management with features like AutoQoS and EEE for efficient operations.
• Quiet, Office-friendly Form Factor: Compact 1RU design suitable for wiring closets and office racks.

Technical Overview:

• Recommended for: SMB access, retail floors, classrooms, and branch offices.
• Ports: 48 x 10/100 Fast Ethernet access ports, 4 x 1G SFP uplinks (2 SFP/RJ-45 combo + 2 SFP).
• Switching Capacity: 17.6 Gbps.
• Forwarding Rate: 13.09 Mpps.
• Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet supported.

  You can check the related tab for the C1000FE-48T-4G-L datasheet.
