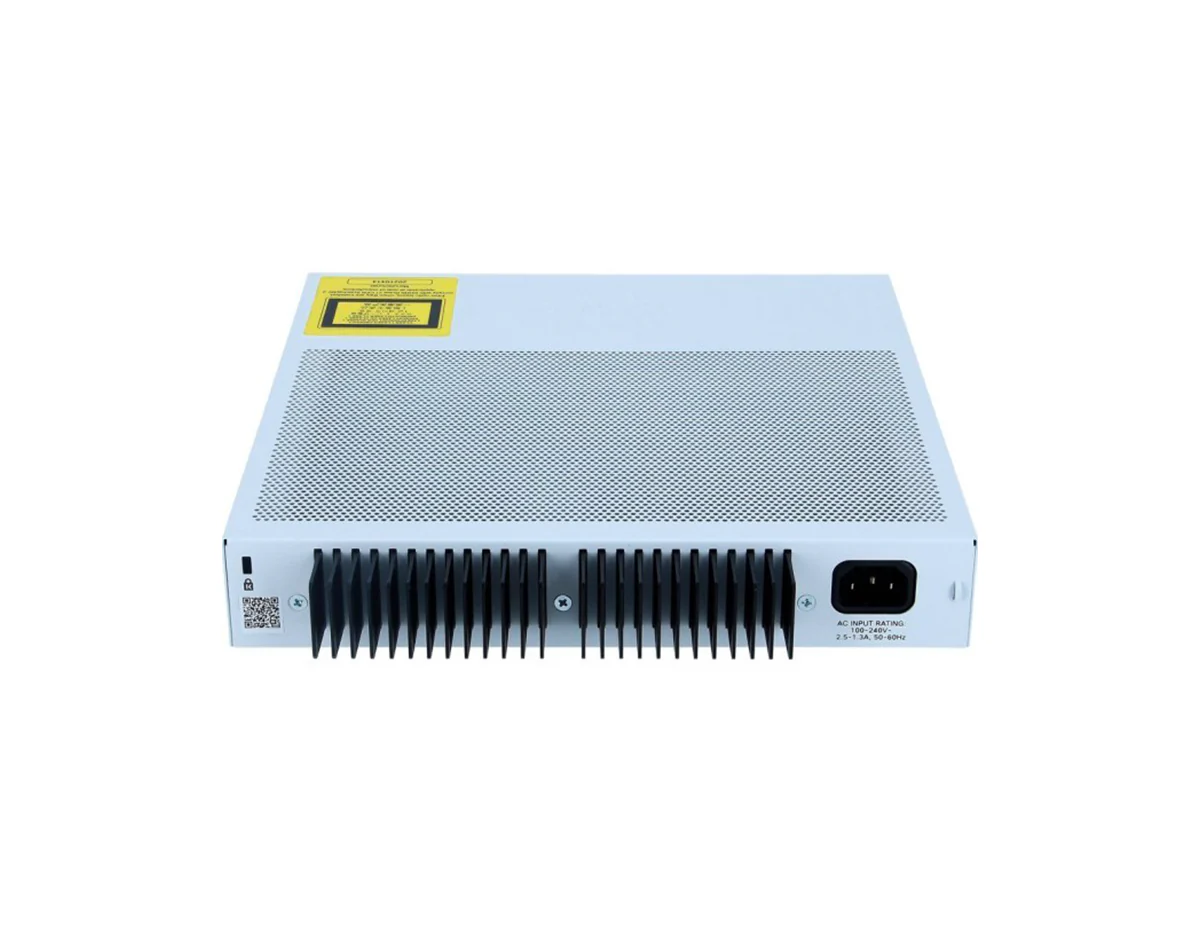

Cisco C1000-16P-E-2G-L Switch

[shortdesc]

Switch, 16x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 2x 1G SFP uplinks

[/shortdesc]

[properties]

Properties	C1000-16P-E-2G-L
Description	16x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 2x 1G SFP uplinks
Product Family	Catalyst 1000
Product Type	Ethernet Switch
Number of Ports	16
Uplink Interfaces	2 × 1G SFP
Available PoE power	195W
Fanless	Yes
Width	17.29"
Depth	16.14"
Height	1.712"
Management	Managed (WebUI/CLI; optional Cisco Catalyst Center)
Power Supply	Internal (auto-sensing AC)

[/properties]

[specifications]

Specifications	C1000-16P-E-2G-L
Console Ports	1x RJ-45 (console) 1x USB mini-B (console) 1x USB-A port for storage and Bluetooth console
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash Memory	256 MB
Forwarding Bandwidth	18 Gbps
Switching Bandwidth	36 Gbps
Forwarding Rate (64-byte L3)	26.78 Mpps
MAC addresses	16000
Maximum Active VLANs	256
Operating Temperature	0 to 40 °C
Operating Altitude	Up to 10,000 ft (3000 m)
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1, GB 4943.1-2011
EMC: emissions	47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: immunity	EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. Government certifications	TBD
Ethernet interfaces	10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Telnet - SSH	Yes
TACACS, TACACS+, Radius	Yes

[/specifications]

[accesories]

Part Number	Description
CAB-CONSOLE-RJ45	Console Cable 6 Feet with RJ-45
CAB-CONSOLE-USB	Console Cable 6 Feet with USB Type A and mini-B Connectors
PWR-CLP	Power Cable Restraining Clip
RCKMNT-19-CMPCT	19-inch rack mount bracket for C1000, 3560-CX and 2960-CX
RCKMNT-23-CMPCT	23- and 24-inch rack mount bracket for C1000, 3560-CX and 2960-CX

[/accesories]

Cisco Catalyst C1000-16P-E-2G-L Switch

The Cisco Catalyst C1000-16P-E-2G-L Switch is a robust and flexible networking solution designed for small businesses and branch offices. Equipped with 16 Gigabit Ethernet PoE+ ports and 2 SFP uplinks, this switch delivers reliable power and data connectivity to support PoE-enabled devices with a 195W PoE budget. The internal power supply simplifies installation while ensuring dependable performance in diverse environments.

Key Features:

16 x Gigabit Ethernet PoE+ Ports: Provides power and data connectivity for PoE-enabled devices, with a 195W PoE budget.
2 x SFP Uplinks: Offers flexible uplink options for connecting to various network devices and expanding your network.
Simple Management: Supports web-based UI and Command-Line Interface (CLI) for easy configuration and monitoring.
Internal Power Supply: Auto-sensing AC input for straightforward deployment.
Enhanced Security: Features such as 802.1X, BPDU Guard, and SPAN for improved network security and monitoring.

Technical Overview:

Recommended for: Small businesses, branch offices, and environments requiring reliable PoE networking solutions.
Ports: 16 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports with 2 SFP uplinks.
PoE Budget: 195W.
Switching Capacity: 36 Gbps.
Forwarding Rate: 26.78 Mpps.
Management: Web-based GUI and CLI; optional Cisco Catalyst Center.
Energy Efficiency: Compact 1RU design.

You can check the related tab for the C1000-16P-E-2G-L datasheet.
