• Switch, Managed, 8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, with external PS

[/shortdesc]

[properties]

Property	Details
Model	C1000-8P-E-2G-L
Description	8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, with external PS
Product Family	Catalyst 1000
Product Type	Ethernet Switch
Number of Ports	8
Uplink Interfaces	2 × 1G SFP / RJ-45 combo
Available PoE power	67W
Fanless	Yes
Management	Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center)
Power Supply	External
Width	10.56"
Depth	7.28"
Height	1.73"

[/properties]

[specifications]

Specification	Details
Model	C1000-8P-E-2G-L
Console Ports	1× RJ-45 (console); 1× USB mini-B (console); 1× USB-A (storage/Bluetooth console)
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash Memory	256 MB
Forwarding Bandwidth	10 Gbps
Switching Bandwidth	20 Gbps
Forwarding Rate (64-byte L3)	14.88 Mpps
MAC addresses	16,000
Maximum Active VLANs	256
Operating Temperature (Sea level)	–5 to 50 °C*
Operating Temperature (≤ 5,000 ft / 1500 m)	–5 to 45 °C
Operating Temperature (≤ 10,000 ft / 3000 m)	–5 to 40 °C
Safety	UL 60950-1 2nd Ed; CAN/CSA-C22.2 No. 60950-1 2nd Ed; EN 60950-1 2nd Ed; IEC 60950-1 2nd Ed; AS/NZS 60950-1; IEC 62368-1; UL 62368-1; GB 4943.1-2011
EMC: emissions	47CFR Part 15 Class A; AS/NZS CISPR32 Class A; CISPR32 Class A; EN55032 Class A; ICES-003 Class A; VCCI-CISPR32 Class A; EN61000-3-2; EN61000-3-3; KN32 Class A; CNS13438 Class A
EMC: immunity	EN55024 (incl. EN 61000-4-5); EN300386; KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. Government certifications	TBD
Ethernet interfaces	10BASE-T: RJ-45, 2-pair Cat 3/4/5 UTP; 100BASE-TX: RJ-45, 2-pair Cat 5 UTP; 1000BASE-T: RJ-45, 4-pair Cat 5 UTP; 1000BASE-T SFP-based: RJ-45, 4-pair Cat 5 UTP
Telnet / SSH	Yes
TACACS, TACACS+, RADIUS	Yes
* 50 °C supported for short-term operation; minimum ambient for cold start is 0 °C.

[/specifications]

[accesories]

Part Number	Description
CAB-CONSOLE-RJ45	Console Cable 6 Feet with RJ-45
CAB-CONSOLE-USB	Console Cable 6 Feet with USB Type-A and mini-B Connectors
PWR-CLP	Power Cable Restraining Clip
RCKMNT-19-CMPCT	19-inch rack mount bracket for C1000, 3560-CX and 2960-CX
RCKMNT-23-CMPCT	23- and 24-inch rack mount bracket for C1000, 3560-CX and 2960-CX

[/accesories]

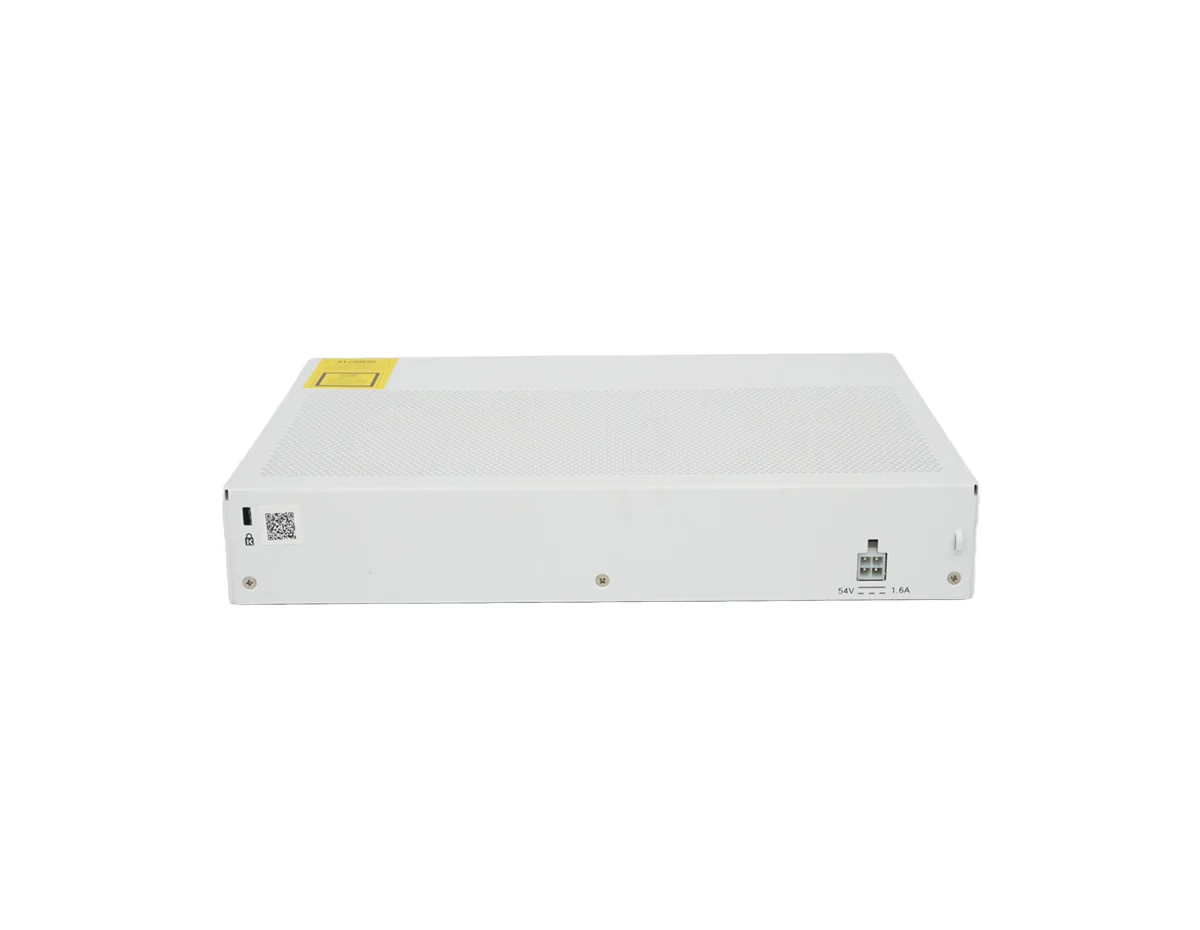

Cisco Catalyst C1000-8P-E-2G-L Switch

The Cisco Catalyst C1000-8P-E-2G-L is a compact, reliable, PoE+ switch for small businesses and branch offices. It delivers 8 Gigabit PoE+ access ports and 2 SFP/RJ-45 combo uplinks for flexible aggregation. With an external power supply and silent, fanless operation, it fits IoT and out-of-closet deployments. Manage via WebUI or CLI while enforcing security with 802.1X, BPDU Guard, and SPAN.

Key Features

• 8 × Gigabit PoE+ access ports with a 67W PoE budget
• 2 × SFP/RJ-45 combo uplinks for flexible upstream options
• Simple management using WebUI or CLI
• External power supply for deployment flexibility
• Fanless design for silent operation
• Security with 802.1X, BPDU Guard, and SPAN

Technical Overview

• Recommended for: Small businesses, branch offices, and compact PoE deployments.
• Ports: 8 × 10/100/1000 Mbps PoE+ access + 2 × SFP/RJ-45 combo uplinks; external PSU.
• PoE Budget: 67W.
• Switching Capacity: 20 Gbps.
• Forwarding Rate: 14.88 Mpps.
• Management: Web-based GUI and CLI.
• Energy Efficiency: Fanless build with external power supply.

You can check the related tab for the C1000-8P-E-2G-L datasheet.
