• Managed, Rack-mountable, 48 x 10/100 Fast Ethernet PoE+ ports, 4 x 1G SFP Uplinks, PoE+ (370W), Layer 2

[/shortdesc] [properties]

Properties	C1000FE-48P-4G-L
Description	48x 10/100 Ethernet PoE+ ports, 370W PoE budget, 2x 1G SFP/RJ-45 combo uplinks and 2x 1G SFP uplinks
Product Family	Catalyst 1000
Product Type	Ethernet Switch
Number of Ports	48
Uplink Interfaces	2 SFP/RJ-45 combo and 2 SFP
Available PoE power	370W
Fanless	No
Width	17.48"
Depth	13.78"
Height	1.73"

[/properties] [specifications]

Specifications	C1000FE-48P-4G-L
Console Ports	1x RJ-45 console 1x USB-A (storage/Bluetooth console)
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash Memory	256 MB
Forwarding Bandwidth	FE: 8.8 Gbps
Switching Bandwidth	FE: 17.6 Gbps
Forwarding Rate (64-byte)	FE: 13.09 Mpps
MAC addresses	16000
Maximum Active VLANs	256
Operating Temperature Up to 5,000 ft (1500 m)	-5 to 45 °C
Operating Temperature Up to 10,000 ft (3000 m)	-5 to 40 °C
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1, GB 4943.1-2011
EMC: emissions	47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: immunity	EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. Government certifications	USGv6 and IPv6 Ready Logo
Ethernet interfaces	10BASE-T: RJ-45, 2-pair Cat 3/4/5 UTP 100BASE-TX: RJ-45, 2-pair Cat 5 UTP 1000BASE-T: RJ-45, 4-pair Cat 5 UTP 1000BASE-T SFP-based: RJ-45, 4-pair Cat 5 UTP
Telnet - SSH	Yes
TACACS, TACACS+, RADIUS	Yes

[/specifications] [accesories]

Part Number	Description
CAB-CONSOLE-RJ45	Console Cable 6 Feet with RJ-45
CAB-CONSOLE-USB	Console Cable 6 Feet with USB Type A and mini-B Connectors
PWR-CLP	Power Cable Restraining Clip
RCKMNT-1RU-2KX	Rackmount kit for 1 RU for C1000, 2960-X and 2960-XR (19/23/24/etsi)

[/accesories]

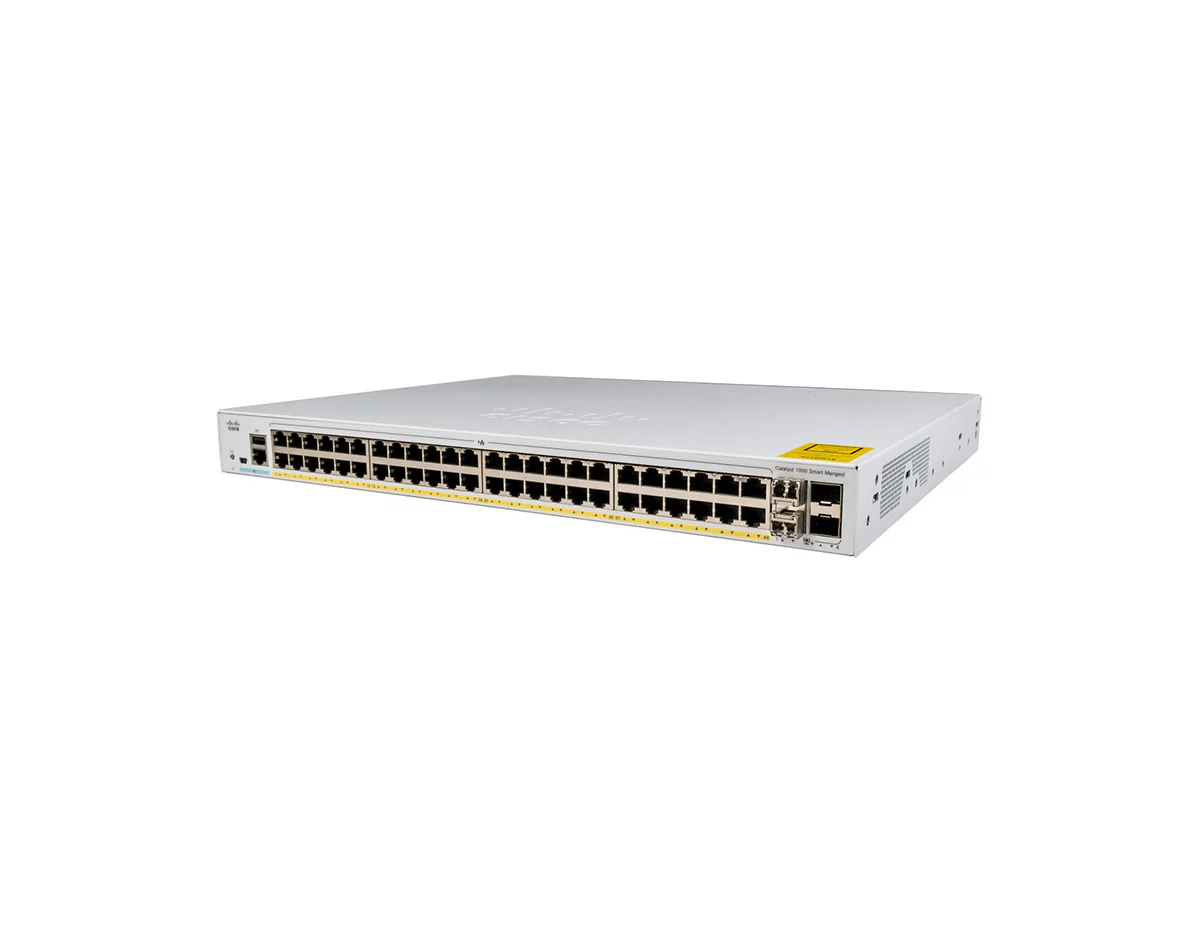

Cisco C1000FE-48P-4G-L Switch

The Cisco C1000FE-48P-4G-L is a managed Fast Ethernet switch built for SMB and branch deployments that need PoE+ at scale. With 48 Fast Ethernet PoE+ ports and four 1G SFP uplinks (two SFP/RJ-45 combo plus two SFP), it powers IP phones, cameras, and access points with a 370W PoE budget while delivering secure, reliable Layer 2 connectivity and simple management.

Key Features:

• 48 x Fast Ethernet PoE+ Ports: 30W per port (PoE+), 370W total budget for powering IP endpoints.
• 4 x 1G Uplinks: Two SFP/RJ-45 combo and two SFP ports for flexible aggregation and expansion.
• Simple Management: On-box web UI and CLI, plus Bluetooth access via USB-A for quick setup.
• Security & Monitoring: 802.1X, BPDU Guard, SPAN, ACLs, and sFlow to protect and observe your network.
• Energy Efficient: IEEE 802.3az Energy Efficient Ethernet to reduce power during idle periods.

Technical Overview:

• Recommended for: SMB, retail, and branch offices requiring PoE+ and dependable Fast Ethernet access.
• Ports: 48 x 10/100 Mbps PoE+ access, 4 x 1G SFP uplinks (2 SFP/RJ-45 combo + 2 SFP).
• Switching Capacity: 17.6 Gbps; Forwarding Bandwidth: 8.8 Gbps; Forwarding Rate: 13.09 Mpps.
• Hardware: ARM v7 800 MHz CPU, 512 MB DRAM, 256 MB flash.
• Operating Temperature: -5 to 45 °C up to 1500 m; -5 to 40 °C up to 3000 m.

You can check the related tab for the C1000FE-48P-4G-L datasheet.
