[shortdesc]

• Switch, Managed, 48x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks

[/shortdesc]

[properties]

Properties	C1000-48T-4X-L
Description	48x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks
Product Family	Catalyst 1000
Product Type	Ethernet Switch
Number of Ports	48
Uplink Interfaces	4 SFP+
Available PoE power	No
Fanless	No
Height	1.71"
Depth	16.14"
Width	17.29"

[/properties]

[specifications]

Specifications	C1000-48T-4X-L
Console Ports	1x RJ-45 console 1x USB-A port for storage and Bluetooth console
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash Memory	256 MB
Forwarding Rate	130.94 Mpps
Switching Capacity	176 Gbps
MAC addresses	16000
Maximum Active VLANs	256
Operating Temperature	0 to 40 °C
Altitude	Up to 10,000 ft (3000 m)
Safety	UL 60950-1, EN 60950-1, IEC 62368-1, UL 62368-1
EMC: emissions	FCC/47CFR Part 15 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: immunity	EN55024 (incl. EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. Government certifications	USGv6 and IPv6 Ready Logo
Ethernet interfaces	10BASE-T: RJ-45, Cat 3/4/5 UTP 100BASE-TX: RJ-45, Cat 5 UTP 1000BASE-T: RJ-45, 4-pair Cat 5 UTP SFP/SFP+: per transceiver specs
Telnet - SSH	Yes
TACACS, TACACS+, Radius	Yes

[/specifications]

[accesories]

Part Number	Description	In Stock
CAB-CONSOLE-RJ45	Console Cable 6 Feet with RJ-45	Yes
CAB-CONSOLE-USB	Console Cable 6 Feet with USB Type A and mini-B Connectors	Yes
PWR-CLP	Power Cable Restraining Clip	No
RCKMNT-1RU-2KX	Rackmount kit for 1 RU for C1000, 2960-X and 2960-XR (19/23/24/etsi)	No

[/accesories]

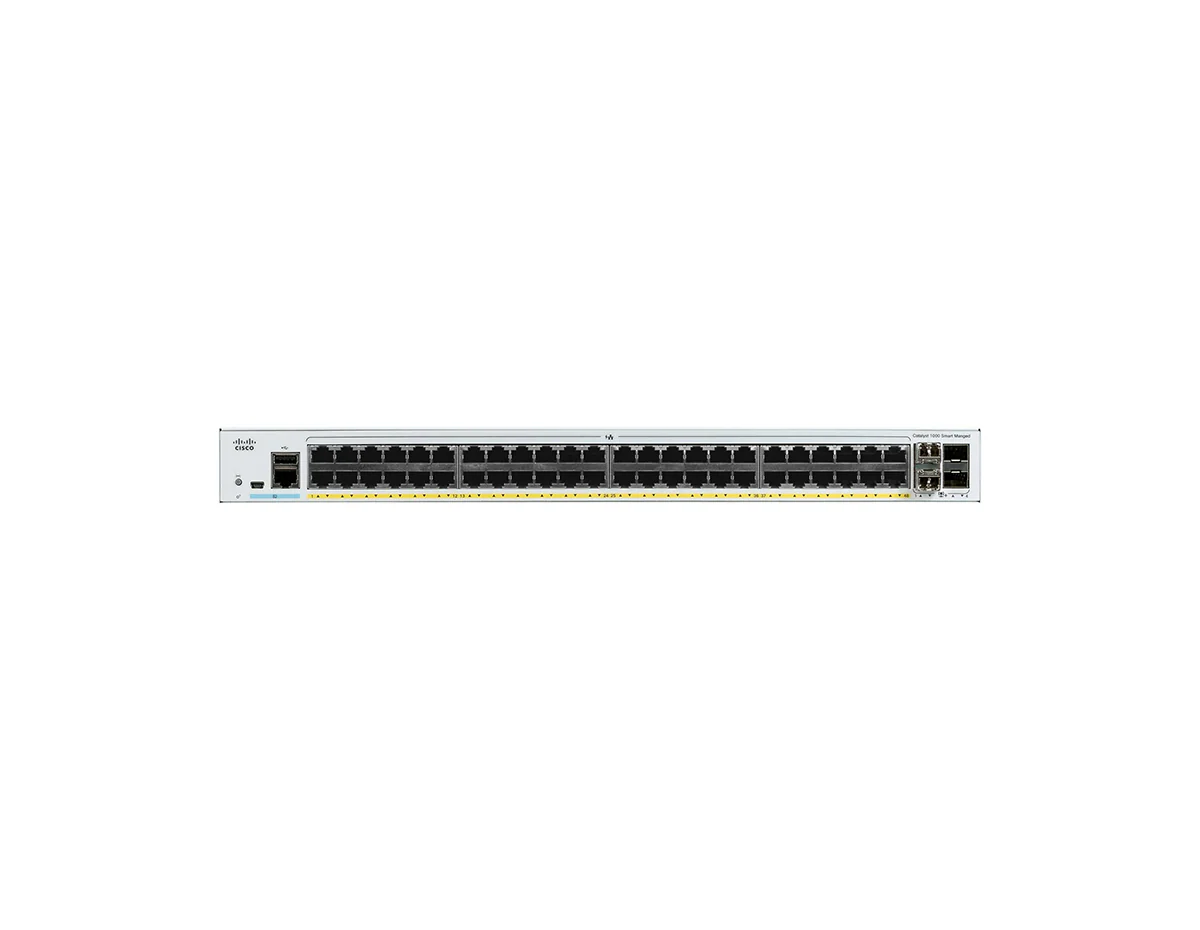

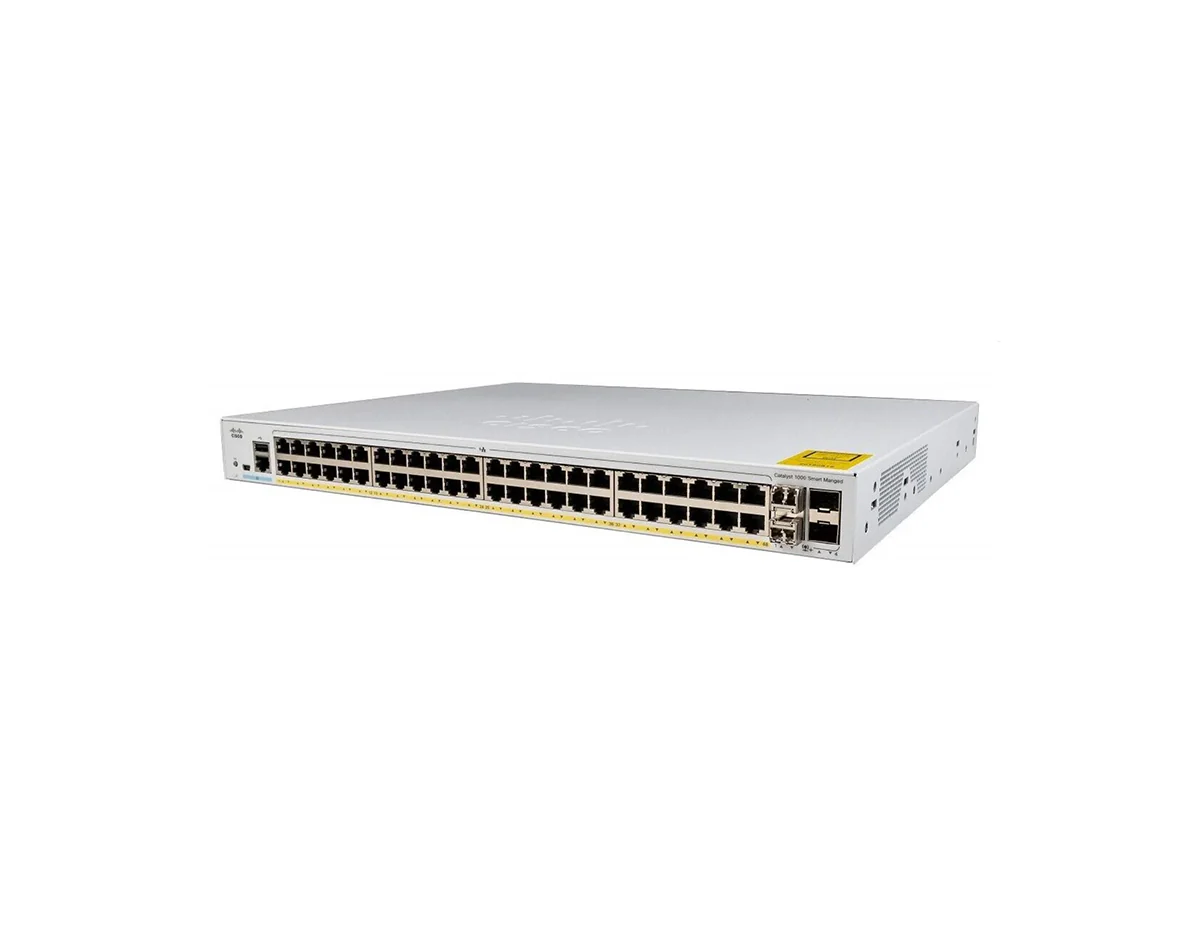

Cisco Catalyst C1000-48T-4X-L Switch

The Cisco Catalyst C1000-48T-4X-L Switch is a high-performance and scalable networking solution designed for small to medium-sized businesses and branch offices. With 48 Gigabit Ethernet ports and 4 SFP+ uplinks, this switch provides robust connectivity and supports 10G uplinks for enhanced network performance and scalability. The C1000-48T-4X-L is engineered to deliver consistent and reliable operation, while advanced security features help protect your network infrastructure.

Key Features:

• 48 x Gigabit Ethernet Ports: Provides fast and reliable network connectivity for a wide range of devices.
• 4 x SFP+ Uplinks: Offers high-speed uplink options with support for 10G connectivity, ensuring network scalability and performance.
• Simple Management: Supports both web-based UI and Command-Line Interface (CLI) management for easy configuration and monitoring.
• Reliable Design: Built to deliver consistent performance for critical network deployments.
• Enhanced Security: Features such as 802.1X, BPDU Guard, and SPAN for improved network security and monitoring.

Technical Overview:

• Recommended for: Small to medium-sized businesses, branch offices, and environments requiring reliable and scalable 10G networking solutions.
• Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet ports with 4 SFP+ uplinks.
• Switching Capacity: 176 Gbps.
• Forwarding Rate: 130.94 Mpps.
• Management: Web-based GUI and CLI for simplified network management.
• Security: Includes 802.1X, BPDU Guard, and SPAN for comprehensive security and monitoring.
• Energy Efficiency: Designed to deliver powerful performance while optimizing energy usage.

You can check the related tab for the C1000-48T-4X-L datasheet.
