[shortdesc]

• Switch, Managed, 48x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks

[/shortdesc] [properties]

Properties	C1000-48T-4G-L
Description	48x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks
Product Family	Catalyst 1000
Product Type	Ethernet Switch
Number of Ports	48
Uplink Interfaces	4 SFP
Available PoE power	No
Fanless	No
Height	1.72"
Depth	16.14"
Width	17.29"

[/properties] [specifications]

Specifications	C1000-48T-4G-L
Console Ports	1x RJ-45 Ethernet 1x USB mini-B 1x USB-A port for storage and Bluetooth console
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash Memory	256 MB
Switching Capacity	176 Gbps
Forwarding Rate	130.94 Mpps
MAC addresses	16000
Maximum Active VLANs	256
Operating Temperature Up to 5,000 ft (1500 m)	-5 to 45 °C
Operating Temperature Up to 10,000 ft (3000 m)	-5 to 40 °C
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1, GB 4943.1-2011
EMC: emissions	47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: immunity	EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS), including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. Government certifications	USGv6 and IPv6 Ready Logo
Ethernet interfaces	10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 UTP cabling 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Telnet - SSH	Yes
TACACS, TACACS+, Radius	Yes

[/specifications] [accesories]

Part Number	Description
CAB-CONSOLE-RJ45	Console Cable 6 Feet with RJ-45
CAB-CONSOLE-USB	Console Cable 6 Feet with USB Type A and mini-B Connectors
PWR-CLP	Power Cable Restraining Clip
RCKMNT-1RU-2KX	Rackmount kit for 1 RU for C1000, 2960-X and 2960-XR (19/23/24/etsi)

[/accesories]

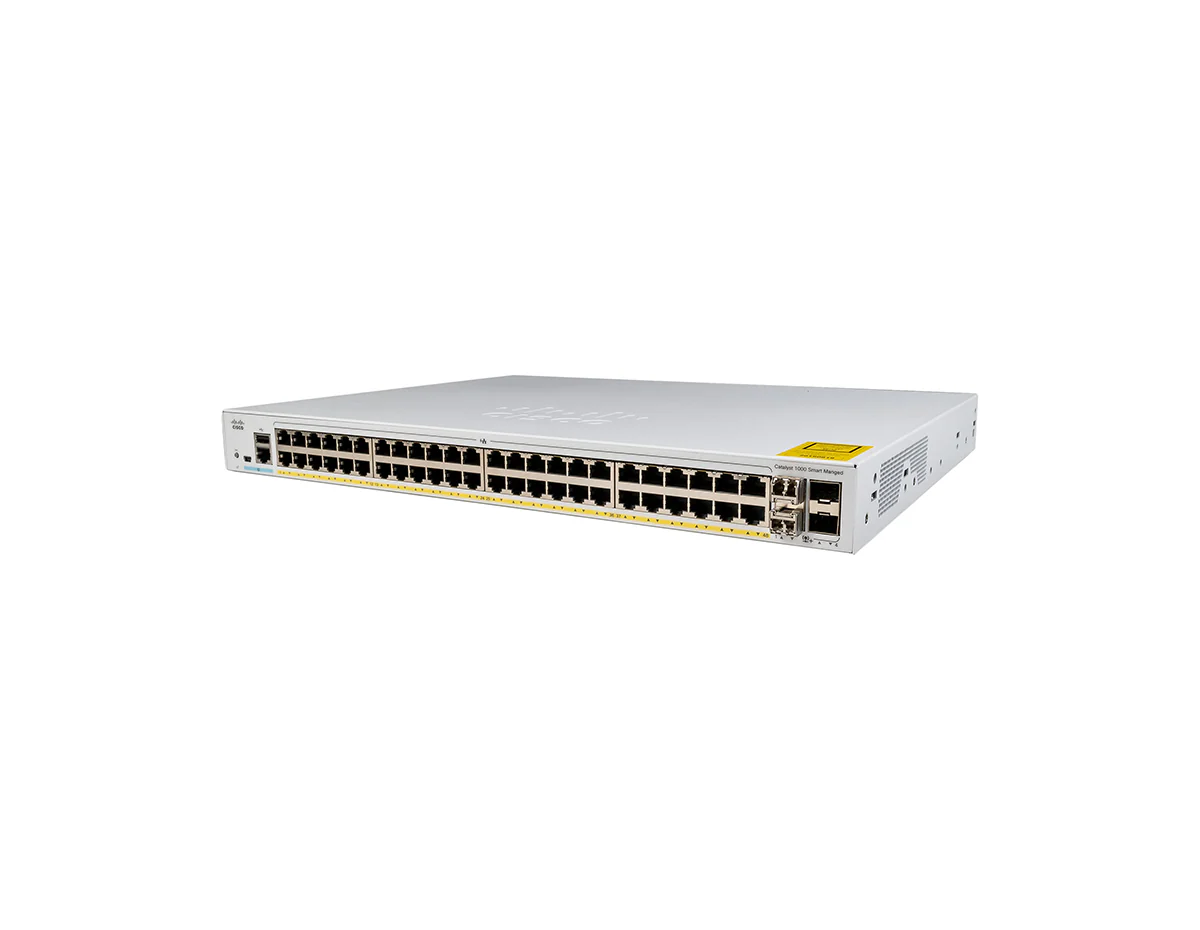

Cisco Catalyst C1000-48T-4G-L Switch

The Cisco Catalyst C1000-48T-4G-L is a reliable, business-class Layer 2 switch for small to medium-sized networks. With 48 Gigabit Ethernet access ports and four 1G SFP uplinks, it provides high-performance connectivity for wired clients and aggregation to the rest of your network. Its 1RU design and comprehensive security and management options make it easy to deploy and operate.

Key Features:

• 48 x Gigabit Ethernet Ports: High-density access for users, printers, cameras, and other wired devices.
• 4 x 1G SFP Uplinks: Flexible fiber uplinks for aggregation or distribution.
• Simple Management: Web UI, CLI, SNMP, and Bluetooth console options for setup and monitoring.
• Security Tooling: Features such as 802.1X, BPDU Guard, and SPAN to help protect and observe your network.

Technical Overview:

• Recommended for: Small/medium businesses and branches that need dense Gigabit access with fiber uplinks.
• Ports: 48 x 10/100/1000BASE-T, 4 x SFP (1G) uplinks.
• Switching Capacity: 176 Gbps.
• Forwarding Rate: 130.94 Mpps.
• Form Factor: 1RU; approx. 17.29" W × 16.14" D × 1.72" H.
• Management: Web-based GUI and CLI.
• Security: 802.1X, BPDU Guard, and SPAN support.

You can check the related tab for the C1000-48T-4G-L datasheet.
