[shortdesc]

• Switch, Managed, 48x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks

[/shortdesc] [properties]

Properties	C1000-48P-4X-L
Description	48x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks
Product Family	Catalyst 1000
Product Type	Ethernet Switch
Number of Ports	48
Uplink Interfaces	4 SFP+
Available PoE power	370W
Fanless	No
Height	1.73"
Depth	10.73"
Width	17.5"

[/properties][specifications]

Specifications	C1000-48P-4X-L
Console Ports	1x RJ-45 Ethernet 1x USB mini-B 1x USB-A port for storage and Bluetooth console
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash Memory	256 MB
Forwarding Bandwidth	88 Gbps
Switching Bandwidth	176 Gbps
Forwarding Rate	130.95 Mpps
MAC addresses	16000
Maximum Active VLANs	256
Operating Temperature (sea level)	-5 to 50 deg C
Operating Temperature Up to 5,000 ft (1500 m)	-5 to 45 deg C
Operating Temperature Up to 10,000 ft (3000 m)	-5 to 40 deg C
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011
EMC: emissions	47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: immunity	EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS), including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. Government certifications	USGv6 and IPv6 Ready Logo
Ethernet interfaces	10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Telnet - SSH	Yes
TACACS, TACACS+, Radius	Yes

[/specifications] [accesories]

Part Number	Description
CAB-CONSOLE-RJ45	Console Cable 6 Feet with RJ-45
CAB-CONSOLE-USB	Console Cable 6 Feet with USB Type A and mini-B Connectors
PWR-CLP	Power Cable Restraining Clip
RCKMNT-1RU-2KX	Rackmount kit for 1 RU for C1000, 2960-X and 2960-XR (19/23/24/etsi)

[/accesories]

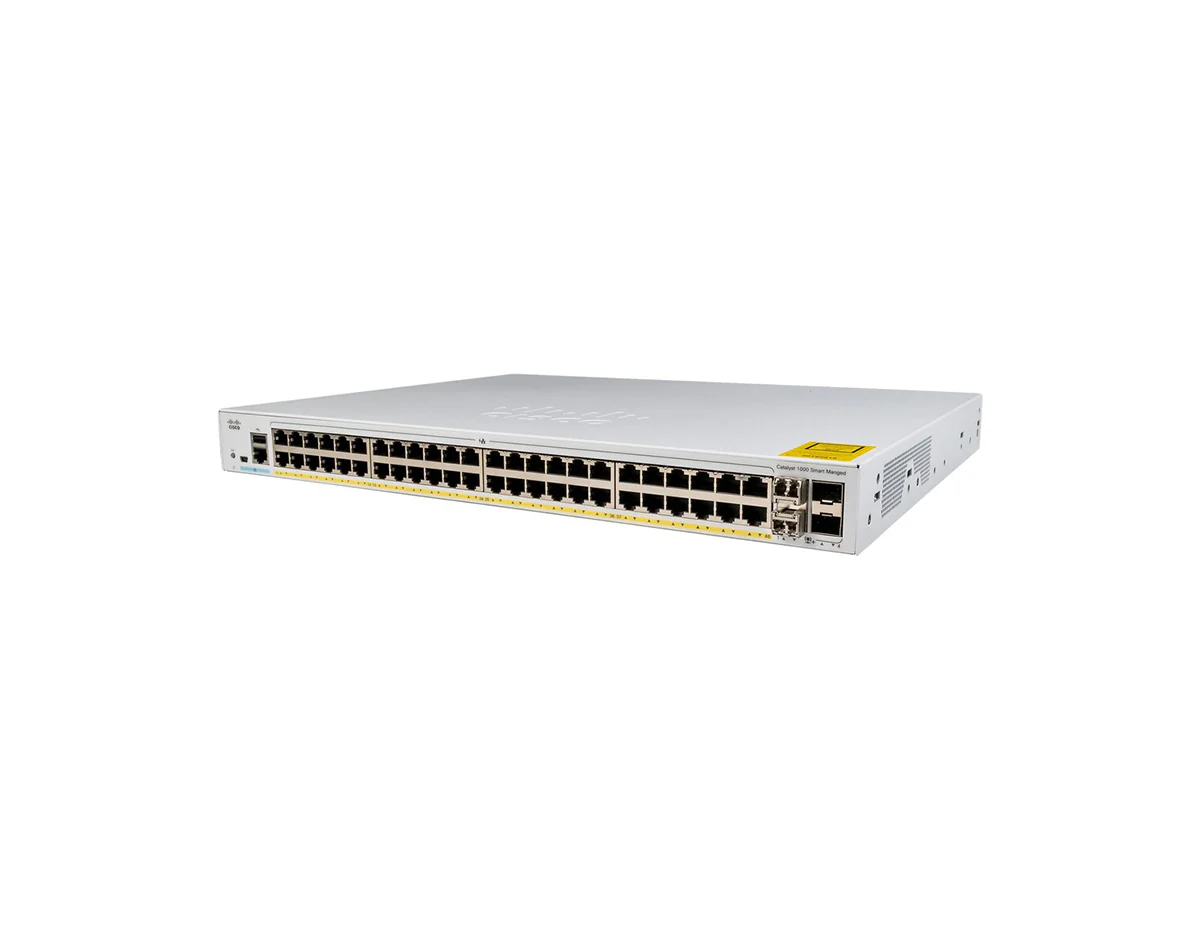

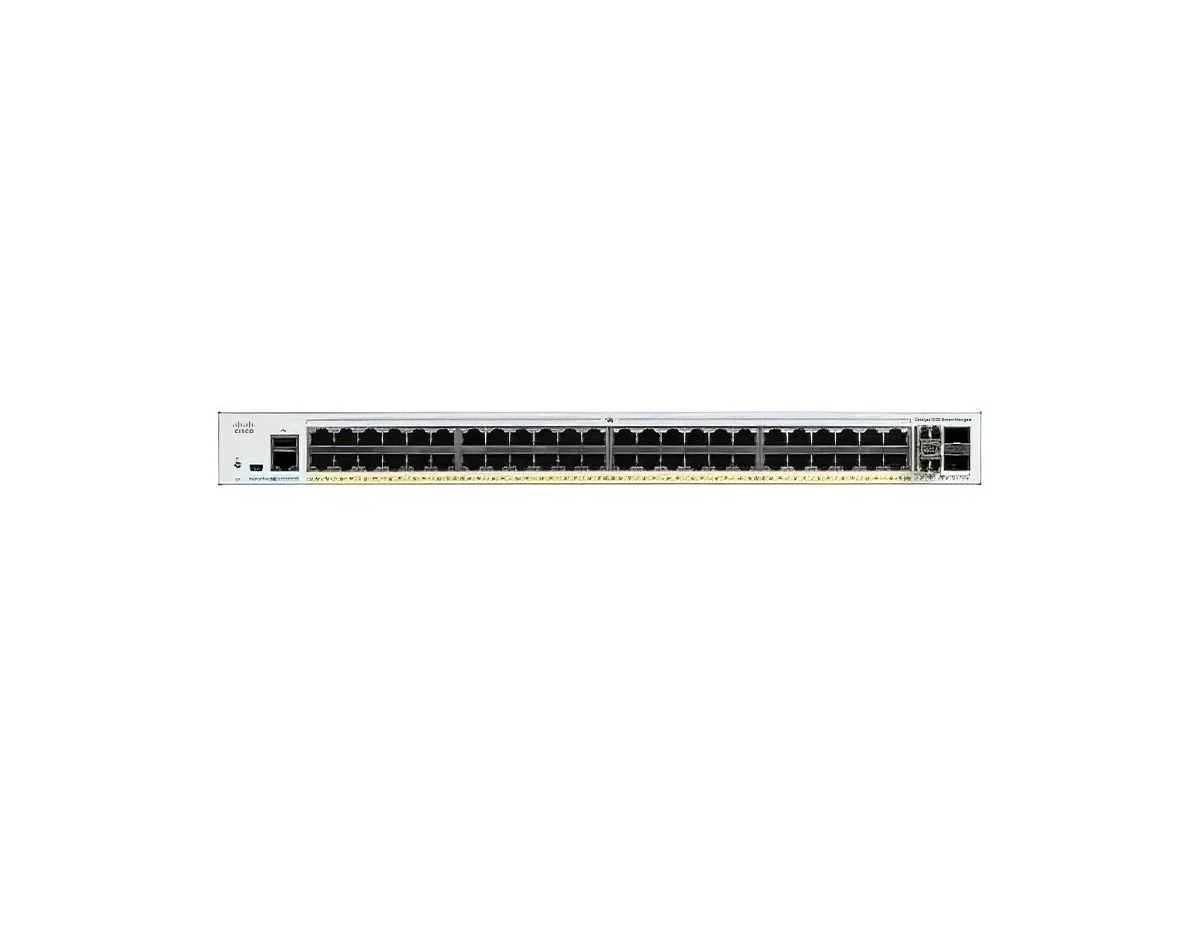

Cisco Catalyst C1000-48P-4X-L Switch

The Cisco Catalyst C1000-48P-4X-L Switch is a high-performance networking solution designed for small to medium-sized businesses and branch offices. Featuring 48 Gigabit Ethernet PoE+ ports and 4 SFP+ uplinks, this switch provides robust connectivity and supports a 370W PoE budget, making it ideal for powering devices such as IP phones, cameras, and wireless access points. The C1000-48P-4X-L ensures reliable operation and includes advanced security features to protect your network while offering 10G uplinks for enhanced network performance and scalability.

Key Features:

• 48 x Gigabit Ethernet PoE+ Ports: Delivers power and data connectivity for PoE-enabled devices, supporting a 370W PoE budget.
• 4 x SFP+ Uplinks: Offers high-speed uplink options with support for 10G connectivity, ensuring network scalability and performance.
• Simple Management: Supports both web-based UI and Command-Line Interface (CLI) management for easy configuration and monitoring.
• Reliable Design: Built to deliver consistent performance for critical network deployments.
• Enhanced Security: Features such as 802.1X, BPDU Guard, and SPAN for improved network security and monitoring.

Technical Overview:

• Recommended for: Small to medium-sized businesses, branch offices, and environments requiring robust PoE and 10G networking solutions.
• Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports with 4 SFP+ uplinks.
• PoE Budget: 370W.
• Switching Capacity: 176 Gbps.
• Forwarding Rate: 130.95 Mpps.
• Management: Web-based GUI and CLI for simplified network management.
• Security: Includes 802.1X, BPDU Guard, and SPAN for comprehensive security and monitoring.
• Energy Efficiency: Designed to deliver powerful performance while optimizing energy usage.

You can check the related tab for the C1000-48P-4X-L datasheet.
