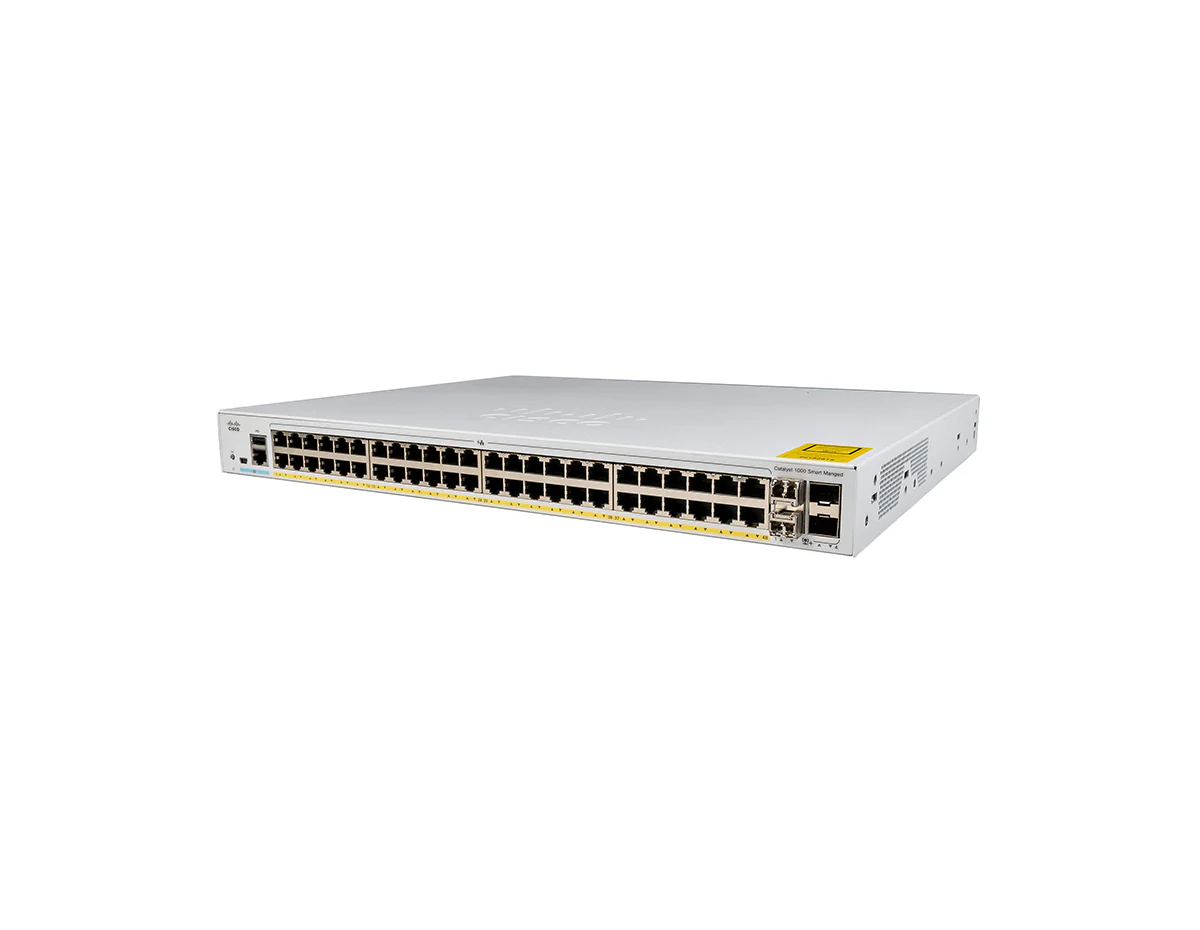

Cisco C1000-48FP-4X-L Switch
- Switch, Managed, 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 10G SFP+ uplinks
| Properties | C1000-48FP-4X-L |
| Description | 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 10G SFP+ uplinks |
| Product Family | Catalyst 1000 |
| Product Type | Ethernet Switch |
| Number of Ports | 48 |
| Uplink Interfaces | 4 SFP+ |
| Available PoE power | 740W |
| Fanless | No |
| Width | 17.5" |
| Depth | 13.78" |
| Height | 1.73" |
[specifications]
| Specifications | C1000-48FP-4X-L |
| Console Ports | 1x RJ-45 Ethernet 1x USB mini-B 1x USB-A port for storage and Bluetooth console |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash Memory | 256 MB |
| Forwarding Bandwidth | 88 Gbps |
| Switching Bandwidth | 176 Gbps |
| Forwarding Rate (64-byte L3) | 77.38 Mpps |
| MAC addresses | 16000 |
| Maximum Active VLANs | 256 |
| Operating Temperature Sea level (short-term) |
-5 to 50 °C* |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5 to 45 °C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5 to 40 °C |
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1, GB 4943.1-2011 |
| EMC: emissions | 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
| EMC: immunity | EN55024 (including EN 61000-4-5), EN300386, KN35 |
| Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco | Common Language Equipment Identifier (CLEI) code |
| U.S. Government certifications | TBD |
| Ethernet interfaces | 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 UTP cabling 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Telnet - SSH | Yes |
| TACACS, TACACS+, Radius | Yes |
* 50 °C operation supported for short-term operation only; some optics do not support 50 °C; minimum ambient temperature for cold start is 0 °C.
[/specifications]
[accesories]
| Part Number | Description |
| CAB-CONSOLE-RJ45 | Console Cable 6 Feet with RJ-45 |
| CAB-CONSOLE-USB | Console Cable 6 Feet with USB Type A and mini-B Connectors |
| PWR-CLP | Power Cable Restraining Clip |
| RCKMNT-1RU-2KX | Rackmount kit for 1 RU for C1000, 2960-X and 2960-XR (19/23/24/etsi) |
[/accesories]
Cisco Catalyst C1000-48FP-4X-L Switch
The Cisco Catalyst C1000-48FP-4X-L Switch is a powerful and scalable networking solution designed for small to medium-sized businesses and branch offices. Featuring 48 Gigabit Ethernet PoE+ ports and 4 SFP+ uplinks, this switch delivers robust connectivity and supports a substantial 740W PoE budget, making it ideal for powering a wide range of devices such as IP phones, cameras, and wireless access points. The C1000-48FP-4X-L ensures reliable performance and includes advanced security features to protect your network infrastructure while offering high-speed 10G uplinks for enhanced network scalability.
Key Features:
- 48 x Gigabit Ethernet PoE+ Ports: Delivers power and data connectivity for PoE-enabled devices, supporting a 740W PoE budget.
- 4 x SFP+ Uplinks: Offers high-speed uplink options with support for 10G connectivity, ensuring network scalability and performance.
- Simple Management: Supports both web-based UI and Command-Line Interface (CLI) management for easy configuration and monitoring.
- Reliable Design: Built to deliver consistent performance for critical network deployments.
- Enhanced Security: Features such as 802.1X, BPDU Guard, and SPAN for improved network security and monitoring.
Technical Overview:
- Recommended for: Small to medium-sized businesses, branch offices, and environments requiring robust PoE and 10G networking solutions.
- Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports with 4 SFP+ uplinks.
- PoE Budget: 740W.
- Switching Capacity: 176 Gbps.
- Forwarding Rate: 77.38 Mpps.
- Management: Web-based GUI and CLI for simplified network management.
- Security: Includes 802.1X, BPDU Guard, and SPAN for comprehensive security and monitoring.
- Energy Efficiency: Designed to deliver powerful performance while optimizing energy usage.
You can check the related tab for the C1000-48FP-4X-L datasheet.
