[shortdesc]

• Switch, Managed, 24x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks

[/shortdesc] [properties]

Properties	C1000-24T-4X-L
Description	24x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks
Product Family	Catalyst 1000
Product Type	Network Switch
Number of Ports	24
Uplink Interfaces	4 SFP+
Available PoE power	No
Fanless	Yes
Width	17.29"
Depth	16.14"
Height	1.712"

[/properties]

[specifications]

Specifications	C1000-24T-4X-L
Console Ports	1x RJ-45 (console) 1x USB-A port for storage and Bluetooth console
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash Memory	256 MB
Forwarding Rate	95.23 Mpps
Switching Capacity	128 Gbps
MAC addresses	16000
Maximum Active VLANs	256
Operating Temperature	0 to 40 °C
Altitude	Up to 10,000 ft (3,000 m)
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1, GB 4943.1-2011
EMC: emissions	47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: immunity	EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. Government certifications	USGv6 and IPv6 Ready Logo
Telnet - SSH	Yes
TACACS, TACACS+, Radius	Yes

[/specifications]

[accesories]

Part Number	Description
PWR-CLP	Power Cable Restraining Clip
RCKMNT-1RU-2KX	Rackmount kit for 1 RU for C1000, 2960-X and 2960-XR (19/23/24/ETSI)
CAB-CONSOLE-RJ45	Console Cable 6 Feet with RJ-45
CAB-CONSOLE-USB	Console Cable 6 Feet with USB Type A and mini-B Connectors

[/accesories]

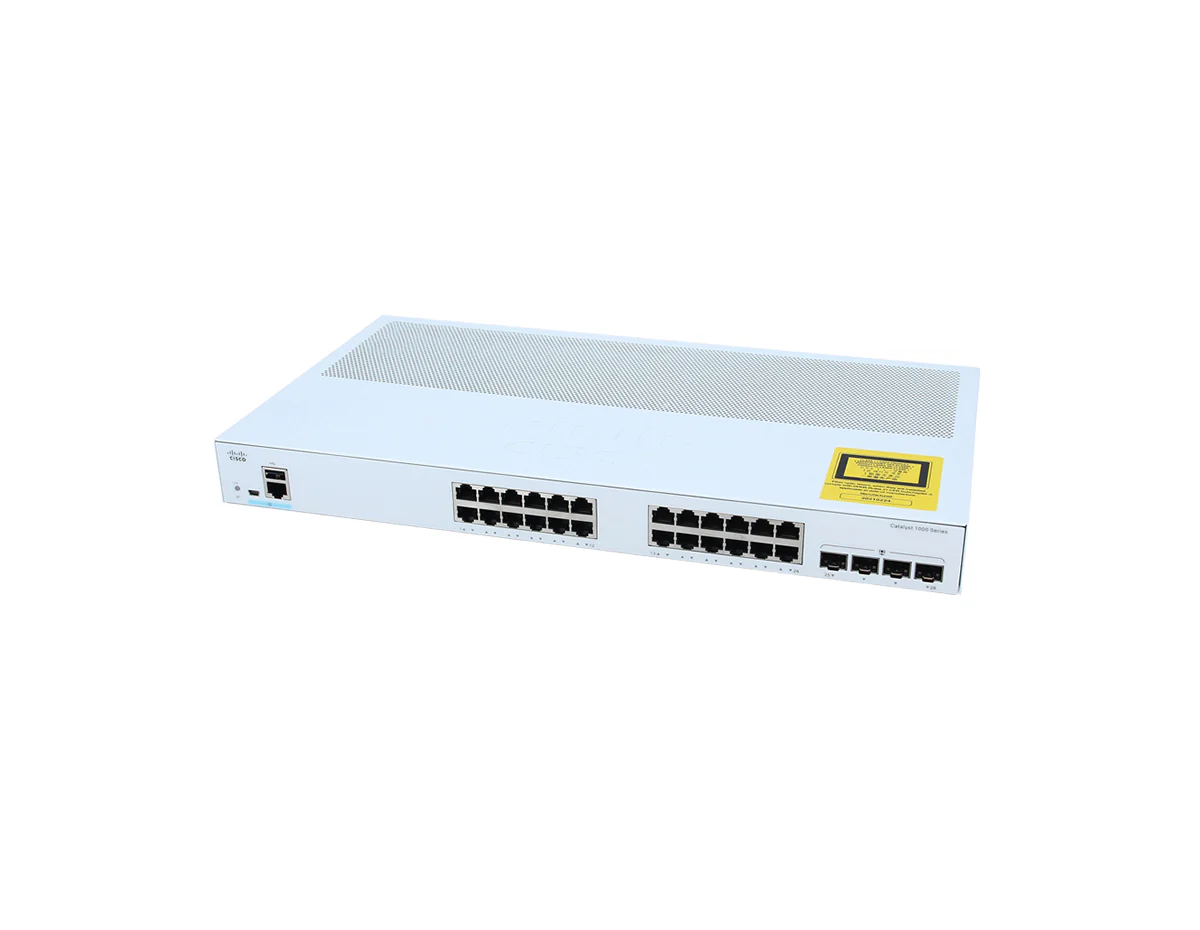

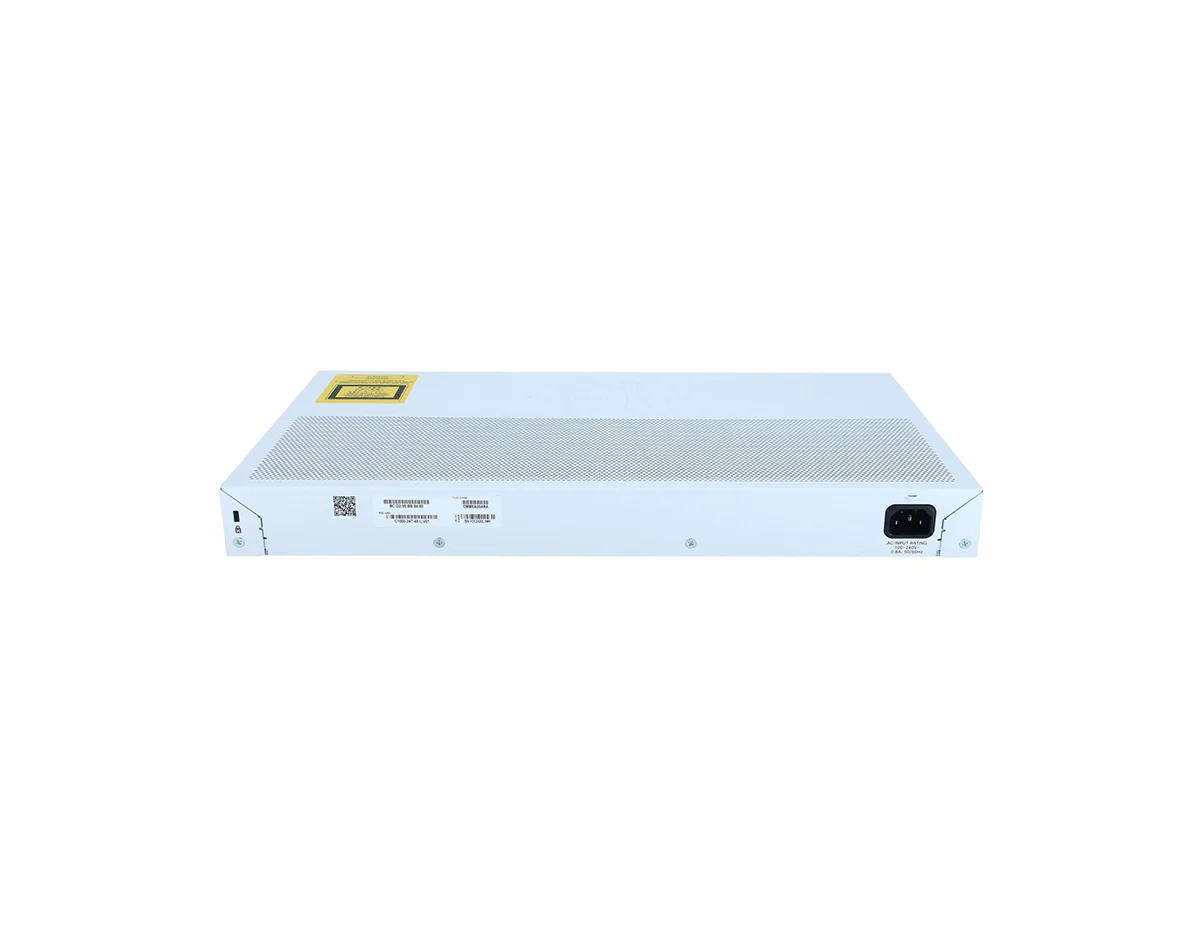

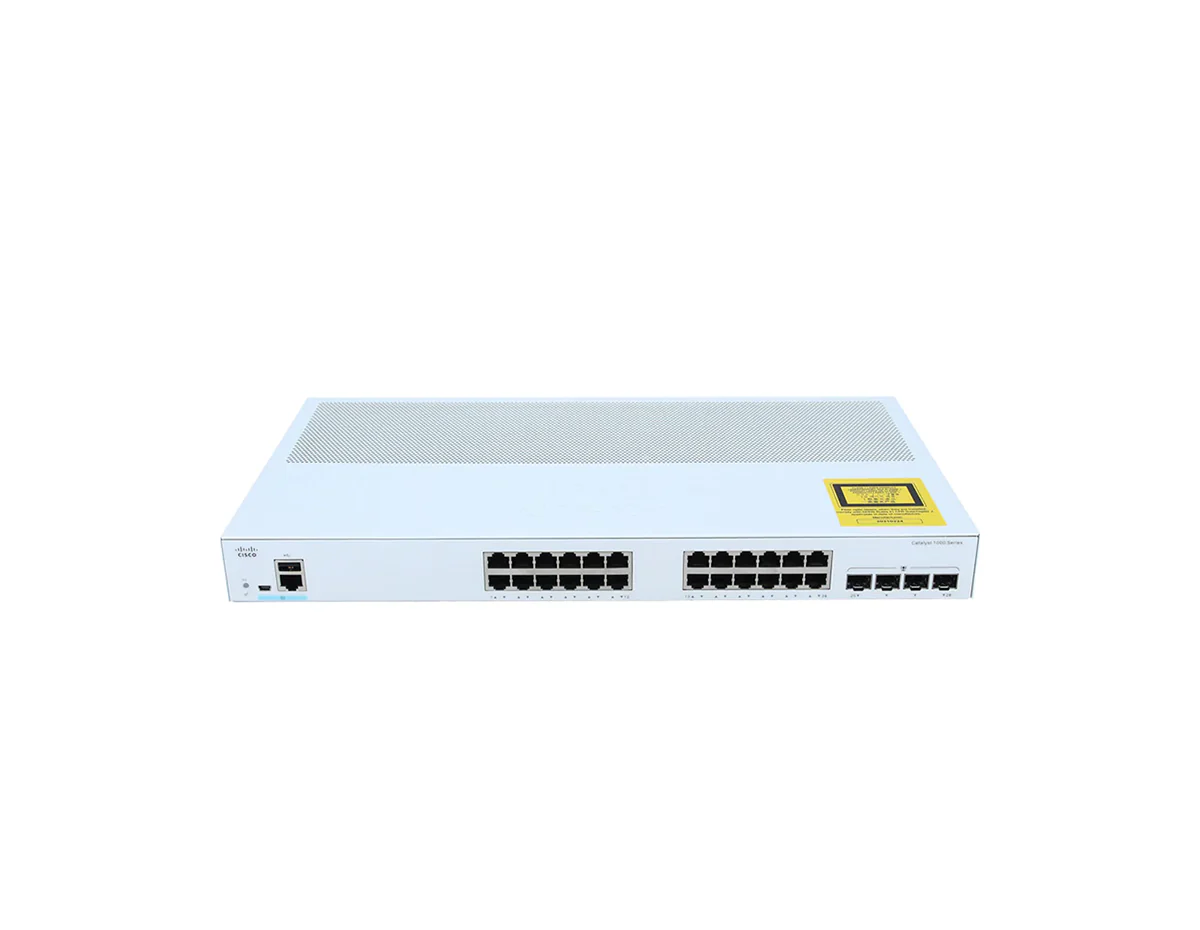

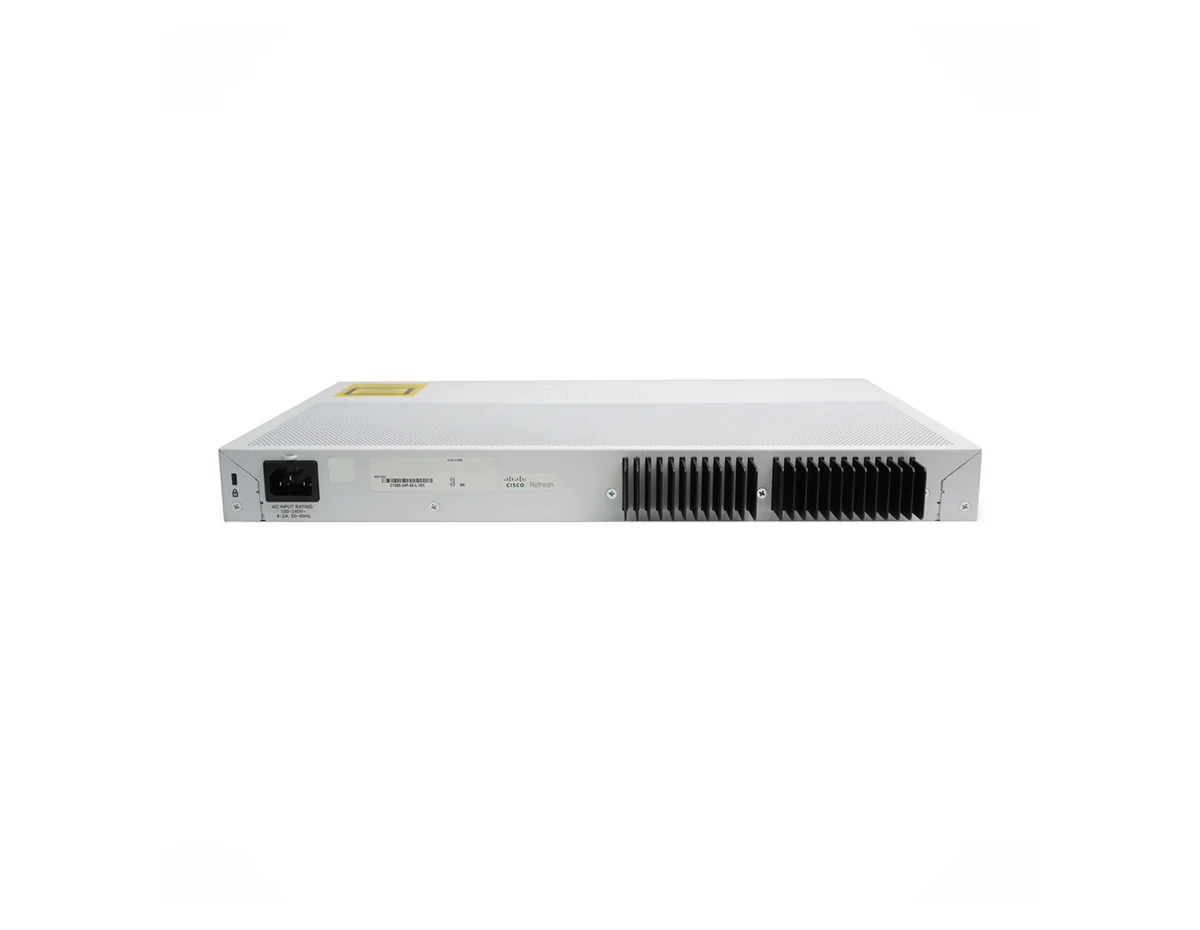

Cisco Catalyst C1000-24T-4X-L Switch

The Cisco Catalyst C1000-24T-4X-L Switch is a high-performance and reliable networking solution designed for small to medium-sized businesses and branch offices. Featuring 24 Gigabit Ethernet ports and 4 SFP+ uplinks, this switch provides robust and scalable connectivity, supporting 10G uplinks for enhanced network performance. The C1000-24T-4X-L is engineered to deliver consistent operation and includes advanced security features to protect your network infrastructure.

Key Features:

• 24 x Gigabit Ethernet Ports: Provides fast and reliable network connectivity for a wide range of devices.
• 4 x SFP+ Uplinks: Offers high-speed 10G uplink options for connecting to other switches or network devices, ensuring network scalability.
• Simple Management: Supports both web-based UI and Command-Line Interface (CLI) management for easy configuration and monitoring.
• Reliable Design: Built to deliver consistent performance for critical network deployments.
• Enhanced Security: Features such as 802.1X, BPDU Guard, and SPAN for improved network security and monitoring.

Technical Overview:

• Recommended for: Small to medium-sized businesses, branch offices, and environments requiring reliable and scalable 10G networking solutions.
• Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet ports with 4 SFP+ uplinks.
• Switching Capacity: 128 Gbps.
• Forwarding Rate: 95.23 Mpps.
• Management: Web-based GUI and CLI for simplified network management.
• Security: Includes 802.1X, BPDU Guard, and SPAN for comprehensive security and monitoring.
• Energy Efficiency: Designed to optimize energy usage while delivering powerful performance.

You can check the related tab for the C1000-24T-4X-L datasheet.
