[shortdesc]

• Switch, managed, 16x 10/100/1000 Ethernet PoE+ ports and 240W PoE budget, 2x 1G SFP uplinks

[/shortdesc]

[properties]

Properties	C1000-16FP-2G-L
Description	16x 10/100/1000 Ethernet PoE+ ports and 240W PoE budget, 2x 1G SFP uplinks
Product Family	Catalyst 1000
Product Type	Ethernet Switch
Number of Ports	16
Uplink Interfaces	2 SFP
Available PoE power	240W
Fanless	Yes
Width	10.56"
Depth	12.14"
Height	1.73"

[/properties]

[specifications]

Specifications	C1000-16FP-2G-L
Console Ports	1x RJ-45 Ethernet 1x USB mini-B 1x USB-A port for storage and Bluetooth console
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash Memory	256 MB
Forwarding Bandwidth	18 Gbps
Switching Bandwidth	36 Gbps
Forwarding Rate (64-byte L3 packets)	26.78 Mpps
MAC addresses	16000
Maximum Active VLANs	256
Operating Temperature Sea level	-5 to 50 deg C*
Operating Temperature Up to 5,000 ft (1500 m)	-5 to 45 deg C
Operating Temperature Up to 10,000 ft (3000 m)	-5 to 40 deg C
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011
EMC: emissions	47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: immunity	EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. Government certifications	TBD
Ethernet interfaces	10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Telnet - SSH	Yes
TACACS, TACACS+, Radius	Yes

*50 °C operation supported for short-term operation only; certain optics not supported at 50 °C.

[/specifications]

[accesories]

Part Number	Description
CAB-CONSOLE-RJ45	Console Cable 6 Feet with RJ-45
CAB-CONSOLE-USB	Console Cable 6 Feet with USB Type A and mini-B Connectors
PWR-CLP	Power Cable Restraining Clip
RCKMNT-19-CMPCT	19Rack Mount bracket for C1000, 3560-CX and 2960CX
RCKMNT-23-CMPCT	23and 24Rack Mount bracket for C1000, 3560-CX and 2960-CX

[/accesories]

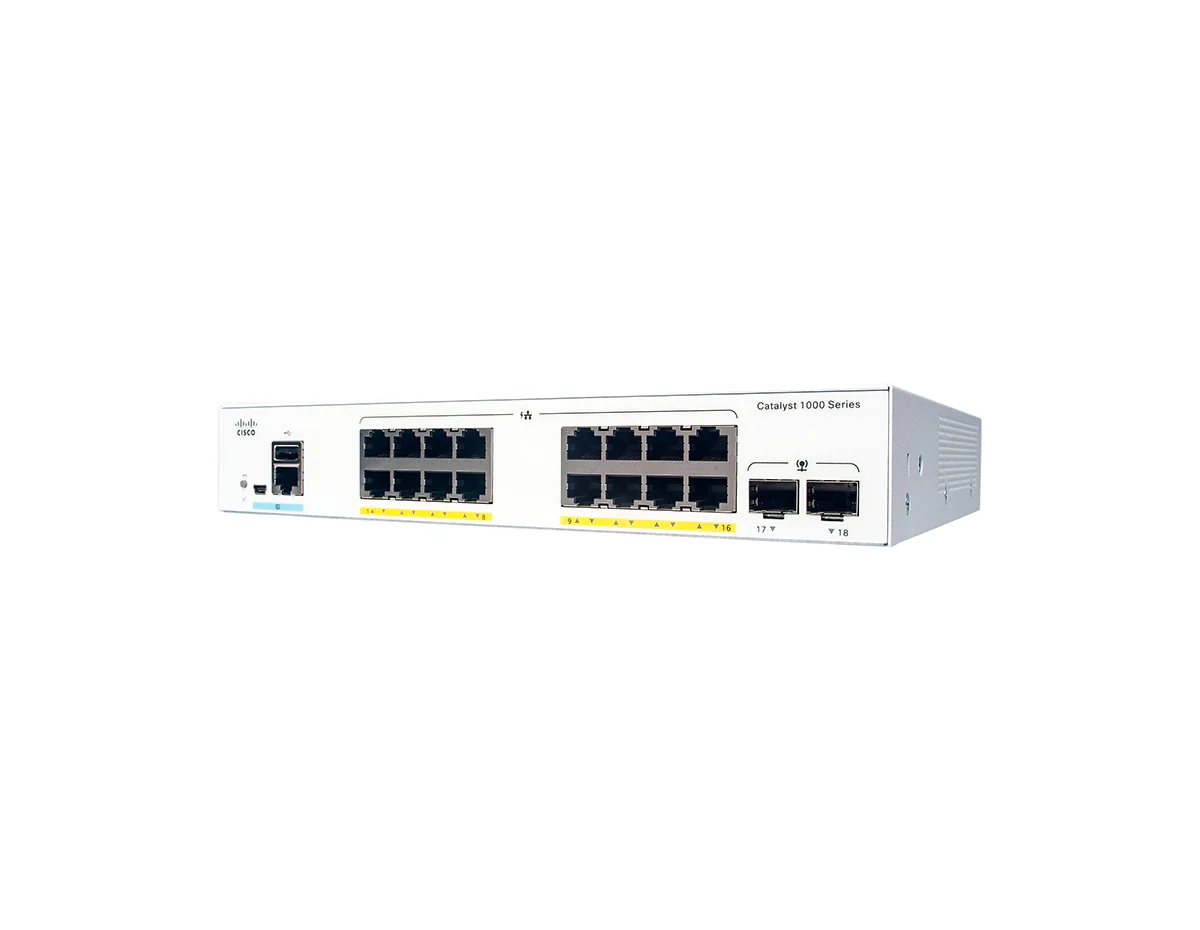

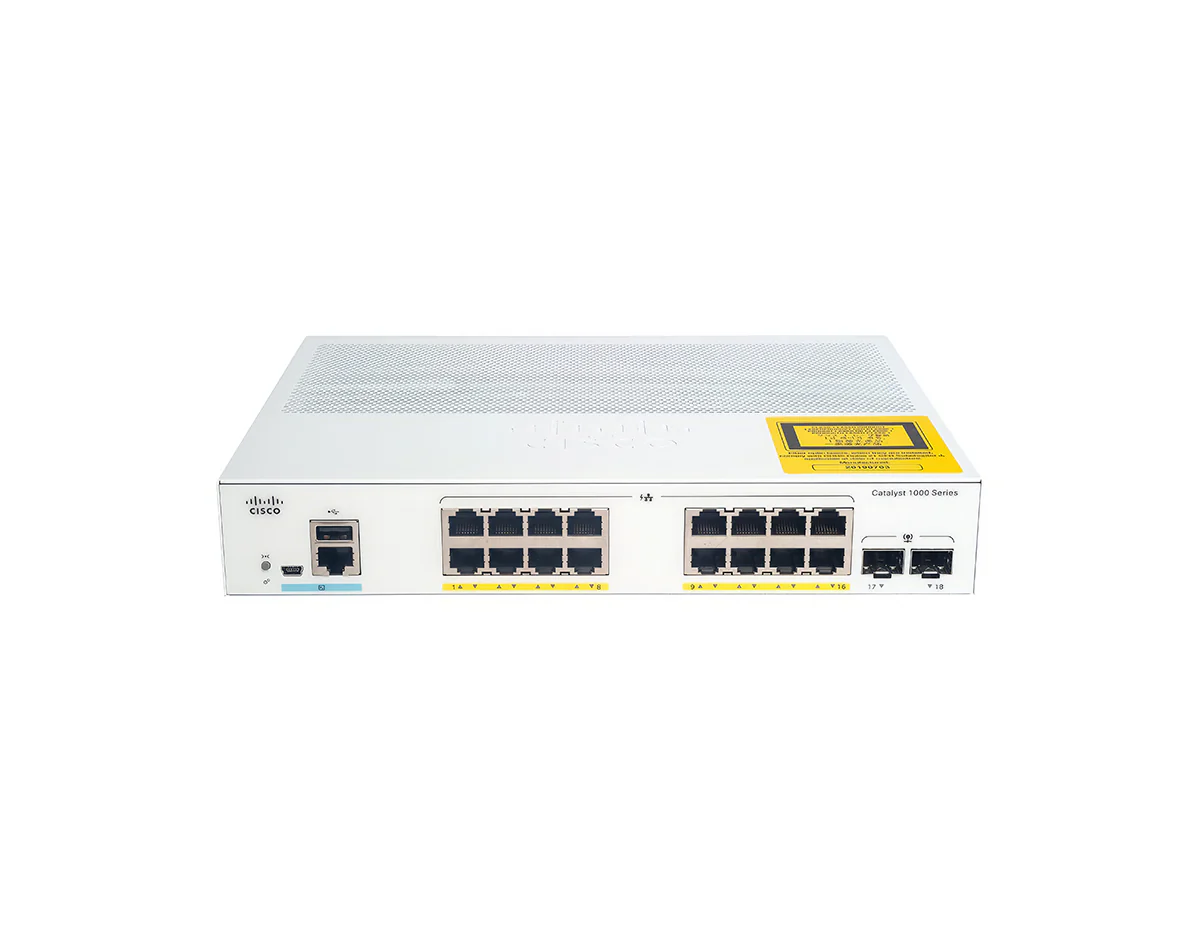

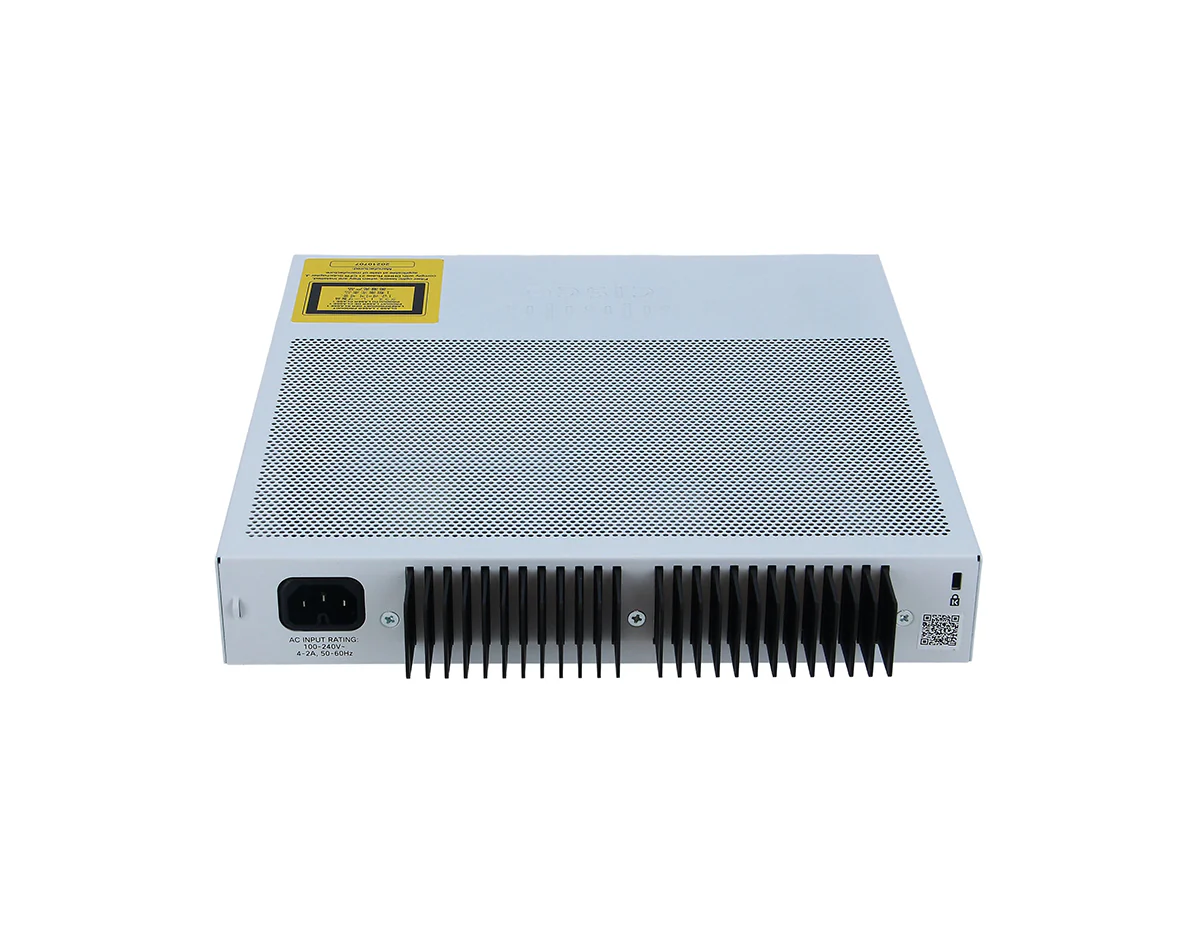

Cisco Catalyst C1000-16FP-2G-L Switch

The Cisco Catalyst C1000-16FP-2G-L Switch is a versatile and high-performance network solution designed for small businesses and branch offices. Featuring 16 Gigabit Ethernet PoE+ ports and 2 SFP uplinks, this switch provides robust connectivity and supports a 240W PoE budget, making it ideal for powering devices such as IP phones, cameras, and wireless access points. The C1000-16FP-2G-L ensures reliable operation with a fanless design, making it suitable for noise-sensitive environments while offering advanced security features to safeguard your network infrastructure.

Key Features:

• 16 x Gigabit Ethernet PoE+ Ports: Delivers power and data connectivity for PoE-enabled devices, supporting a 240W PoE budget.
• 2 x SFP Uplinks: Offers flexible uplink options for connecting to other switches or network devices, ensuring network scalability.
• Simple Management: Supports both web-based UI and Command-Line Interface (CLI) management for easy configuration and monitoring.
• Fanless Design: Ensures silent operation, making it ideal for office or noise-sensitive environments.
• Enhanced Security: Features such as 802.1X, BPDU Guard, and SPAN for improved network security and monitoring.

Technical Overview:

• Recommended for: Small businesses, branch offices, and environments requiring reliable PoE networking solutions.
• Ports: 16 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports with 2 SFP uplinks.
• PoE Budget: 240W.
• Switching Capacity: 36 Gbps.
• Forwarding Rate: 26.78 Mpps.
• Management: Web-based GUI and CLI for simplified network management.
• Security: Includes 802.1X, BPDU Guard, and SPAN for comprehensive security and monitoring.
• Energy Efficiency: Fanless design ensures efficient and quiet operation.

You can check the related tab for the C1000-16FP-2G-L datasheet.

---
