[shortdesc] High-speed outdoor-ready thermal camera with a 35 mm F1.2 lens, 640×480 thermal sensor, <20 mK sensitivity, 30 fps thermal imaging, ARTPEC-8 SoC with DLPU analytics acceleration, and rugged IP66/67 & IK10-rated aluminum housing for responsive mid-to-long-range perimeter protection. [/shortdesc]

[properties]

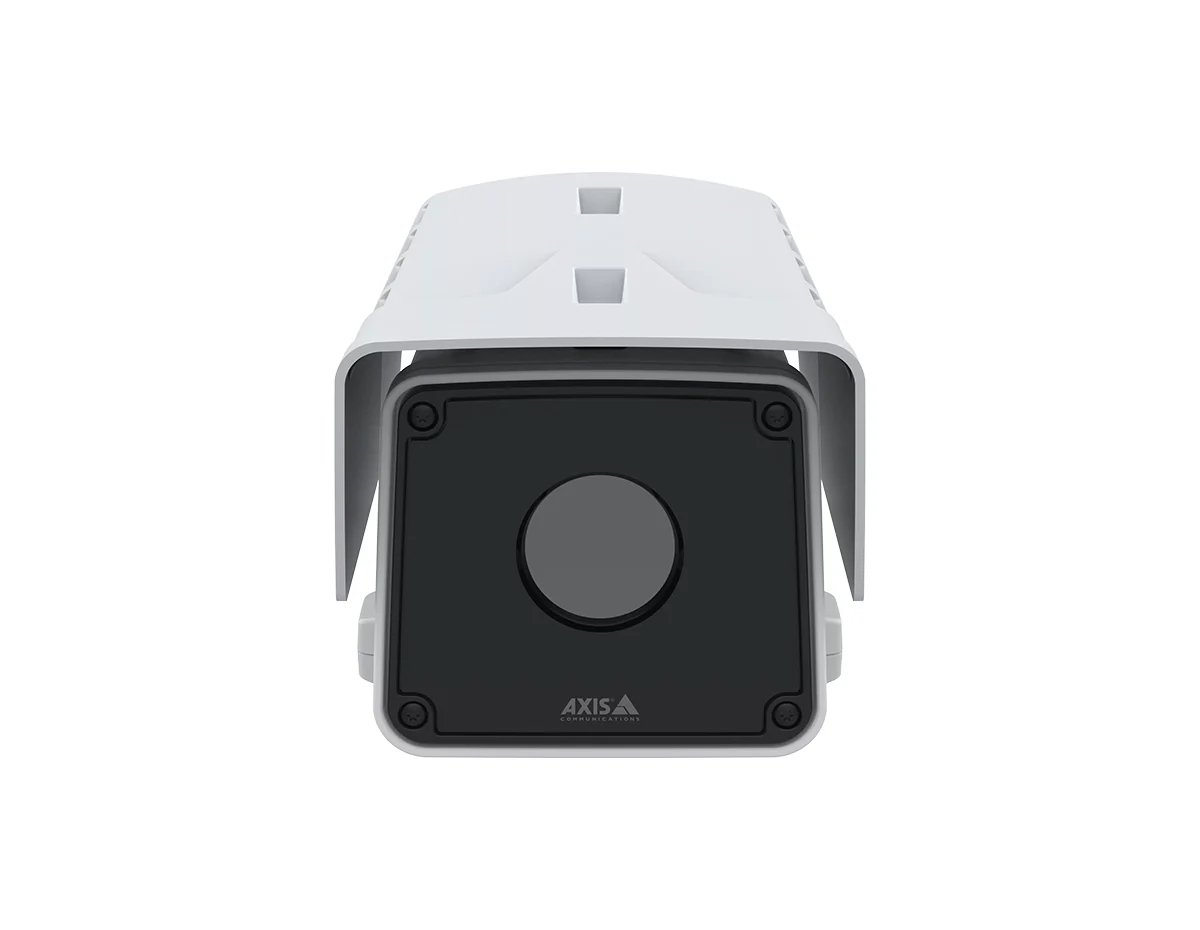

Model	AXIS Q2112-E 35 mm 30 fps Thermal Camera (02610-001)
Product Type	Thermal Camera
Image Sensor	Uncooled microbolometer, 640×480 pixels, 17 μm; spectral range 8–14 μm
Lens	Athermalized 35 mm, F1.2; horizontal FOV 17°; vertical FOV 13°; near focus distance 33 m (108 ft)
Sensitivity	NETD <20 mK @25 °C, F1.0
System on Chip	ARTPEC-8 with deep learning processing unit (DLPU)
Memory	2048 MB RAM, 8192 MB Flash
Power	PoE IEEE 802.3af/802.3at Type 2 Class 4; typical 5.2 W, max 25.5 W; 10–28 V DC (typical 4.6 W, max 25.5 W)
Connectors	RJ45 10/100/1000 PoE; terminal block with 2 supervised and 2 unsupervised I/O (12 V DC out, 50 mA); 3.5 mm mic/line in; 3.5 mm line out; 2× RS485/RS422 full duplex; DC input
Operating Conditions	-40 °C to 60 °C; up to 74 °C per NEMA TS 2; humidity 10–100% RH (condensing)
Storage Conditions	-40 °C to 65 °C; humidity 5–95% RH (non-condensing)
Casing	IP66/IP67, IK10, and NEMA 4X-rated aluminum housing; color white NCS S 1002-B
Dimensions	See datasheet dimension drawing; EPA 0.05 m² (0.48 ft²)
Weight	3.3 kg (7.3 lb)
Storage	microSD/microSDHC/microSDXC card support; SD card encryption (AES-XTS-Plain64 256-bit); NAS recording
Certifications	CE, CSA, UL/cUL, KC, RCM, VCCI; CISPR 32 Class A, CISPR 35; EN 50121-4; IEC 62236-4; FCC Part 15 Class A
Safety	CAN/CSA/IEC/EN/UL 62368-1 ed.3; IS 13252
Environmental Ratings	IEC 60068-2-1/-2/-6/-14/-27/-78; IP66/IP67; IK10; ISO 21207 Method B; MIL-STD-810H (Methods 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 521.4); NEMA 4X; NEMA TS 2 (2.2.7–2.2.9)
Cybersecurity	Axis Edge Vault with TPM 2.0, secure boot, encrypted filesystem, signed firmware, secure keystore, Axis device ID, OAuth 2.0, brute force delay protection

[/properties]

[specifications]

Video	H.264, H.265, Motion JPEG; 640×480 scalable to 800×600; up to 30 fps; up to 20 streams; controllable frame rate; Zipstream; VBR/ABR/MBR
Image Settings	Contrast, brightness, sharpness, exposure zones, local contrast, compression; rotation 0°/90°/180°/270°; corridor mode; mirroring; overlays; polygon privacy mask; EIS; thermal color palettes
Audio	Two-way audio; AGC; 10-band graphic equalizer; external mic input (optional 5 V power); line in/out; network speaker pairing; LPCM, AAC-LC, G.711, G.726, Opus
Networking Protocols	IPv4/IPv6, HTTP/HTTPS/HTTP/2, TLS, RTP/SRTP/RTSP, FTP/SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS, NTP, PTP, TCP/UDP, IGMP, MQTT, SSH, LLDP, CDP, secure syslog
System Integration	ONVIF Profiles G/M/S/T; VAPIX; ACAP; one-click cloud; AXIS Camera Station support
Event Conditions	Audio detection; IP change; storage conditions; device status events; tampering; bitrate degradation; I/O; MQTT subscribe; schedules
Event Actions	Trigger I/O; audio clip play/stop; MQTT publish; email/TCP/HTTP/HTTPS notifications; text overlay; pre/post-alarm buffering; SD/NAS recording; FTP/SFTP/HTTP uploads; SNMP traps; LED flash
Analytics	Included: AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, audio detection, active tampering alarm; Supported: AXIS Perimeter Defender; 3rd-party ACAP analytics
Pan/Tilt Support	Guard tours with up to 256 presets (positioning unit sold separately)
Environmental	IP66/IP67, IK10, NEMA 4X; IEC 60068; MIL-STD-810H (Methods 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 521.4)
Security	TPM 2.0, secure boot, signed firmware, TEE, MACsec, 802.1X, encrypted storage, password protection, brute force delay protection

[/specifications]

[accesories]

Included	Camera, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional Accessories	AXIS TQ1818-E Positioning Unit; AXIS TQ1003-E Wall Mount

[/accesories]

The AXIS Q2112-E 35 mm 30 fps Thermal Camera delivers fast, high-resolution thermal imaging suitable for dynamic perimeter monitoring and real-time detection scenarios. Its 640×480 thermal sensor combined with a 35 mm F1.2 athermalized lens provides clear thermal contrast and reliable mid-to-long-range detection, while the increased 30 fps frame rate improves object tracking and motion accuracy in fast-moving environments.

Powered by the ARTPEC-8 SoC with an integrated deep learning processing unit, this camera supports advanced analytics directly on the edge, enabling automated detection, classification, and event-driven workflows. With rugged IP66/IP67, IK10, and NEMA 4X protection and extensive environmental and MIL-STD-810H testing, it is designed for dependable 24/7 operation in extreme conditions. Its strong cybersecurity foundation and wide system integration support make it ideal for modern perimeter defense deployments.

High-Speed Thermal Imaging for Responsive Mid-to-Long-Range Perimeter Protection

• High-resolution 640×480 thermal sensor with 30 fps delivers smooth thermal video and enhanced motion tracking.
• 35 mm athermalized lens provides optimized detection coverage for mid-to-long-range applications.
• <20 mK thermal sensitivity supports clear contrast and improved detection in rain, fog, smoke, and total darkness.
• ARTPEC-8 with DLPU enables advanced analytics such as AXIS Perimeter Defender and 3rd-party ACAP apps.
• Outdoor-ready durability with IP66/IP67, IK10, NEMA 4X, and MIL-STD-810H ratings.
• Strong cybersecurity including TPM 2.0, secure boot, encrypted storage, and signed firmware.
• Edge-to-edge system integration with Axis audio devices for automated deterrence workflows.

Ideal Use Cases

• Fast-response perimeter detection and tracking for industrial and critical infrastructure sites.
• Airports, seaports, and large campuses requiring smooth thermal video for moving objects.
• Border and wide-area monitoring in low-visibility environments.
• Outdoor logistics zones where high frame rate improves operational awareness.
• Secure compounds needing privacy-preserving, analytics-driven thermal surveillance.

Technical Specifications Summary

• Image sensor: 640×480 uncooled microbolometer, 17 μm
• Lens: Athermalized 35 mm F1.2; HFOV 17°; VFOV 13°; near focus 33 m
• Sensitivity: NETD <20 mK @25 °C
• Video: Up to 30 fps; H.264/H.265/MJPEG; scalable to 800×600
• Audio: Two-way audio; LPCM, AAC-LC, G.711, G.726, Opus
• Power: PoE Type 2 Class 4; 10–28 V DC
• Operating conditions: -40 °C to 60 °C; up to 74 °C NEMA TS 2
• Durability: IP66/IP67, IK10, NEMA 4X, MIL-STD-810H
• Cybersecurity: TPM 2.0, secure boot, encrypted filesystem, MACsec, 802.1X

Upgrade Your Operations

Strengthen your perimeter security with high-speed, analytics-ready thermal imaging that performs in all conditions.
