[shortdesc] Outdoor-ready 19 mm thermal camera with a 640×480 uncooled microbolometer sensor, <20 mK @25 °C sensitivity (F1.0), 8.3 fps thermal imaging, and ARTPEC-8 SoC with deep-learning acceleration for wide-area perimeter protection. [/shortdesc]

[properties]

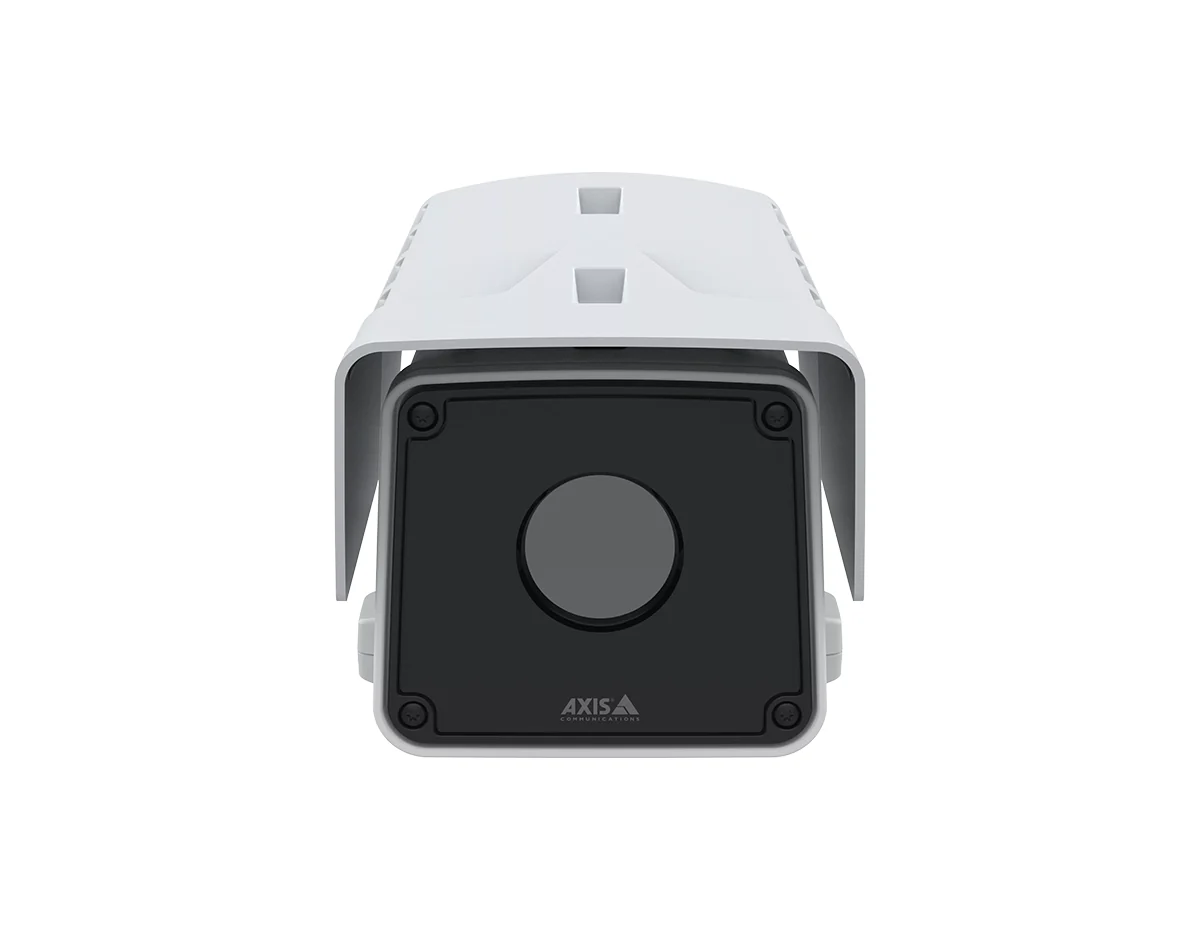

Model	AXIS Q2112-E 19 mm 8.3 fps Thermal Camera (02605-001)
Product Type	Thermal Camera
Image Sensor	Uncooled microbolometer, 640×480 pixels, 17 μm; spectral range 8–14 μm
Lens	Athermalized 19 mm, F1.0; horizontal FOV 31°; vertical FOV 24°; near focus distance 8.5 m (28 ft)
Sensitivity	NETD <20 mK @25 °C, F1.0
System on Chip	ARTPEC-8 with deep learning processing unit (DLPU)
Memory	2048 MB RAM, 8192 MB Flash
Power	PoE IEEE 802.3af/802.3at Type 2 Class 4; typical 5.2 W, max 25.5 W; 10–28 V DC (typical 4.6 W, max 25.5 W)
Connectors	RJ45 10/100/1000 PoE; terminal block with 2 supervised and 2 unsupervised I/O (12 V DC out, 50 mA); 3.5 mm mic/line in; 3.5 mm line out; 2× RS485/RS422 full duplex; DC input
Operating Conditions	-40 °C to 60 °C; up to 74 °C per NEMA TS 2; humidity 10–100% RH (condensing)
Storage Conditions	-40 °C to 65 °C; humidity 5–95% RH (non-condensing)
Casing	IP66/IP67, IK10, and NEMA 4X-rated aluminum housing; color white NCS S 1002-B
Dimensions	See datasheet dimension drawing; EPA 0.05 m² (0.48 ft²)
Weight	3.3 kg (7.3 lb)
Storage	microSD/microSDHC/microSDXC card support; encrypted SD card support; NAS recording
Certifications	CE, CSA, UL/cUL, KC, RCM, VCCI; CISPR 32/35; EN 50121-4; IEC 62236-4; FCC Part 15 Class A
Safety	CAN/CSA/IEC/EN/UL 62368-1 ed.3; IS 13252
Environmental Ratings	IEC 60068-2-1/-2/-6/-14/-27/-78; IP66/IP67; IK10; ISO 21207 Method B; MIL-STD-810H (Methods 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 521.4); NEMA 4X; NEMA TS 2
Cybersecurity	Axis Edge Vault with TPM 2.0, secure boot, encrypted filesystem, secure keystore, signed firmware, Axis device ID, OAuth 2.0, brute force delay protection

[/properties]

[specifications]

Video	H.264, H.265, Motion JPEG; 640×480 scalable to 800×600; up to 8.3 fps; up to 20 streams; controllable frame rate; Zipstream; VBR/ABR/MBR
Image Settings	Contrast, brightness, sharpness, exposure zones, local contrast, compression; rotation 0°/90°/180°/270°; corridor mode; mirroring; overlays; polygon privacy masks; EIS; thermal color palettes
Audio	Two-way audio; AGC; EQ; external mic input (optional 5 V); line in/out; network speaker pairing; LPCM, AAC-LC, G.711, G.726, Opus
Networking Protocols	IPv4/IPv6, HTTP/HTTPS/HTTP2, TLS, RTP/SRTP/RTSP, FTP/SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS, NTP, PTP, TCP/UDP, IGMP, MQTT, SSH, LLDP, CDP, secure syslog
System Integration	ONVIF Profiles G/M/S/T; VAPIX; ACAP; one-click cloud; AXIS Camera Station support
Event Conditions	Audio detection; IP changes; device status events; I/O events; storage conditions; MQTT subscribe; tampering; bitrate degradation; scheduling
Event Actions	Audio clip play/stop; toggle I/O; MQTT publish; HTTP/HTTPS/TCP/email notifications; text overlay; pre/post-alarm buffering; SD/NAS recording; FTP/SFTP/HTTP uploads; SNMP traps; LED flash
Analytics	Included: Motion Detection, Motion Guard, Fence Guard, Loitering Guard, tampering alarm, audio detection; Supported: AXIS Perimeter Defender; third-party ACAP apps
Pan/Tilt Support	Guard tours with up to 256 presets (positioning unit sold separately)
Environmental	IP66/IP67, IK10, NEMA 4X; IEC 60068; MIL-STD-810H (Methods 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 521.4)
Security	TPM 2.0, secure boot, signed firmware, TEE, MACsec, 802.1X, encrypted storage, password protection, brute force delay protection

[/specifications]

[accesories]

Included	Camera, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional Accessories	AXIS TQ1818-E Positioning Unit; AXIS TQ1003-E Wall Mount

[/accesories]

The AXIS Q2112-E 19 mm 8.3 fps Thermal Camera delivers highly detailed thermal imaging optimized for wide-area perimeter surveillance. Its 640×480 thermal sensor paired with a 19 mm F1.0 athermalized lens provides wide coverage, strong contrast, and reliable detection accuracy across large open areas. With extremely high thermal sensitivity of <20 mK, the camera performs reliably even through rain, fog, smoke, and total darkness.

Powered by the ARTPEC-8 SoC with an integrated deep learning processing unit, it supports advanced on-edge analytics such as AXIS Perimeter Defender and third-party ACAP applications. Its rugged design—with IP66/IP67, IK10, and NEMA 4X ratings—ensures reliable operation in harsh climates, industrial locations, and demanding outdoor environments. Comprehensive cybersecurity protections and wide protocol support make integration secure and efficient.

High-Sensitivity Thermal Imaging for Reliable Wide-Area Perimeter Protection

• 19 mm athermalized lens delivers wide-area coverage and reliable detection for large security zones.
• High-resolution 640×480 thermal sensor enhances object detail and contrast.
• <20 mK NETD ensures exceptional clarity in adverse or low-contrast thermal environments.
• ARTPEC-8 with DLPU delivers advanced on-edge analytics processing.
• Rugged IP66/IP67, IK10, and NEMA 4X housing ensures reliable outdoor operation year-round.
• Comprehensive cybersecurity with TPM 2.0, secure boot, and encrypted storage.
• ONVIF support and Axis VAPIX integration enable seamless deployment across modern VMS platforms.

Ideal Use Cases

• Wide-area perimeter protection for utility sites, industrial zones, solar farms, and logistics facilities.
• Security areas requiring broad coverage with reliable thermal contrast.
• Border, airport, and transportation hubs where dependable 24/7 detection is required.
• Critical infrastructure needing privacy-safe thermal surveillance.
• Sites requiring analytics-driven event responses with automated deterrence workflows.

Technical Specifications Summary

• Image sensor: 640×480 uncooled microbolometer, 17 μm
• Lens: Athermalized 19 mm F1.0; HFOV 31°; VFOV 24°; near focus 8.5 m
• Sensitivity: NETD <20 mK @25 °C
• Video: Up to 8.3 fps; H.264/H.265/MJPEG; scalable to 800×600
• Audio: Two-way audio; LPCM, AAC-LC, G.711, G.726, Opus
• Power: PoE Type 2 Class 4; 10–28 V DC
• Operating conditions: -40 °C to 60 °C; up to 74 °C NEMA TS 2
• Durability: IP66/IP67, IK10, NEMA 4X, MIL-STD-810H
• Cybersecurity: TPM 2.0, secure boot, encrypted storage, MACsec, 802.1X

Upgrade Your Operations

Improve perimeter protection with high-sensitivity thermal imaging optimized for wide-area coverage and reliable 24/7 detection.
