[shortdesc] Outdoor-ready thermal camera with a 10 mm F1.2 lens, 63° wide field of view, 640×480 thermal sensor, <20 mK sensitivity, 8.3 fps thermal imaging, and ARTPEC-8 DLPU for broad-area detection and analytics-driven perimeter monitoring. [/shortdesc]

[properties]

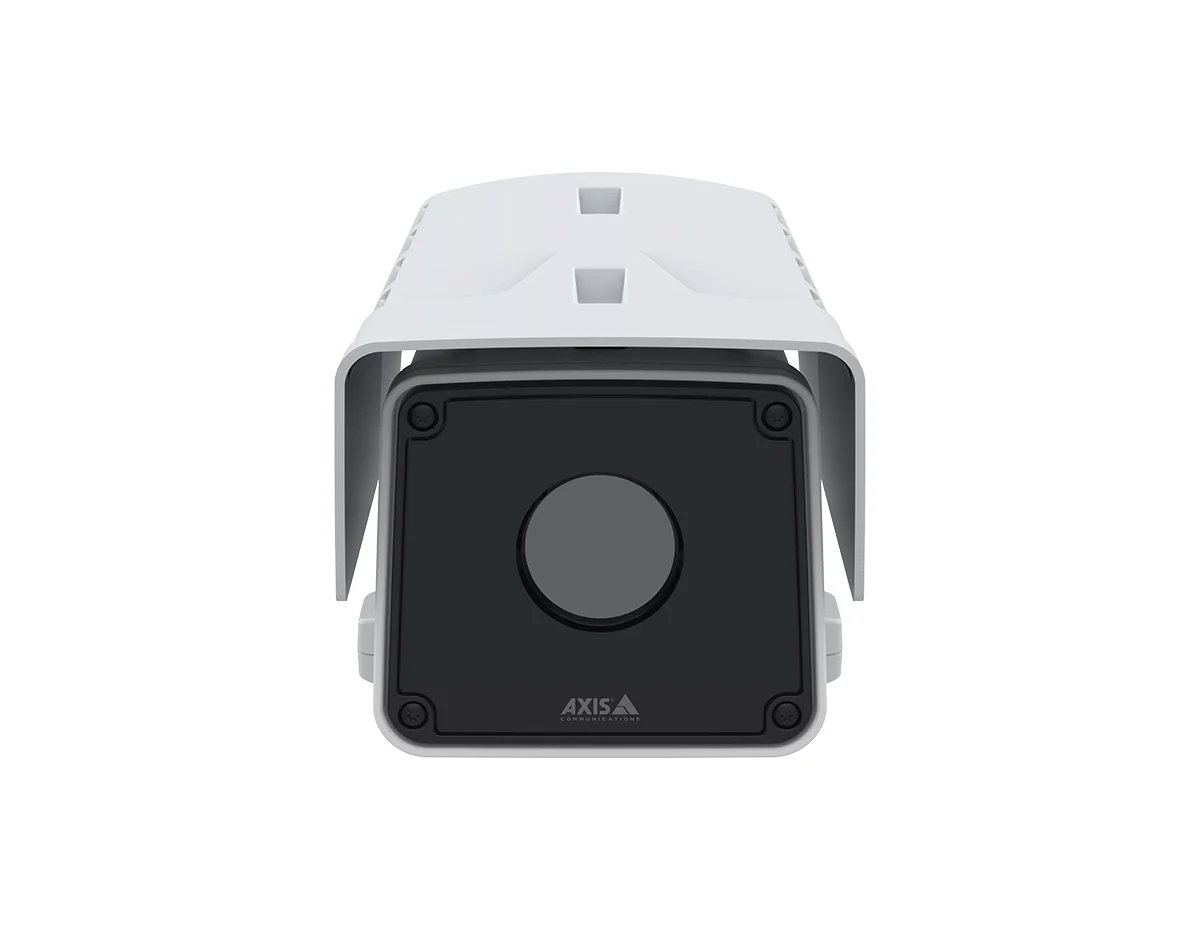

Model	AXIS Q2112-E 10 mm 8.3 fps Thermal Camera (02603-001)
Product Type	Thermal Camera
Image Sensor	Uncooled microbolometer, 640×480 pixels, 17 μm; spectral range 8–14 μm
Lens	Athermalized 10 mm, F1.2; horizontal FOV 63°; vertical FOV 46°; near focus distance 2.8 m (9.2 ft)
Sensitivity	NETD <20 mK @25 °C, F1.0
Frame Rate	Up to 8.3 fps thermal imaging
System on Chip	ARTPEC-8 with deep learning processing unit (DLPU)
Memory	2048 MB RAM, 8192 MB Flash
Power	PoE IEEE 802.3af/802.3at Type 2 Class 4; typical 5.2 W, max 25.5 W; 10–28 V DC (typical 4.6 W, max 25.5 W)
Connectors	RJ45 10/100/1000 PoE; terminal block for 2 supervised and 2 unsupervised I/O (12 V DC out, 50 mA); 3.5 mm mic/line in; 3.5 mm line out; 2× RS485/RS422; DC input
Operating Conditions	-40 °C to 60 °C; maximum 74 °C per NEMA TS 2; humidity 10–100% RH (condensing)
Storage Conditions	-40 °C to 65 °C; humidity 5–95% RH (non-condensing)
Casing	IP66/IP67, IK10, and NEMA 4X-rated aluminum housing; white NCS S 1002-B
Dimensions	See datasheet dimension drawing; EPA 0.05 m² (0.48 ft²)
Weight	3.3 kg (7.3 lb)
Storage	microSD/microSDHC/microSDXC support; AES-XTS-Plain64 256-bit SD encryption; NAS recording
Certifications	CSA, UL/cUL, CE, KC, VCCI, RCM; CISPR 32/35; EN 50121-4; FCC Part 15 Class A; IEC 62236-4
Safety	CAN/CSA/IEC/EN/UL 62368-1 ed.3; IS 13252
Environmental Ratings	IEC 60068-2-1/-2/-6/-14/-27/-78; ISO 21207 Method B; IP66/IP67; IK10; NEMA 4X; NEMA TS 2; MIL-STD-810H (505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 521.4)
Cybersecurity	Axis Edge Vault (TPM 2.0), secure boot, signed firmware, encrypted filesystem, secure keystore, Axis device ID, OAuth 2.0, brute force delay protection

[/properties]

[specifications]

Video	H.264, H.265, Motion JPEG; 640×480 scalable to 800×600; up to 8.3 fps; up to 20 streams; Zipstream; VBR/ABR/MBR; controllable frame rate
Image Settings	Contrast, brightness, sharpness, exposure zones, local contrast, compression; rotation 0°/90°/180°/270°; corridor format; mirroring; overlays; polygon privacy masks; EIS; thermal color palettes
Audio	Two-way audio; AGC; EQ; external mic input; line in/out; network speaker pairing; LPCM, AAC-LC, G.711, G.726, Opus
Networking Protocols	IPv4/IPv6, HTTP/HTTPS/HTTP2, TLS, FTP/SFTP, CIFS/SMB, SMTP, mDNS/Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, PTP, RTSP/RTP/SRTP, TCP/UDP, IGMP, MQTT, SSH, LLDP, CDP, secure syslog
System Integration	VAPIX, ACAP, ONVIF Profiles G/M/S/T; one-click cloud; AXIS Camera Station & third-party VMS support
Event Conditions	Audio detection; device status events; IP changes; storage issues; I/O events; tampering; bitrate degradation; MQTT subscribe; scheduling
Event Actions	Audio clip play/stop; toggle I/O; MQTT publish; HTTP/HTTPS/TCP/email notifications; text overlay; pre/post-alarm buffering; SD/NAS recording; FTP/SFTP/HTTP uploads; SNMP traps; LED flash
Analytics	Included: Motion Detection, Motion Guard, Fence Guard, Loitering Guard, tampering alarm, audio detection; Supported: AXIS Perimeter Defender; ACAP apps
Pan/Tilt Support	Supports guard tours with up to 256 presets (requires external positioning unit)
Environmental	IP66/IP67, IK10, NEMA 4X; IEC 60068; MIL-STD-810H
Security	TPM 2.0, secure boot, encrypted storage, MACsec, TEE, TLS v1.2/v1.3, 802.1X, password protection, brute force delay protection

[/specifications]

[accesories]

Included	Camera, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional Accessories	AXIS TQ1818-E Positioning Unit; AXIS TQ1003-E Wall Mount

[/accesories]

The AXIS Q2112-E 10 mm 8.3 fps Thermal Camera provides broad-area thermal monitoring with a wide 63° horizontal field of view, making it ideal for covering open spaces, facility perimeters, and wide security zones. Its 640×480 thermal sensor and <20 mK sensitivity enable clear thermal contrast and reliable detection in total darkness, fog, smoke, or challenging weather. With a near focus distance of just 2.8 m, it is suitable for installations requiring visibility across both near and mid-range thermal scenes.

Built on the ARTPEC-8 system-on-chip with a deep learning processing unit, it supports advanced analytics such as AXIS Motion Guard, Fence Guard, and Loitering Guard, in addition to ACAP apps and AXIS Perimeter Defender. Rated IP66/IP67, IK10, and NEMA 4X—with MIL-STD-810H validation—it ensures stable performance in demanding outdoor environments. Robust cybersecurity features, encrypted storage, and extensive integration capabilities make it an excellent choice for secure, analytics-driven perimeter monitoring.

Wide-Angle Thermal Imaging for Broad Perimeter Coverage

• 63° horizontal field of view covers large open areas with fewer cameras required.
• 640×480 thermal resolution and <20 mK sensitivity deliver clear contrast for precise detection.
• ARTPEC-8 with DLPU enables on-edge classification and advanced analytics.
• Rugged IP66/IP67, IK10, NEMA 4X design provides reliable outdoor endurance.
• Strong cybersecurity with TPM 2.0, secure boot, MACsec, and encrypted storage.
• Extensive system integration support including ONVIF, VAPIX, and major VMS platforms.
• Designed for privacy-preserving detection using thermal imaging rather than visible light.

Ideal Use Cases

• Wide-area perimeter monitoring of industrial facilities, logistics yards, and open campuses.
• Utilities and critical infrastructure requiring broad-field thermal detection.
• Security deployments where thermal imaging must cover both near and mid-range zones.
• Smoke, haze, or low-visibility environments where optical cameras underperform.
• Privacy-sensitive monitoring scenarios where visible imaging is not appropriate.

Technical Specifications Summary

• Image sensor: 640×480 uncooled microbolometer, 17 μm
• Lens: Athermalized 10 mm F1.2; HFOV 63°; VFOV 46°; near focus 2.8 m
• Sensitivity: NETD <20 mK @25 °C
• Video: Up to 8.3 fps; H.264/H.265/MJPEG; Zipstream
• Analytics: Motion Guard, Fence Guard, Loitering Guard, Perimeter Defender support
• Power: PoE Type 2 Class 4; 10–28 V DC
• Durability: IP66/IP67, IK10, NEMA 4X, MIL-STD-810H
• Cybersecurity: TPM 2.0, secure boot, encrypted storage, MACsec

Upgrade Your Operations

Enhance broad-area perimeter protection with wide-angle thermal imaging and powerful on-edge analytics.
