[shortdesc]

96 Vdc Lead-Acid, 2U Rack-Mounted, OSHPD Standard, Replacement Battery APCRBC152

[/shortdesc]

[properties]

Brand	APC by Schneider Electric
Model	SRT96RMBP
Product Type	External Battery Pack
Form Factor	Rackmount 2U
Dimensions (H x W x D)	3.3" x 17.01" x 23.4" (85 x 432 x 594 mm)
Weight	89.5 lb (40.6 kg)
Color	Black
Number of Rack Units	2U
Mounting Mode	Rack-mounted
Cooling	Not specified

[/properties]

[specifications]

Battery Type	Lead-Acid
Battery Voltage	96 V
RBC Quantity	2
Replacement Battery	APCRBC152
Battery Slots	0
Included Battery Modules	0
Operating Temperature	0–40 °C (32–104 °F)
Storage Temperature	-15–45 °C (5–113 °F)
Operating Humidity	0–95% non-condensing
Storage Humidity	0–95% non-condensing
Operating Altitude	0–10,000 ft
Storage Altitude	0–50,000 ft
Compliance	OSHPD, EU RoHS, REACh, WEEE, California Proposition 65
Warranty	2 years repair or replace

[/specifications]

[accessories]

Rack Mounting Brackets	Included in the box
User Manual	Included in the box
Warranty Card	Included in the box

[/accesories]

Overview

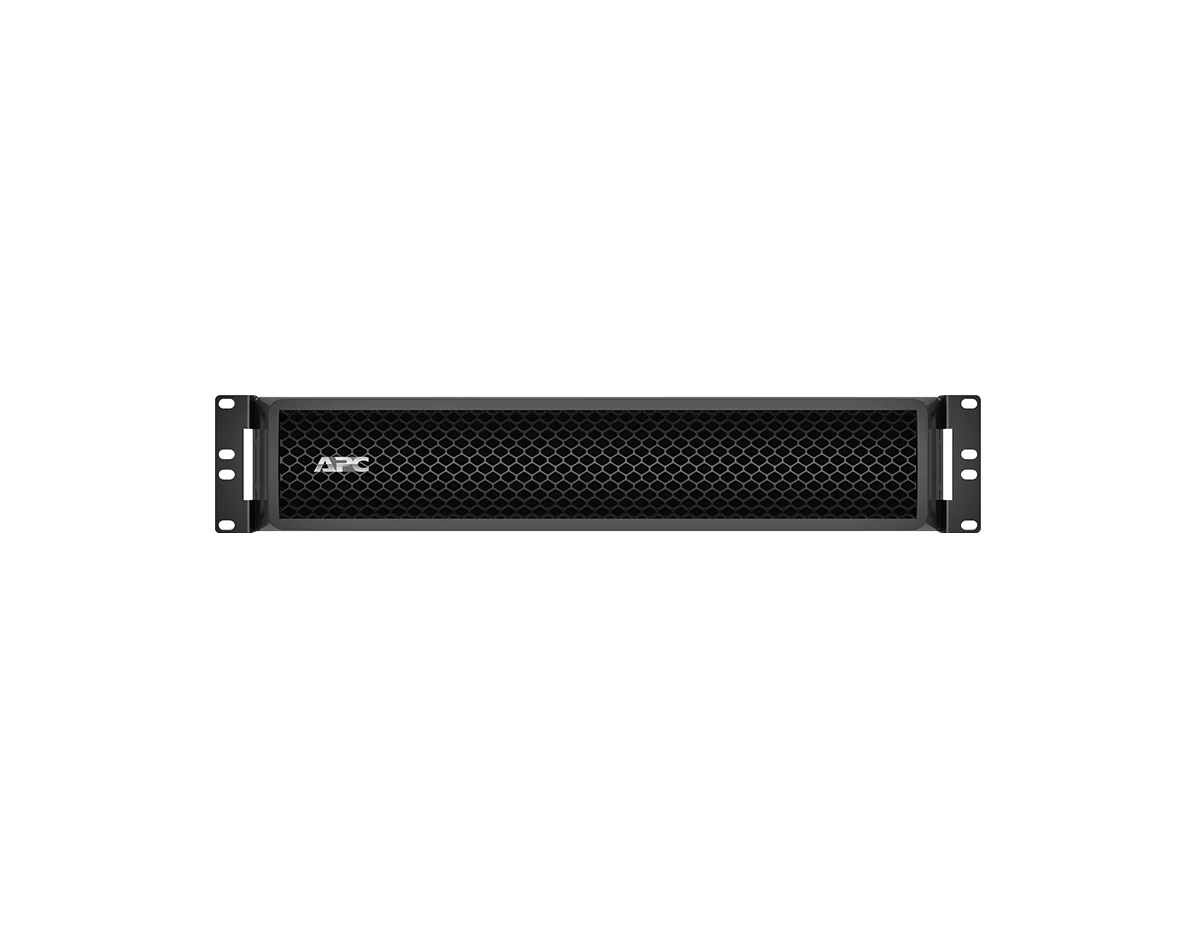

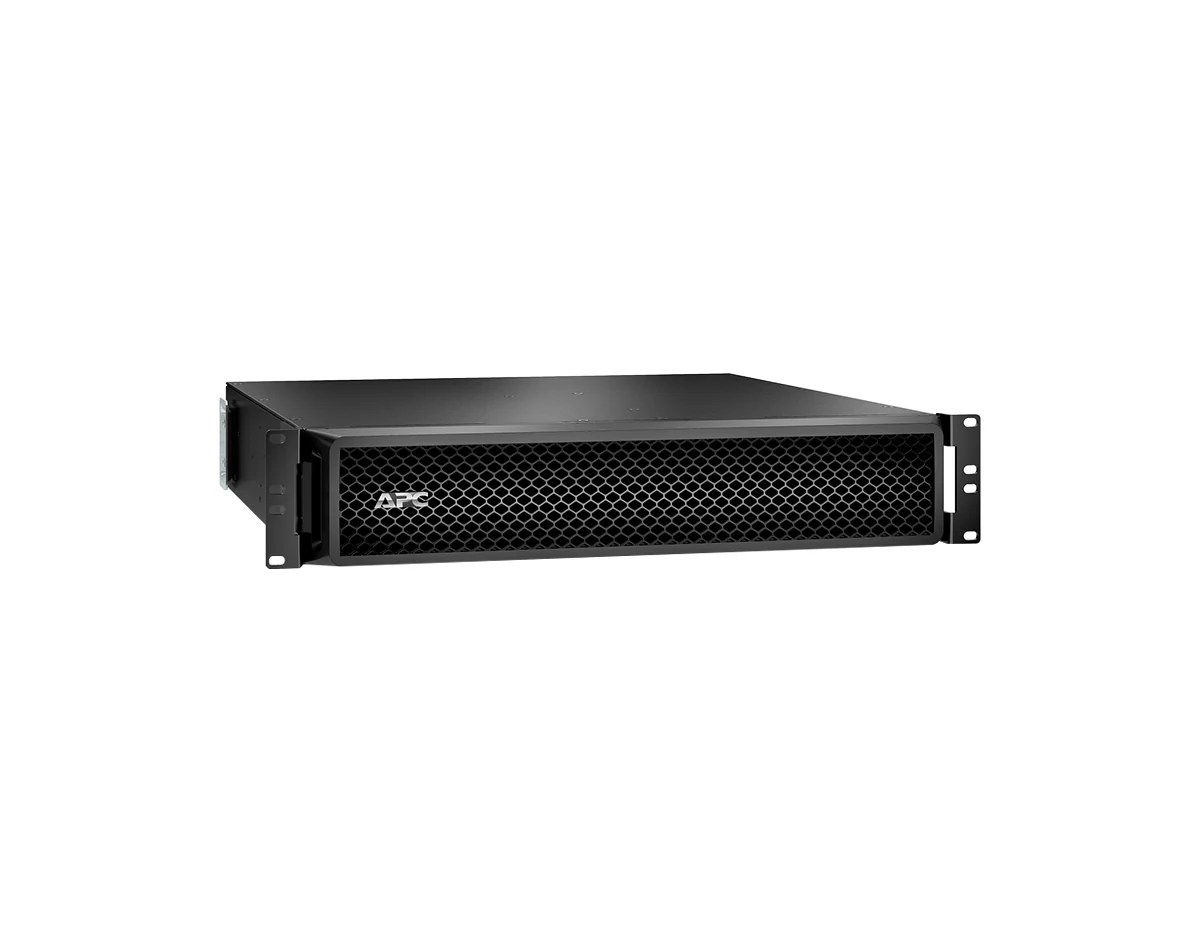

The APC SRT96RMBP is a 2U, 96 Vdc external battery pack engineered for Smart-UPS SRT systems. Its lead-acid design, rack-mounted form factor, and OSHPD standard listing make it a dependable way to extend backup time for servers, storage, and network devices while fitting neatly into standard racks.

Key Features & Benefits

• 96 Vdc Battery Pack – Matches the SRT battery bus for seamless runtime expansion.
• 2U Rack Form Factor – Conserves rack space and installs cleanly with included brackets.
• Lead-Acid Chemistry – Proven energy storage for predictable performance in IT environments.
• Service Clarity – Uses APCRBC152 with RBC quantity of 2 for straightforward maintenance planning.
• Environmental Readiness – Rated for 0–40 °C, 0–95% RH (non-condensing), up to 10,000 ft altitude.

Technical Deep Dive

Electro-Mechanical Fit: The SRT96RMBP presents a nominal 96 Vdc battery rail for Smart-UPS SRT electronics, enabling extended runtime for compatible units without additional complexity.

Rack Integration & Handling: A compact 2U chassis (approx. 3.3″ H × 17.01″ W × 23.4″ D; ~40.6 kg) fits standard racks and ships with rack mounting brackets for straightforward installation. This helps facilities add autonomy without re-architecting rack layouts.

Operational Envelope: Rated for 32–104 °F (0–40 °C) operation and up to 95% RH (non-condensing), supporting predictable capacity across typical server rooms and network closets.

Ideal Applications

• Smart-UPS SRT deployments requiring extended runtime
• Rack environments reserving 2U for battery expansion
• Edge IT and network hardware within the listed temperature and humidity ranges

Frequently Asked Questions (FAQs)

Q1: What is the installation/form factor?
A: A 2U rack-mounted external battery pack; rack mounting brackets and a user manual are included.

Q2: How much runtime will it add?
A: The pack increases UPS autonomy; actual runtime depends on UPS model, load level, and number of battery packs attached. Specific runtime figures are not provided.

Q3: What maintenance items are specified?
A: Replacement battery is APCRBC152 with an RBC quantity of 2. Batteries are user-replaceable.
