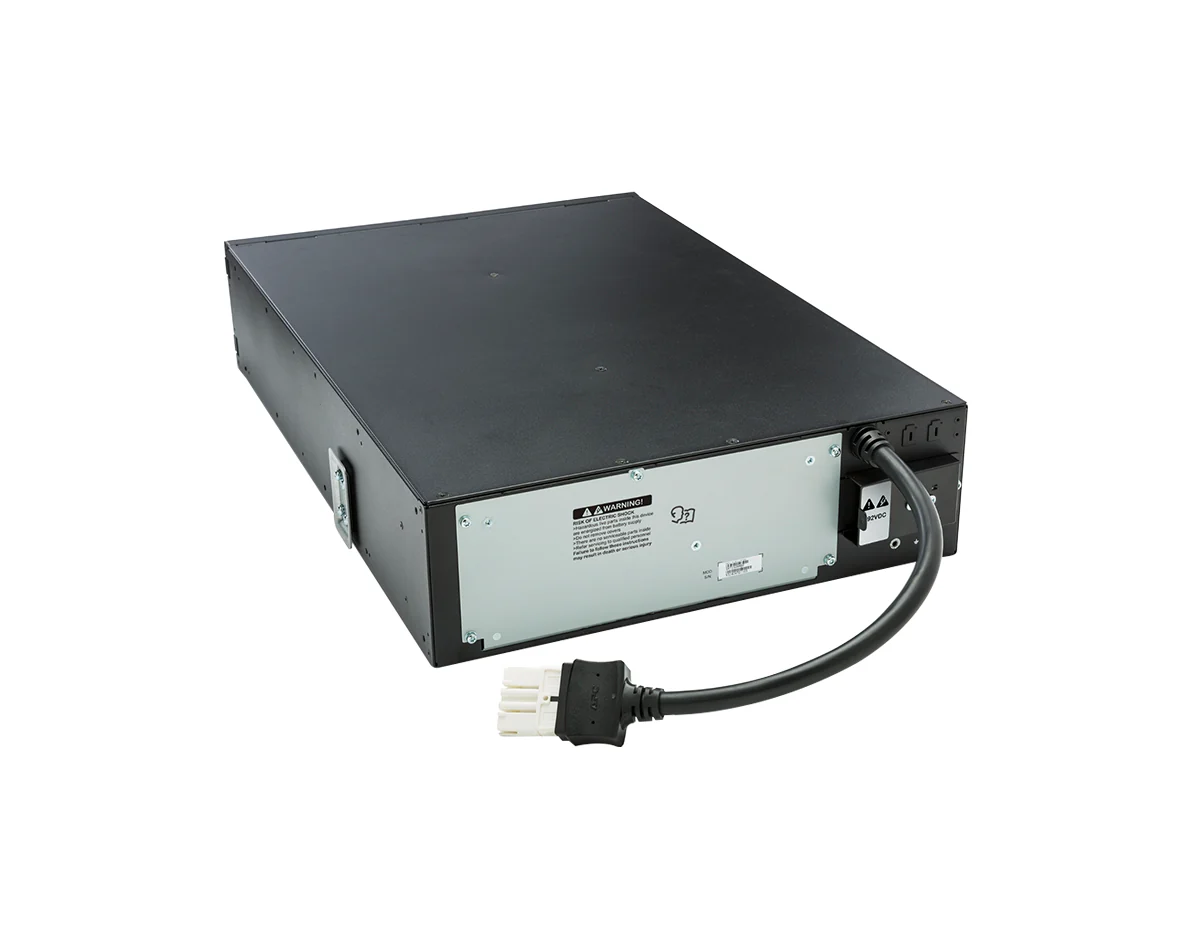

APC SRT192BP - 192V External Battery Pack for Smart-UPS On-Line
[shortdesc]
192V Lead-Acid Battery Pack, For APC Smart-UPS On-Line 5kVA/6kVA, Rack/Tower Convertible, Standalone Stack Design
[/shortdesc]
[properties]
| Brand | APC by Schneider Electric |
| Model | SRT192BP |
| Product Type | External Battery Pack |
| Form Factor | Rack/Tower Convertible |
| Dimensions (H x W x D) | 17.008" x 5.1" x 26.9" (432 x 130 x 682.7 mm) |
| Weight | 200.6 lb (91 kg) |
| Color | Black |
| Mounting Mode | Rack-mounted with kit |
| Cooling | Not specified |
[/properties]
[specifications]
| Battery Type | Lead-Acid |
| Battery Voltage | 192 V |
| RBC Quantity | 2 |
| Replacement Battery | APCRBC140 |
| Battery Slots | 0 (empty) |
| Included Battery Modules | 0 |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Storage Temperature | -15–45 °C (5–113 °F) |
| Operating Humidity | 0–95% non-condensing |
| Storage Humidity | 0–95% non-condensing |
| Operating Altitude | 0–10,000 ft |
| Storage Altitude | 0–15,000 ft |
| Compliance | RoHS, REACh, WEEE, SCIP |
| Warranty | 2 years repair or replace |
[/specifications]
[accessories]
| Documentation CD | Included in the box |
| Installation Guide | Included in the box |
| Warranty Card | Included in the box |
[/accesories]
Overview
The APC SRT192BP is a high-capacity 192V external battery pack engineered to extend the runtime of APC Smart-UPS On-Line 5kVA and 6kVA units. Designed for mission-critical IT infrastructure, this unit provides reliable lead-acid energy storage in a compact, rack/tower convertible form factor. Its modular stack design ensures flexible deployment for both data center and enterprise environments.
Key Features & Benefits
- 192V Lead-Acid Battery Pack: Stable and proven technology for continuous runtime extension.
- Rack/Tower Convertible: Flexible deployment in server racks or as a standalone tower system.
- Seamless Runtime Expansion: Boosts backup duration for Smart-UPS On-Line 5/6kVA models.
- Durable Build: Engineered with robust materials for demanding IT and industrial applications.
- User-Serviceable Design: Replaceable modules simplify maintenance and extend system life.
Technical Deep Dive
The SRT192BP is based on a 192V configuration using high-performance lead-acid cells. This voltage level is optimized for compatibility with APC’s Smart-UPS On-Line 5kVA and 6kVA, ensuring direct integration without additional hardware.
Each pack includes two APCRBC140 battery modules. These modules are engineered for high reliability, supporting consistent energy delivery across varying loads. The system’s standalone stackable structure enables scalable deployment, allowing IT managers to configure runtime according to site-specific requirements.
Environmental resilience is a key part of the design. With operational tolerance from 0°C to 40°C and humidity up to 95% non-condensing, the SRT192BP ensures stable performance even in challenging conditions common to server rooms and edge deployments.
Ideal Applications
- Data centers requiring extended backup for Smart-UPS On-Line
- Enterprise network infrastructure supporting critical workloads
- Healthcare facilities demanding continuous uptime
- Financial services and retail POS systems with high availability needs
Frequently Asked Questions (FAQs)
Q1: How is the SRT192BP installed?
A: The unit supports both rack-mounting (with kit) and standalone tower installation, providing deployment flexibility.
Q2: What performance can I expect?
A: This pack significantly extends the runtime of compatible Smart-UPS On-Line units. Runtime varies based on load; consult APC’s official runtime charts for precise data.
Q3: How is the battery pack managed?
A: The pack is managed through the connected UPS, with hot-swappable modules for simplified service and replacement.
