[shortdesc] High-performance Industrial LTE Cat 6 Router featuring Dual-SIM failover, Wave-2 Dual-Band WiFi 5, 4x Gigabit Ethernet ports, and Bluetooth 5.0 LE. [/shortdesc]

[properties]

Model	RUTX11
SKU	RUTX11300400
Product Type	Industrial Cellular Router
Cellular Technology	4G LTE Cat 6, 3G
Max Cellular Speed	Up to 300 Mbps DL / 50 Mbps UL
SIM Support	2 x SIM slots (Mini SIM 2FF)
Wi-Fi	802.11b/g/n/ac Wave 2 (Wi-Fi 5) Dual Band, MU-MIMO
Bluetooth	Bluetooth 5.0 LE
Ethernet Ports	4 x Gigabit RJ45 (1 x WAN, 3 x LAN)
CPU	Quad-core ARM Cortex A7, 717 MHz
RAM	256 MB DDR3
Flash Storage	256 MB SPI Flash
Operating System	RutOS (OpenWrt-based Linux OS)
GNSS	GPS, GLONASS, BeiDou, Galileo, QZSS
USB	1 x USB 2.0 Type A
Digital I/O	1 x Digital Input, 1 x Digital Output on 4-pin connector
Power Input	9 – 50 VDC, 4-pin industrial connector
PoE	Passive PoE (9 – 50 VDC, Mode B via LAN1)
Power Consumption	16 W max
Dimensions (W x H x D)	115 x 44.2 x 95.1 mm
Weight	456 g
Casing	Aluminium housing with grounding screw
Mounting Options	DIN rail, wall mount, flat surface (requires additional kit)
Operating Temperature	-40 C to 75 C
Humidity	10% to 90% non-condensing
Ingress Protection	IP30

[/properties]

[specifications]

Mobile Module	4G LTE Cat 6 (300 Mbps DL), 3G (42 Mbps DL)
Wi-Fi Features	MU-MIMO, 802.11r Fast Transition, 802.11s Mesh, up to 150 users
Wi-Fi Security	WPA3-EAP, WPA3-SAE, WPA2-Enterprise, AES-CCMP, TKIP, PMF
Routing Protocols	BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, Static/Policy based routing
Network Protocols	TCP, UDP, IPv4, IPv6, HTTP(S), MQTT, SNMP, SSH, DHCP, VRRP, VXLAN
Firewall Features	Port forwarding, traffic rules, NAT, NAT-T, NAT64, DMZ, Port Scan Prevention
VPN Support	OpenVPN, IPsec, WireGuard, GRE, PPTP, L2TP, SSTP, ZeroTier, Tailscale, DMVPN, Stunnel
Load Balancing	Balance Internet traffic over multiple WAN connections
Failover	Auto-switch: Mobile, Wi-Fi WAN, VRRP, Wired
QoS	Traffic prioritization by source/destination, service, protocol, or port
Monitoring & Management	Web UI, SSH, SMS, TR-069, MQTT, SNMP, JSON-RPC, RMS
IoT Platforms	Azure IoT Hub, AWS IoT Core, Cumulocity, ThingWorx
Location Tracking	GNSS (NMEA 0183), Geofencing, TAVL support
USB Functions	Samba share, USB-to-serial, External HDD/Modem/Printer support
Input/Output Functions	I/O Juggler, Event triggers via Email, RMS, SMS
Power Protection	Reverse polarity, voltage surge and transient protection

[/specifications]

[accesories]

Included

RUTX11 router, 18W PSU, 2 x Mobile SMA antennas, 2 x Wi-Fi dual-band RP-SMA antennas, GNSS SMA adhesive antenna, Bluetooth RP-SMA antenna, Ethernet cable (1.5 m), SIM adapter kit, QSG

[/accesories]

Reliable Industrial Connectivity with High-Speed LTE and Failover

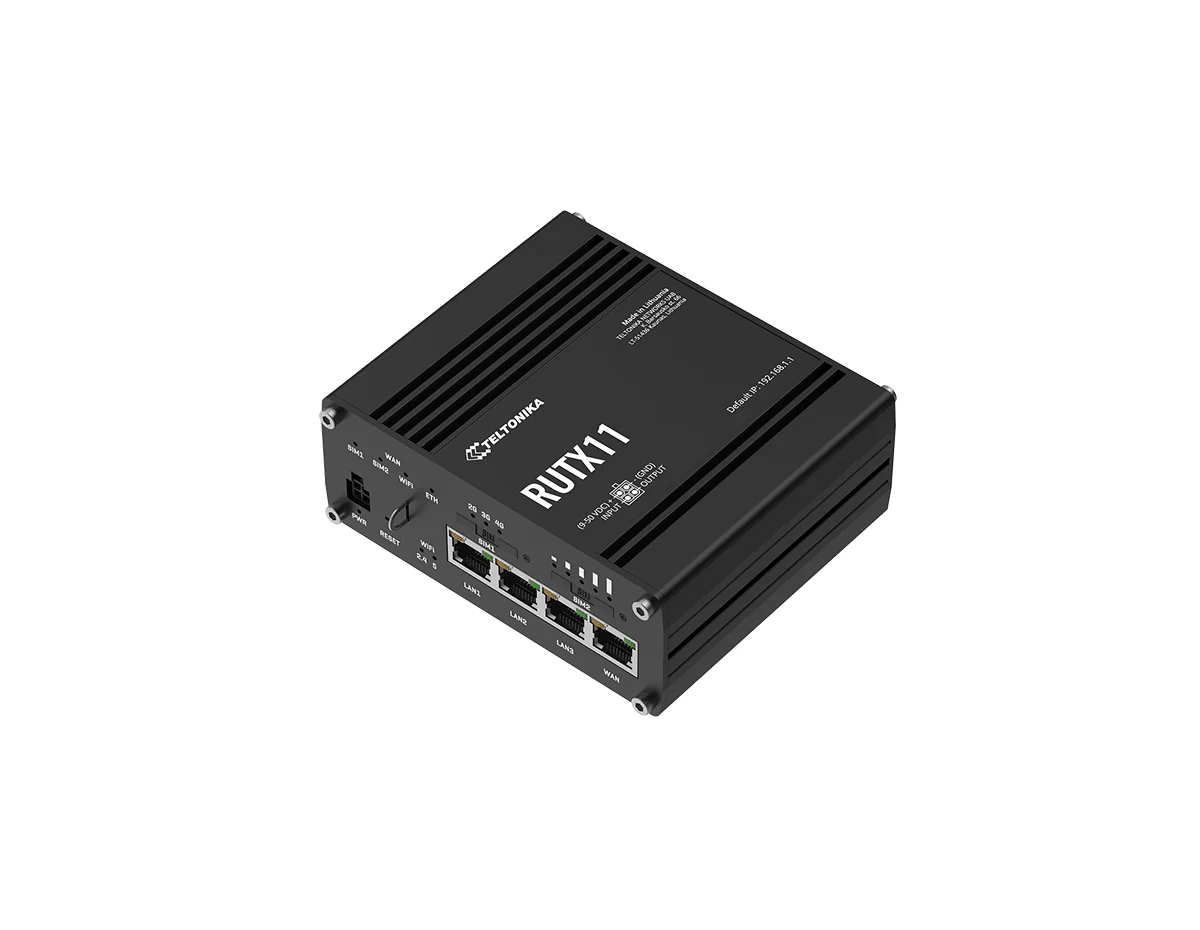

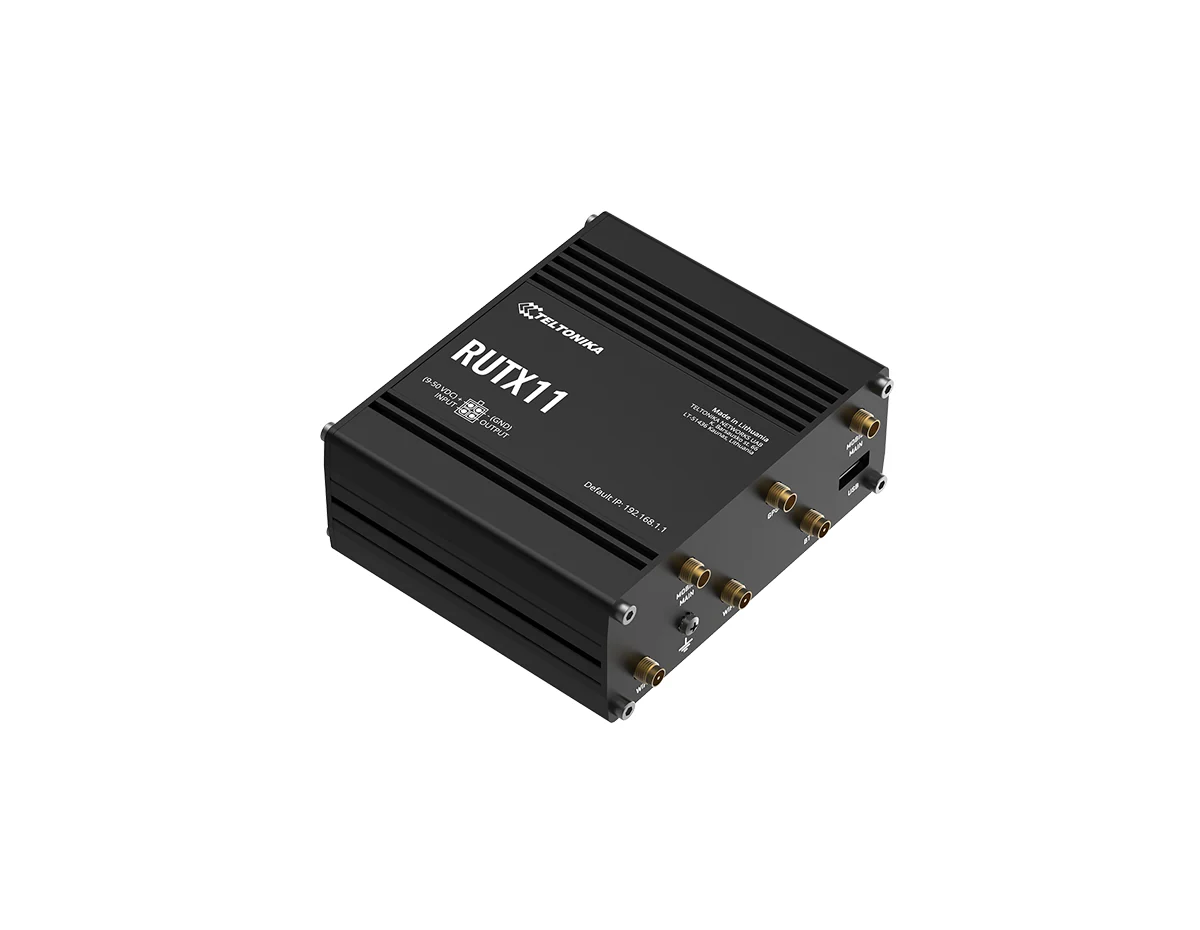

The Teltonika RUTX11 industrial cellular router is engineered for mission-critical connectivity across industrial, enterprise, and IoT environments. Combining LTE Cat 6 speeds with dual SIM failover and advanced networking capabilities, this router ensures uninterrupted connectivity in demanding deployments. Built on RutOS and powered by a quad-core CPU, it delivers both performance and flexibility for modern network infrastructures.

Key Benefits & Features

• LTE Cat 6 with Carrier Aggregation: Achieve download speeds up to 300 Mbps with enhanced bandwidth efficiency, ideal for data-intensive industrial applications.
• Dual SIM Failover: Automatic switching between SIM cards ensures continuous connectivity during network failures, signal loss, or data limits.
• Dual Band WiFi 5 & Bluetooth: Wave-2 802.11ac MU-MIMO wireless with up to 867 Mbps and Bluetooth 5.0 LE support for short-range device integration.
• Gigabit Ethernet Connectivity: Four RJ45 Gigabit ports with up to 128 port/tag-based VLANs supported enable flexible wired network segmentation.
• Advanced Routing & Security: Supports BGP, OSPF, specialized VPN protocols like WireGuard and DMVPN, and enterprise-grade DDoS protection.

Ideal Use Cases

• Industrial automation and remote monitoring systems
• Smart city infrastructure and IoT deployments
• Retail branch connectivity and backup WAN solutions
• Enterprise failover networking and remote offices
• Energy and utilities communication networks

Technical Specifications

• Cellular Technology: 4G LTE Cat 6 (300 Mbps DL / 50 Mbps UL) with 3G fallback
• SIM Configuration: Dual SIM slots with automatic switching and SIM idle protection
• WiFi: Dual band 802.11ac Wave 2 (speeds up to 867 Mbps)
• Ethernet Ports: 4 x Gigabit RJ45 (1 x WAN, 3 x LAN)
• CPU: Quad-core ARM Cortex A7, 717 MHz
• RAM / Storage: 256 MB DDR3 RAM, 256 MB SPI Flash
• Bluetooth: Bluetooth 5.0 Low Energy (LE)
• VPN Support: OpenVPN, IPsec, WireGuard, L2TP, GRE, ZeroTier, Tailscale
• Power Input: 9 to 50 VDC with Passive PoE support via LAN1
• Operating Temperature: Industrial-grade -40 C to 75 C

Upgrade Your Network Reliability Today

Deploy the Teltonika RUTX11 for secure, high-speed, and resilient connectivity across any environment. Order today.
