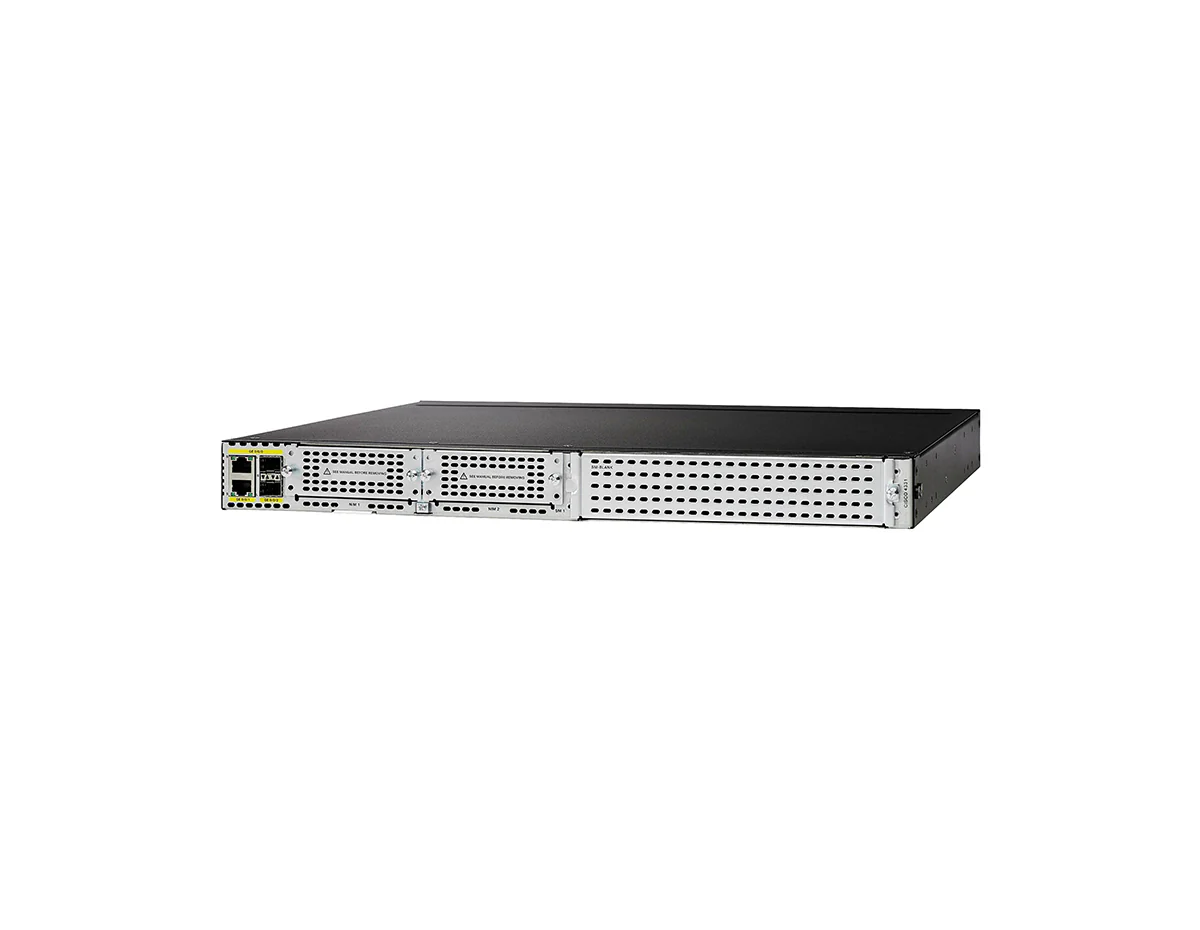

Cisco ISR4331/K9 Router

[shortdesc]

100Mbps-300Mbps system throughtput
2 WAN/LAN ports
2 SFP ports
multi-Core CPU
1 service module slots
Security
Voice
WAAS
Intelligrnt WAN
OnePK
AVC

[/shortdesc]

[properties]

Properties	ISR4331/K9
Description	ISR 4331 with 3 onboard GE, 2 NIM slots, 1 ISC slot, 1 SM slots, 4 GB Flash Memory default, 4 GB DRAM default
Product Family	ISR 4000 Series
Product Type	Routers
Total onboard WAN or LAN 10/100/1000 ports	3
RJ-45-based ports	2
SFP-based ports	2
Enhanced service- module slots	1
Aggregate Throughput (Default)	100 Mbps
AC input voltage	100 to 240 VAC autoranging
Power-supply options	Internal: AC,DC and PoE
Maximum power with AC power supply (watts)	250
Maximum power with PoE power supply (platform only) (watts)	530
Unit dimensions in. (W x D x H)	1.75 x 17.25 x 17.25
Rack-mount 19in.	Included
Wall-mount	Yes

[/properties][specifications]

Specifications	ISR4331/K9
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM	4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)	16 GB
Default memory DDR3 ECC DRAM (data plane)	NA
Maximum memory DDR3 ECC DRAM (data plane)	NA
Default memory DDR3 ECC DRAM (control/services plane)	NA
Maximum memory DDR3 ECC DRAM (control/services plane)	NA
Default flash memory	4 GB
Maximum Flash Memory	16 GB
Operating Temperature	32 to 104°F (0 to 40°C)
Operating humidity	5% to 85%
Safety	UL 60950-1
	CAN/CSA C22.2 No. 60950-1
	EN 60950-1
	AS/NZS 60950-1
	IEC 60950-1
EMC	47 CFR, Part 15
	ICES-003 Class A
	EN55032 Class A
	CISPR32 Class A
	AS/NZS CISPR 32 Class A
	VCCI V-3
	CNS 13438
	EN 300-386
	EN 61000 (Immunity)
	EN 55024, CISPR 24
	KN22, KN24 EN 50121-1 EN61000-6-4 EN 50121-4
Protocols	IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast (SSM), RSVP, CDP, ERSPAN, IPSLA, Call Home, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, OTV6, HSRP, RADIUS, AAA, AVC, Distance Vector Multicast Routing Protocol (DVMRP), IPv4-to-IPv6 Multicast, MPLS, Layer 2 and Layer 3 VPN, IP sec, Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE802.1ag, and IEEE802.3ah

[/specifications][accesories]

Accessories	There is no additional accessories.
Bundles	Features
Application Experience with Voice (AXV)	AX + Voice
Voice with Security (VSEC)	Voice + Security
Application Experience (AX)	IP Base + Security + advanced networking protocols: L2TPv3, BFD, MPLS, VRF, VXLAN10 (Bandwidth <100Mbps)
	Application Experience: PfRv3, WAAS with AppNav, NBAR2, AVC, IP SLA
	Hybrid Cloud Connectivity: LISP, OTV (for Bandwidth <100Mbps), VPLS, EoMPLS Intelligent Web Caching: Akamai Connect
Voice (V)	IP Base + Unified Communications: CME, SRST, CUBE
Security (SEC)	IP Base + Advanced Security: Zone Based Firewall, IPSec VPN, EZVPN, DMVPN,

[/accesories]

Cisco ISR4461/K9 Router

The Cisco 4000 Series Integrated Services Router (ISR) is designed for high-speed WAN connectivity, leveraging high-performance multicore processors that maintain efficiency as services scale. The ISR4461/K9 is the most advanced model of the series with 1.5 Gbps default aggregate Throughput. The backplane architecture supports high-bandwidth module-to-module communication at speeds up to 10 Gbps.

Key Features:

32 GB max memory with license
2 NIM slots
Cisco® Software Defined WAN (SDWAN)

The tabs contain the ISR4461/K9 datasheet with all the specifics you need.
