• Ultra-high cellular speeds of up to 3.4 Gbps, Dual SIM with Auto-failover, backup WAN, and other switching scenarios, Supports both SA & NSA 5G architectures

[/shortdesc]

[properties]

Product Name	Teltonika RUTM50 Cellular 5G Router (RUTM50000000)
Description	An industrial-grade 5G router designed for North American markets, capable of ultra-high cellular speeds up to 3.4 Gbps, supporting both SA and NSA architectures.
Product Type	5G Cellular Router
Operating System	RutOS (OpenWrt-based)
CPU	MediaTek MT7621A, dual-core, 880 MHz
RAM	256 MB DDR3
Storage	16MB serial NOR flash, 256MB serial NAND flash
Interfaces	5 Gigabit Ethernet ports, 2 SIM card slots, USB-A, multiple antenna connectors
Power Input	9-50 VDC
Dimensions	132 mm x 44.2 mm x 95.1 mm
Operating Temperature	-40°C to +75°C

[/properties]

[specifications]

Wi-Fi Standards	802.11 b/g/n/ac Wave 2, up to 867 Mbps
GNSS Support	GPS, GLONASS, BeiDou, Galileo, QZSS
Certifications	FCC, UL certified
Environmental Safety	RoHS compliant, durable aluminum housing
Security Features	Built-in firewall, DDOS protection, VLAN separation
I/O Options	1 digital input, 1 digital output
VPN Protocols	OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard
Power Consumption	18 W
Weight	400 g

[/specifications]

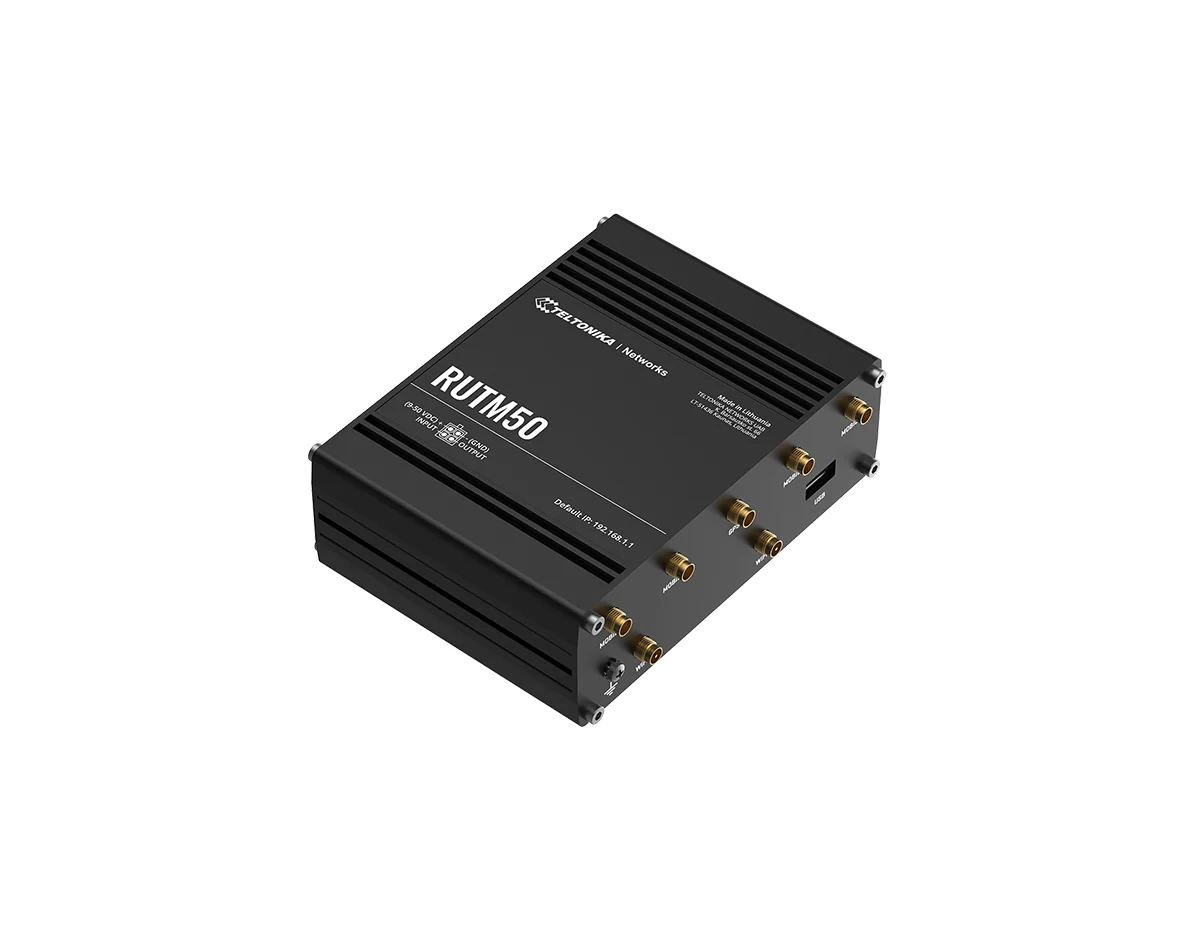

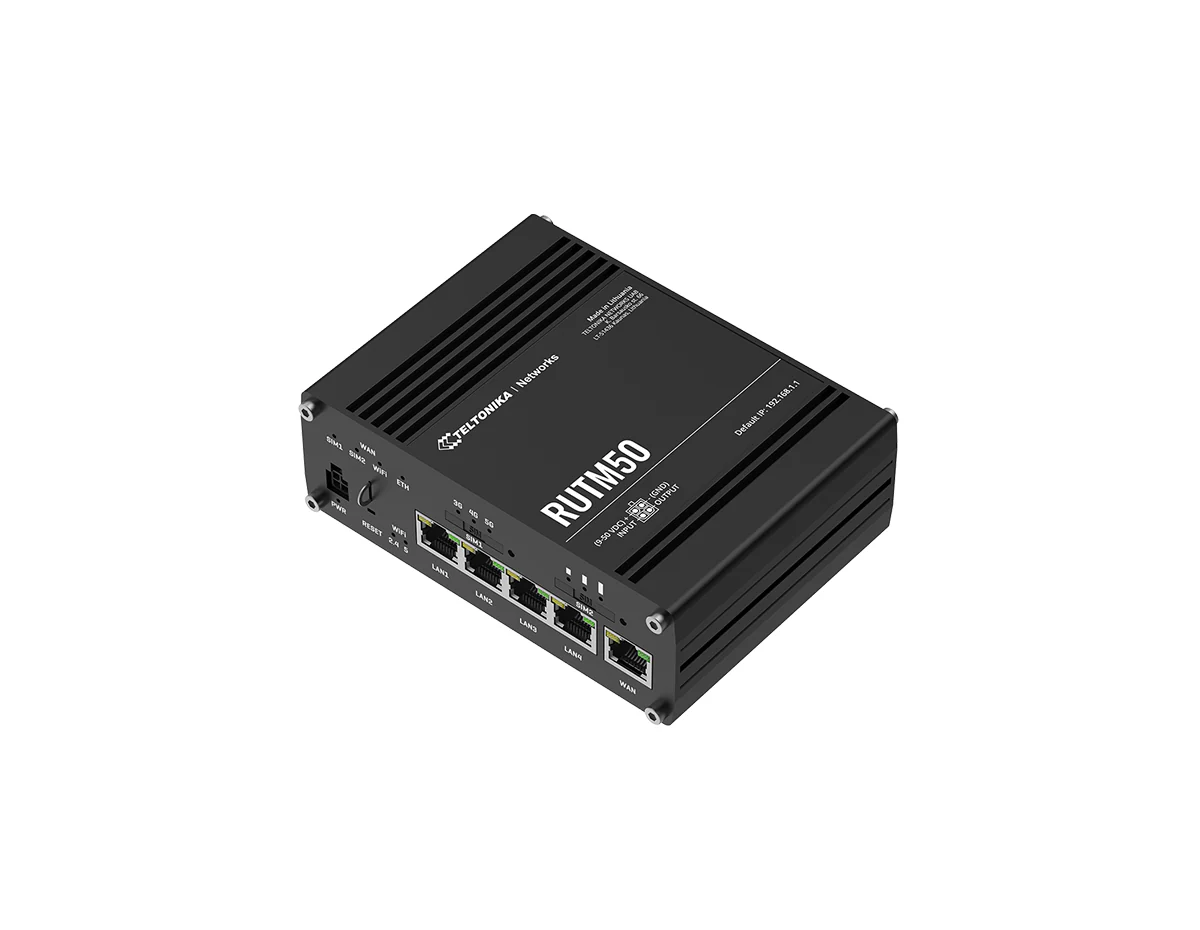

Teltonika RUTM50000000 Model RUTM50 Cellular 5G Router

The Teltonika RUTM50000000 Model RUTM50 Cellular 5G Router is a high-performance router designed to deliver ultra-fast internet speeds and reliable connectivity. It supports dual SIM with auto-failover and is backward compatible with 4G (LTE Cat 19), making it suitable for various applications in the USA and Canada.

Key Features:

• Ultra-high cellular speeds of up to 3.4 Gbps
• Dual SIM with Auto-failover, backup WAN, and other switching scenarios
• Supports both SA & NSA 5G architectures
• Backward compatible with 4G (LTE Cat 19)
• For USA and Canada Carriers
• Included: RUTM50 Router, 18 W USA PSU, 4 x Mobile antennas (swivel, SMA male), 2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable), 1 x GNSS antenna (adhesive, SMA male, 3 m cable), Ethernet cable (1.5 m), and SIM Adapter kit

Specifications:

Mobile:

• Module: 5G Sub-6 GHz SA, NSA 2.4, 3.4Gbps DL (4x4 MIMO) 900, 550Mbps UL (2x2 MIMO); 4G (LTE): DL Cat 19 1.6Gbps (4x4 MIMO), UL Cat 18 200Mbps
• SIM switch: 2 SIM cards, auto-switch
• APN: Auto

Wireless:

• Wireless mode: 802.11b, g, n, ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
• Wi-Fi users: Up to 150 simultaneous connections

Ethernet:

• WAN: 1 x WAN port (can be configured as LAN) 10, 100, 1000 Mbps
• 4 x ETH ports, 10/100/1000 Mbps

Network:

• Routing: Static routing, Dynamic routing

System Specs:

• CPU: MediaTek MT7621A, Dual-Core, 880 MHz, MIPS1004Kc
• RAM: 256MB DDR3
• FLASH storage: 16MB serial NOR flash, 256MB serial NAND flash

I/Os:

• Input: 1 x Digital Input
• Output: 1 x Digital Output
• I/O juggler: Allows setting certain I/O conditions to initiate events

Power:

• Connector: 4-pin industrial DC power socket
• Input voltage range: 9 - 50 VDC
• PoE (passive): Passive PoE over spare pairs

Other Specs:

• Casing: Aluminum
• Overall Dimensions (WxHxD): 5.19 x 1.74 x 3.74 inches
• Weight: 1.14 pounds
