[shortdesc] WiFi 4 802.11b/g/n, 2x Fast Ethernet ports, RutOS VPN support, Integrated DIN rail mount, 9–30V DC power [/shortdesc]

[properties]

Model	RUT140
Brand	Teltonika
Product Type	Industrial Ethernet Router
Wireless Standard	802.11b/g/n (Wi-Fi 4)
Wireless Modes	Access Point (AP), Station (STA)
Max Wi-Fi Users	Up to 50 simultaneous connections
Ethernet Ports	2 x RJ45 (1 x WAN, 1 x LAN), 10/100 Mbps
Routing Protocols	Static, BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
VPN Support	OpenVPN, IPsec, WireGuard, GRE, PPTP, L2TP, SSTP, Stunnel, DMVPN, Tinc, ZeroTier
Firewall Features	Port forwarding, NAT, NAT-T, NAT64, traffic rules, custom rules, DMZ
CPU	Mediatek, 580 MHz, MIPS 24KEC
RAM	128 MB DDR2
Flash Storage	16 MB serial NOR flash
Operating System	RutOS (OpenWrt-based Linux OS)
Power Input	9–30 VDC
PoE	Passive PoE (Mode B, 9–30 VDC via LAN1)
Power Consumption	Idle < 1 W, Max < 2 W
Antennas	1 x RP-SMA (Wi-Fi)
Mounting	Integrated DIN rail bracket, wall mount or flat surface (kit required)
Casing Material	Aluminium housing
Dimensions (W x H x D)	113.10 x 25 x 68.6 mm
Weight	142.3 g
Operating Temperature	-40 C to 75 C
Humidity	10% to 90% non-condensing
Ingress Protection	IP30
Certifications	CE, UKCA, RCM, FCC, IC, CB, WEEE, RoHS, REACH

[/properties]

[specifications]

Wi-Fi Security	WPA2-PSK, WPA3-SAE, WPA-EAP, WPA3-EAP, OWE, AES-CCMP, TKIP
Wireless Features	Mesh (802.11s), Fast roaming (802.11r), 802.11k/v, Relayd
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
Failover / Backup	Wi-Fi WAN, VRRP, wired failover
Load Balancing	Balance traffic over multiple WAN connections
QoS	Traffic prioritization, WMM, 802.11e, SQM
Hotspot	Captive portal, Radius (internal/external), SMS auth, SSO, walled garden
VPN Encryption	AES-128/192/256, DES, 3DES, GCM, CBC, CFB, OFB
Monitoring	Web UI, SNMP (v1, v2, v3), MQTT, TR-069, RMS, JSON-RPC
API	Teltonika Networks Web API (HTTP/HTTPS JSON-RPC)
Industrial Protocols	MODBUS TCP (Client/Server), OPC UA, DNP3, DLMS
Firmware Management	FOTA, Web UI, RMS remote update, configuration profiles
Power Connector	3-pin terminal block
LED Indicators	1 x WAN, 1 x LAN, 1 x Power
Reset Options	Reboot, user default reset, factory reset

[/specifications]

[accesories]

Included in the Box	RUT140 Router, 3-pin power connector, Quick Start Guide, Packaging box
Optional Accessories	Wall mount kit, Flat surface mounting kit

[/accesories]

Compact Industrial Router Built for Secure IoT Networking

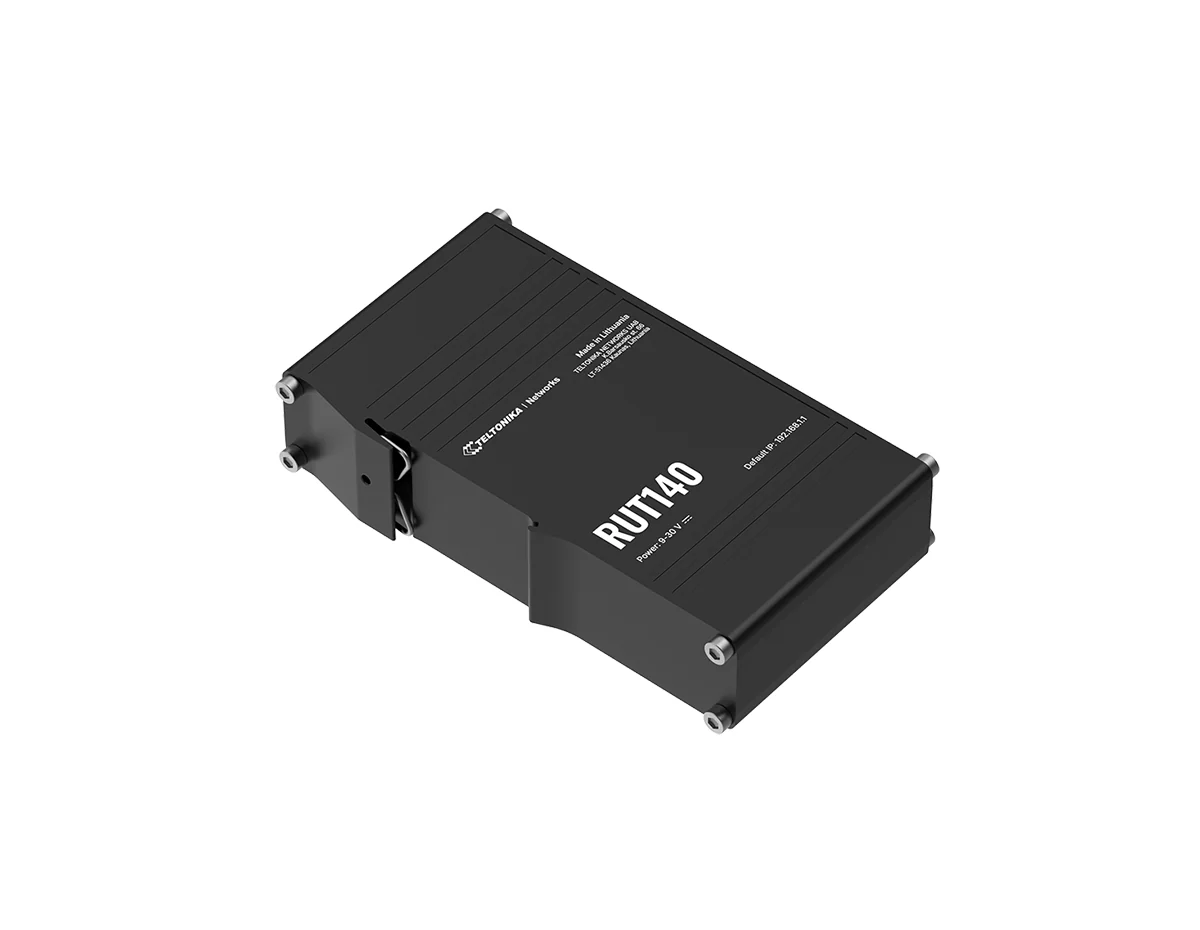

The Teltonika RUT140 is a compact industrial Ethernet router engineered for secure and reliable connectivity in demanding environments. Powered by RutOS, it delivers advanced routing, VPN, and firewall capabilities in a rugged form factor. Designed for IoT, industrial automation, and remote deployments, the RUT140 ensures stable network performance with flexible management and robust security features.

Key Benefits & Features

• Advanced RutOS Platform: Built on OpenWrt, RutOS enables extensive customization, protocol support (including Modbus, DNP3, and DLMS), and remote management via RMS.
• Secure VPN & Firewall: Supports OpenVPN, IPsec, WireGuard, Stunnel, and DMVPN with advanced firewall rules, DDoS protection, and VLAN segmentation.
• Reliable WiFi 4 Connectivity: 802.11b/g/n wireless supporting up to 50 simultaneous users, fast roaming (802.11r), and mesh capabilities (802.11s).
• Industrial Design & Mounting: Durable aluminium housing with an integrated DIN rail bracket ensures reliable operation in harsh industrial environments (-40 C to 75 C).
• Flexible Power Options: Wide 9–30V DC input range with reverse polarity and surge protection, plus passive PoE support on the LAN1 port.

Ideal Use Cases

• Industrial automation and factory floor connectivity
• Remote monitoring and IoT gateway deployments
• Smart city infrastructure and utility networks
• Secure branch or edge network connectivity
• Transportation and mobile networking applications

Technical Specifications

• Wireless Standard: WiFi 4 (802.11b/g/n), up to 50 clients
• Ethernet Ports: 1x WAN + 1x LAN, 10/100 Mbps (IEEE 802.3u compliant)
• CPU: Mediatek 580 MHz MIPS 24KEC processor
• RAM: 128 MB DDR2
• Storage: 16 MB serial NOR flash
• VPN Support: OpenVPN, IPsec, WireGuard, GRE, L2TP, PPTP, SSTP, Stunnel, DMVPN
• Power Input: 9–30V DC, passive PoE support (Mode B)
• Mounting: Integrated DIN rail bracket, wall or flat surface (kits available)
• Operating Temperature: -40 C to 75 C
• Dimensions: 113.10 x 25 x 68.6 mm

Secure Your Industrial Network Today

Upgrade your connectivity with the Teltonika RUT140 and ensure reliable, secure networking in any environment. Order today for fast deployment.
