[shortdesc] [/shortdesc] [properties]

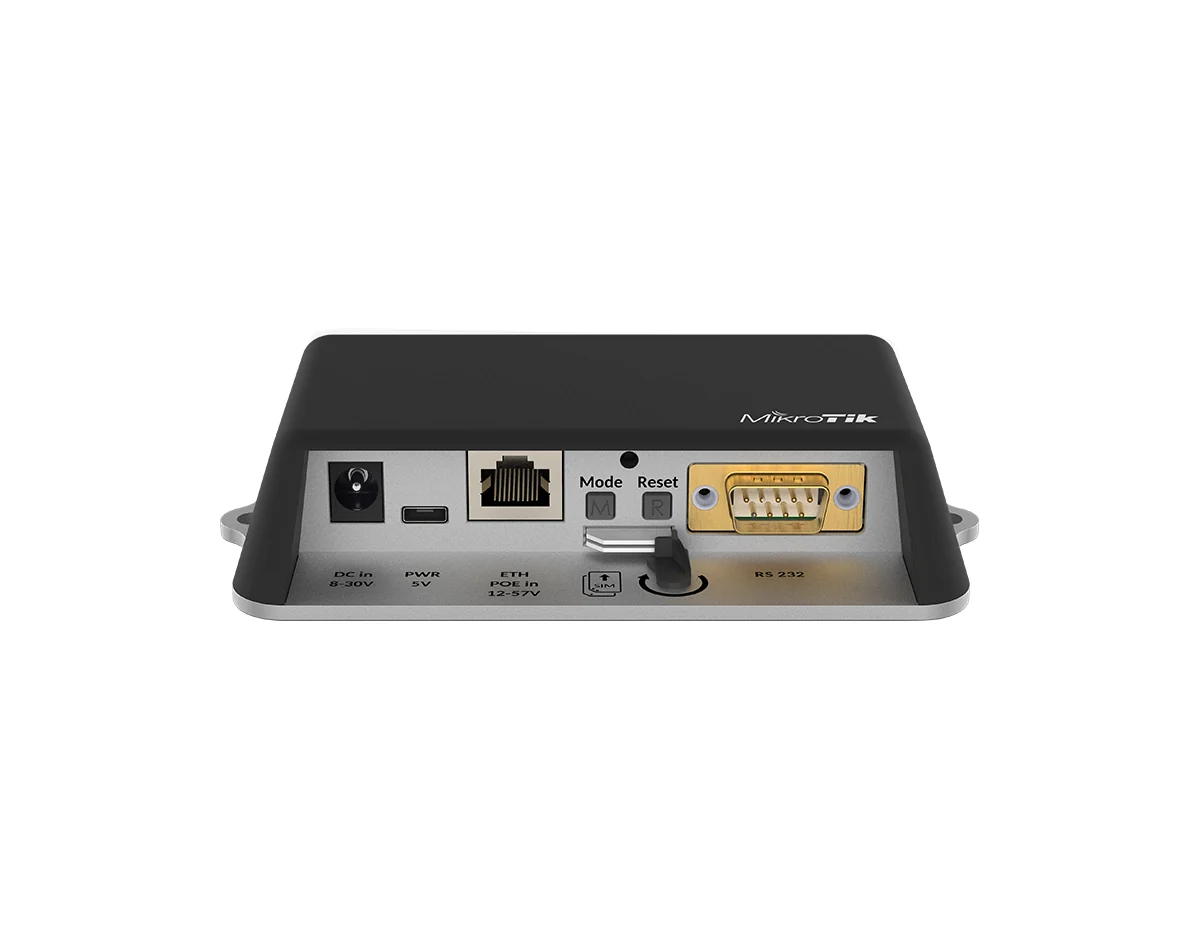

Properties	MikroTik RB912R-2nD-LTm Wireless Access Point
Description	The MikroTik RB912R-2nD-LTm is a compact 2.4 GHz wireless access point with a built-in LTE modem and GPS support. Ideal for IoT, transportation, and industrial applications.
Product Family	Mikrotik LtAP Mini-Series RouterBOARD
Product Type	Router
Key Features	• Compact 2.4 GHz wireless access point • Built-in LTE modem for mobile connectivity • GPS support for location-based applications • Ideal for IoT, transportation, and industrial use

[/properties] [specifications]

Specifications	MikroTik RB912R-2nD-LTm Wireless Access Point
Product code	RB912R-2nD-LTm
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Dimensions	139 x 77 x 28,5 mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Powering
MicroUSB input Voltage	5 V
Number of DC inputs	3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage	8-30 V
Max power consumption	9 W
Max power consumption without attachments	4 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	12-57 V
Wireless specifications
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.5
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
Ethernet
10/100 Ethernet ports	1
Peripherals
Number of SIM slots	2 Modem (Mini-SIM)
MiniPCI-e slots	1
Serial console port	RS232
Number of USB ports	1
USB Power Reset	Yes
USB slot type	micro USB type AB
Max USB current (A)	1
Other
Mode button	Yes
GNSS standards	GPS
GPS RF connector type	uUFL
Certification & Approvals
Certification	CE, FCC, IC, E-MARK, EAC, ROHS
IP	IP54
Wireless specifications (2.4 GHz)
1MBit/s	Transmit (dBm): 22 Receive Sensitivity: -96
11MBit/s	Transmit (dBm): 22 Receive Sensitivity: -89
6MBit/s	Transmit (dBm): 20 Receive Sensitivity: -93
54MBit/s	Transmit (dBm): 18 Receive Sensitivity: -74
MCS0	Transmit (dBm): 20 Receive Sensitivity: -93
MCS7	Transmit (dBm): 16 Receive Sensitivity: -71

[/specifications] [accesories] [/accesories]

The MikroTik RB912R-2nD-LTm is a member of the MikroTik LtAP mini-series. This series provides weatherproof wireless access points in various environmental conditions, including rain, snow, wind, and extreme temperatures. The product is enclosed in a special casing that protects internal components from the elements, making it ideal for outdoor installations in parks, streets, or other public areas, as well as for mobile applications in vehicles. The empty miniPCI-e slot on the device enables the use of your own LTE card, supporting various LTE bands suitable for global use, without the need for external modems.

Quick Specs:

• QCA9531, 1 core, 650MHz CPU
• 64MB RAM
• 1x 10/100 Ethernet port
• 1x miniPCI-e slot

Please see the related tabs for the RB912R-2nD-LTm datasheet and compatible accessories.
